DTC Advanced Diagnostics: P0453 (1.5L Engine)
DTC P0453: Fuel Tank Pressure (FTP) Sensor Circuit High Voltage
General Description

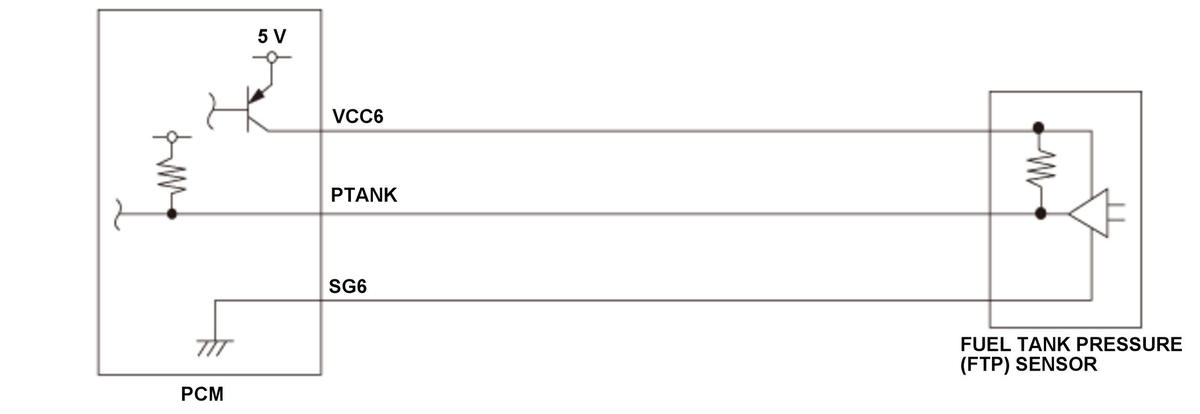

The fuel tank pressure (FTP) sensor is installed on the evaporative emission (EVAP) canister and detects the fuel tank pressure of the EVAP system. If the FTP sensor output voltage is a set value for a specified time, the powertrain control module (PCM) detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 5 seconds or more |
| DTC Type | Two drive cycles, MIL on |
Enable Conditions
| Condition | ||
|---|---|---|
| Vehicle | ON mode | |
Malfunction Threshold
The output from the FTP sensor [FTP Sensor Voltage] is 4.788 V or more for at least 5 seconds.
[ ]: HDS Parameter
Possible Cause
The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- FTP sensor PTANK line open
- FTP sensor SG6 line open
- FTP sensor failure
- PCM internal circuit failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC, the freeze data, and the on-board snapshot are stored.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
