DTC Advanced Diagnostics: P0222, P0223 (1.5L Engine)
DTC P0222: Throttle Position (TP) Sensor B Circuit Low Voltage DTC P0223: Throttle Position (TP) Sensor B Circuit High Voltage
General Description

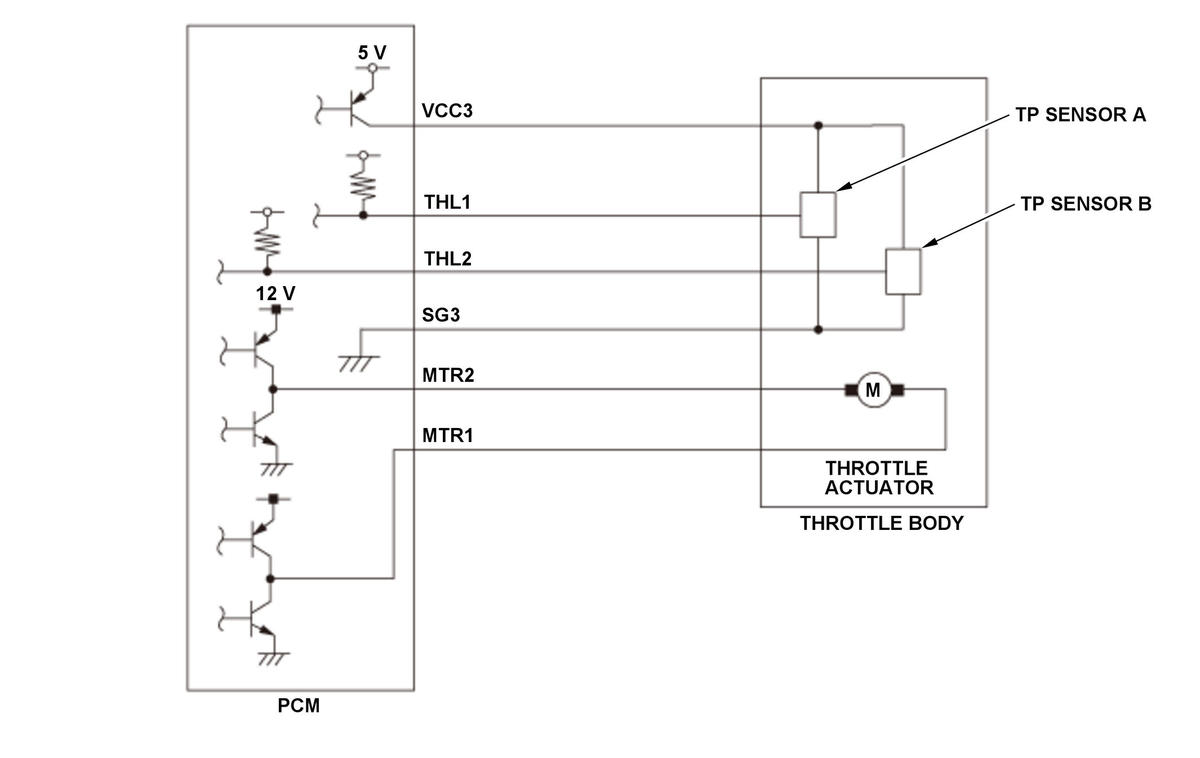

The electronic throttle control system controls the throttle valve opening. The system includes the throttle actuator, the throttle valve, throttle position (TP) sensors A and B, the PGM-FI subrelay, the accelerator pedal position (APP) sensor, and the powertrain control module (PCM). TP sensor B is a semiconductor type, and it is attached to the throttle body and shaft to determine throttle valve position. The throttle valve position signal from TP sensor B is transmitted to the PCM for target position feedback control. If the signal from TP sensor B is a fixed value for a set time, the PCM detects a TP sensor B malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 200 milliseconds or more |
| DTC Type | One drive cycle, MIL on |
Enable Conditions
| Condition | |
|---|---|
| Vehicle | ON mode |
Malfunction Threshold
DTC: P0222
The TP sensor B output voltage [TP Sensor B] is 0.3 V or less for at least 200 milliseconds.
DTC: P0223
The TP sensor B output voltage [TP Sensor B] is 4.8 V or more for at least 200 milliseconds.
[ ]: HDS Parameter
Possible Cause
The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
DTC: P0222
- TP sensor B THL2 line short to ground
- TP sensor B VCC3 line open
DTC: P0223
- TP sensor B THL2 line open
- TP sensor B SG3 line open
Common
- TP sensor B failure
- PCM internal circuit failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, the freeze data, and the on-board snapshot are stored in the PCM memory.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
