Valve Inspection (1.5L Engine): Inspection

How to use this service information .

1. Valve - Inspect

   Preconditions

   • Valve Removed - Refer to: Cylinder Head/Camshaft Area (2.0L Engine) (2024 2025) or Cylinder Head/Camshaft Area (1.5L Engine)

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

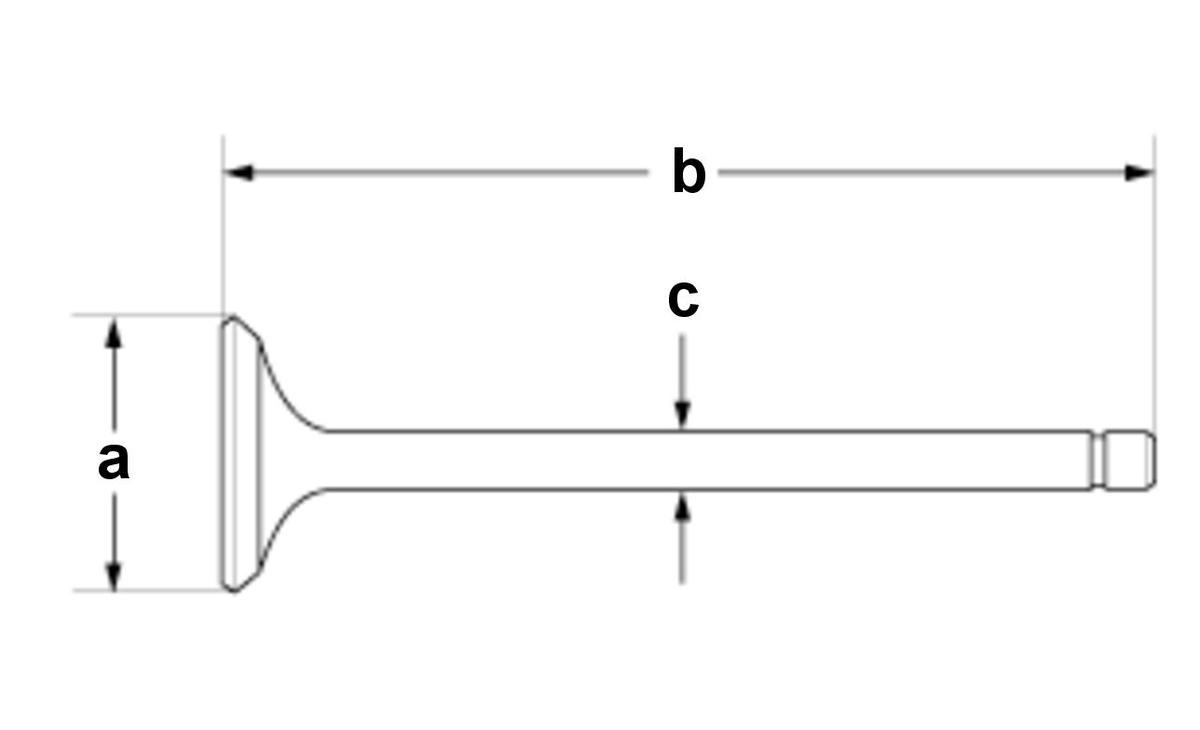

   • Measure the valve in these areas.

   Specifications

   		Standard Value (New)	Service Limit
   a	Intake	27.90-28.10 mm (1.0984-1.1063 in)	-
   	Exhaust	22.90-23.10 mm (0.9016-0.9094 in)	-
   b	Intake	99.15-99.65 mm (3.9035-3.9232 in)	-
   	Exhaust	98.80-99.20 mm (3.8898-3.9055 in)	-
   c	Intake	5.48-5.49 mm (0.2157-0.2161 in)	5.45 mm (0.2146 in)
   	Exhaust	5.45-5.46 mm (0.2146-0.2150 in)	5.42 mm (0.2134 in)

   Result

   • If the measurement is not within specifications, replace the valve.
