VTC Actuator Inspection: Inspection

How to use this service information .

1. VTC Actuator A and VTC Actuator B - Inspect

   Preconditions

   • VTC Actuator with Camshaft Removed - Refer to: Cylinder Head/Camshaft Area (2.0L Engine) (2024 2025) or Cylinder Head/Camshaft Area (1.5L Engine)
   • VTC actuator A/B is locked by turning it.

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

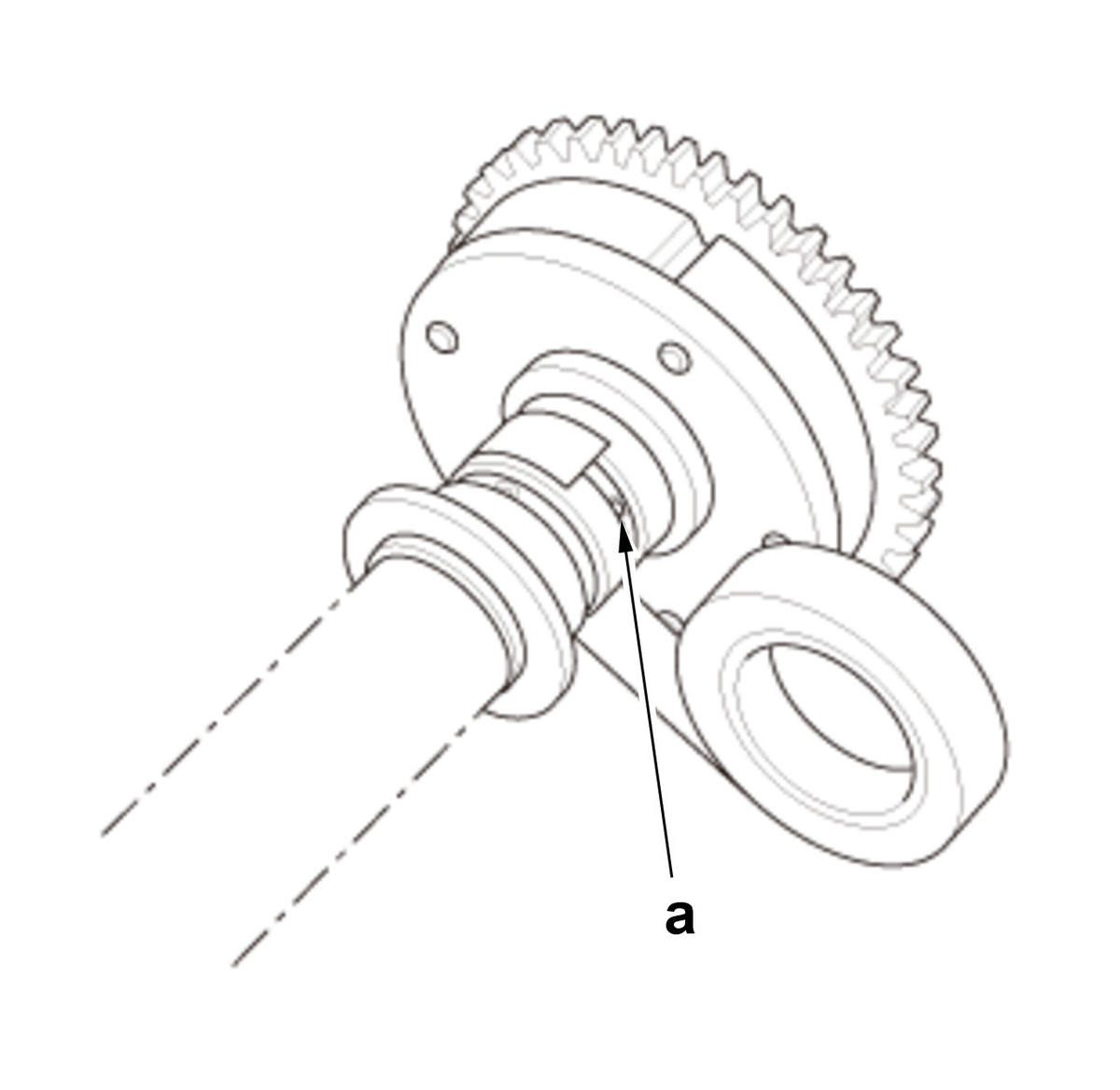

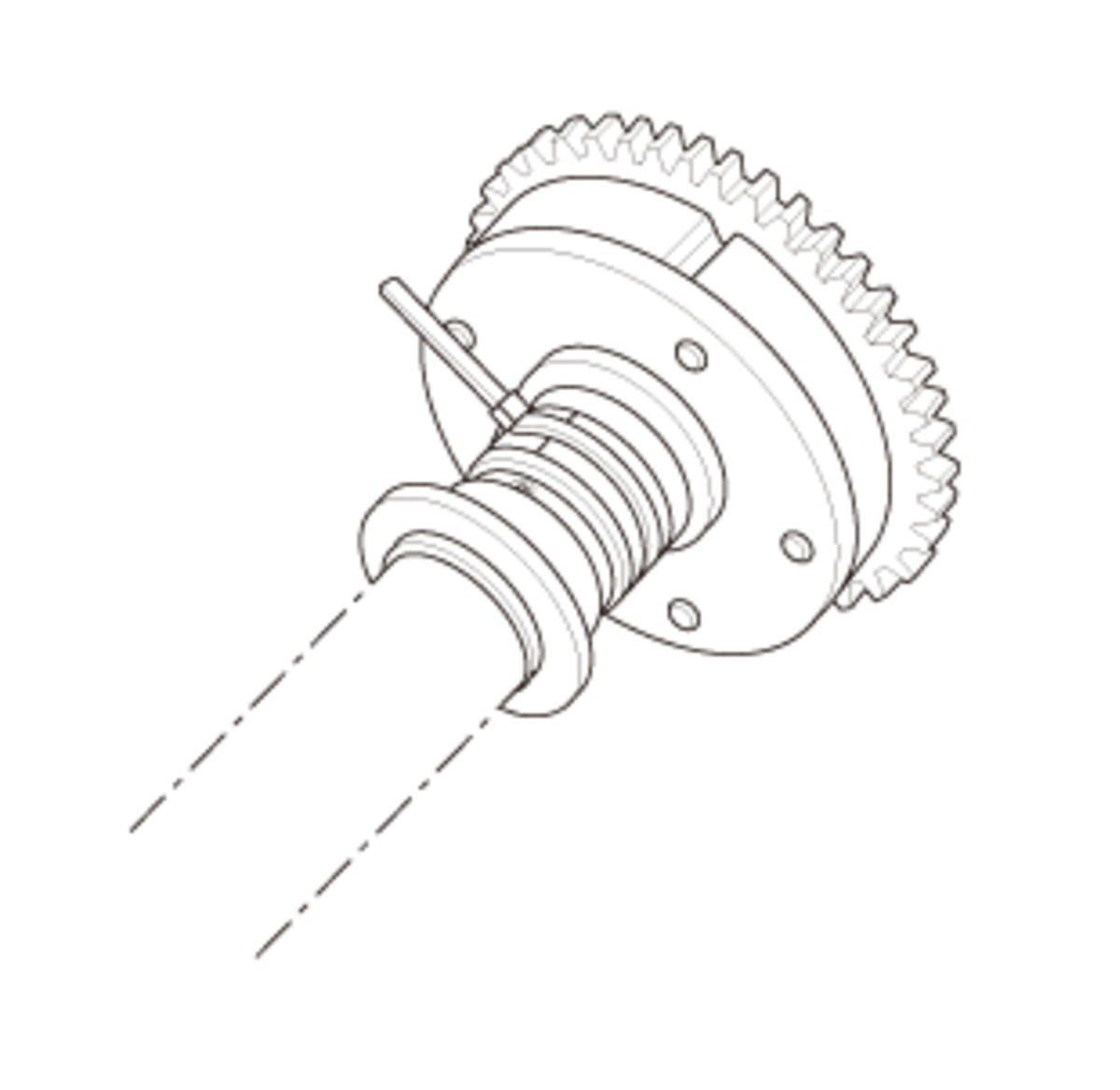

   1. Seal the retard/advance holes (a) of the intake/exhaust camshaft with tape and a zip tie. (Figure 1 and 2)

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

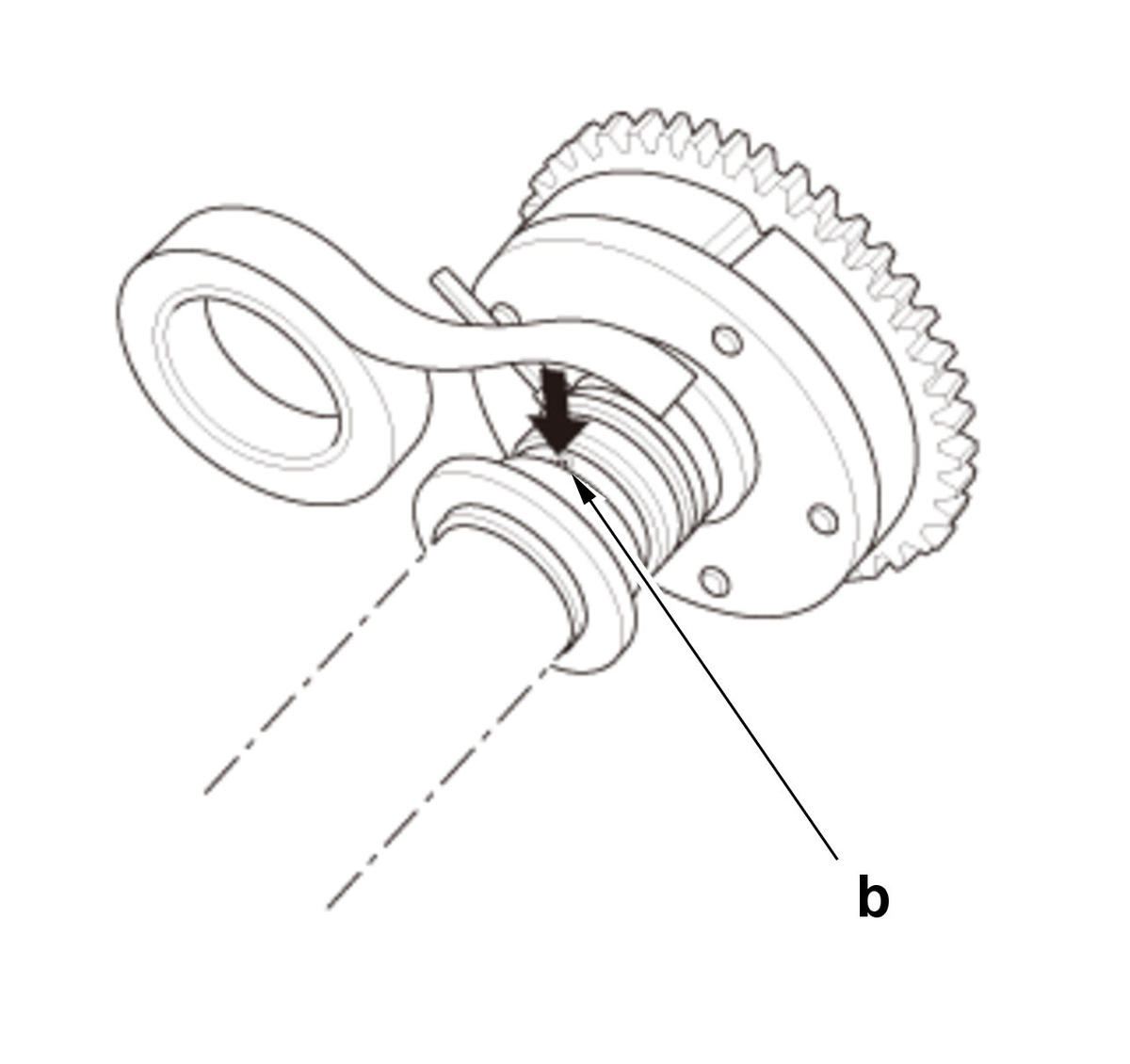

   2. Seal one of the advance/retard holes (b) of the intake/exhaust camshaft with tape. (Figure 3)

   Figure 4

   Courtesy of HONDA, U.S.A., INC.

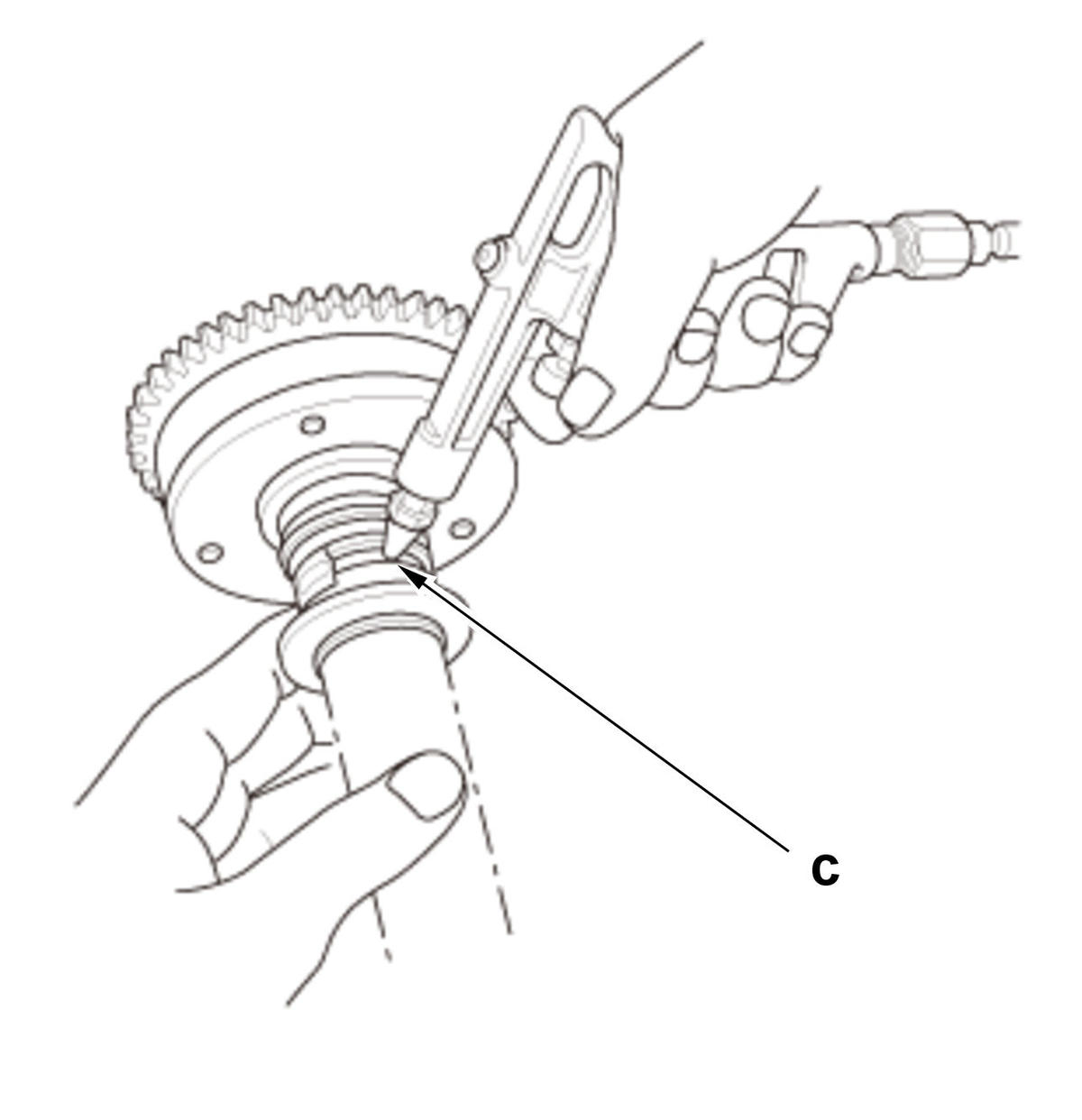

   3. Apply air to the unsealed advance/retard hole (c) to release the lock. (Figure 4)

   Figure 5

   Courtesy of HONDA, U.S.A., INC.

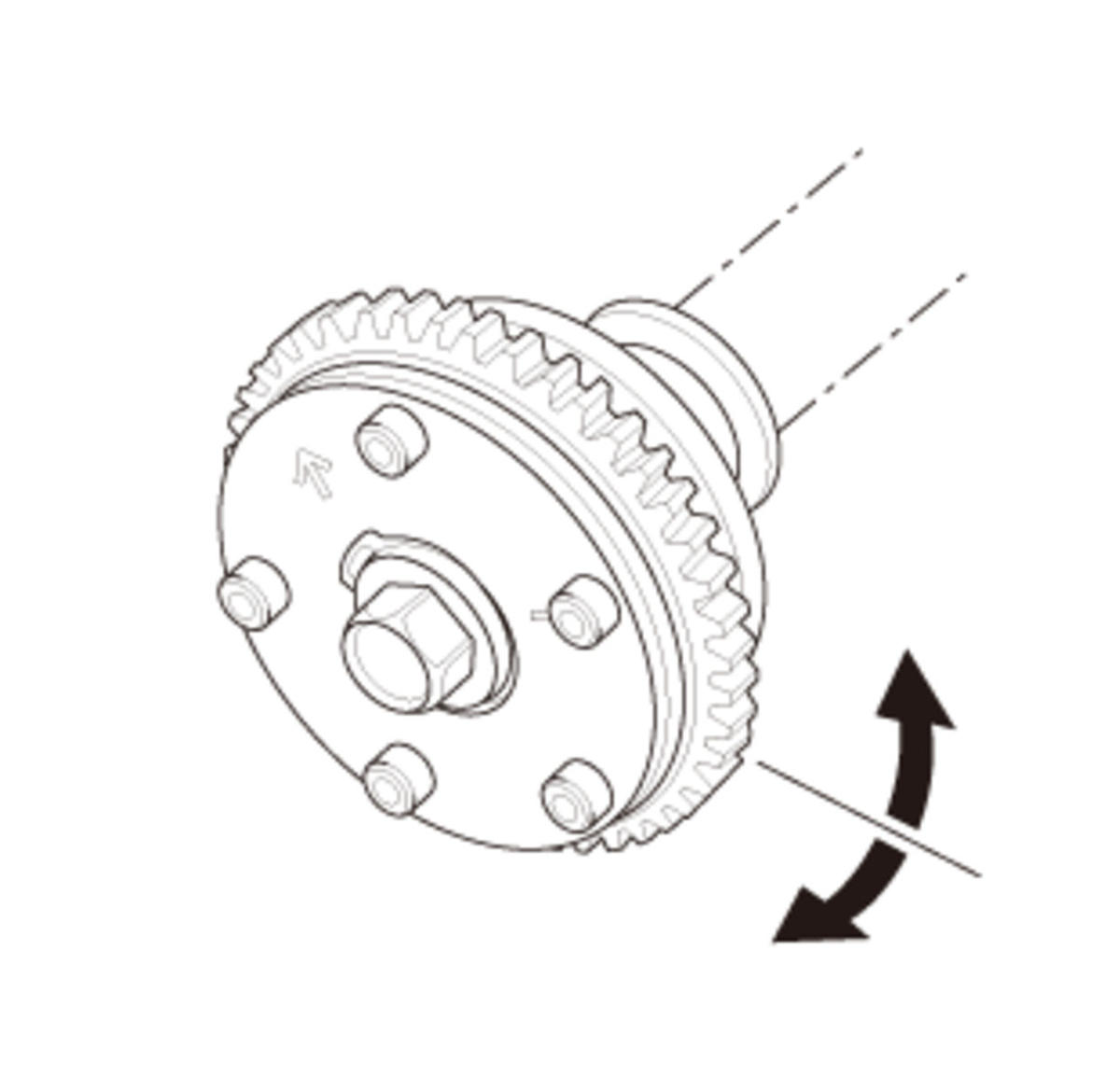

   4. Check that VTC actuator A/B moves smoothly. (Figure 5)

   NOTE:

   Turn VTC actuator B by hand while applying air.

   Specifications

   Specification
   VTC actuator moves smoothly

   5. VTC actuator A: Turn VTC actuator A clockwise until you hear it click. Make sure to lock VTC actuator A by turning it. VTC actuator B: Check that VTC actuator B is locked by turning it.

   Specifications

   Specification
   VTC actuator is locked

   Result

   • If it is abnormal, replace VTC actuator A/B - Refer to: Cylinder Head/Camshaft Area (2.0L Engine) (2024 2025) or Cylinder Head/Camshaft Area (1.5L Engine) .

   After Inspection

   • Remove the zip tie, the tape, and the adhesive residue from the camshaft journal.
