Windshield Wiper Control Unit/Motor Connector for Inputs and Outputs

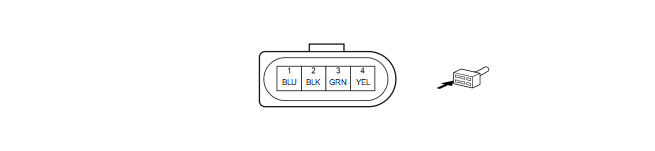

Windshield Wiper Control Unit/Motor Connector (4P) (female terminals)
| Terminalnumber | Terminal name | Description |
|---|---|---|
| 1 | +B_WIPER | Power source for windshield wiper control unit/motor |
| 2 | GND | Ground for windshield wiper control unit/motor |
| 3 | BACK_UP (WIPER) | Detects BACK_UP (WIPER) line |
| 4 | LIN (FR_WIPER) | Communication line |
