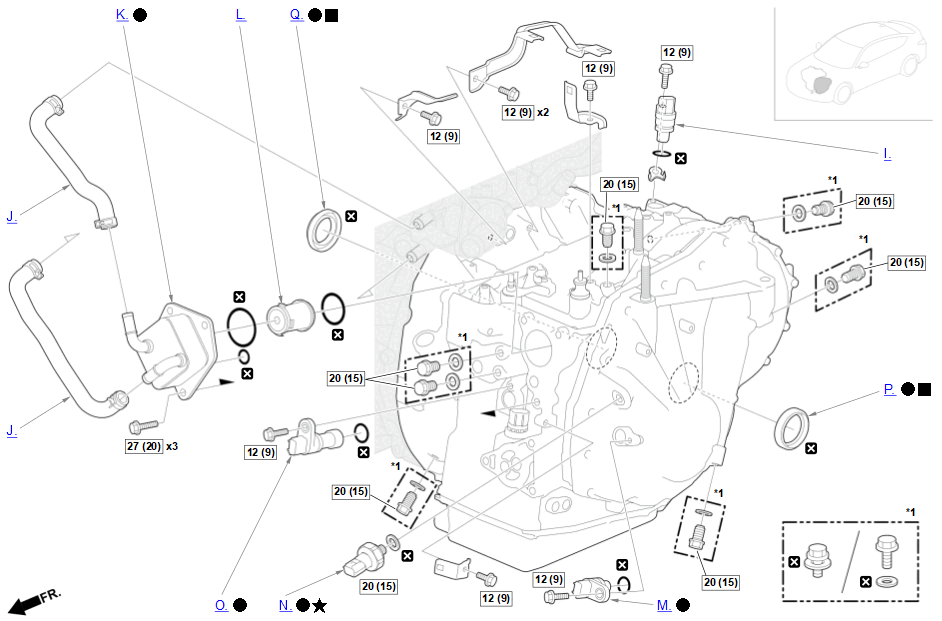

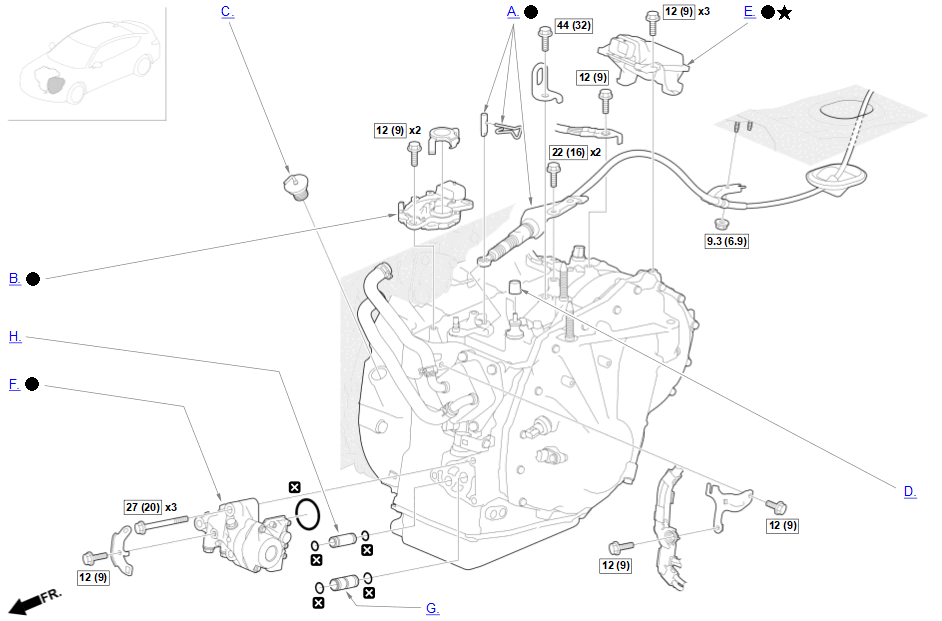

Repair Procedure
How to use this service information .
NOTICE:
Keep all foreign particles out of the transmission.
: Torque, N.m (lbf.ft)
: Replace
: Warning/Caution
: Inspection/Adjustment
*: Learning
: SPL Tool
: Required Removal
: Torque, N.m (lbf.ft)
: Replace
: Warning/Caution
: Inspection/Adjustment
*: Learning
: SPL Tool
: Required Removal
*1: 2 types
: Torque, N.m (lbf.ft)
: Replace
: Warning/Caution
: Inspection/Adjustment
*: Learning
: SPL Tool
: Required Removal
: Torque, N.m (lbf.ft)
: Replace
: Warning/Caution
: Inspection/Adjustment
*: Learning
: SPL Tool
: Required Removal
: Torque, N.m (lbf.ft)
: Replace
: Warning/Caution
: Inspection/Adjustment
*: Learning
: SPL Tool
: Required Removal
- A.-
Key Information
Do the following before starting your work.
Remove:
- Air Cleaner Housing Assembly - Refer to: Air Cleaner Area (1.5L Engine) or Air Cleaner Area (2.0L Engine) (2024 2025)
- Intercooler Outlet Pipe B - Refer to: Intercooler Area (1.5L Engine) or Intercooler Area (2.0L Engine) (2024 2025)
- Floor Heat Baffle Plate A - Refer to: Exhaust Pipe/Muffler Area (2.0L Engine) (2024 2025) or Exhaust Pipe/Muffler Area (1.5L Engine)
Sub-Procedure
NOTICE:
Do not bend the shift cable excessively.
Figure 1
■ Installation

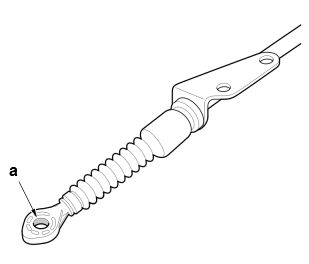

1. Apply specified grease to inner surface of hole.
Lubricant Specifications (Figure 1)
Position Type a Molybdenum Grease Figure 2

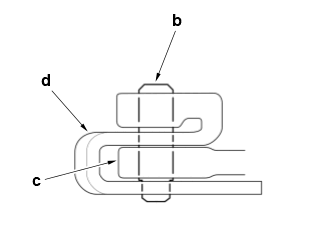

2. Install the control pin (b). (Figure 2)
NOTICE: Make sure the control pin is inserted through the shift cable end (c) and fully seated on the control lever (d). (Figure 2)
Figure 3

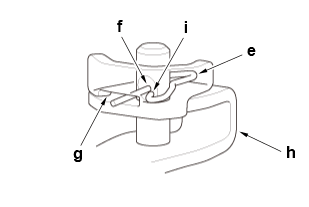

3. Install the lock pin (e). (Figure 3)
NOTICE: Make sure the lock pin is inserted through the control pin hole (f) to the opening (g) of the control lever (h) so that the hook end (i) of the lock pin locks into the control pin hole. (Figure 3)
After Installation
1. Shift Cable Adjustment
2. Shift Cable After Install Check
Turn the vehicle to the ON mode.
-2. Move the shift lever to each position/mode, and check that the shift position indicator follows the shift lever operation.
-3. Shift the transmission to P position/mode, and check that the shift lock works properly.
-4. Push the shift lock release, and check that the shift lever releases. Also check that the shift lever locks when it is shifted back to P position/mode.
-5. Start the engine.
NOTE:Check that the engine starts in P or N position/mode, and does not start in any other positions/modes.
-6. Make sure the vehicle is turned to the OFF (LOCK) mode with the shift lever in P position/mode. If it is not, adjust the shift cable again.
- B.-
Preconditions
- Parking Brake Applied
- Transmission N Position/Mode
Key Information
Do the following before starting your work.
Remove:
- Air Cleaner Housing Assembly - Refer to: Air Cleaner Area (1.5L Engine) or Air Cleaner Area (2.0L Engine) (2024 2025)
- Intercooler Outlet Pipe B - Refer to: Intercooler Area (1.5L Engine) or Intercooler Area (2.0L Engine) (2024 2025)

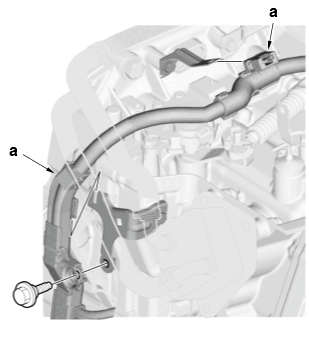

- Harness Cover (a) Removed (Figure 1)
Figure 1
Sub-Procedure
■ Installation
1. Make sure the vehicle is in the N position. If it is not, shift the transmission to N position/mode.
NOTICE: Do not use the control shaft (b) to adjust the shift position. If the control shaft tips are squeezed together, it will cause a faulty signal or position due to play between the control shaft and the transmission range switch. (Figure 2)
Figure 2

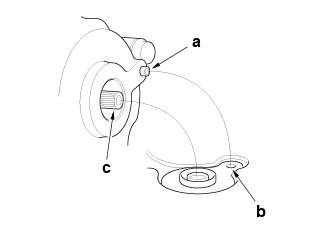

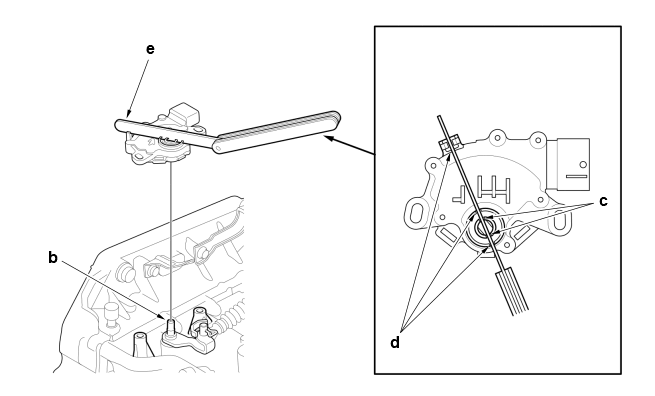

2. Set the transmission range switch to the N position. Align the cutouts (c) on the rotary-frame with the N positioning cutouts (d) on the transmission range switch, then put a feeler gauge (e) in the cutouts to hold the transmission range switch in the N position. (Figure 2)
Tool Details (Figure 2)
Name e Feeler Gauge NOTICE:
Be sure to use a 2.0 mm (0.079 in) feeler gauge blade or equivalent to hold the transmission range switch in the N position.
3. Install the transmission range switch gently on the control shaft while holding it in the N position with a feeler gauge.
NOTICE: Do not move the transmission range switch when installing it.
4. Remove the feeler gauge.
After Installation
- Transmission Range Switch After Install Check
-
- Turn the vehicle to the ON mode.
- Move the shift lever to each position/mode, and check that the shift position indicator follows the shift lever operation.
- Start the engine.NOTE:
Check that the engine starts in P or N position/mode, and does not start in any other positions/modes.
- Check that the back-up lights come on when the transmission is in R position/mode.
- C.-
Sub-Procedure
■ Installation

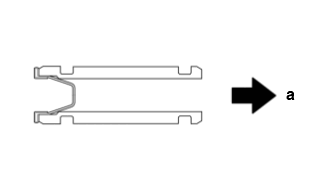

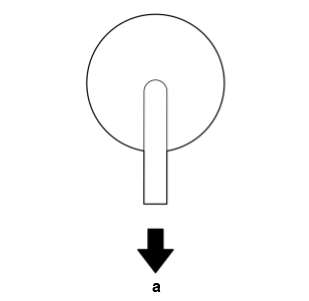

Installation Directions

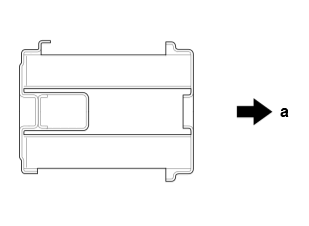

Position Direction a Front - D.-
Key Information
Do the following before starting your work.
Remove:
- Air Cleaner Housing Assembly - Refer to: Air Cleaner Area (1.5L Engine) or Air Cleaner Area (2.0L Engine) (2024 2025)
- E.-
Preconditions
Key Information
Do the following before starting your work.
Remove:
Sub-Procedure
■ Removal
1. Turn the vehicle to the OFF (LOCK) mode.
2. Jump the SCS line with the HDS, and wait more than 1 minute.
NOTICE: This step must be done to protect the TCM from damage.
3. Remove the TCM.
After Installation
Procedure After Replacing TCM
1. Electric Oil Pump Air Bleeding - Refer to: Electric Oil Pump Air Bleeding (CVT) or Electric Oil Pump Test (CVT) 2. Transmission Fluid Level Check 3. TCM Update - Refer to: TCM Update (CVT) or TCM Reset (CVT)
- F.-
Preconditions
Key Information
Do the following before starting your work.
Remove:
- Undercover Area Parts - Refer to: Undercover Area (Type-S) (2024 2025) or Undercover Area (Except Type-S)
-
- -
Engine Undercover Plate
- -
Engine Undercover Lid
- -
Sub-Procedure
■ Installation
Lubricant Specifications
Object Type O-Ring Transmission Fluid After Installation
1. Electric Oil Pump Air Bleeding - Refer to: Electric Oil Pump Air Bleeding (CVT) or Electric Oil Pump Test (CVT) 2. Transmission Fluid Level Check
- G.-
Sub-Procedure
■ Installation
Installation Directions

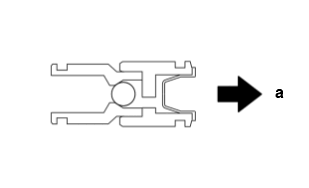

Position Direction a Transmission Side Lubricant Specifications
Object Type O-Ring Transmission Fluid - H.-
Sub-Procedure
■ Installation
Installation Directions
Position Direction a Transmission Side Lubricant Specifications
Object Type O-Ring Transmission Fluid - I.-
Key Information
Do the following before starting your work.
Remove:
Sub-Procedure
■ Installation
Lubricant Specifications
Object Type O-Ring Transmission Fluid - J.-
Preconditions
- Engine Coolant Drained - Refer to: Coolant Replacement (2.0L Engine) (2024 2025) or Coolant Check (2.0L Engine) (2024 2025) or Coolant Check (1.5L Engine) or Coolant Replacement (1.5L Engine)
Key Information
Do the following before starting your work.
Remove:
- Air Cleaner Area Parts - Refer to: Air Cleaner Area (1.5L Engine) or Air Cleaner Area (2.0L Engine) (2024 2025)
-
- -
Air Cleaner Housing Assembly
- -
Air Flow Tube
- -
Sub-Procedure
NOTICE:
When disconnecting/connecting the hose, do not bend the pipe excessively or it will be damaged or deformed.
Figure 1
■ Removal

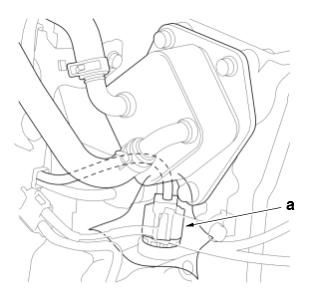

- To prevent damage, cover the connector (a) located under the CVTF warmer using a shop towel. (Figure 1)
Figure 2
■ Installation

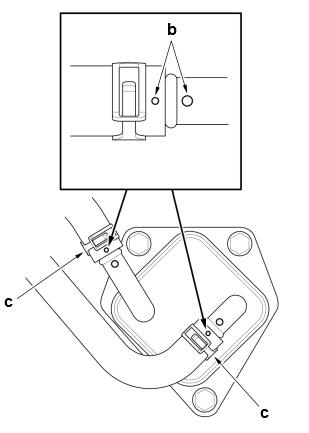

- Connect the hoses while aligning the paint marks (b) as shown. (Figure 2)
NOTICE:
When securing the clamps (c), make sure they do not interfere with the surrounding parts. (Figure 2)
After Installation
- Engine Coolant Refill - Refer to: Coolant Replacement (2.0L Engine) (2024 2025) or Coolant Check (2.0L Engine) (2024 2025) or Coolant Check (1.5L Engine) or Coolant Replacement (1.5L Engine)
- K.-
Sub-Procedure
NOTICE:
The CVTF warmer is an aluminum part. Be careful not to damage the CVTF warmer.
■ Installation
Lubricant Specifications

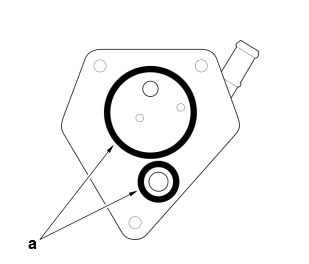

Object Type O-Ring Transmission Fluid NOTICE:
Make sure the O-rings (a) are firmly installed in the grooves.
After Installation
- L.-
Sub-Procedure
■ Removal
- Clean the CVTF warmer strainer if necessary. Replace the CVTF warmer strainer, if it is clogged or damaged.
■ Installation
Installation Directions
Position Direction a Transmission Side Lubricant Specifications
Object Type O-Ring Transmission Fluid - M.-
Key Information
Do the following before starting your work.
Remove:
- Air Cleaner Housing Assembly - Refer to: Air Cleaner Area (1.5L Engine) or Air Cleaner Area (2.0L Engine) (2024 2025)
Sub-Procedure
■ Installation
Lubricant Specifications
Object Type O-Ring Transmission Fluid After Installation
- N.-
Key Information
Do the following before starting your work.
Remove:
- Air Cleaner Housing Assembly - Refer to: Air Cleaner Area (1.5L Engine) or Air Cleaner Area (2.0L Engine) (2024 2025)
Sub-Procedure
■ Removal/Installation
NOTICE:
Be careful not to damage the plastic part.
After Installation
1. Transmission Fluid Level Check
2. CVT Learning Value Reset (Only for Replacing CVT Driven Pulley Pressure Sensor) - Refer to: CVT Learning Value Reset (CVT) or CVT Road Test (CVT) or Stall Speed Test (CVT)
NOTE:This procedure is not required, if the CVT driven pulley pressure sensor and the TCM are replaced simultaneously.
- O.-
Key Information
Do the following before starting your work.
Remove:
- Air Cleaner Housing Assembly - Refer to: Air Cleaner Area (1.5L Engine) or Air Cleaner Area (2.0L Engine) (2024 2025)
Sub-Procedure
■ Installation
Lubricant Specifications
Object Type O-Ring Transmission Fluid After Installation
- P.-
Preconditions
Key Information
Do the following before starting your work.
Disconnect:
- Left Driveshaft Inboard Joint - Refer to: Front Driveshaft Removal and Installation (Except Type-S) or Front Driveshaft Removal and Installation (Type-S) (2024 2025)
Sub-Procedure
■ Installation
Lubricant Specifications

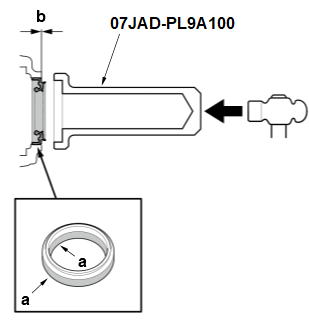

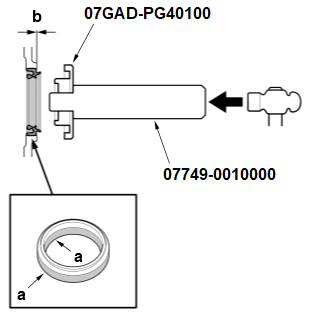

Position Type a Transmission Fluid Specifications
Specification b Flush with Housing After Installation
2. Electric Oil Pump Air Bleeding - Refer to: Electric Oil Pump Air Bleeding (CVT) or Electric Oil Pump Test (CVT) 3. Transmission Fluid Level Check
- Q.-
Preconditions
Key Information
Do the following before starting your work.
Remove:
- Intermediate Shaft - Refer to: Front Suspension Area (Except Type-S) or Front Suspension Area (Type-S) (2024 2025)
Sub-Procedure
■ Installation
Lubricant Specifications
Position Type a Transmission Fluid Specifications
Specification b Flush with Housing After Installation
2. Electric Oil Pump Air Bleeding - Refer to: Electric Oil Pump Air Bleeding (CVT) or Electric Oil Pump Test (CVT) 3. Transmission Fluid Level Check
- R.-
Preconditions
Key Information
Do the following before starting your work.
Remove:
- Engine Undercover Plate - Refer to: Undercover Area (Type-S) (2024 2025) or Undercover Area (Except Type-S)
Sub-Procedure
■ Installation
- Remove metal particles from the magnetic surface of the drain plug.
After Installation
2. Electric Oil Pump Air Bleeding - Refer to: Electric Oil Pump Air Bleeding (CVT) or Electric Oil Pump Test (CVT) 3. Transmission Fluid Level Check
- S.-NOTE:
The actual transmission fluid (HCF-2) capacity will vary from the specified capacity based on the length of time the transmission fluid pan is off the transmission. Avoid leaving the transmission fluid pan off for extend periods of time.
Preconditions
Key Information
Do the following before starting your work.
Remove:
- Engine Undercover Plate - Refer to: Undercover Area (Type-S) (2024 2025) or Undercover Area (Except Type-S)
Sub-Procedure
■ Installation
NOTICE:
- Be careful not to pinch solenoid wire harness A and B.
- Tighten the bolts in a crisscross pattern in at least two steps.
After Installation
2. Electric Oil Pump Air Bleeding - Refer to: Electric Oil Pump Air Bleeding (CVT) or Electric Oil Pump Test (CVT) 3. Transmission Fluid Level Check
- T.-
Sub-Procedure
■ Removal

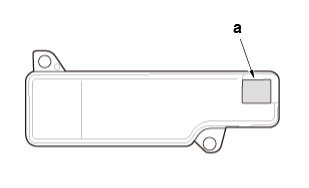

1. Clean the inlet opening (a) of the transmission fluid strainer thoroughly with compressed air, then check that it is in good condition and that the inlet opening is not clogged.
2. Check the transmission fluid strainer for clogs, debris, or damage. If the strainer is clogged or damaged, replace it.
■ Installation
- Install the transmission fluid strainer straightly to avoid damaging the O-ring.
Lubricant Specifications
Object Type O-Ring Transmission Fluid NOTICE:
Be careful not to pinch solenoid wire harness A and B.
- U.-
Sub-Procedure
■ Installation
Lubricant Specifications
Object Type O-Ring Transmission Fluid - V.-NOTE:
The valve body assembly and the following parts are not available separately. Replace them as a set.
- CVT drive pulley pressure control solenoid valve
- CVT driven pulley pressure control solenoid valve
- CVT clutch pressure control solenoid valve
- CVT lock-up clutch control solenoid valve
- Shift solenoid valve B
- Solenoid wire harness B
Key Information
Do the following before starting your work.
Remove:
- Engine Undercover - Refer to: Undercover Area (Type-S) (2024 2025) or Undercover Area (Except Type-S)
- Transmission Area Parts
-
- -
Delivery Pipe
- -
10.9 x 31.5 mm Pipe
- -
Sub-Procedure
Figure 1
■ Removal

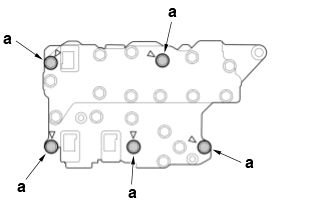

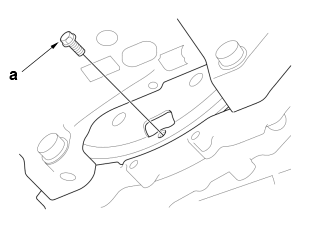

- Remove the appropriate bolts (a) as shown. (Figure 1)
NOTICE:
- Check that the valve body assembly is free of solenoid wire harness A.
- Be careful not to damage solenoid wire harness A.
Figure 2
■ Installation

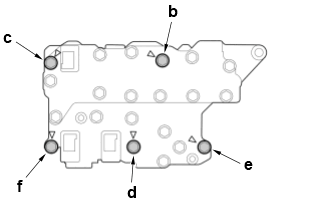

Installation Information (Figure 2)
Size b 90 mm (3.54 in) c 80 mm (3.15 in) d 65 mm (2.56 in) e 55 mm (2.17 in) Size f 40 mm (1.57 in) NOTICE:
Be careful not to pinch solenoid wire harness A and B.
After Installation
- CVT Learning Value Reset (Only for Replacing Valve Body Assembly) - Refer to: CVT Learning Value Reset (CVT)
or CVT Road Test (CVT)
or Stall Speed Test (CVT)NOTE:
This procedure is not required, if the valve body assembly and the TCM are replaced simultaneously.
- W.-
Sub-Procedure
Figure 1
Figure 2 (Joint Pipe)
■ Installation
- Install the pipes at the appropriate points as shown.
Lubricant Specifications

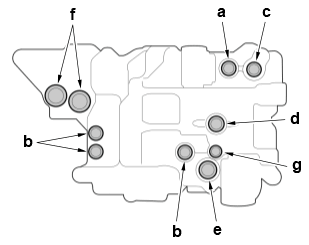

Object Type O-Ring Transmission Fluid Installation Information (Figure 1)
Name a 8 x 133.5 mm Pipe b 10.9 x 18.5 mm Pipe c 10.9 x 26 mm Pipe d 12 x 56.7 mm Pipe e 14.3 x 36.2 mm Pipe f 18 x 18 mm Pipe g Joint Pipe Installation Directions (Figure 2)
Object Position Direction Joint Pipe h Transmission Side NOTICE:

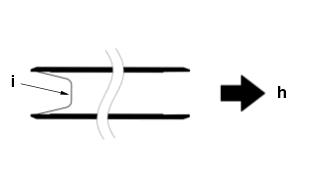

- Be careful not to drop the filter (i) of the joint pipe. (Figure 2)
- You can install the 12 x 56.7 mm pipe and the 14.3 x 36.2 mm pipe regardless of there direction.
- X.-NOTE:
Solenoid wire harness A and the transmission fluid temperature sensor are not available separately. Replace them as a set.
Sub-Procedure
Figure 1
■ Removal

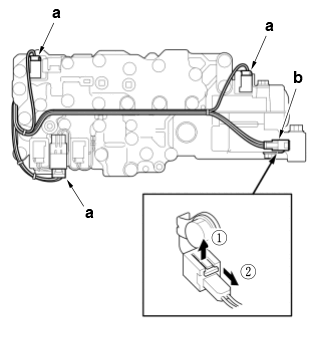

1. Disconnect the connectors (a). (Figure 1)
2. Remove the transmission fluid temperature sensor (b). (Figure 1)
Figure 2
■ Installation
- Install the solenoid wire harness A connector straightly to avoid damaging the O-ring.
Lubricant Specifications
Object Type O-Ring Transmission Fluid NOTICE:

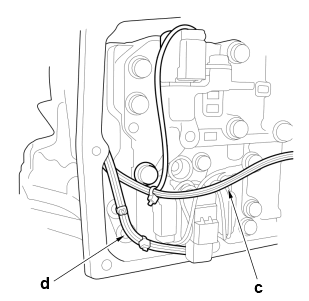

Make sure each branch of solenoid wire harness A goes through the appropriate location, especially as shown, one (c) must be located to the inside from the other (d). (Figure 2)
- Y.-

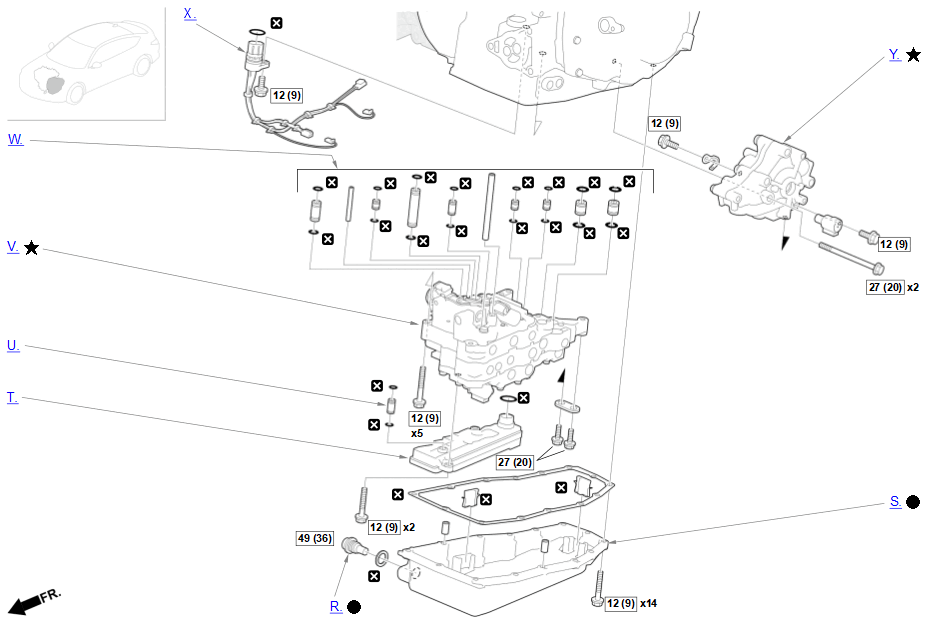

Sub-Procedure
■ Installation
- Install the transmission fluid pump by aligning the guide pin (a) with the guide hole (b).
Lubricant Specifications
Position Type c Transmission Fluid After Installation
- CVT Learning Value Reset (Only for Replacing Transmission Fluid Pump) - Refer to: CVT Learning Value Reset (CVT)
or CVT Road Test (CVT)
or Stall Speed Test (CVT)NOTE:
This procedure is not required, if the transmission fluid pump and the TCM are replaced simultaneously.
- Z.-
Key Information
Do the following before starting your work.
Remove:
- Engine Undercover Plate - Refer to: Undercover Area (Type-S) (2024 2025) or Undercover Area (Except Type-S)
- Air Cleaner Area Parts - Refer to: Air Cleaner Area (1.5L Engine) or Air Cleaner Area (2.0L Engine) (2024 2025)
-
- -
Air Cleaner Housing Assembly
- -
Powertrain Control Module (PCM)
- -
- 12 Volt Battery Base Bracket
Move:
Sub-Procedure
■ Removal

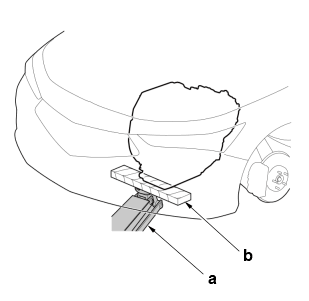

- Lift and support the transmission with a floor jack (a) and a wood block (b).
Tool Details
Name a Floor Jack (Commercially Available) ■ Installation
- Do the mount tightening procedure - Refer to: Engine Mount Tightening Procedure (M/T) or Engine Mount Tightening Procedure (CVT) before tightening all of the mount bolts and nuts.
- AA.-
Preconditions
Key Information
Do the following before starting your work.
Remove:
- Engine Undercover Plate - Refer to: Undercover Area (Type-S) (2024 2025) or Undercover Area (Except Type-S)
- AB.-
Preconditions
- Vehicle Lifted
- Engine Support Hanger Installed - Refer to: Engine Support Hanger Installation (2.0L Engine) (2024 2025) or Engine Support Hanger Installation (1.5L Engine)
- Transmission Fluid Drained
Key Information
NOTE:For the removal and installation procedure, refer to Transmission Removal and Installation and the sub-procedure below.
Sub-Procedure
NOTICE:
Use fender covers to avoid damaging painted surfaces.
Figure 1
■ Removal
1. Remove eight bolts (a) while rotating the crankshaft pulley. (Figure 1)
Figure 2
2. Check that the transmission is free of hoses and electrical wiring.

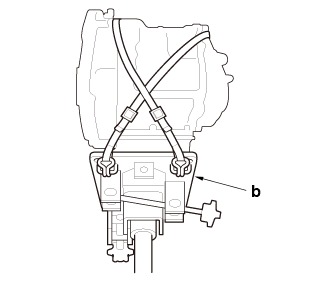

3. Hold the transmission as shown. (Figure 2)
Tool Details (Figure 2)
Name b Transmission Jack (Commercially Available) 4. Remove the transmission carefully.
NOTICE: Be careful not to drop the torque converter.
After Installation
1. Shift Cable Adjustment
2. Transmission Fluid Refill
3. Electric Oil Pump Air Bleeding
4. Transmission Fluid Level Check
5. Transmission After Install Check
Make sure all four wheels to rotate freely.
-2. Turn the vehicle to the ON mode.
-3. Move the shift lever to each position, and check that the shift position indicator follows the shift lever operation.
-4. Start the engine.
NOTE:Check that the engine starts in P or N position/mode, and does not start in any other positions/modes.
-5. Check the shift lever operation.
-6. Make sure the vehicle is turned to the OFF (LOCK) mode with the shift lever in P position/mode. If it is not, adjust the shift cable again.
6. CVT Learning Value Reset (Only for Replacing Transmission) - Refer to: CVT Learning Value Reset (CVT) or CVT Road Test (CVT) or Stall Speed Test (CVT)
NOTE:This procedure is not required, if the transmission and the TCM are replaced simultaneously.
7. Front Wheel Alignment Check
8. VSA Sensor Neutral Position Memorization - Refer to: VSA Modulator-Control Unit Update or VSA Sensor Neutral Position Memorization 9. Vehicle Road Test - Refer to: CVT Learning Value Reset (CVT) or CVT Road Test (CVT) or Stall Speed Test (CVT)

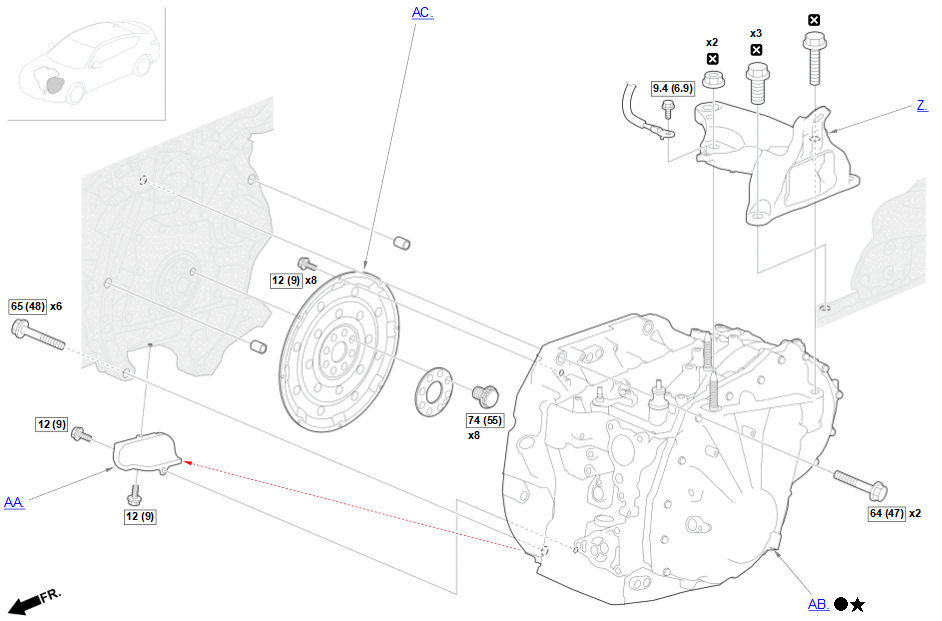

- AC.-
Sub-Procedure
■ Removal
- Inspect the drive plate, and replace it if it is damaged.
■ Installation
NOTICE:
Tighten the bolts in a crisscross pattern in at least two steps.

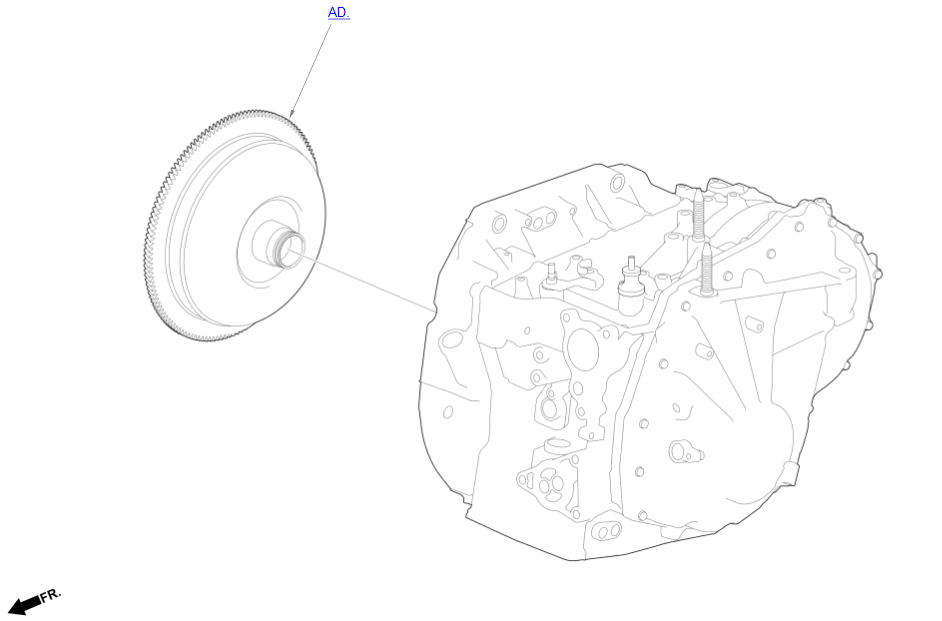

- AD.-
Sub-Procedure
■ Installation
- Make sure the torque converter is fully engaged on the transmission. Failure to do so will result in severe transmission or engine damage.
