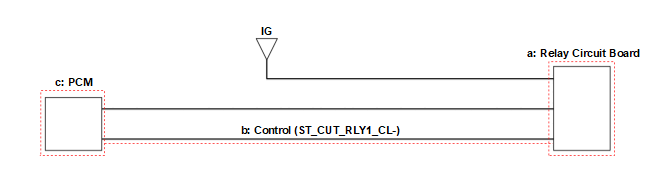

Inspection Outline
- The components to be tested are indicated by a dotted line.
| Inspection Items | Work Items | |
|---|---|---|
| a | Relay Circuit Board | Do the Relay Circuit Board Test (Starter Cut Relay 1 Circuit) |
| b | External Circuit | ST_CUT_RLY1_CL- Shorted Wire Inspection |
| c | PCM | PCM Inspection |
