Exploded View Legend

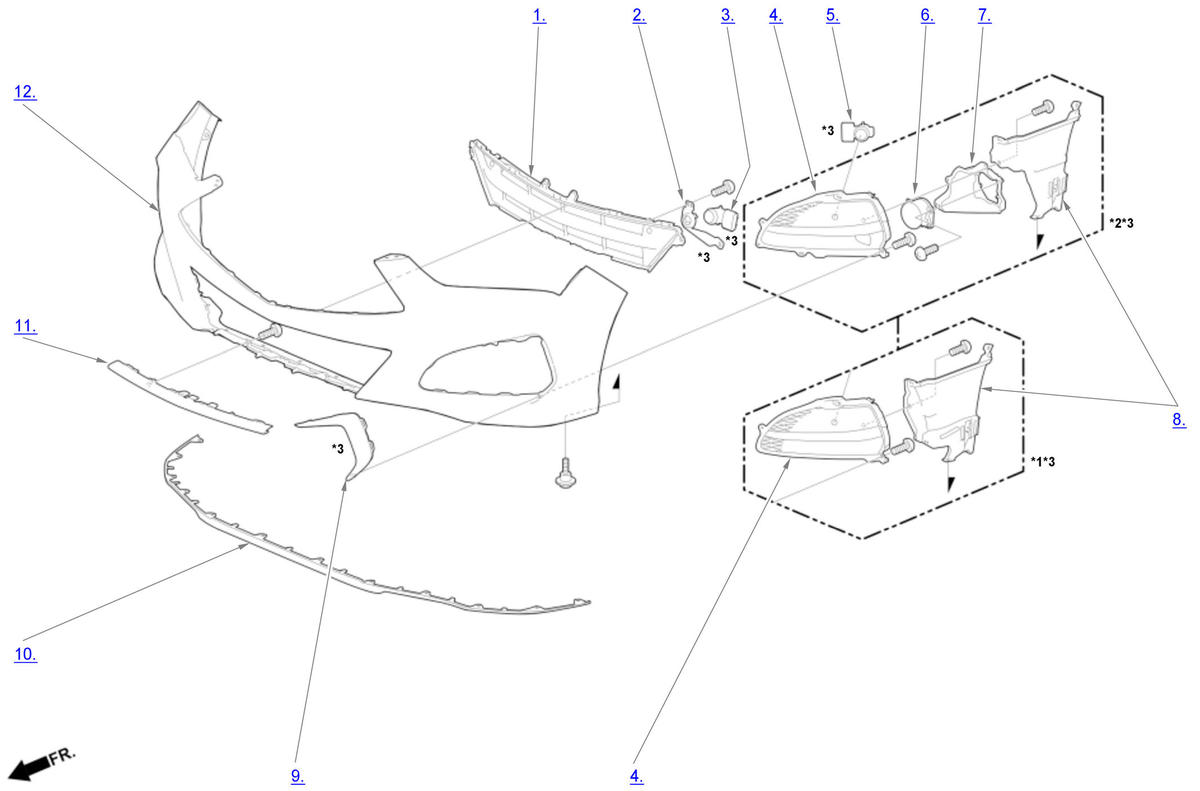

2.0 L Engine
| *1: Without Fog Light *2: With Fog Light *3: Part(s) are shown for one side only as the procedure is the same for both sides. |

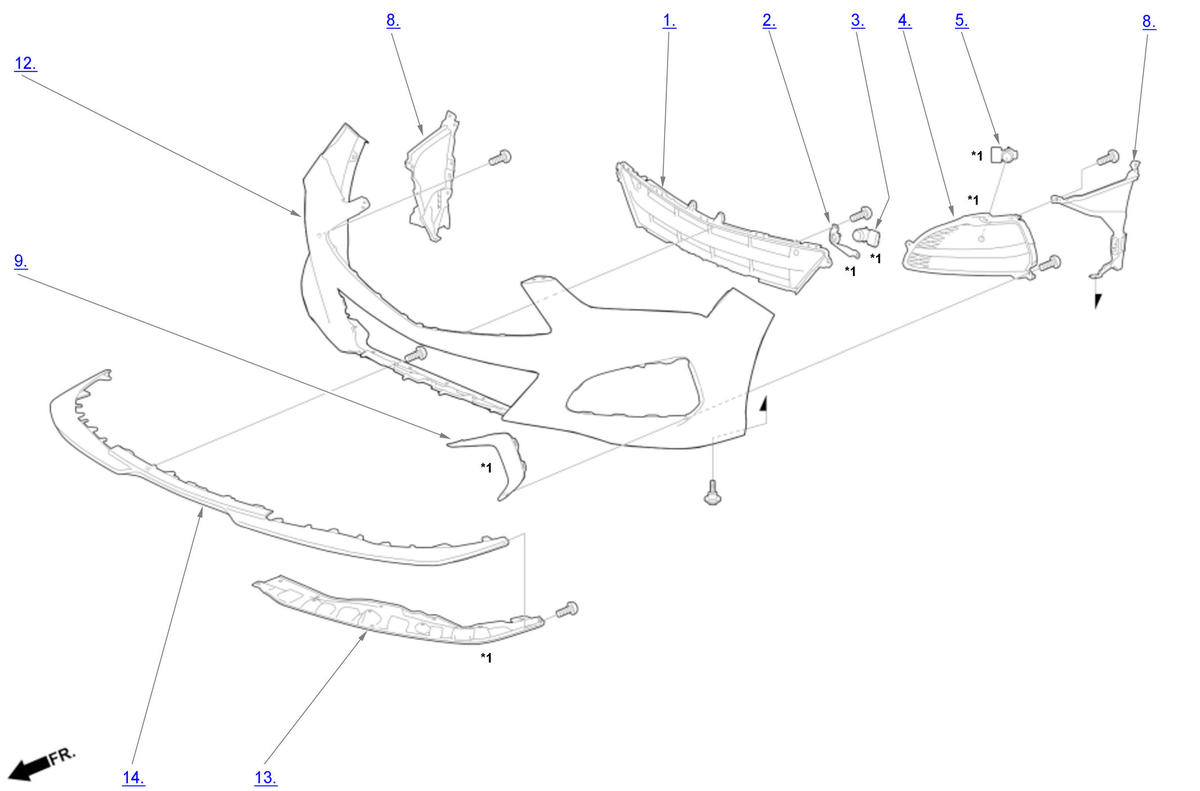

3.0 L Engine
| *1: Part(s) are shown for one side only as the procedure is the same for both sides. |
- Front Bumper Center Lower Mesh
- Front Center Sensor Retainer
- Front Center Sensor
- Front Bumper Intake Trim
- Front Corner Sensor
- Fog Light
- Fog Light Housing
- Front Bumper Duct
- Front Bumper Intake Trim Cross Bar
- Front Bumper Air Spoiler
- Front Bumper Center Lower Trim
- Front Bumper
- Front Bumper Side Lower Trim
- Front Bumper Lower Trim
