Wipers/Washers Component Location Index (3.5L Engine)

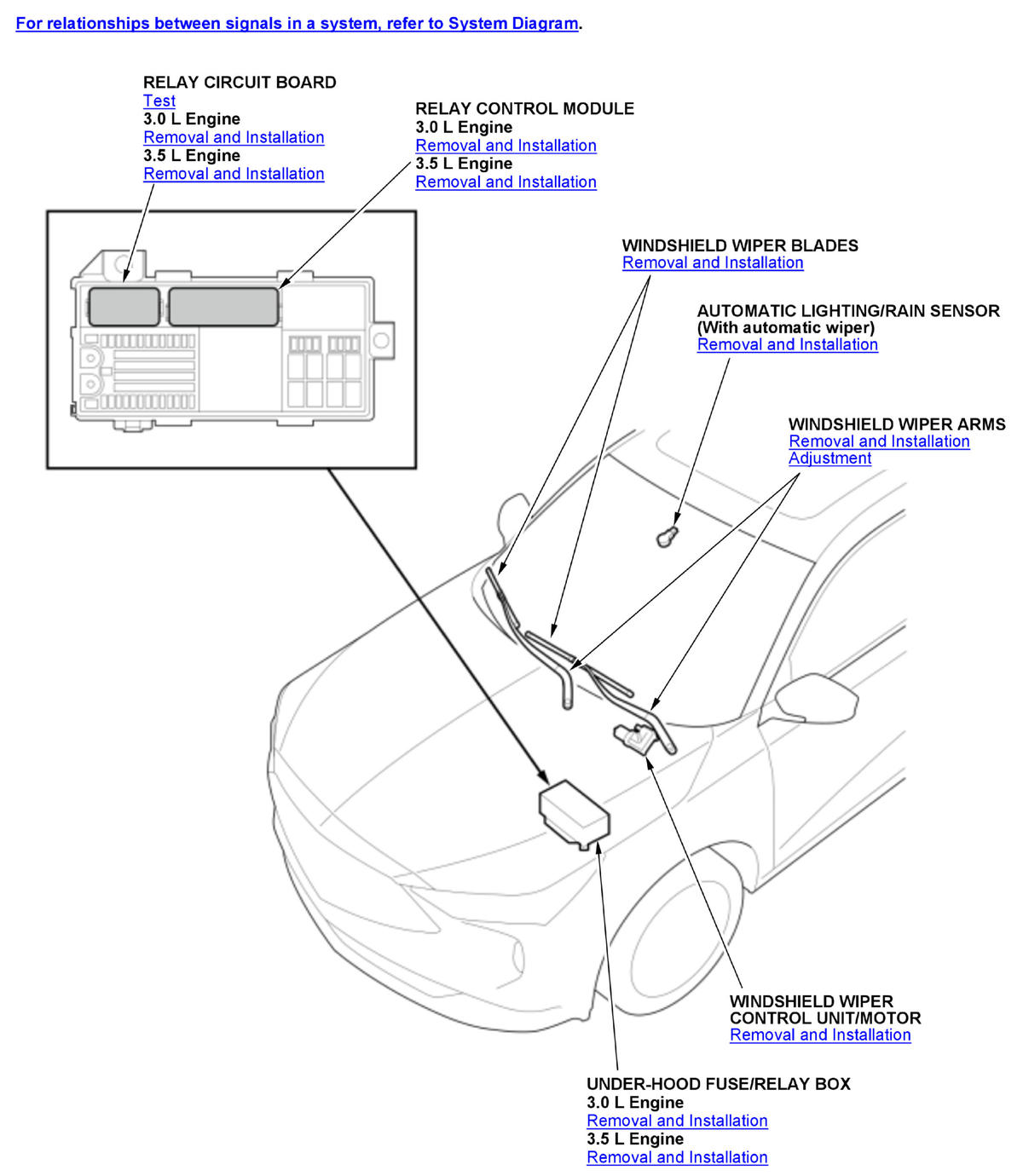

GHH519353

Courtesy of HONDA, U.S.A., INC.

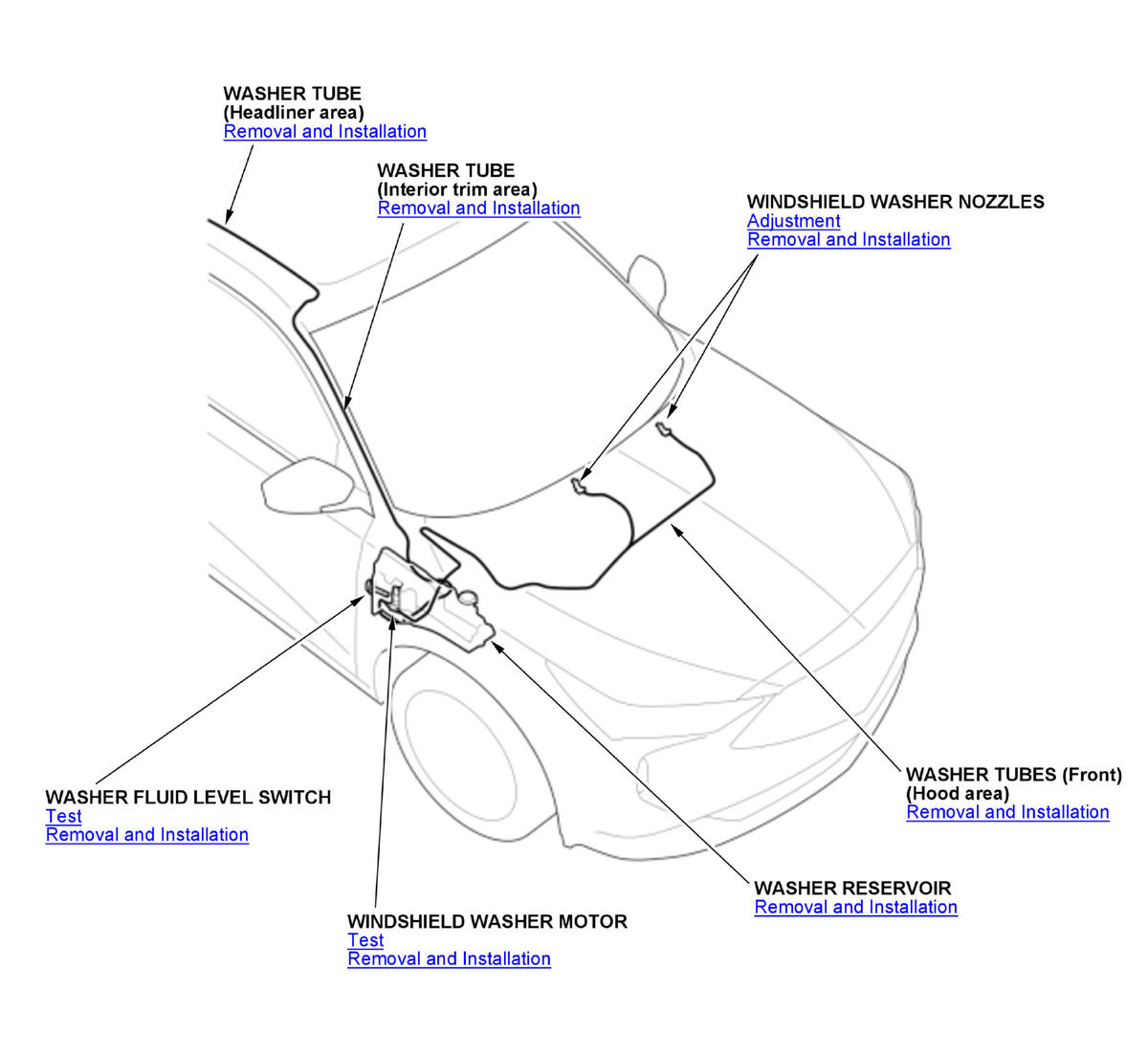

GHH519354

Courtesy of HONDA, U.S.A., INC.

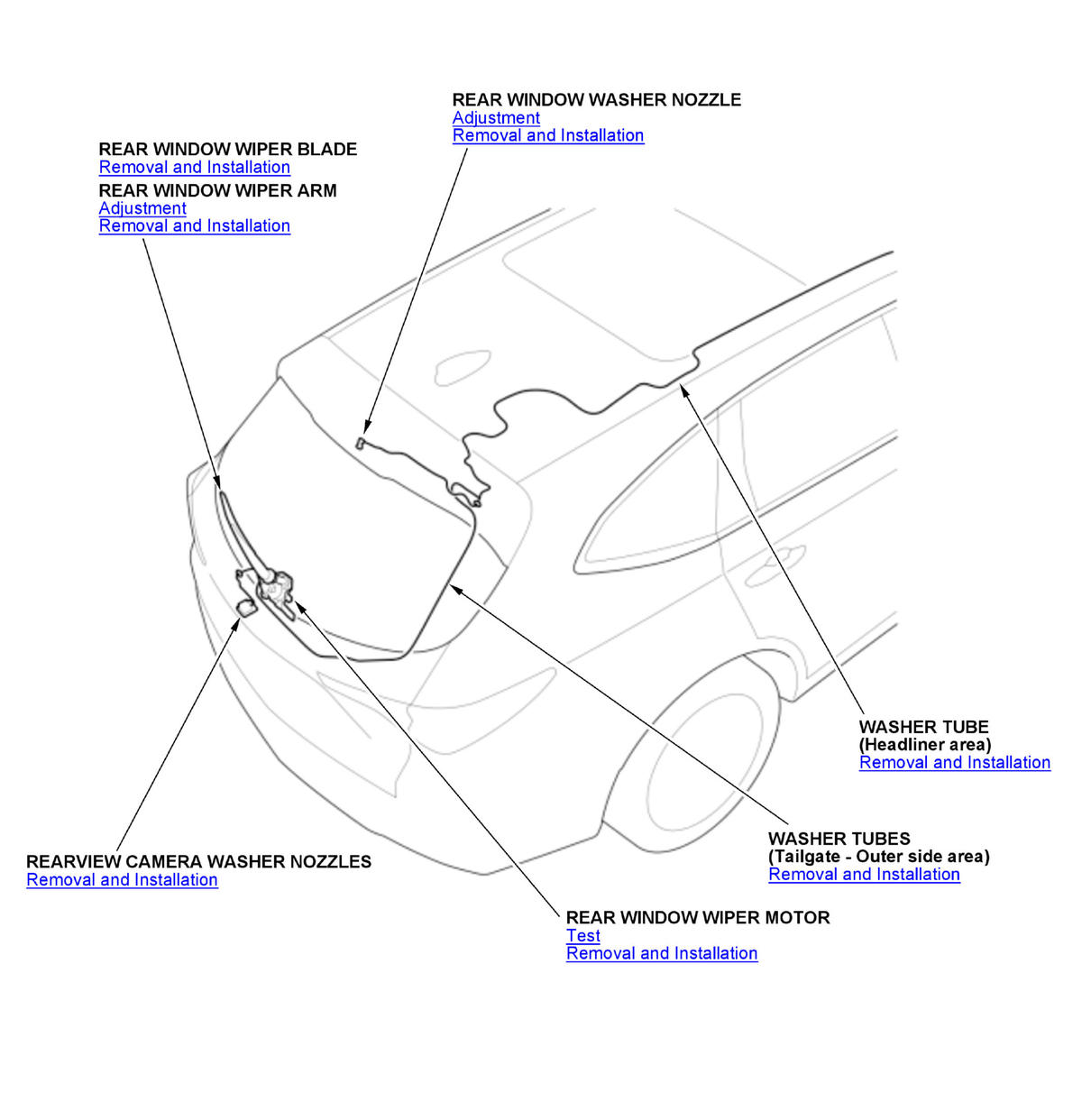

GHH519355

Courtesy of HONDA, U.S.A., INC.

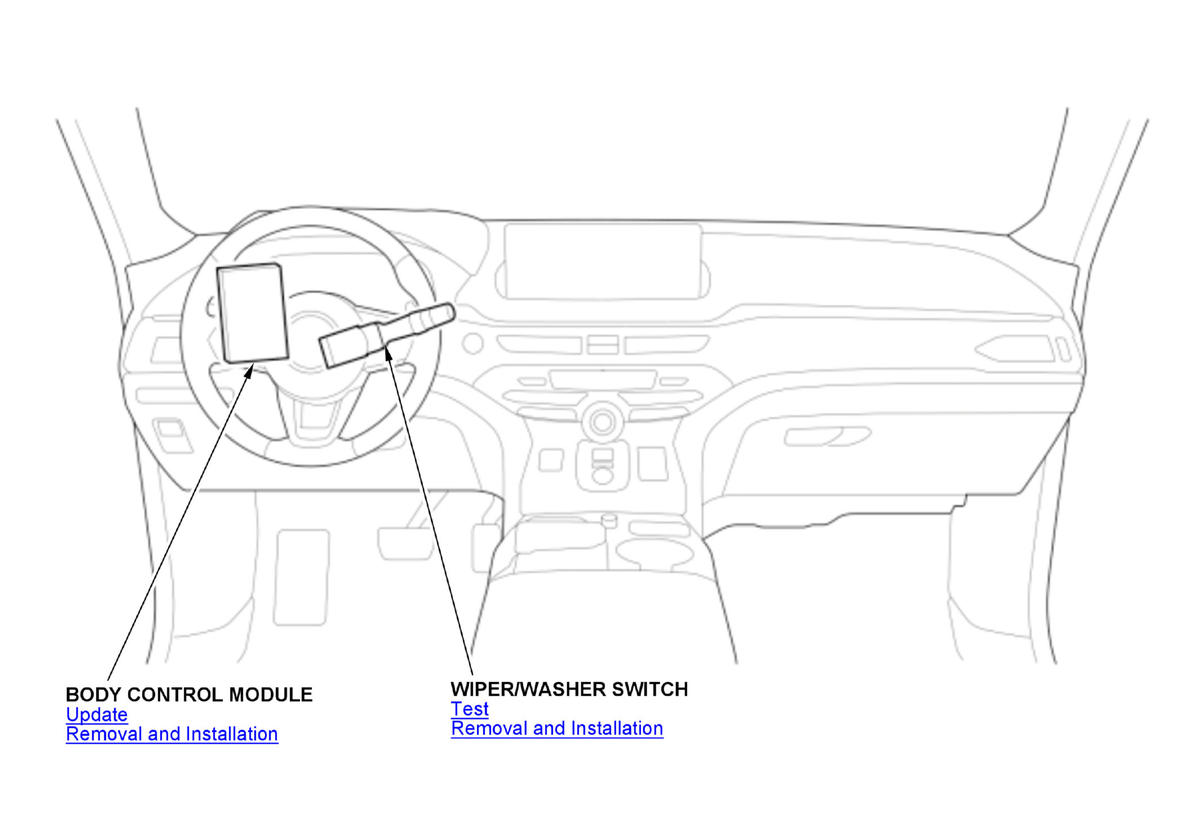

GHH519356

Courtesy of HONDA, U.S.A., INC.
