Front Subframe/Steering Gearbox Area (3.5L Engine): Notes

Image	Description/Tool Number

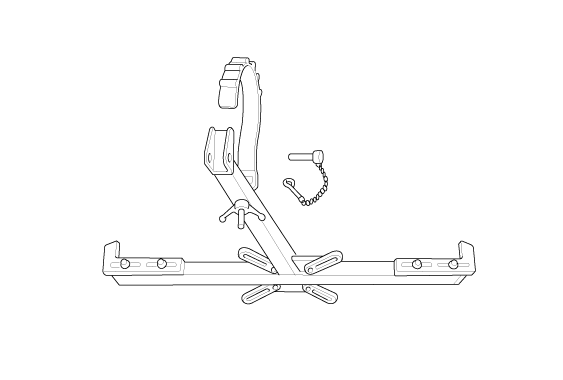

Courtesy of HONDA, U.S.A., INC.	Subframe Adapter VSB02C000016*

*: Available through the Acura Tool and Equipment Program 888-424-6857.

Front Subframe/Steering Gearbox Area

Special Tools Required

Image	Description/Tool Number

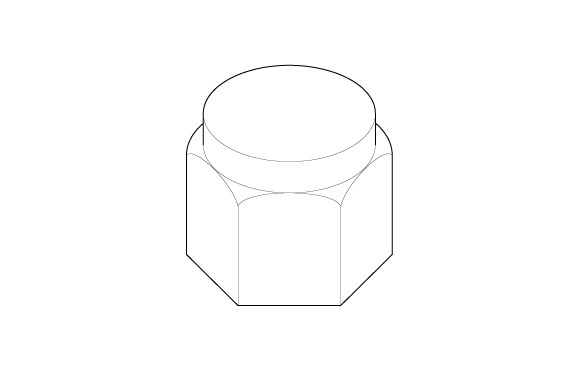

Courtesy of HONDA, U.S.A., INC.	Ball Joint Thread Protector, 12 mm 07AAF-SDAA100

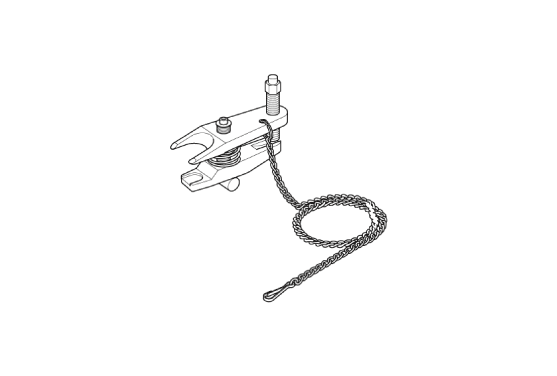

Courtesy of HONDA, U.S.A., INC.	Ball Joint Remover, 28 mm 07MAC-SL00202

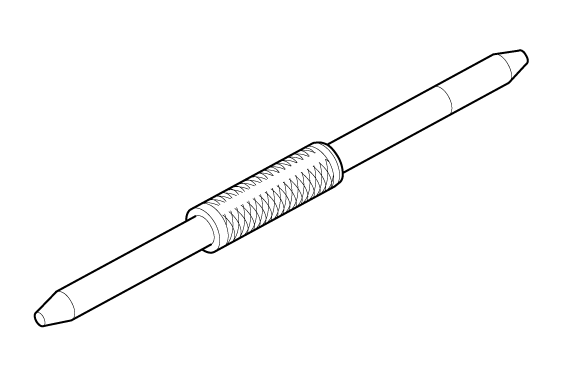

Courtesy of HONDA, U.S.A., INC.	Subframe Alignment Pin 070AG-SJAA10S
Courtesy of HONDA, U.S.A., INC.	Subframe Adapter VSB02C000016*

*: Available through the Acura Tool and Equipment Program 888-424-6857.
