Repair Procedure

How to use this service information .

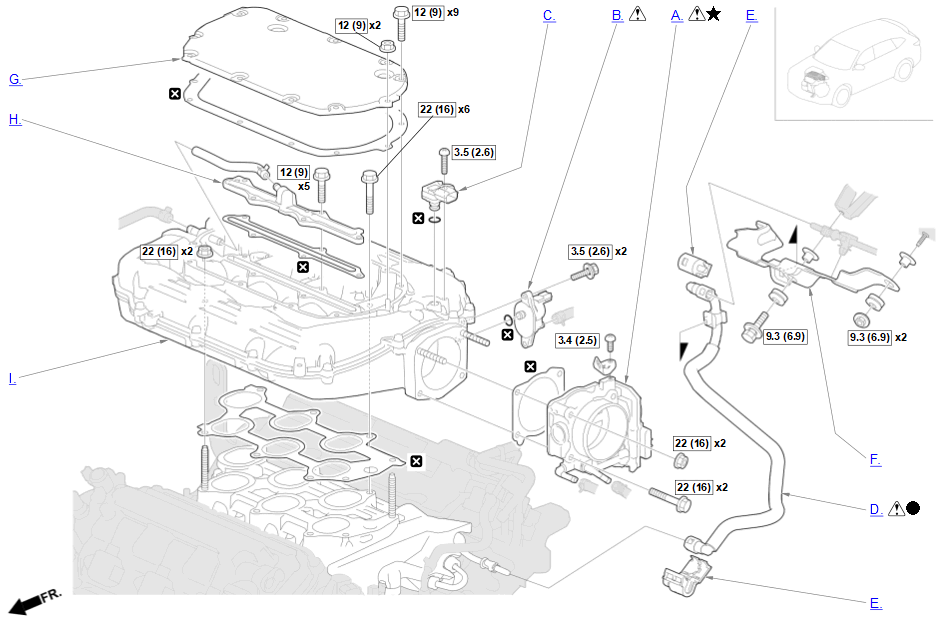

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

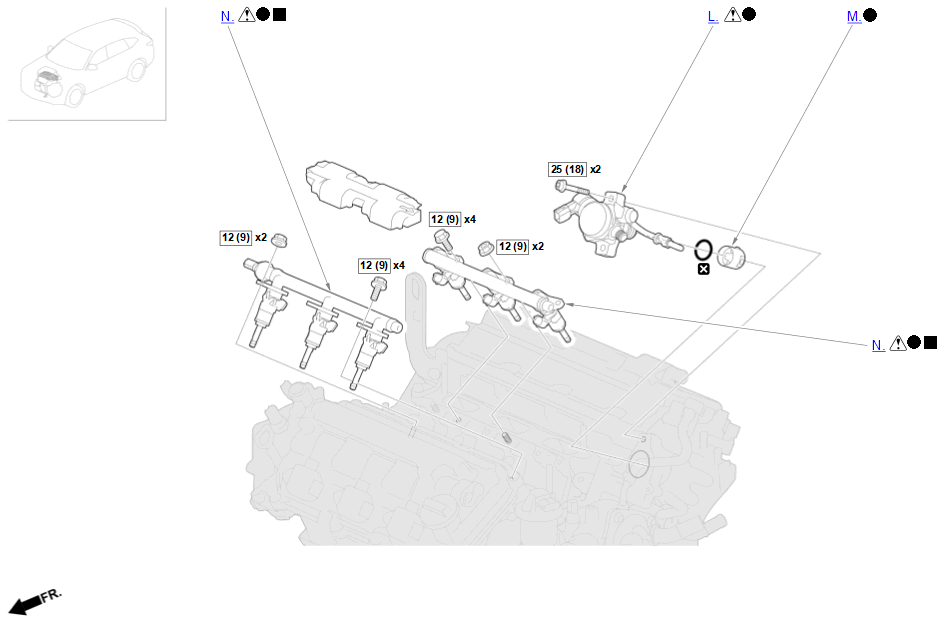

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

A.-

WARNING:

Do not insert your fingers into the installed throttle body when you turn the vehicle to the ON mode, or while the vehicle is in ON mode. If you do, you will seriously injure your fingers if the throttle valve is activated.

Preconditions

HDS Connected

Key Information

Do the following before starting your work.

Remove:

Air Flow Tube - Refer to: Air Cleaner Area (3.0L Engine) or Air Cleaner Area (3.5L Engine)

Sub-Procedure

Removal

NOTE:

If you are replacing the throttle body, do all of the procedures.
If you are removing the throttle body, start from step 5.

1. Clear the throttle position (TP) learned value.

Select the following menu buttons on the HDS screen in sequence.
- PGM-FI (System Selection Menu)
- Function Test
- ETCS (TAC) TEST
- TP POSITION CHECK

2. Turn the vehicle to the OFF (LOCK) mode.

3. Turn the vehicle to the ON mode, and wait 2 seconds without pressing the accelerator pedal.

4. Turn the vehicle to the OFF (LOCK) mode.

5. Remove the throttle body.

NOTE: Plug the water bypass hoses.

Installation

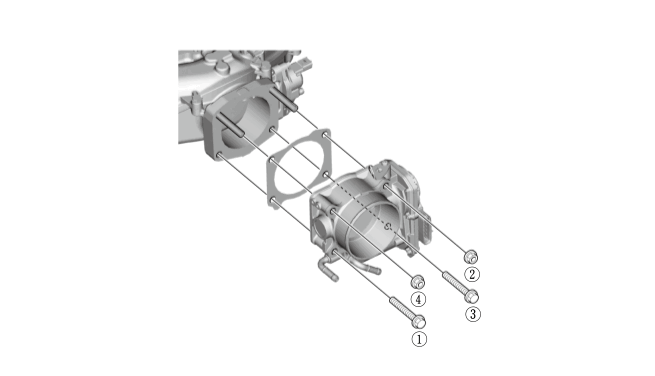

Refer to the figure.

Tightening Procedure

Step	Operation	Object	Detail
1	Temporarily Tighten	All Bolts and Nuts	Until they sit on the throttle body
2	Temporarily Tighten	All Bolts and Nuts	Until the gasket is compressed
3	Tighten	All Bolts and Nuts	-> -> ->

Courtesy of HONDA, U.S.A., INC.

After Installation

Engine Coolant Refill - Refer to: Coolant Check (3.5L Engine) or Coolant Replacement (3.5L Engine) or Coolant Replacement (3.0L Engine) or Coolant Check (3.0L Engine)
PCM Reset - Refer to: PCM Reset or PCM Update
PCM Idle Learn

B.-
WARNING:

Flammable - Keep Fire Away

NOTICE:

Refer to the Fuel and Emissions Systems Service Precautions before doing the procedure.
C.-
Key Information

Do the following before starting your work.

Remove:
- Air Cleaner Housing - Refer to: Air Cleaner Area (3.0L Engine) or Air Cleaner Area (3.5L Engine)
D.-
WARNING:

Flammable - Keep Fire Away

NOTICE:
- Refer to the Fuel and Emissions Systems Service Precautions before doing the procedure.
- Refer to the Fuel Line/ Quick-Connect Fitting Precautions before doing the procedure.
Preconditions
- Fuel Pressure Relieved - Refer to: Fuel Pressure Test (3.5L Engine) or Fuel Pressure Test (3.0L Engine) or Fuel Pressure Relieving
- 12 Volt Battery Negative Terminal Disconnected - Refer to: 12 Volt Battery Terminal Disconnection and Reconnection (3.5L Engine) or 12 Volt Battery Terminal Disconnection and Reconnection (3.0L Engine)
Key Information

Do the following before starting your work.

Remove:
- Air Cleaner Housing - Refer to: Air Cleaner Area (3.0L Engine) or Air Cleaner Area (3.5L Engine)
After Installation
- 12 Volt Battery Negative Terminal Reconnect - Refer to: 12 Volt Battery Terminal Disconnection and Reconnection (3.5L Engine) or 12 Volt Battery Terminal Disconnection and Reconnection (3.0L Engine)
- Fuel Leak Check (Low Pressure Side)
E.-
NOTICE:

Refer to the Fuel Line/ Quick-Connect Fitting Precautions before doing the procedure.
F.-
Key Information

Do the following before starting your work.

Remove:
- Air Cleaner Housing - Refer to: Air Cleaner Area (3.0L Engine) or Air Cleaner Area (3.5L Engine)

G.-

Key Information

Do the following before starting your work.

Remove:

Air Cleaner Housing - Refer to: Air Cleaner Area (3.0L Engine) or Air Cleaner Area (3.5L Engine)

Sub-Procedure

Installation

Refer to the Figure.

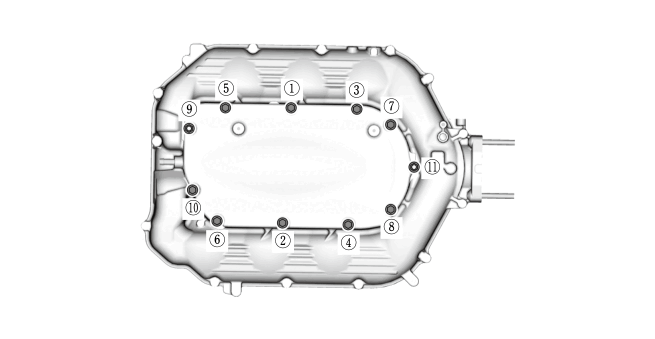

Tightening Procedure

Step	Operation	Object	Detail
1	Temporary Tighten	All Bolts and Nuts	Until they sit on the intake manifold upper cover
2	Temporary Tighten	All Bolts and Nuts	Until the gasket is compressed
3	Tighten	All Bolts and Nuts	-> -> -> -> -> -> -> -> -> ->

Courtesy of HONDA, U.S.A., INC.

H.-

Sub-Procedure

Installation

Refer to the Figure.

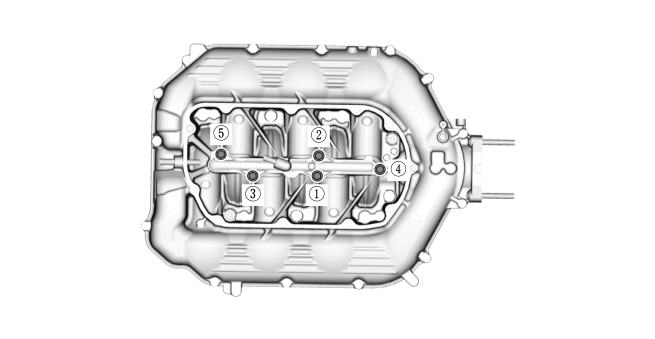

Tightening Procedure

Step	Operation	Object	Detail
1	Temporary Tighten	All Bolts	Until they sit on the PCV cover
2	Temporary Tighten	All Bolts	Until the gasket is compressed
3	Tighten	All Bolts	-> -> -> ->

Courtesy of HONDA, U.S.A., INC.

I.-

NOTE: When removing the throttle body, it is not necessary to disconnect the water bypass hoses from the throttle body.

Key Information

NOTE: For the removal and installation procedure, refer to Intake Manifold Removal and Installation - Refer to: Intake Manifold Removal and Installation (3.0L Engine) or Intake Manifold Removal and Installation (3.5L Engine) and the sub-procedure below.

Sub-Procedure

Installation

Refer to the Figure.

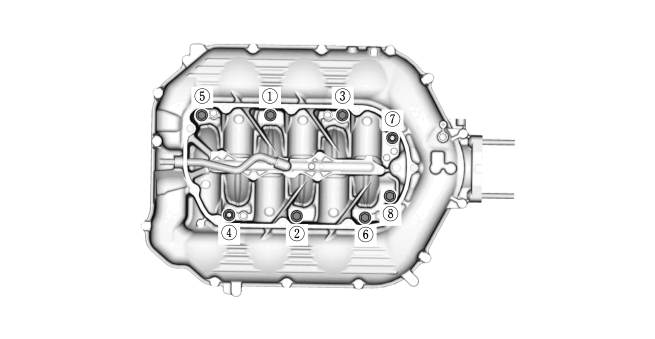

Tightening Procedure

Step	Operation	Object	Detail
1	Temporary Tighten	All Bolts and Nuts	Until they sit on the intake manifold
2	Temporary Tighten	All Bolts and Nuts	Until the gasket is compressed
3	Tighten	All Bolts and Nuts	-> -> -> -> -> -> ->

Courtesy of HONDA, U.S.A., INC.

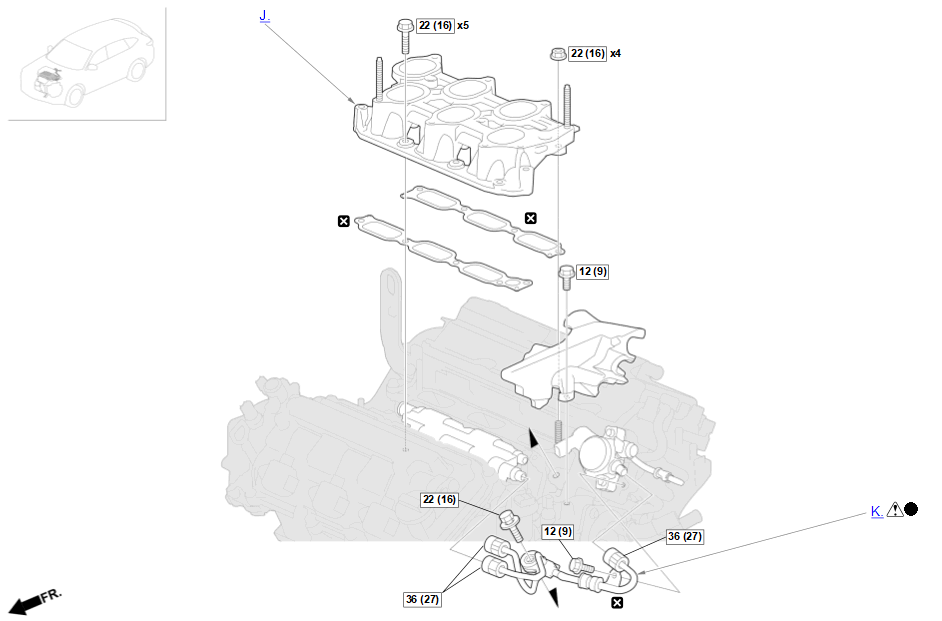

J.-

Sub-Procedure

Installation

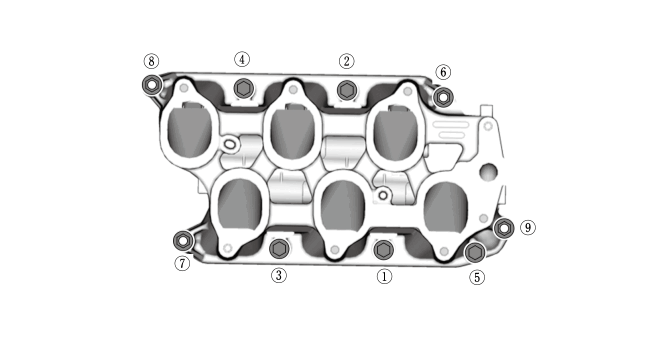

Refer to the Figure.

Tightening Procedure

Step	Operation	Object	Detail
1	Temporary Tighten	All Bolts and Nuts	Until they sit on the intake manifold base
2	Temporary Tighten	All Bolts and Nuts	Until the gasket is compressed
3	Tighten	All Bolts and Nuts	-> -> -> -> -> -> -> ->

Courtesy of HONDA, U.S.A., INC.

K.-

WARNING:

Flammable - Keep Fire Away

NOTICE:

Refer to the Fuel and Emissions Systems Service Precautions before doing the procedure.
The fuel joint pipe cannot be reused once it has been removed or loosened. Failure to install a new fuel joint pipe will cause fuel leaks.

Preconditions

Fuel Pressure Relieved - Refer to: Fuel Pressure Test (3.5L Engine) or Fuel Pressure Test (3.0L Engine) or Fuel Pressure Relieving
12 Volt Battery Terminal Disconnected - Refer to: 12 Volt Battery Terminal Disconnection and Reconnection (3.5L Engine) or 12 Volt Battery Terminal Disconnection and Reconnection (3.0L Engine)

Sub-Procedure

Installation

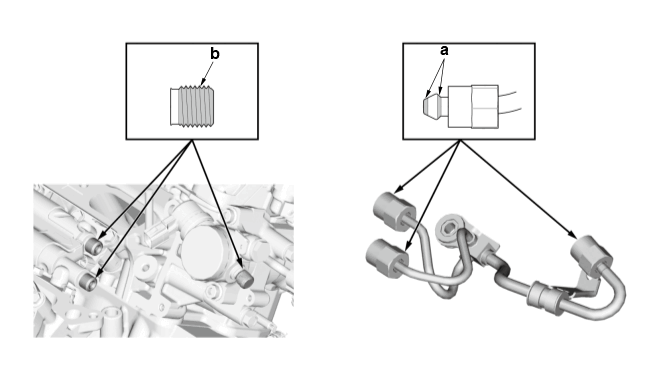

Lubricant Specifications (Figure 1)

Position	Type
a	Polyethylene Glycol (include in new fuel joint pipe kit)
b	Polyethylene Glycol (include in new fuel joint pipe kit)

Figure 1

Courtesy of HONDA, U.S.A., INC.

1. If it is not done yet, loosen the bolts (c), then tighten them in an alternating pattern until the high pressure fuel pump is in contact with the rear cylinder head. (Figure 2).

2. Tighten the nuts and the bolts, in sequence. (Figure 2)

NOTE: A crowfoot-type special tool increases the torque applied by the torque wrench. Refer to Service Precautions for details on how to recalculate the torque wrench setting

Tightening Procedure (Figure 2)

Step	Operation	Object	Detail
1	Hand Tighten	, ,	The end of the joint pipe is seated on the fuel rails or the high pressure fuel pump.
2	Loosely Install	,	Set the brackets (d) to the rear cylinder head, and loosely install it.
3	Tighten	All Bolts and Nuts	-> -> -> -> ->

Figure 2

Courtesy of HONDA, U.S.A., INC.

After Installation

12 Volt Battery Terminal Reconnect - Refer to: 12 Volt Battery Terminal Disconnection and Reconnection (3.5L Engine) or 12 Volt Battery Terminal Disconnection and Reconnection (3.0L Engine)
Fuel Leak Check (High Pressure Side)

L.-
WARNING:

Flammable - Keep Fire Away

NOTICE:
- Refer to the Fuel and Emissions Systems Service Precautions before doing the procedure.
- Refer to the Fuel Line/ Quick-Connect Fitting Precautions before doing the procedure.
Preconditions
- Fuel Pressure Relieved - Refer to: Fuel Pressure Test (3.5L Engine) or Fuel Pressure Test (3.0L Engine) or Fuel Pressure Relieving
- 12 Volt Battery Terminal Disconnected - Refer to: 12 Volt Battery Terminal Disconnection and Reconnection (3.5L Engine) or 12 Volt Battery Terminal Disconnection and Reconnection (3.0L Engine)
Sub-Procedure

Removal
- Loosen the bolts alternately.
Installation

Lubricant Specifications

Object Type

O-Ring Engine Oil
- Temporarily tighten the bolts in an alternating pattern until the high pressure fuel pump is in contact with the rear cylinder head.
  NOTE:
- - To prevent damage to the O-ring, do not use any power tools (pneumatic or electric).
  - During the fuel joint pipe installation procedure, the bolts are tightened to the specified torque.
After Installation
- 12 Volt Battery Terminal Reconnect - Refer to: 12 Volt Battery Terminal Disconnection and Reconnection (3.5L Engine) or 12 Volt Battery Terminal Disconnection and Reconnection (3.0L Engine)
- Fuel Leak Check (High Pressure Side)

M.-

Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

Installation

1. Check the high pressure fuel pump cam - Refer to: High Pressure Fuel Pump Cam Inspection (3.0L Engine) or High Pressure Fuel Pump Cam Inspection (3.5L Engine) .

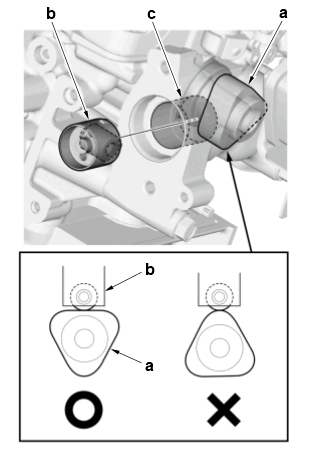

2. Check the position of the high pressure fuel pump cam (a). If needed, rotate the crankshaft to set it to the flat position as shown.

Lubricant Specifications

Position	Type
a	Engine Oil
b
c

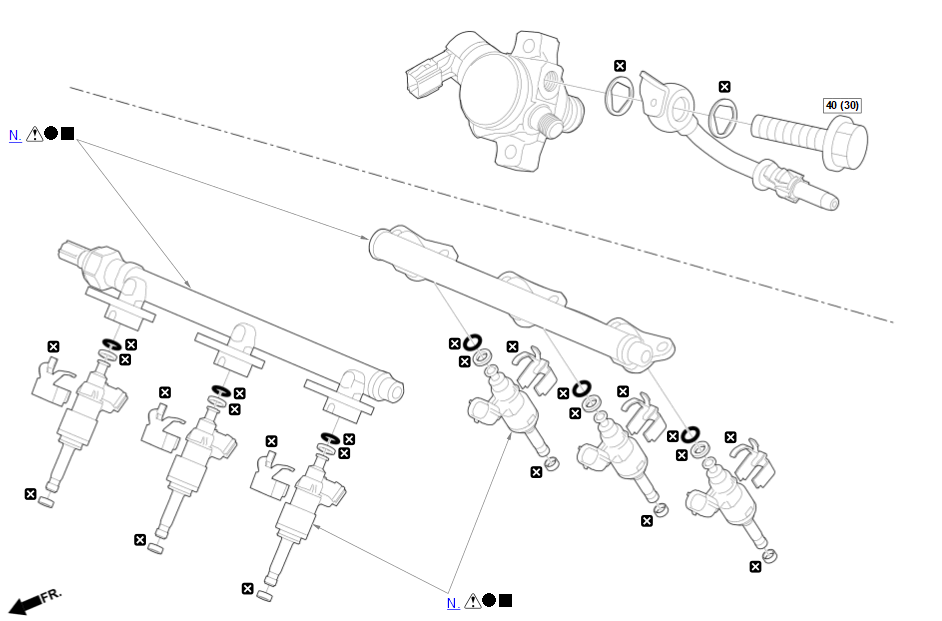

N.-

WARNING:

Flammable - Keep Fire Away

NOTICE:

Refer to the Fuel and Emissions Systems Service Precautions before doing the procedure.

Preconditions

Fuel Pressure Relieved - Refer to: Fuel Pressure Test (3.5L Engine) or Fuel Pressure Test (3.0L Engine) or Fuel Pressure Relieving
12 Volt Battery Negative Terminal Disconnected - Refer to: 12 Volt Battery Terminal Disconnection and Reconnection (3.5L Engine) or 12 Volt Battery Terminal Disconnection and Reconnection (3.0L Engine)

Key Information

NOTE: For the removal and installation procedure, refer to Injector Removal and Installation - Refer to: Injector Removal and Installation (3.5L Engine) or Injector Removal and Installation (3.0L Engine) and the sub-procedure below.

Sub-Procedure

NOTICE:

When replacing the fuel injector, always replace all three injectors on the same bank as a set.
If you reuse the injector after removal, note the cylinder number and install it to the same cylinder.

Removal

1. Carefully remove the fuel rail with the injectors straight from the cylinder head.

NOTICE:

If the injector remains on the cylinder head, carefully remove the injector straight from the cylinder head.

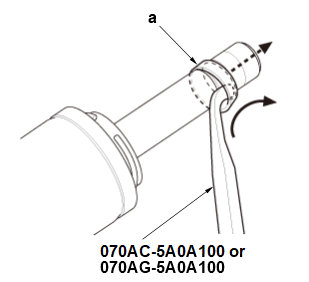

2. Carefully remove the seal (a) from the injector. (Figure 1)

Figure 1

Courtesy of HONDA, U.S.A., INC.

Installation

NOTICE:

Do not wipe off the tip area (b) of the injector as it may be damaged. (Figure 2)
If the tip of the injector is dirty or clogged, it must be replaced. The tip of the injector cannot be cleaned.
Be sure to protect the injector from dust or debris.

1. Use compressed air to insure that there are no dust or debris around the ring (c). (Figure 2)

Figure 2

Courtesy of HONDA, U.S.A., INC.

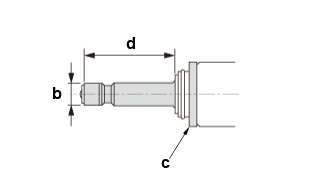

2. With a paper towel, carefully wipe off any carbon from the area (d) shown. (Figure 2)

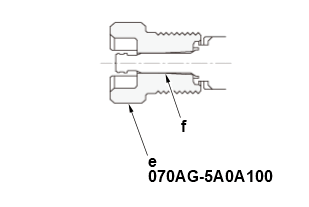

3. Install the sizing tool (e) to the injector (f) as shown. (Figure 3)

NOTICE:

Do not allow the tool to come in contact with the tip of the injector.

Figure 3

Courtesy of HONDA, U.S.A., INC.

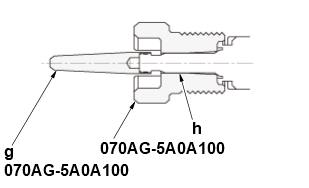

4. Install the seal guide (g) over the tip of the injector (h) as shown. (Figure 4)

Figure 4

Courtesy of HONDA, U.S.A., INC.

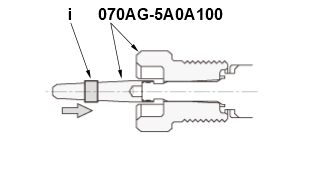

5. Slide the seal (i) on the seal guide as shown. (Figure 5)

Figure 5

Courtesy of HONDA, U.S.A., INC.

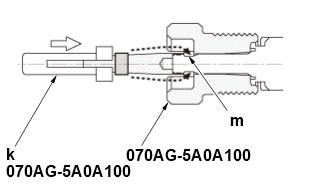

6. Slide the seal installer (k) onto the seal guide, then quickly push the seal down to the groove (m) of the injector. (Figure 6)

Figure 6

Courtesy of HONDA, U.S.A., INC.

7. Remove the seal guide and the seal installer from the injector.

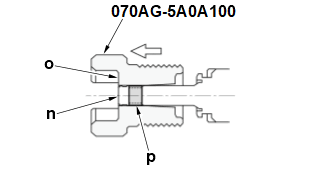

8. Move the sizing tool and align the top of the injector surface (n) and the tools inner surface (o) as shown, and hold the tool to reform the seal for 30 seconds or more. (Figure 7)

NOTICE:

Make sure the seal (p) is not deformed when moving the tool. (Figure 7)

Figure 7

Courtesy of HONDA, U.S.A., INC.

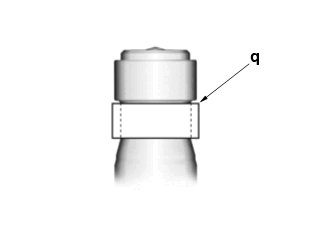

9. Remove the sizing tool, and check that the seal (q) is installed correctly. (Figure 8)

NOTICE:

When cleaning the sizing tool and the seal guide, be careful not to scratch the sizing tool bore or the surface of the seal guide.

Figure 8

Courtesy of HONDA, U.S.A., INC.

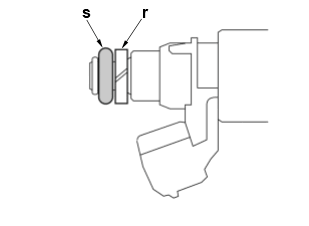

10. Make sure that the back-up ring (r) is not deformed. (Figure 9)

Lubricant Specifications (Figure 9)

Position	Type
s	Engine Oil

Figure 9

Courtesy of HONDA, U.S.A., INC.

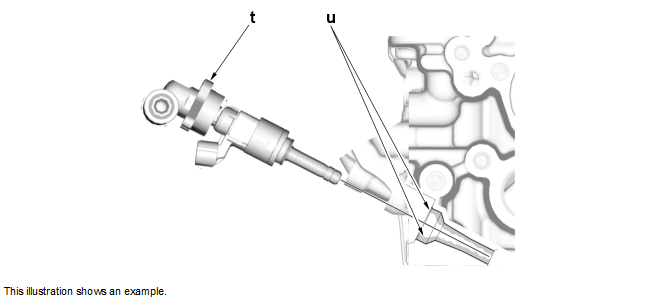

11. Carefully install the fuel rail(s) (t) with the injectors into the cylinder head(s) straight and equal. (Figure 10)

NOTICE:

Protect the tip of the injector from dust or debris.

Lubricant Specifications (Figure 10)

Position	Type
u	Engine Oil

Figure 10

Courtesy of HONDA, U.S.A., INC.

Tightening Procedure

Step	Operation	Object	Detail
1	Temporary Tighten	All Nuts	Alternately, until the fuel rail(s) sits on the cylinder head(s)
2	Tighten	All Bolts and Nuts	Specified Torque

After Installation

12 Volt Battery Negative Terminal Reconnect - Refer to: 12 Volt Battery Terminal Disconnection and Reconnection (3.5L Engine) or 12 Volt Battery Terminal Disconnection and Reconnection (3.0L Engine)
Fuel Leak Check (High Pressure Side)
