DTC Troubleshooting: P0335(3.0L Engine)
>>
Inspection Outline
Inspection Outline

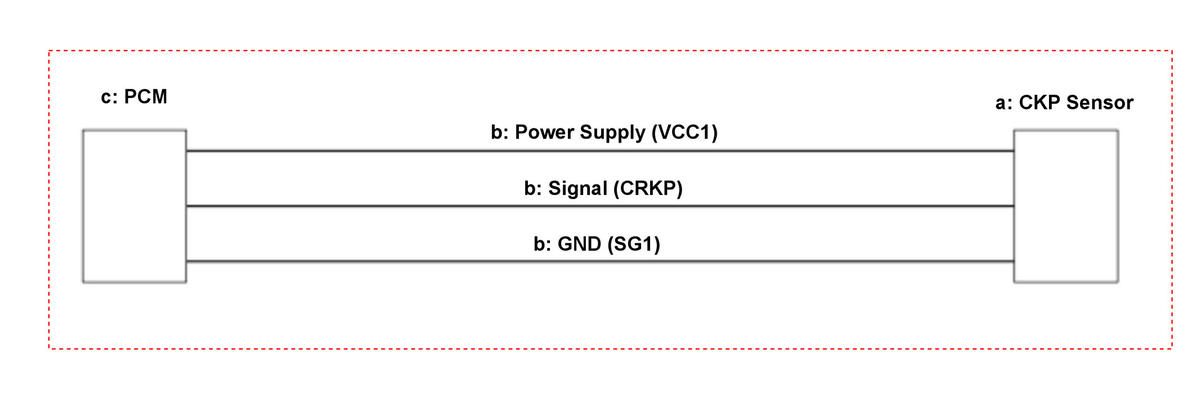

The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
CKP Sensor
CKP Sensor Inspection
b
External Circuit
VCC1, CRKP, SG1 Circuit Inspection
c
PCM
PCM Inspection
