Door Lock Actuator Test: Test

How to use this manual .

Front

1. Front Door Lock Actuator - Test

   Preconditions

   • Front Door Panel Removed

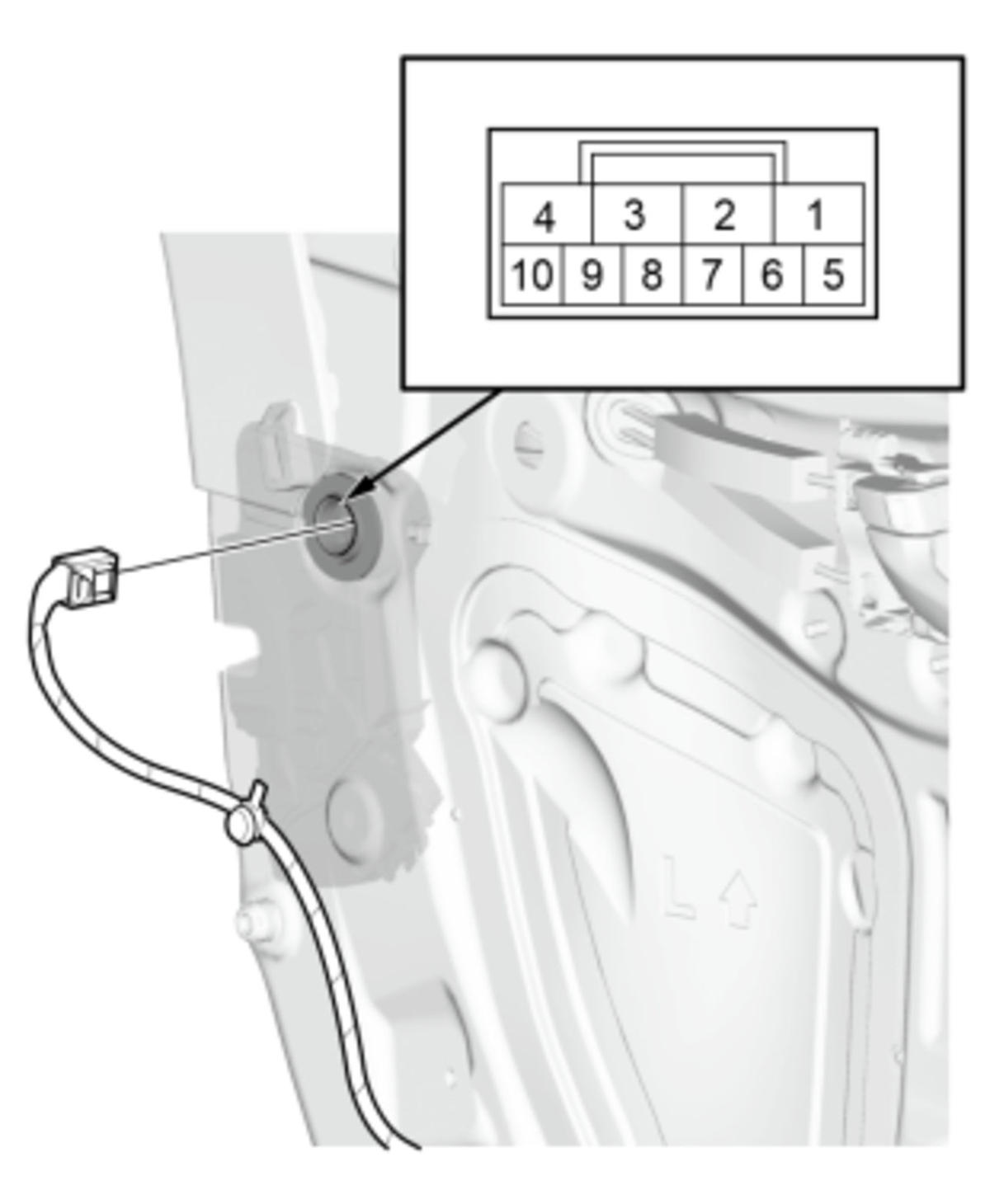

   Driver's (Figure 1)

   Courtesy of HONDA, U.S.A., INC.

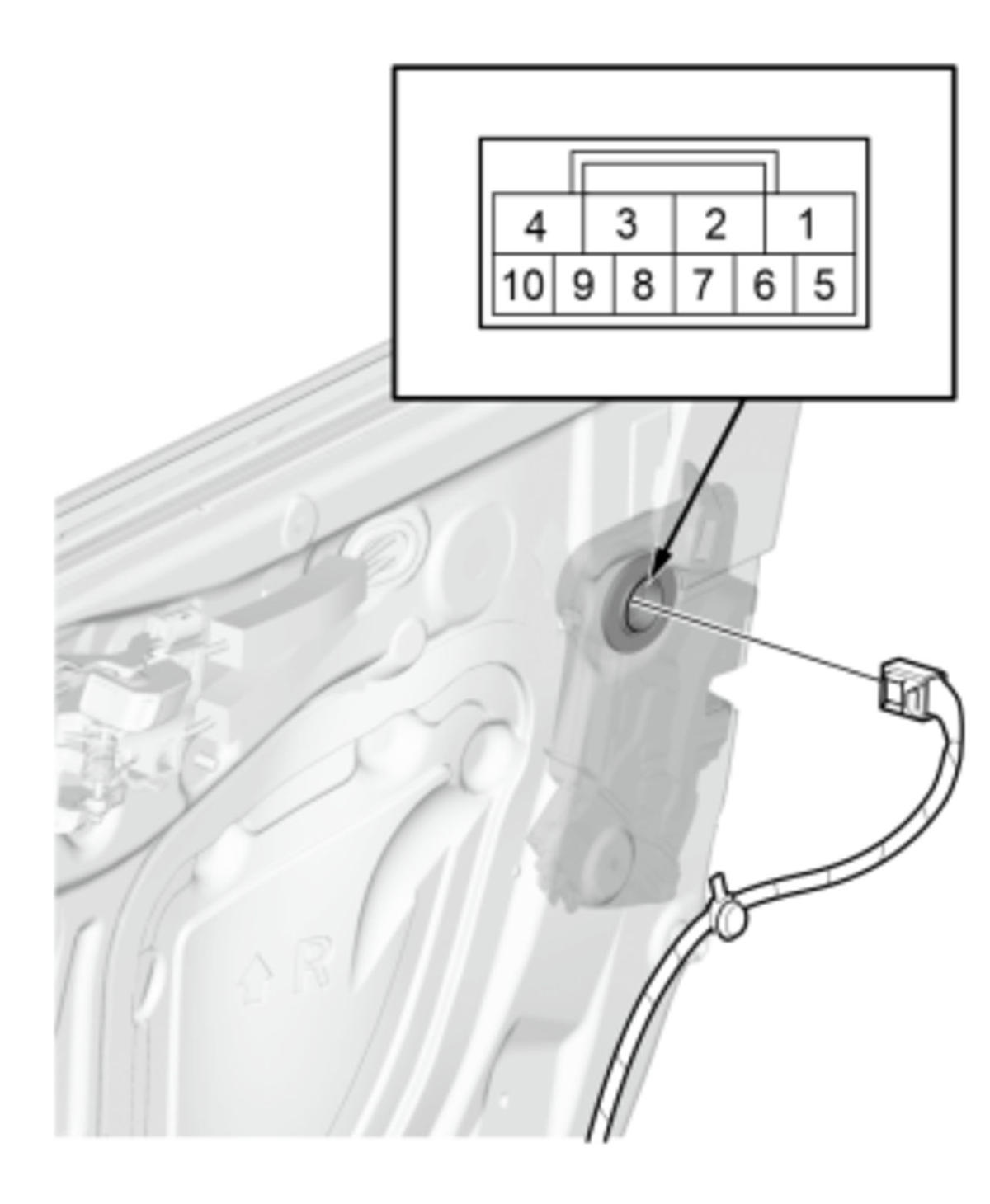

   Front passenger's (Figure 2)

   Courtesy of HONDA, U.S.A., INC.

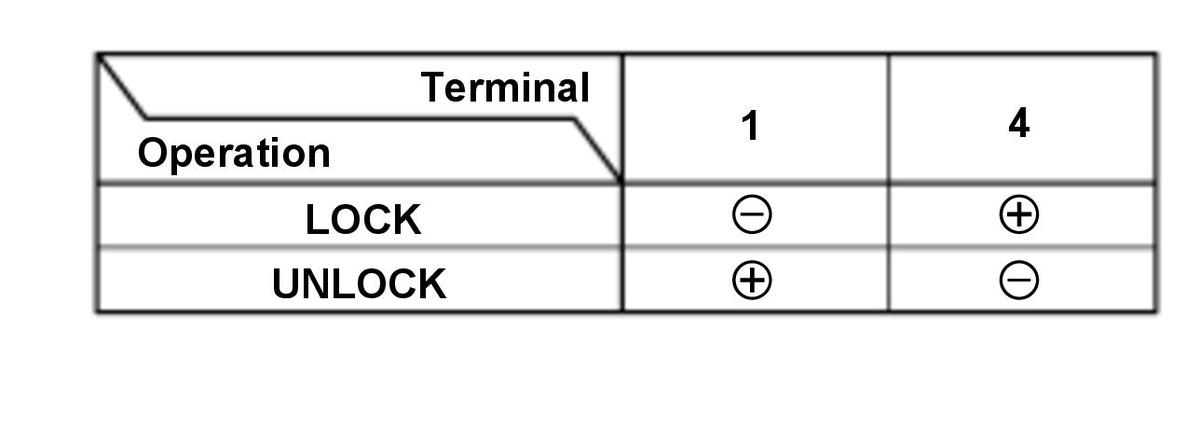

   Driver's and front passenger's (Figure 3)

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   • Check the actuator operation by connecting power and ground according to the table. (Figure 1, 2, and 3)

     NOTICE:

     To prevent damage to the actuator, apply battery voltage only momentarily.

   Result

   • If the result is not as specified, replace the front door latch .

   Rear

2. Rear Door Lock Actuator - Test

   Preconditions

   • Rear Door Panel Removed

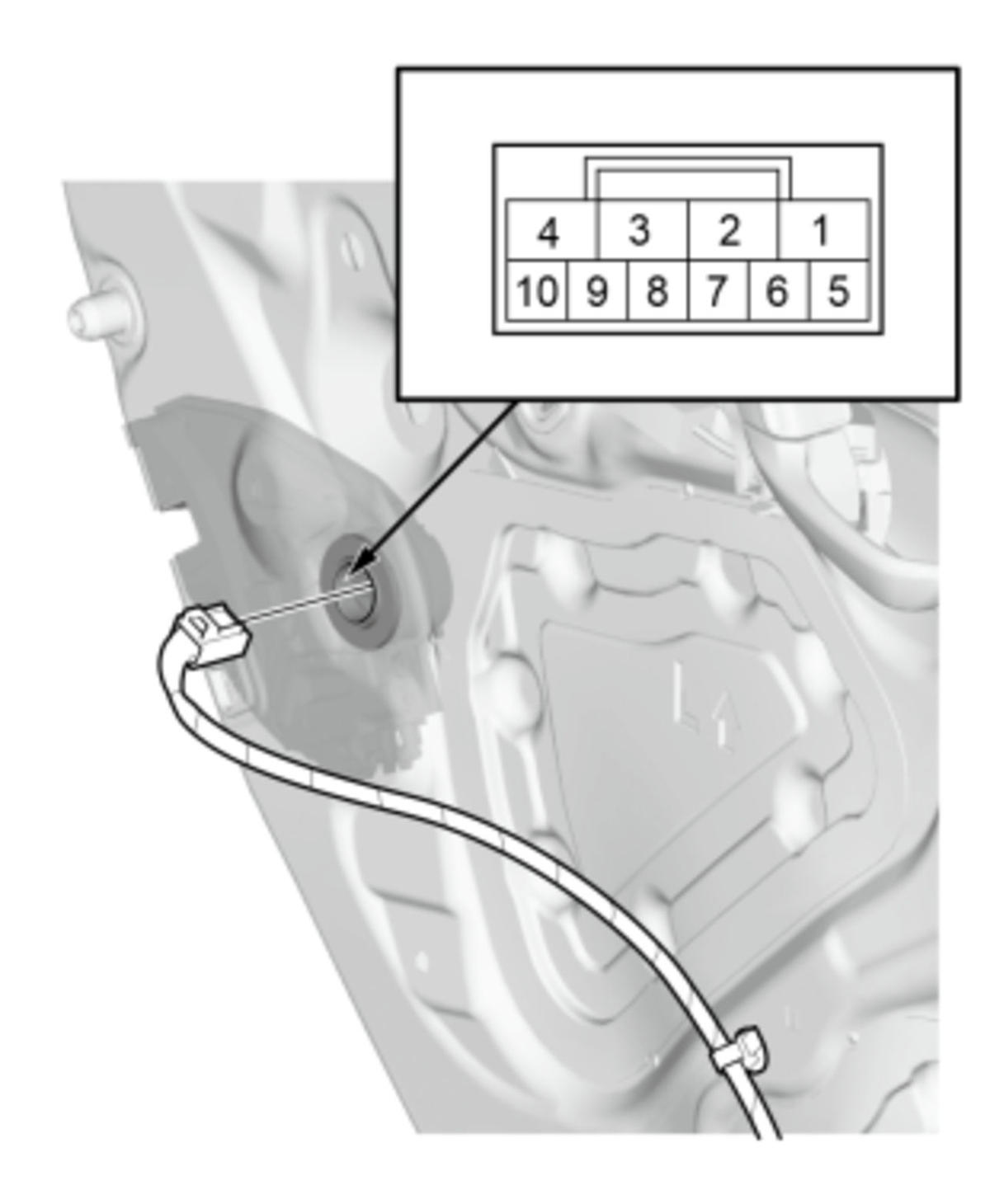

   Rear (Figure 1)

   Courtesy of HONDA, U.S.A., INC.

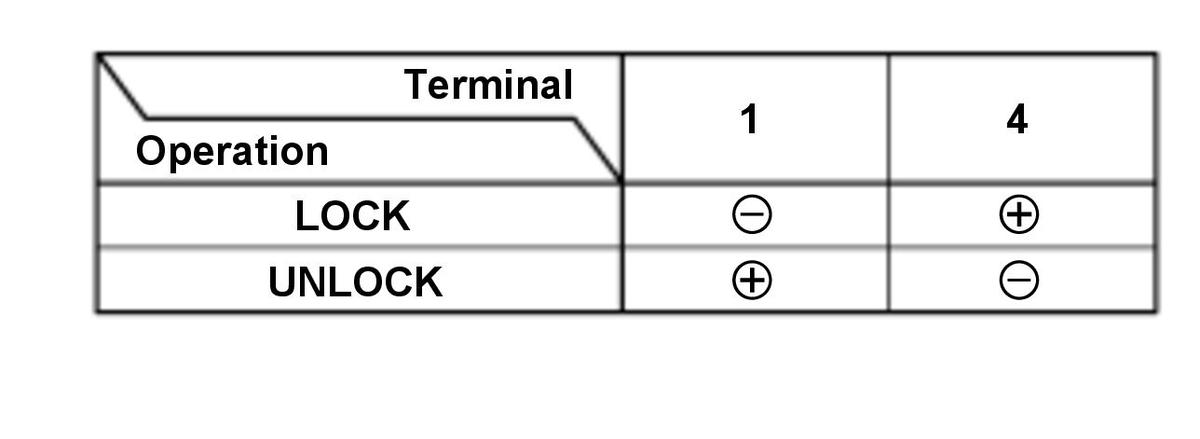

   Rear (Figure 2)

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   • Check the actuator operation by connecting power and ground according to the table. (Figure 1 and 2)

     NOTICE:

     To prevent damage to the actuator, apply battery voltage only momentarily.

   Result

   • If the result is not as specified, replace the rear door latch .
