Automatic Transmission Component Location Index(3.0L Engine)

For relationships between signals in a system, refer to System Diagram.

Courtesy of HONDA, U.S.A., INC.

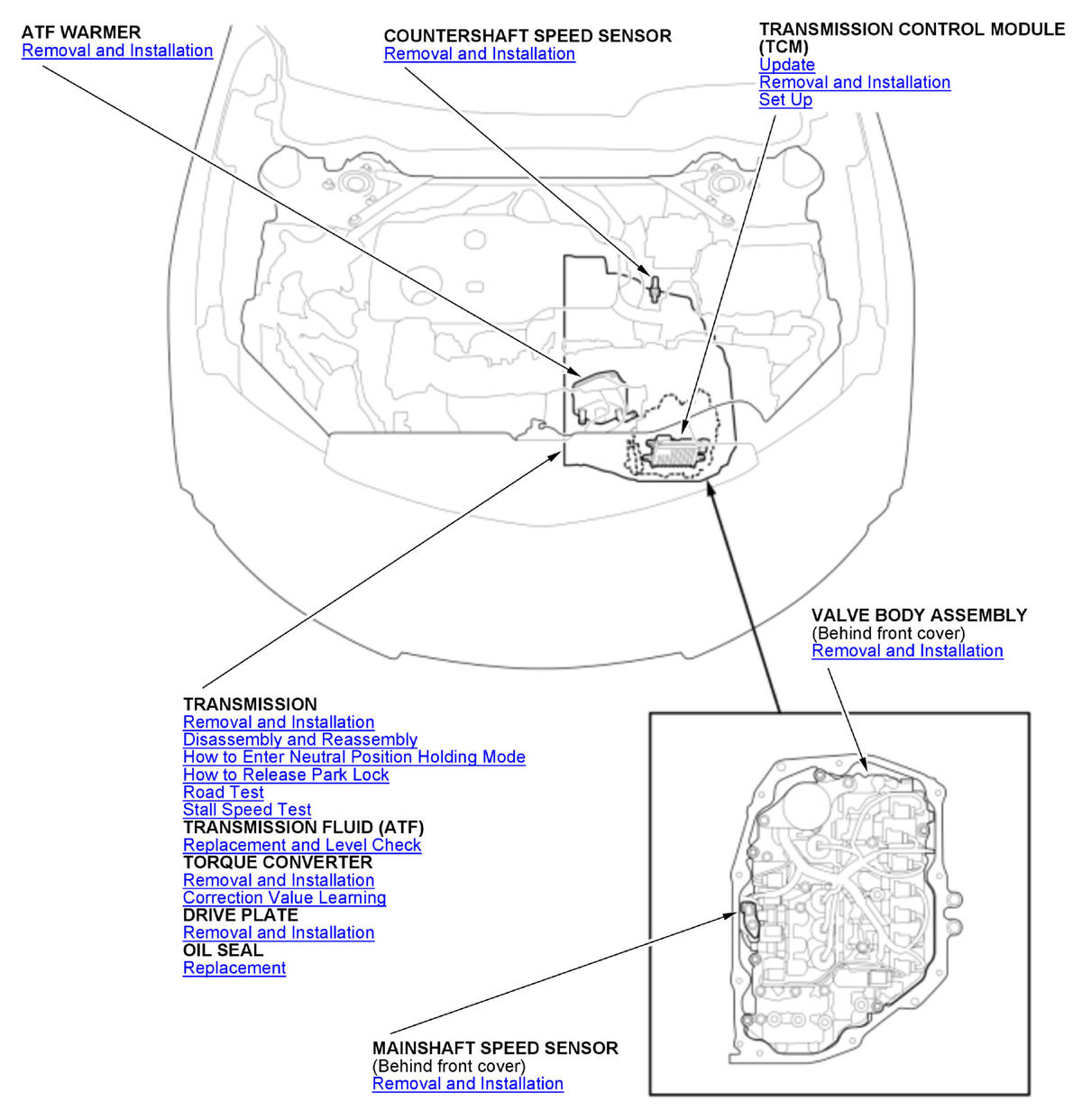

2.0 L Engine

Courtesy of HONDA, U.S.A., INC.

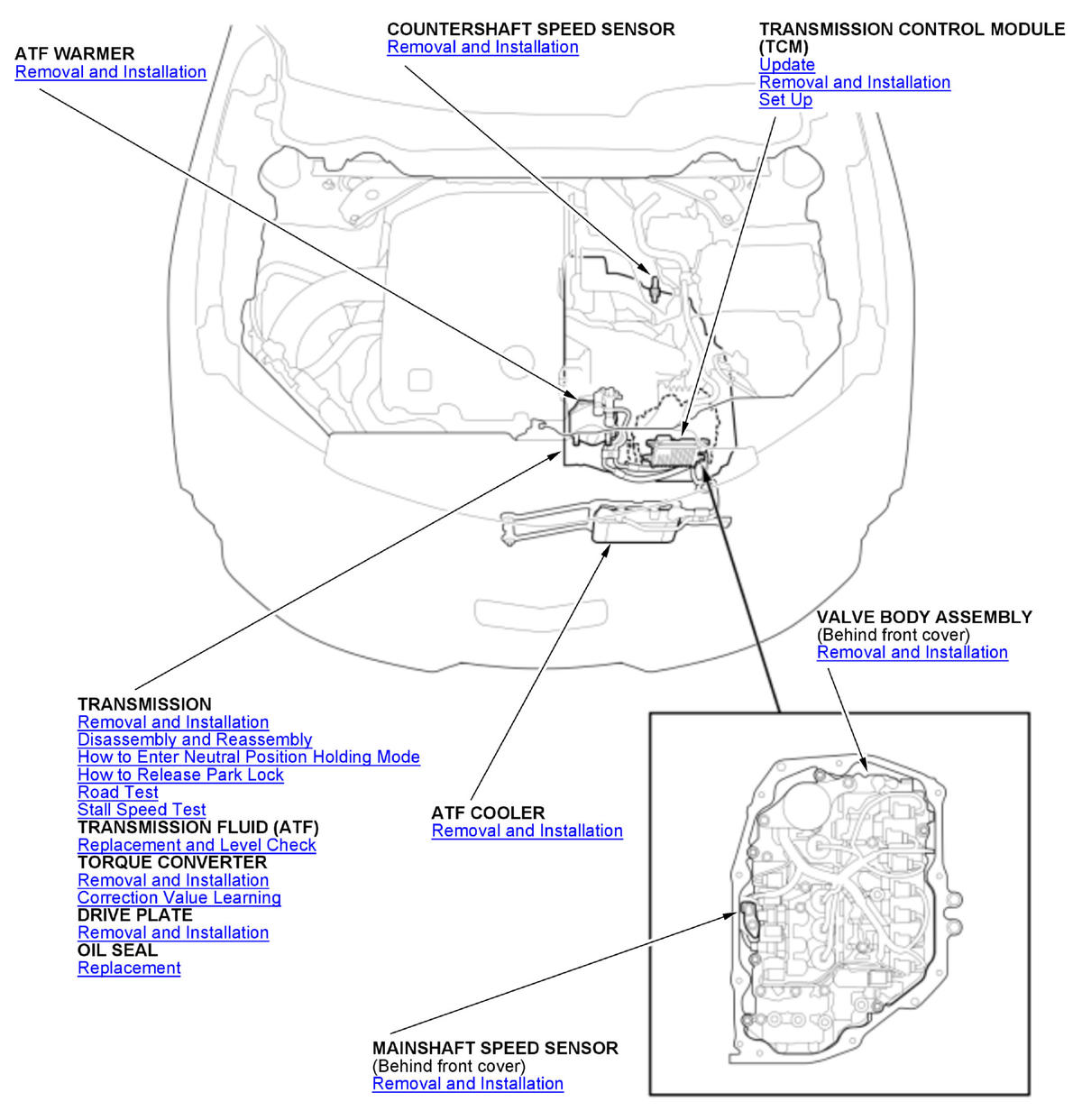

3.0 L Engine

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
