DTC Troubleshooting: P084F: Inspection

PARKOUT [ATP-P] Circuit Inspection

Test Procedure

Preparation
- TCM connector A (23P): disconnected
- Body control module connector C (28P): disconnected
- Driver's power seat control unit connector A (40P): disconnected
- Front passenger's power seat control unit connector A (40P) (with 16-way power seat): disconnected
Procedure
- Perform the inspection according to the following table.

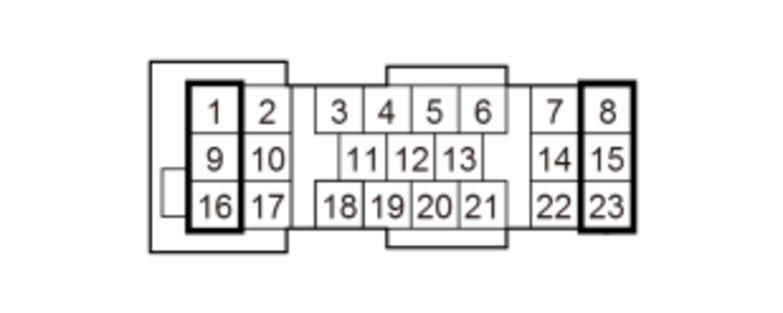

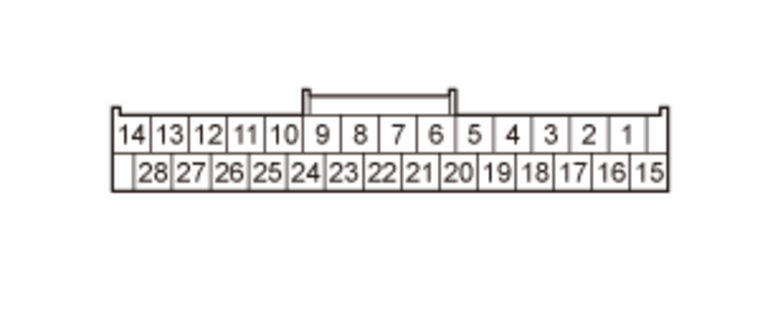

		(Disconnected) TCM connector A (23P) female terminals	(Disconnected)Body control module connector C (28P) female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
PARKOUT [ATP-P] open wire inspection	OFF			There is less than 1 Ohm
NOTE: Refer to the Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
PARKOUT [ATP-P] shorted to ground inspection	OFF			Not shorted

Results

If abnormal, there is a problem in the circuit.

Shorted Parts Inspection (Connected to PARKOUT [ATP-P] Circuit)

Preconditions

NOTE: This procedure can be done before any other inspections are completed because this test procedure includes all of the following inspection items. However, if this test fails, it will be necessary to continue with each inspection item individually to determine which item failed.

External circuit is normal

Test Procedure

Preparation
- TCM connector A (23P): disconnected
- Driver's power seat control unit connector A (40P): disconnected
- Front passenger's power seat control unit connector A (40P) (with 16-way power seat): disconnected
Procedure
- Perform the inspection according to the following table and while reconnecting these parts or connectors, one at a time:-TCM connector A (23P)-Driver's power seat control unit connector A (40P)-Front passenger's power seat control unit connector A (40P) (with 16-way power seat)


		(Disconnected) TCM connector A (23P) female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
Module internal circuit inspection	OFF		Not shorted

Results

If it is abnormal, there is a problem with the component that caused the short to return when it was reconnected.

TCM Inspection

Test Procedure

If the other inspection item(s) indicated a normal condition, then it is determined that the remaining TCM is the cause.

Results

There is a problem with the TCM.
