DTC Troubleshooting: P0697: Inspection

Countershaft Speed Sensor Inspection

Test Procedure

Countershaft speed sensor circuit inspection

• Preparation
• • Countershaft shaft speed sensor 3P connector: disconnected-
• Procedure
• • Turn the vehicle to the ON mode and check the DTC.
• Normal Conditions
• • DTC P0697 is not indicated.

Results

• If it is normal, there is a problem with the countershaft speed sensor.
• If it is abnormal, there is a problem with other related components.

VCC3 Circuit Inspection

Test Procedure

• Preparation
• • Countershaft speed sensor 3P connector: disconnected
  • TCM connector A (23P): disconnected
• Procedure
• • Perform the inspection according to the following table.

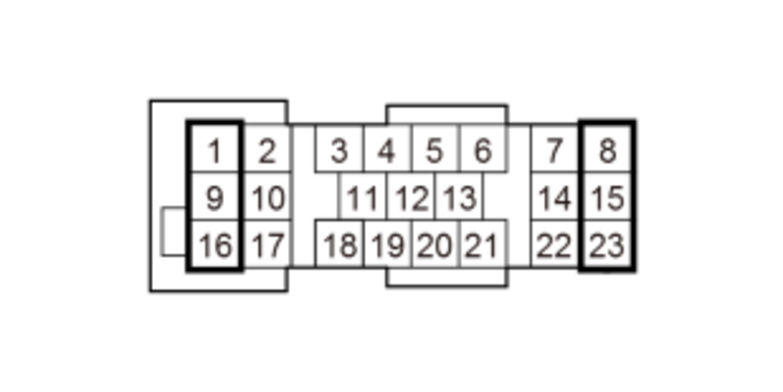

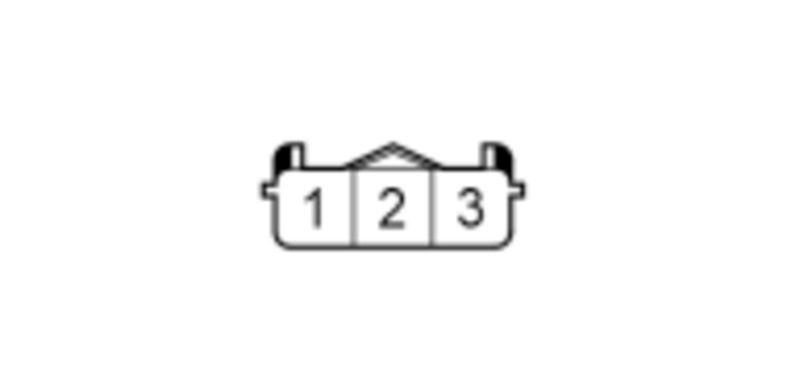

			(Disconnected) TCM connector A (23P) female terminals	(Disconnected)Countershaft speed sensor 3P connectorfemale terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	VCC3, VB1 shorted wire to wire inspection	OFF			There is more than 1 MOhm
	VCC3, VB2 shorted wire to wire inspection	OFF			There is more than 1 MOhm
	VCC3, VB3 shorted wire to wire inspection	OFF			There is more than 1 MOhm

	VCC3, IG1 shorted wire to wire inspection	OFF			There is more than 1 MOhm
	NOTE: Refer to the Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	VCC3 shorted to ground inspection	OFF			Not shorted

Results

• If abnormal, there is a problem in the circuit.

TCM Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining TCM is the cause.

Results

• There is a problem with the TCM.
