DTC Advanced Diagnostics: U0155 (A/T System)

DTC U0155 : PF-CAN A Malfunction (TCM - Gauge Control Module)

General Description

Courtesy of HONDA, U.S.A., INC.

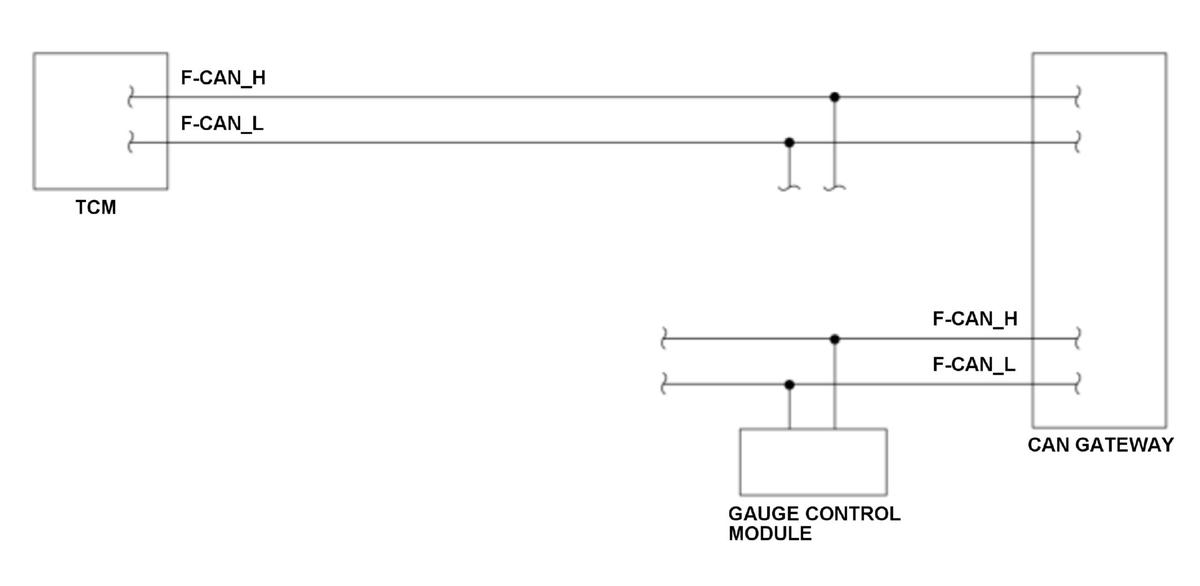

The controller area network (CAN) transmits/receives pulsing signals to/from the control modules simultaneously by using two signal lines (F-CAN_H and F-CAN_L). When the information is not sent from the gauge control module via the F-CAN lines and this condition continues for a specified time or when the information sent from the gauge control module is abnormal and this condition continues for a specified cycle, the transmission control module (TCM) detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution	Continuous
Sequence	None
Duration	2 seconds or more
DTC Type	One drive cycle, MIL off, shift position indicator blinks

Enable Conditions

Condition
Vehicle	ON mode

Malfunction Threshold

One of these conditions is met:

The TCM does not receive any signals from the gauge control module via F-CAN lines for at least 1 second.
The information sent from the gauge control module is abnormal at least 100 times.

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

PF-CAN circuit PF-CAN A_H line open
PF-CAN circuit PF-CAN A_L line open
PF-CAN circuit PF-CAN A_H line short to ground
PF-CAN circuit PF-CAN A_L line short to ground
IF-CAN circuit IF-CAN_H line open
IF-CAN circuit IF-CAN_L line open
IF-CAN circuit IF-CAN_H line short to ground
IF-CAN circuit IF-CAN_L line short to ground
Gauge control module internal circuit failure
TCM internal circuit failure

Confirmation Procedure

Operating Condition

Turn the vehicle to the ON mode, and wait for several seconds.

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected, the shift position indicator blinks and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the TCM memory. The MIL does not come on.

Conditions for clearing the DTC

The shift position indicator comes off by turning the vehicle to the OFF (LOCK) mode. The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool clear command.
