DTC Advanced Diagnostics: P26C3
DTC P26C3 : Internal SBW Shifter Control Module Performance
General Description
| Input signal | State of the switch | |
|---|---|---|
| PinSW1 | PinSW2 | |
| Lo | Lo | PinSW ON |
| Lo | Hi | During switch operation or single switch failure |
| Hi | Lo | |
| Hi | Hi | PinSW OFF |

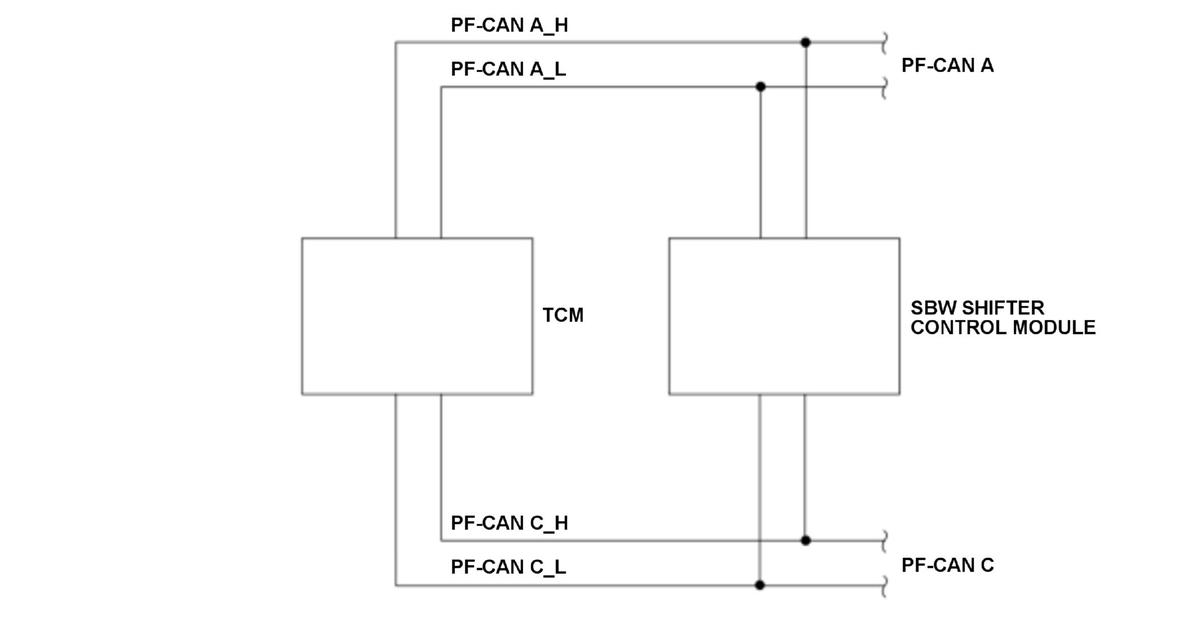

The transmission control module (TCM) and the SBW shifter control module (integrated with the SBW shifter assembly) are connected with a communication line (PF-CAN A and PF-CAN C). For shift position switching control, the shift position signal from the SBW shifter control module via PF-CAN C is used for main signal, and the shift position signal from the SBW shifter control module via PF-CAN A is used for back-up signal. When PinSW1 and PinSW2 input signal logic do not match (PinSW1 ON and PinSW2 OFF or PinSW1 OFF and PinSW2 ON) during accelerations and decelerations, or input information from the switch input circuit is abnormal while shifting to R, N, or D switch, the TCM receives malfunction from the SBW shifter control module, and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | Depending on the driving conditions |
| DTC Type | One drive cycle, MIL off, shift position indicator blinks |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| 12 volt battery voltage [Battery Voltage] | 9 V | 16 V |
| Vehicle | ON mode or accelerating and decelerating | |
[ ]: HDS Parameter
Malfunction Threshold
One of these conditions is met.

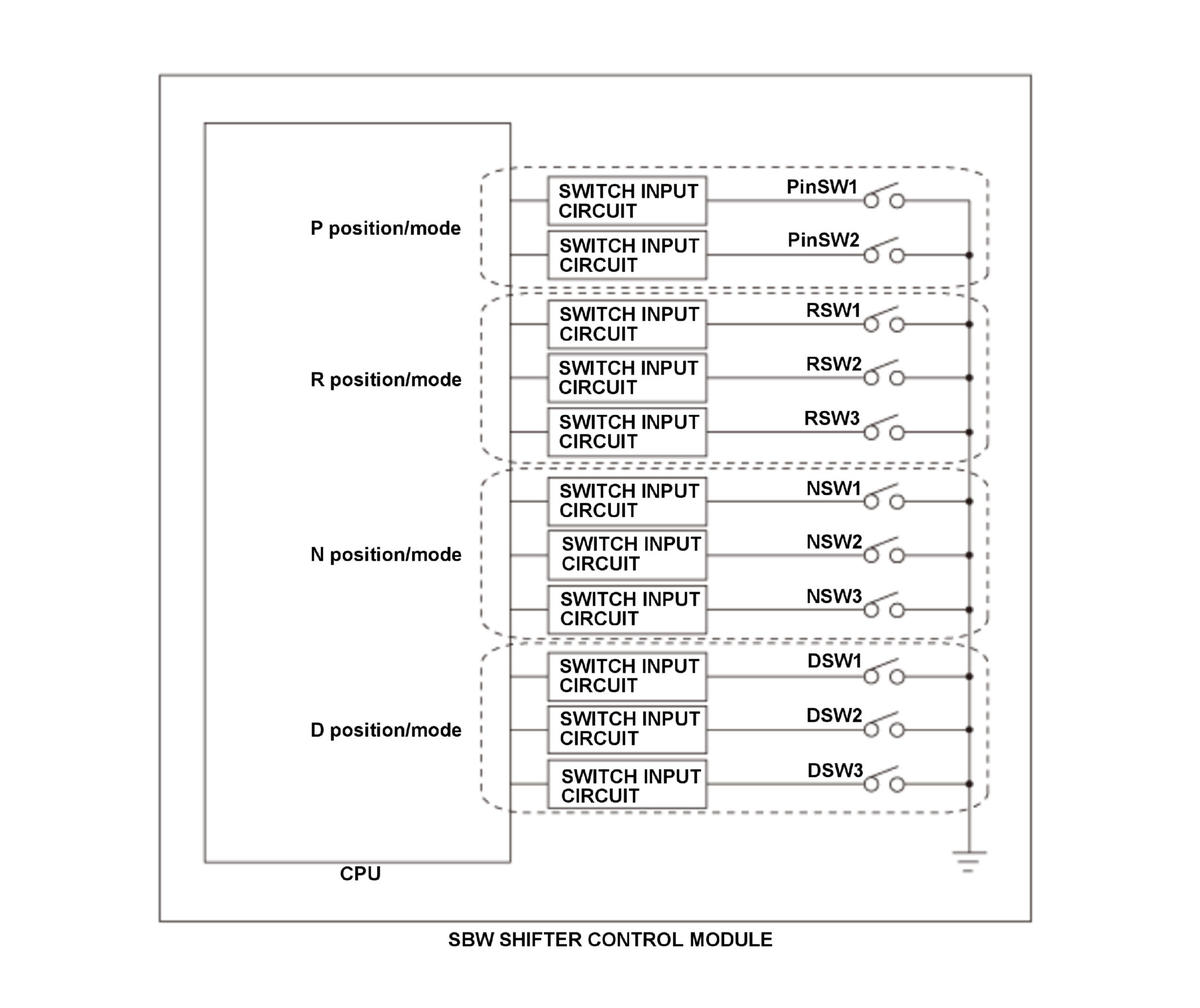

- The input signal logic of PinSW1 and PinSW2 do not match (PinSW1 ON and PinSW2 OFF or PinSW1 OFF and PinSW2 ON) while accelerating and decelerating (6 mph (10 km/h) or less for 2 seconds, 25 mph (40 km/h) or more for 2 seconds, and 6 mph (10 km/h) or less for 2 seconds).
- RSW1 or RSW3 is ON for at least 200 milliseconds when shifting the transmission to other than R position/mode.
- RSW2 is ON for at least 1 minute when shifting the transmission to other than R position/mode.
- RSW1, RSW2, or RSW3 is OFF for at least 10 times when shifting the transmission to R position/mode.
- NSW1 or NSW3 is ON for at least 200 milliseconds when shifting the transmission to other than N position/mode.
- NSW2 is ON for at least 1 minute when shifting the transmission to other than N position/mode.
- NSW1, NSW2, or NSW3 is OFF for at least 10 times when shifting the transmission to N position/mode.
- DSW1 or DSW3 is ON for at least 200 milliseconds when shifting the transmission to other than D position/mode.
- DSW2 is ON for at least 1 minute when shifting the transmission to other than D position/mode.
- DSW1, DSW2, or DSW3 is OFF for at least 10 times when shifting the transmission to D position/mode.
Possible Cause
- SBW shifter assembly internal failure (SBW shifter control module)
Confirmation Procedure
Operating Condition
- Start the engine.
- Drive the vehicle at a speed of 6 mph (10 km/h) or less for at least 2 seconds.
- Accelerate the vehicle to 25 mph (40 km/h) or more for at least 2 seconds.
- Slow down the vehicle to 6 mph (10 km/h) or less for at least 2 seconds.
- Stop the vehicle.
- Shift the transmission to other than R position/mode for at least 1 minute.
- Shift the transmission to R position/mode for at least 10 times.
- Shift the transmission to other than N position/mode for at least 1 minute.
- Shift the transmission to N position/mode for at least 10 times.
- Shift the transmission to other than D position/mode for at least 1 minute.
- Shift the transmission to D position/mode for at least 10 times.
- Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the shift position indicator blinks and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the TCM memory. The MIL does not come on.
Conditions for clearing the DTC
The shift position indicator comes off by turning the vehicle to the OFF (LOCK) mode. The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool clear command.
