Wheel Runout Inspection: Inspection

How to use this manual .

1. Wheel Runout - Inspect

   Preconditions

   • Vehicle Lifted Up

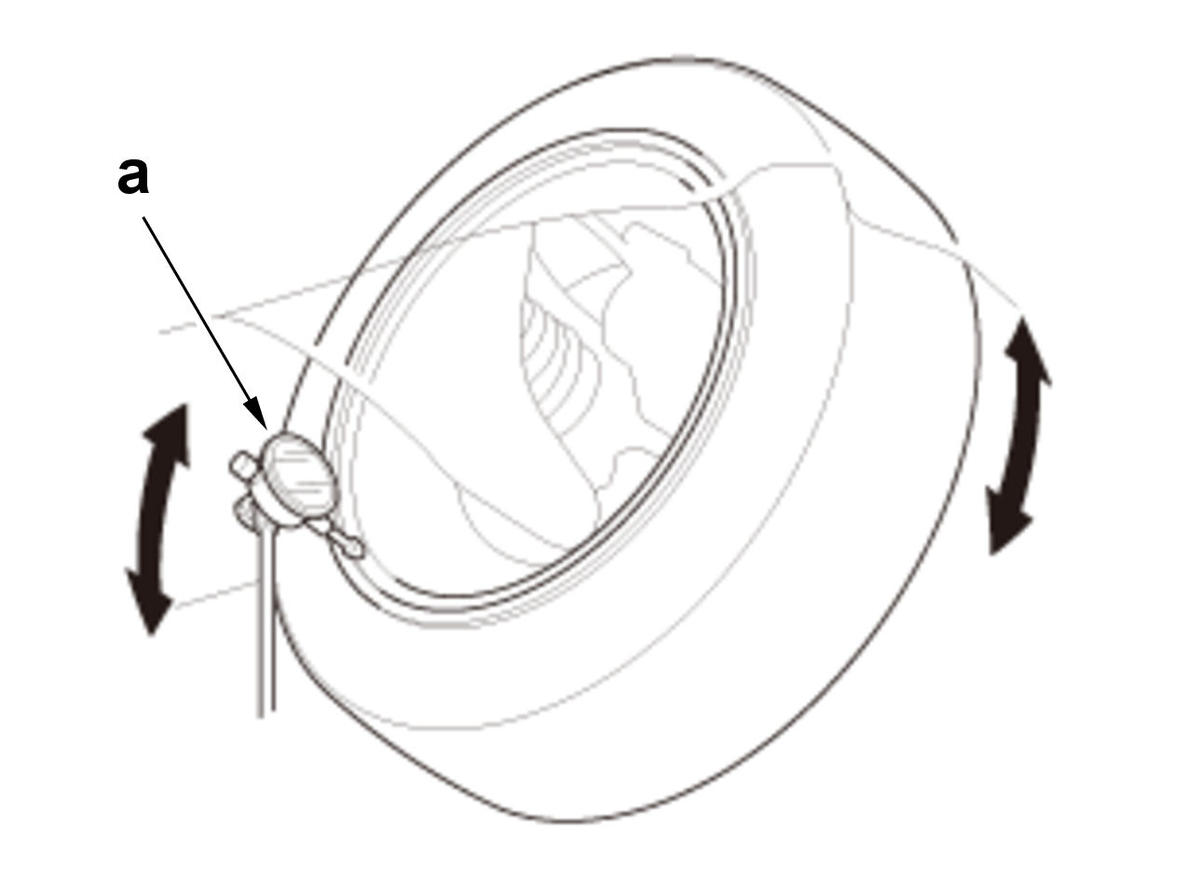

   Figure 1 (Axial Runout)

   Courtesy of HONDA, U.S.A., INC.

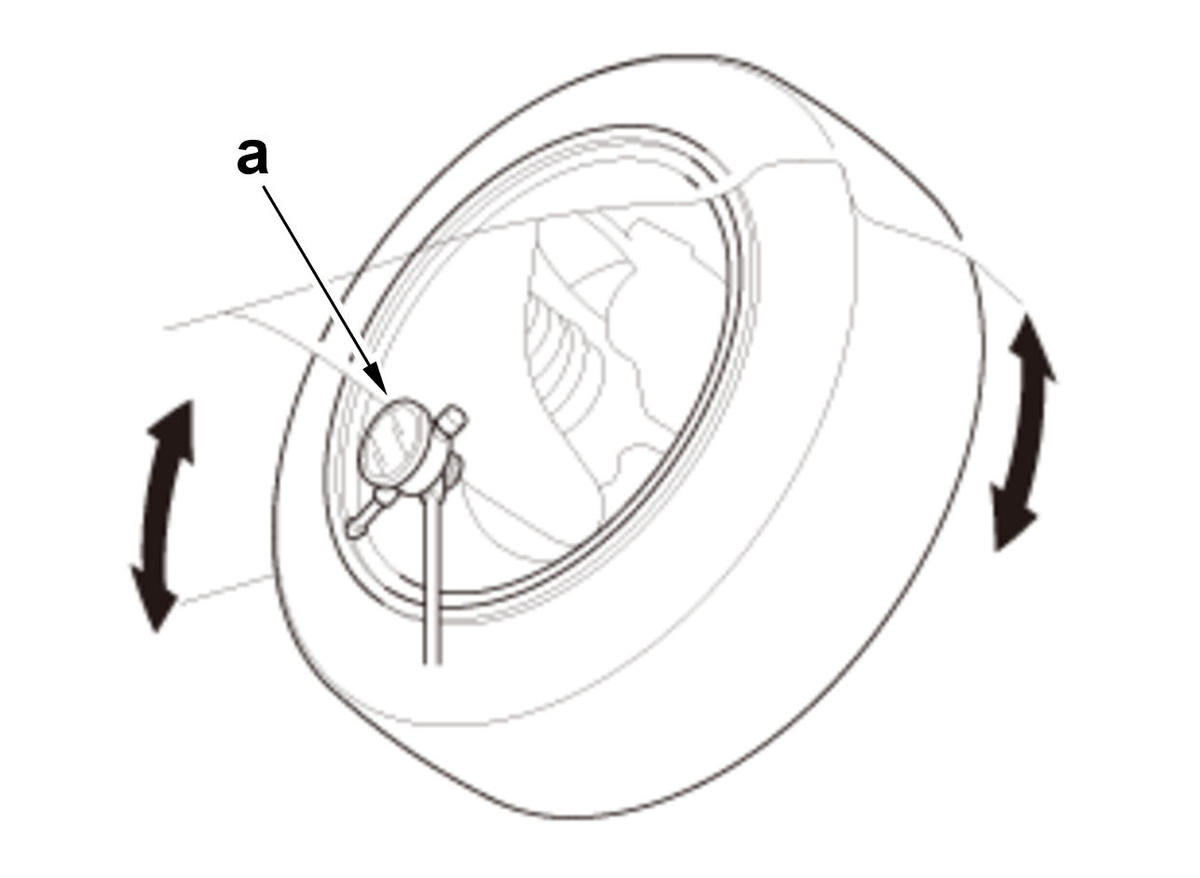

   Figure 2 (Radial Runout)

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   1. Check for bent or deformed wheels.

   2. Measure the axial runout and the radial runout by turning the wheel.

   Tool Details (Figure 1 and 2)

   Name
   a	Dial Gauge

   Specifications

   Item	Standard Value	Service Limit
   Axial Runout	0-0.3 mm (0-0.012 in)	2.0 mm (0.079 in)
   Radial Runout	0-0.3 mm (0-0.012 in)	1.5 mm (0.059 in)

   Result

   • If the measurement is not within specifications, check the wheel bearing end play , and make sure the mating surfaces between the brake disc and the inside of the wheel are clean. If the bearing end play is within the specification but the wheel runout is more than the service limit, replace the wheel.
