Front Damper Inspection: Inspection

How to use this manual .

1. Front Damper - Inspect

   Preconditions

   • Damper/spring assembly disassembled

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   1. Install the damper mounting base and the original self-locking nut.

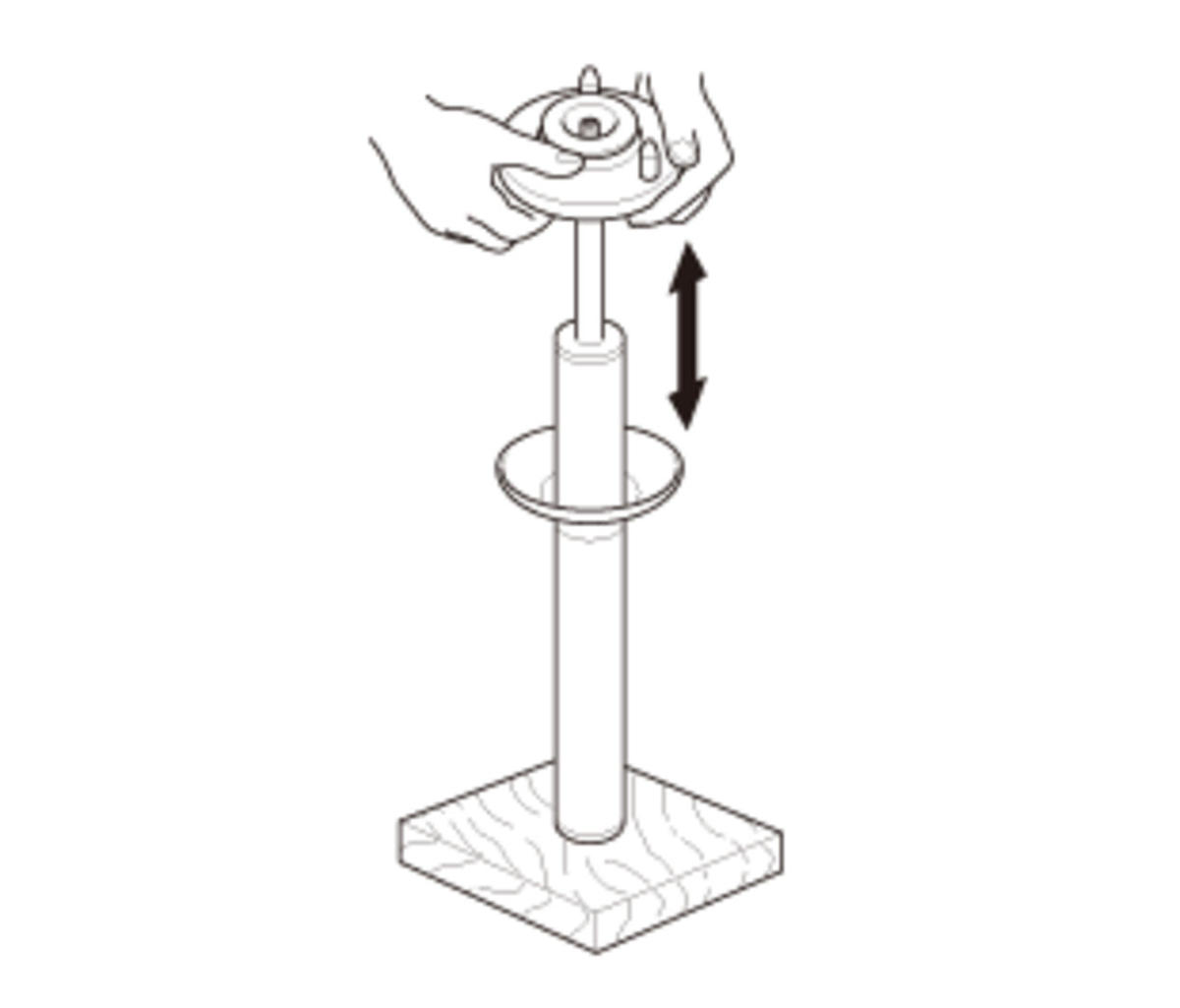

   2. Compress the damper assembly by hand, and check for smooth operation through a full stroke, both compression and extension.

   Specifications

   Specification
   Extends smoothly and consistently when compression is released. No oil leaks No abnormal noise

   Result

   • If it is abnormal, replace the damper unit.
