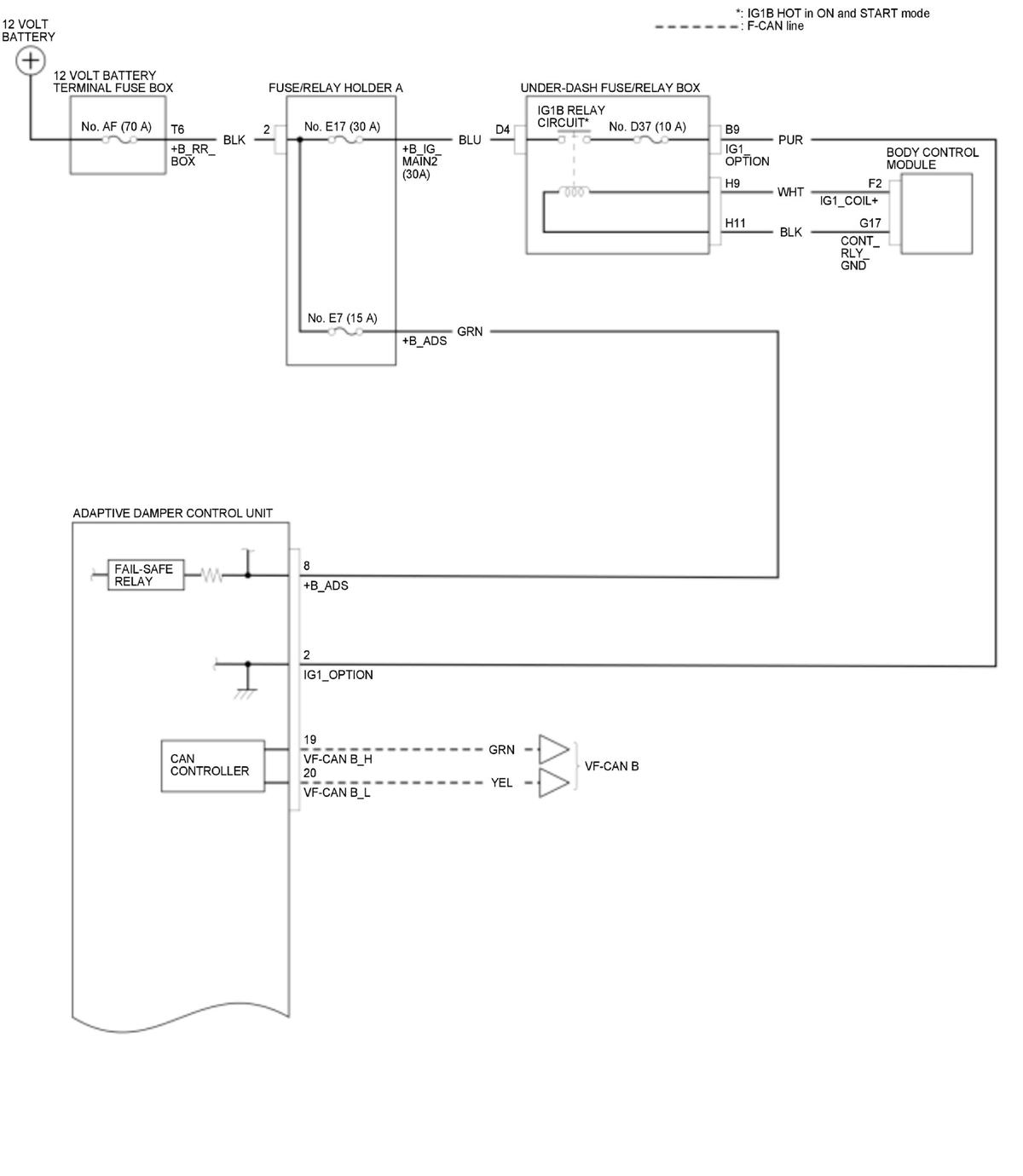

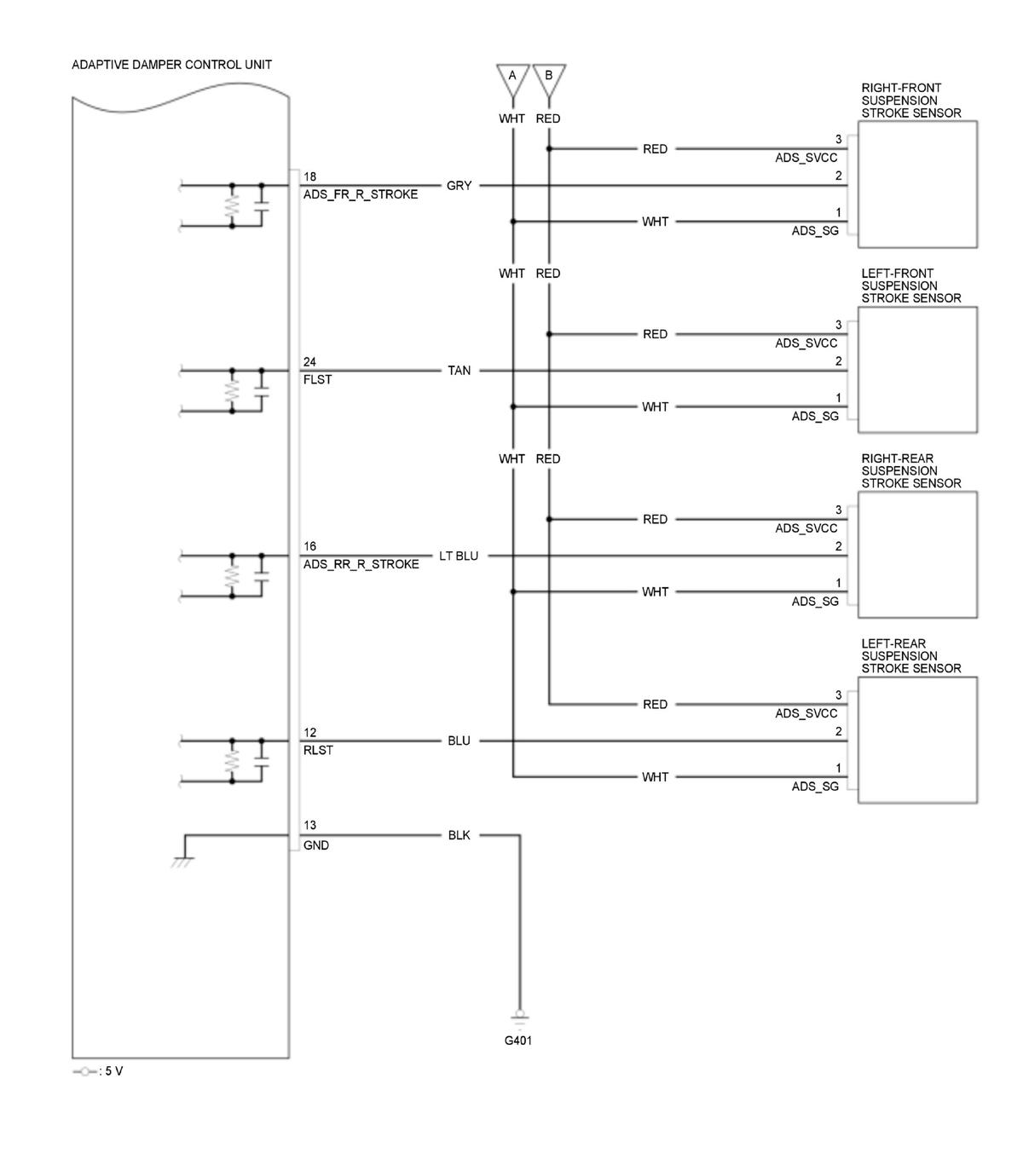

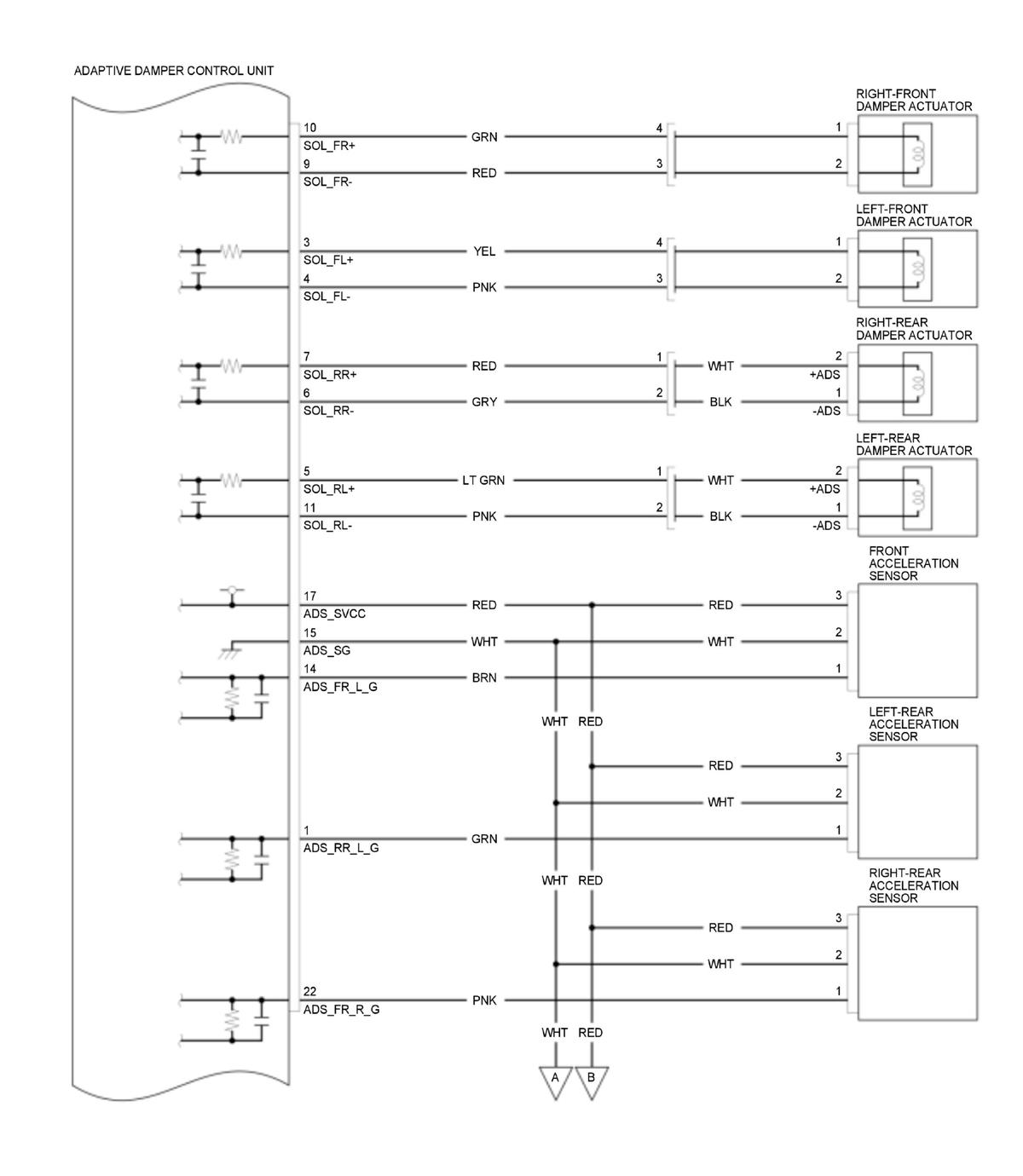

Adaptive Damper System Circuit Diagram

NOTE: For details of the CAN circuit, refer to the Network Communications Circuit Diagram

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
