Repair Procedure

How to use this manual .

WARNING:

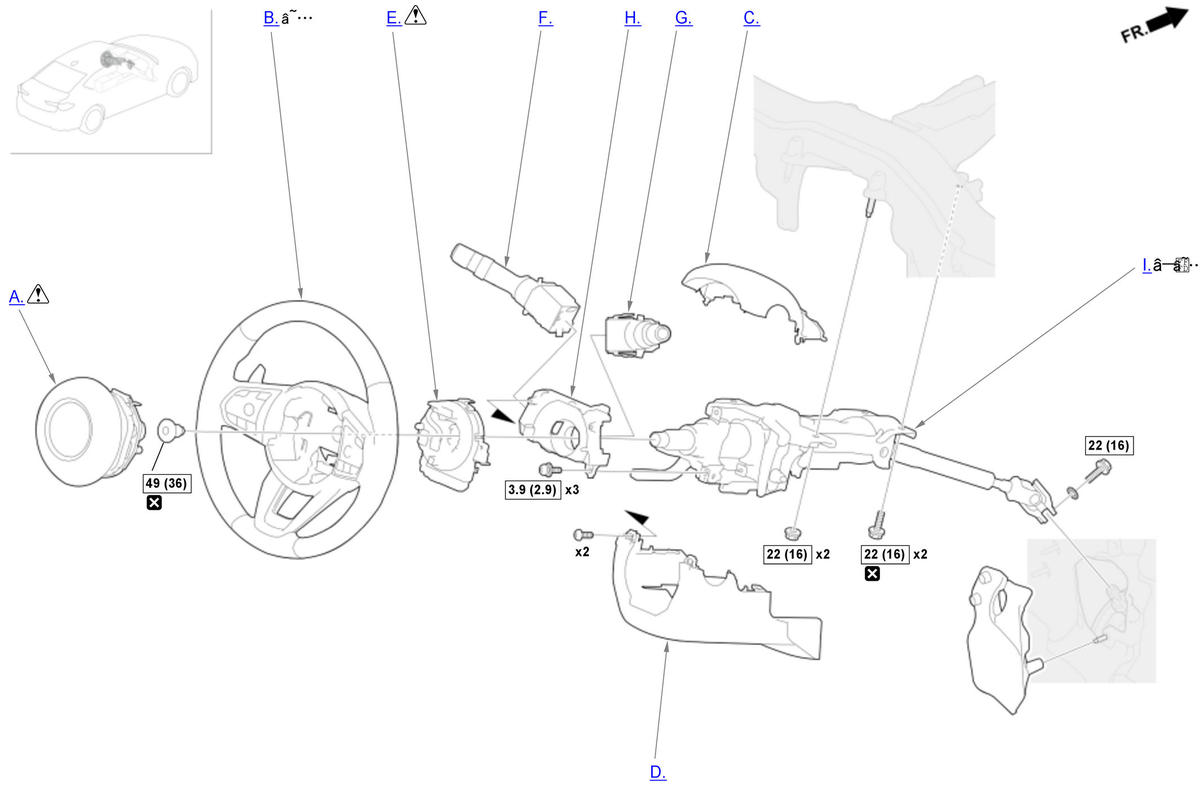

GHH562820Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning : ■SPL Tool : Required Removal
  1. A.-
    WARNING:
    NOTE:
    • If you are replacing the driver's airbag after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: SRS Component Replacement/Inspection After Deployment for a complete list of other parts that must also be replaced.
    • If the driver's airbag deployed, the cable reel cannot be reused because of thermal damage.

    Preconditions

    Sub-Procedure

    Removal

    Figure 1

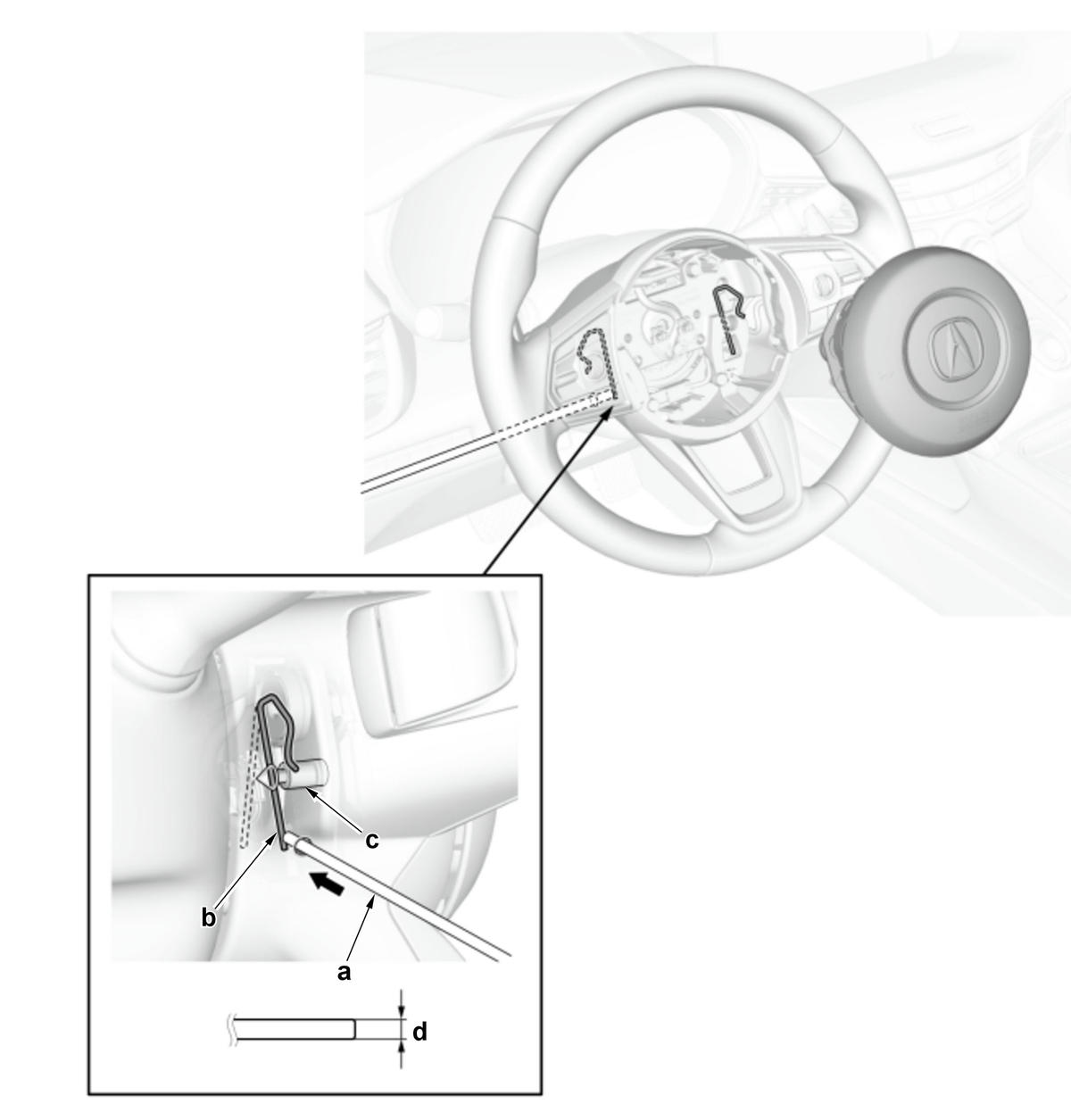

    1. Insert a punch (a) through the hole of the steering body cover and push the spring (b) to release the front airbag pin (c) while pulling out the airbag. Repeat for the other side. (Figure 1)

    Punch Specifications (Figure 1)

    Standard Value
    d 5.5 mm (0.217 in)
    GHH562821Courtesy of HONDA, U.S.A., INC.

    Installation

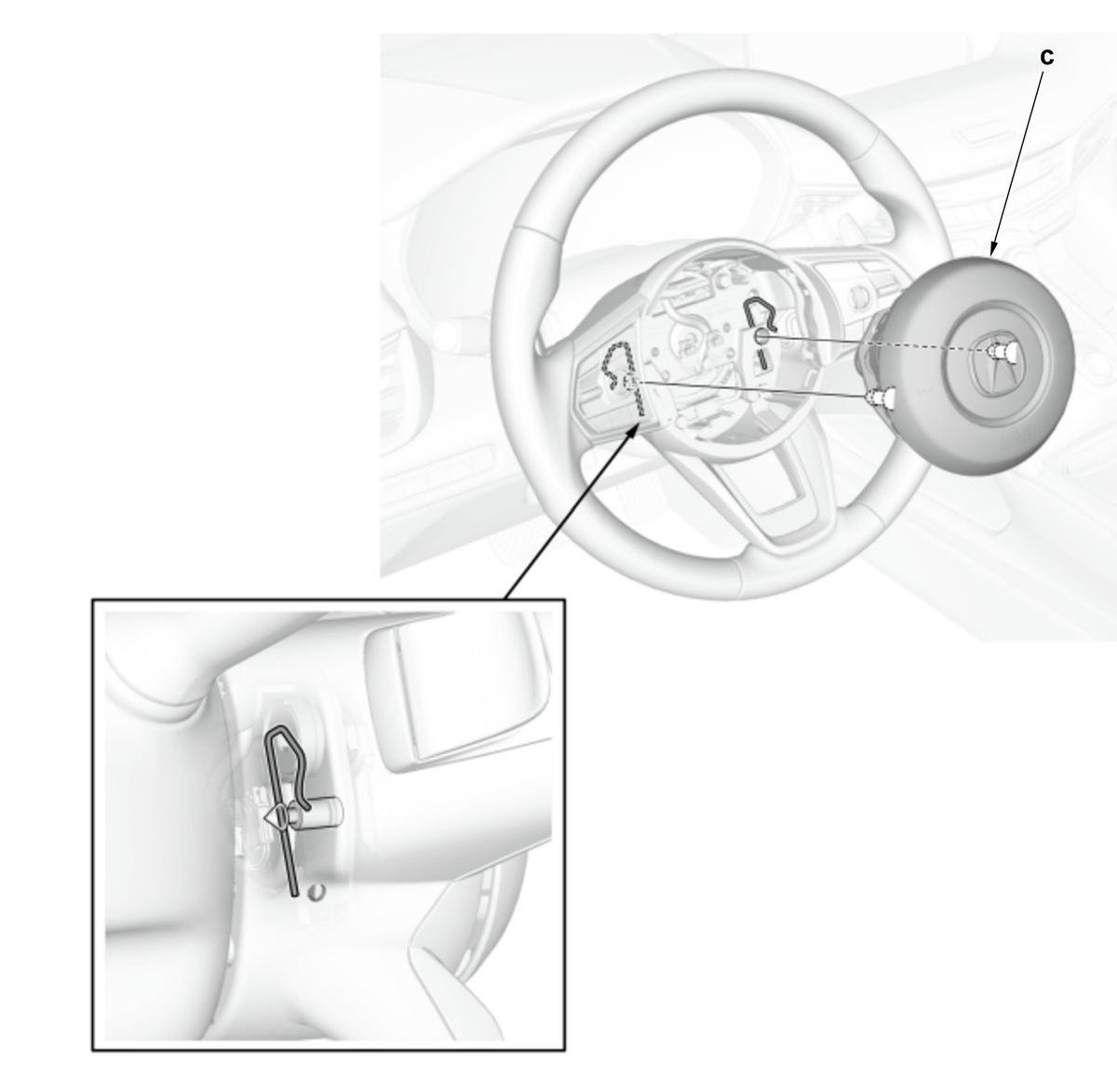

    Figure 2

    1. Install the driver's airbag (c) by pushing it in until you hear a click. (Figure 2)

    NOTE:  Confirm that the front airbag pins are securely mounted to the springs.

    GHH562822Courtesy of HONDA, U.S.A., INC.

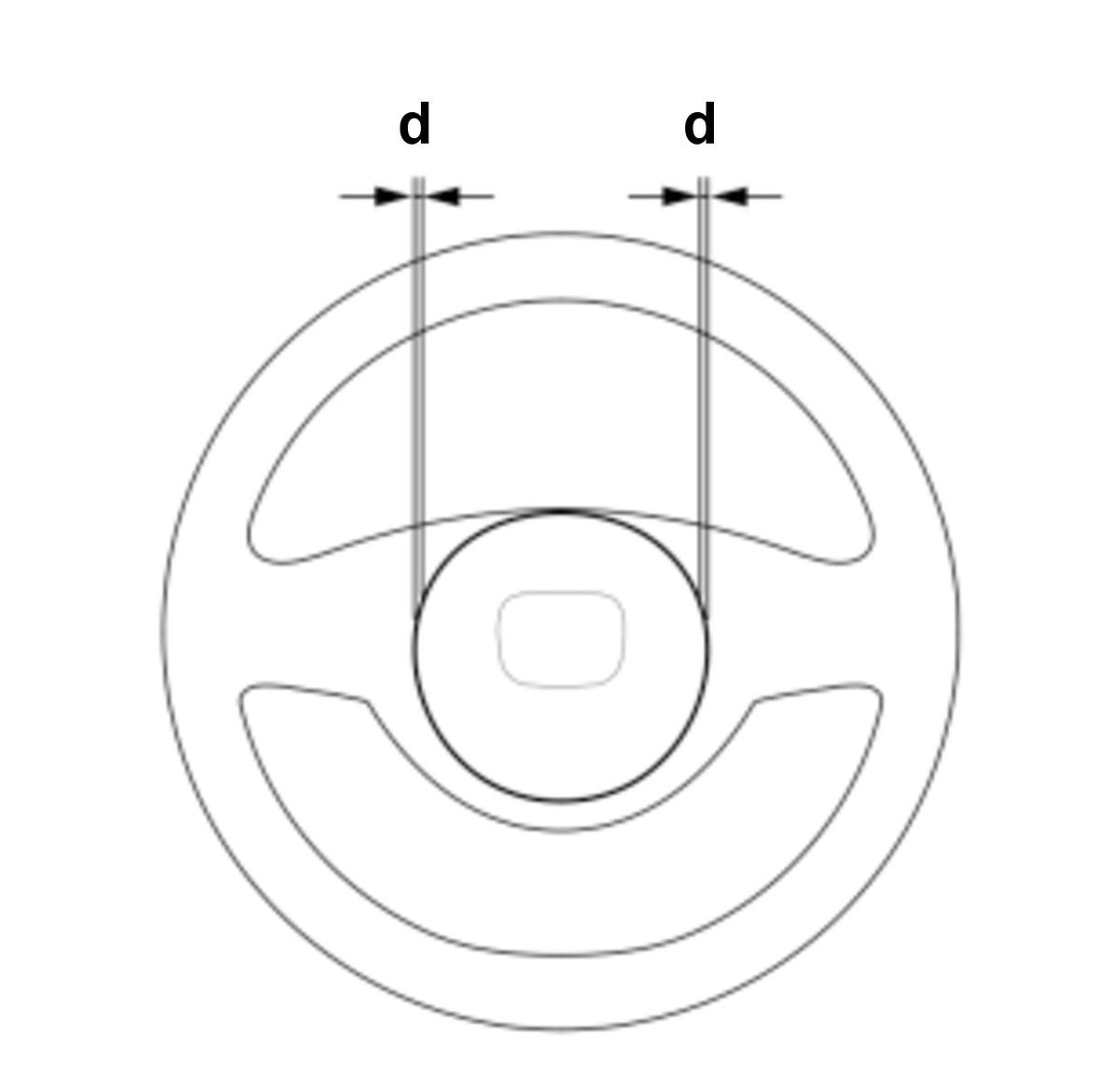

    Figure 3

    Specifications (Figure 3)

    2. Make sure the clearance (d) between the steering wheel and horn pad is the specified value. (Figure 3)

    Standard Value
    d 2.3 mm (0.091 in)
    GHH562823Courtesy of HONDA, U.S.A., INC.

    After Installation

    1. 12 Volt Battery Negative Terminal Reconnect

    2. Make sure the horn works properly.

    3. Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.

  2. B.-

    Preconditions

    • Set the front wheels in the straight ahead position.

    Sub-Procedure

    Figure 1

    Removal

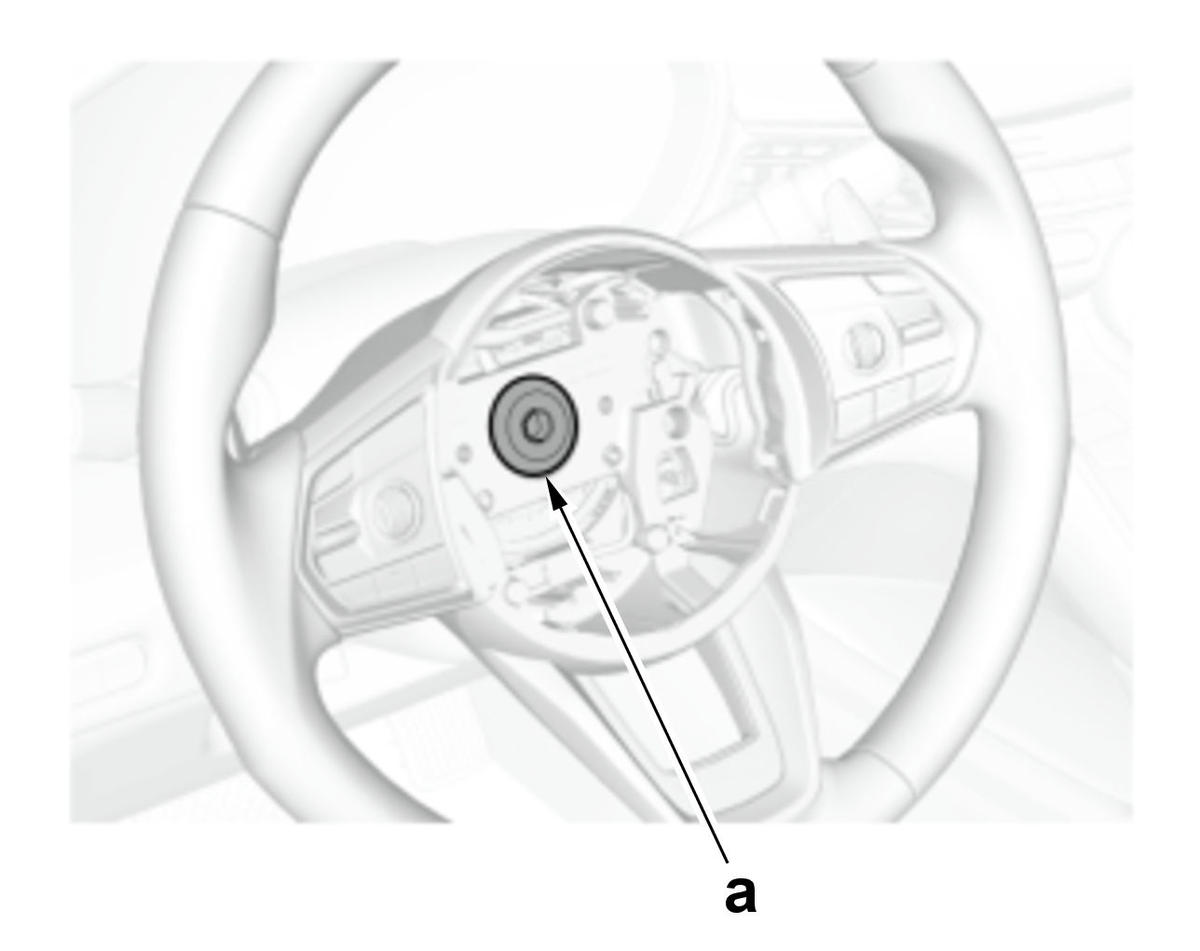

    1. Loosen the bolt (a) three turns. (Figure 1)

    GHH562824Courtesy of HONDA, U.S.A., INC.

    Figure 2

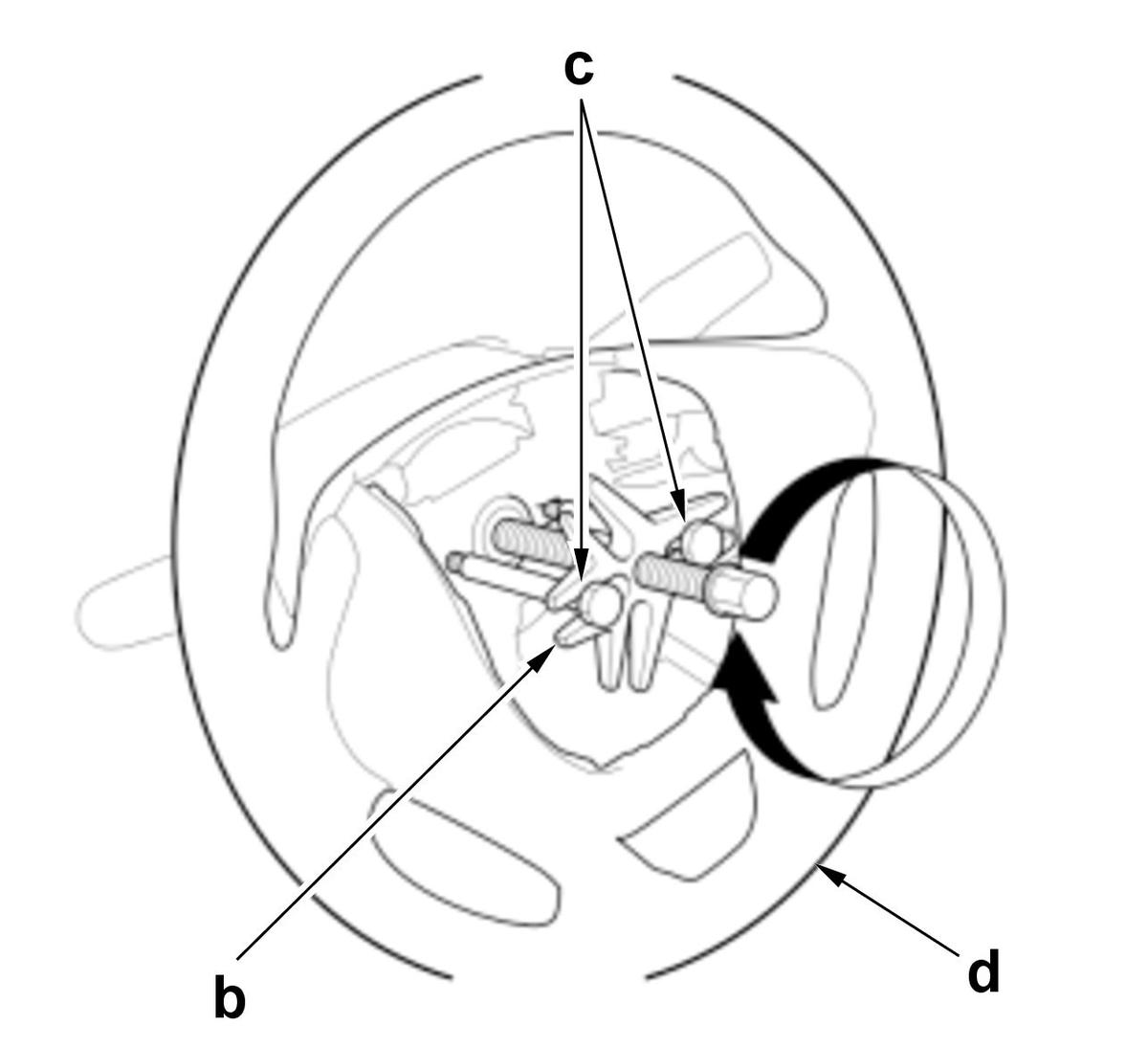

    2. Refer to the figure 2.

    NOTE:

    If you thread the puller bolts (c) into the wheel hub more than five threads, the bolts will hit the cable reel and damage it. To prevent this, install a pair of jam nuts five threads up on each puller bolt. (Figure 2)

    3. Remove the steering wheel (d). (Figure 2)

    NOTE:
    • Do not tap on the steering wheel or the steering column shaft when removing the steering wheel.
    • Remove the old sealant from the threads in the column shaft.
    GHH562825Courtesy of HONDA, U.S.A., INC.

    Tool Details (Figure 2)

    Name
    b Steering Wheel Puller (Commercially Available)

    Figure 3

    Installation

    NOTE:  A new cable reel is locked by a yellow tab for center adjustment. When installing the new cable reel there is no need to rotate the cable. After the tab is removed, discard it after installing the cable reel.

    1. Make sure the front wheels are pointing straight ahead.

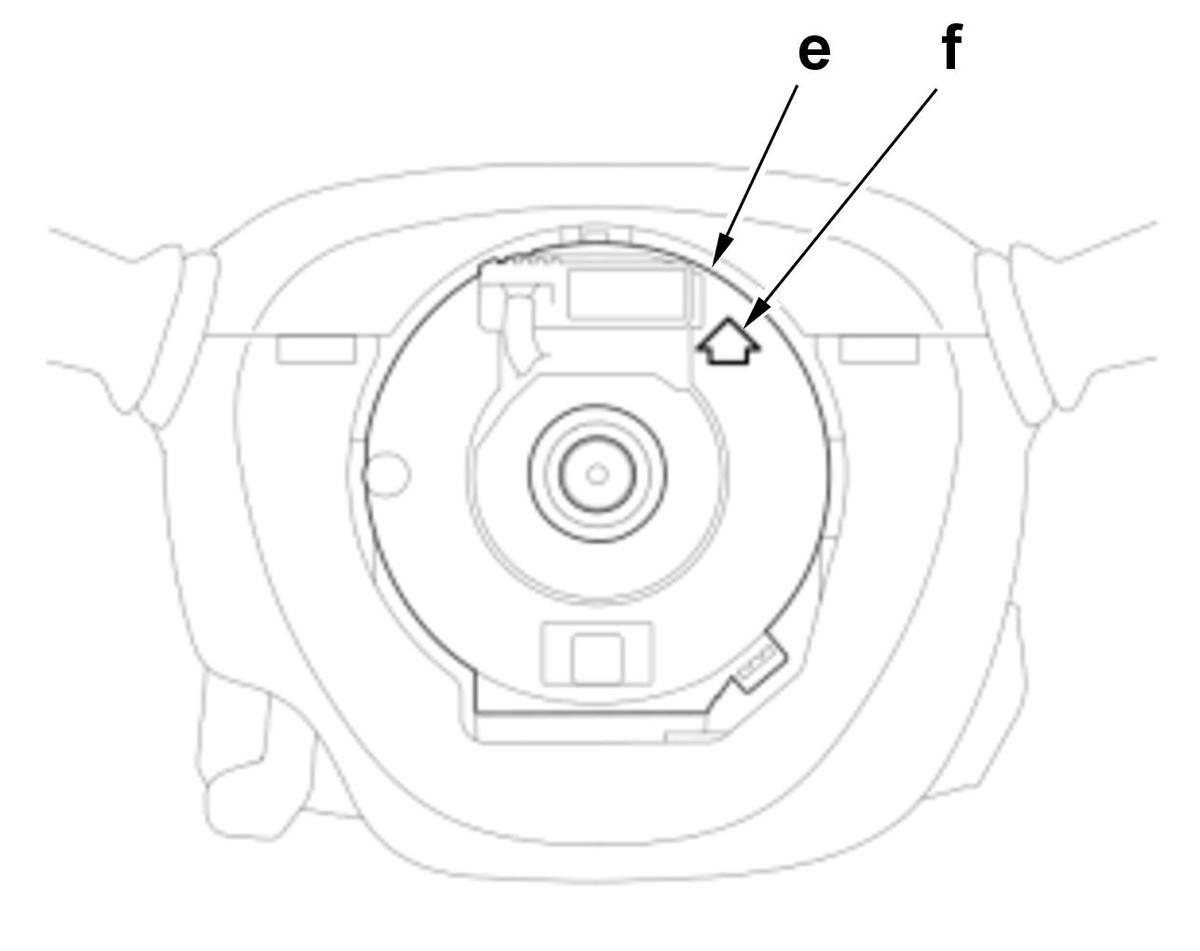

    2. Rotate the cable reel (e) clockwise until it stops. (Figure 3)

    3. Rotate the cable reel counterclockwise until the arrow mark (f) on the cable reel points straight up. (Figure 3)

    4. Rotate the cable reel counterclockwise two full turns. The arrow mark on the cable reel should point straight up.

    GHH562826Courtesy of HONDA, U.S.A., INC.

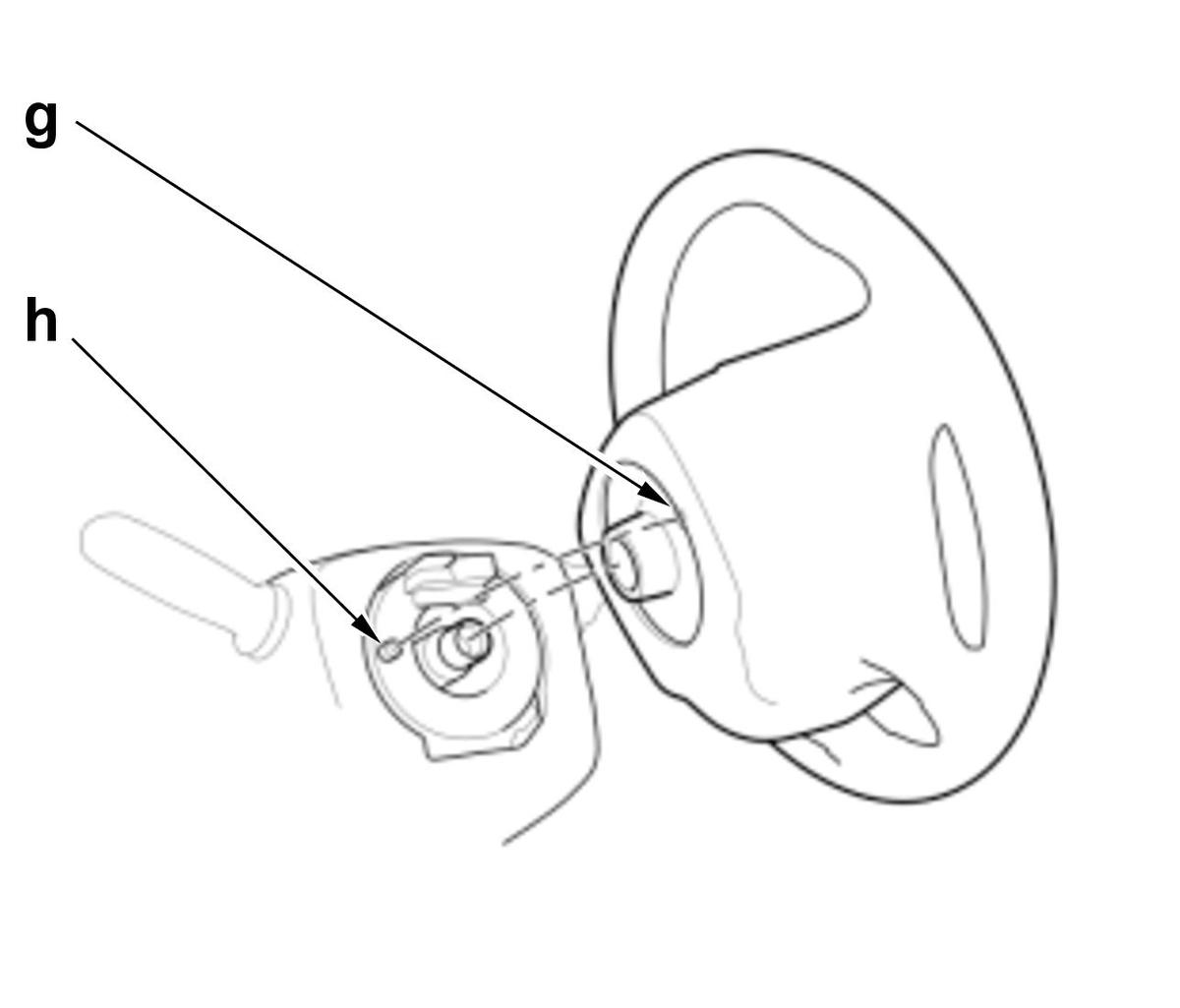

    Figure 4

    5. Position the steering wheel hub (g) so that it engages the pin (h) of the cable reel. (Figure 4)

    NOTE:

    Do not tap on the steering wheel or the steering column shaft when installing the steering wheel.

    GHH562827Courtesy of HONDA, U.S.A., INC.

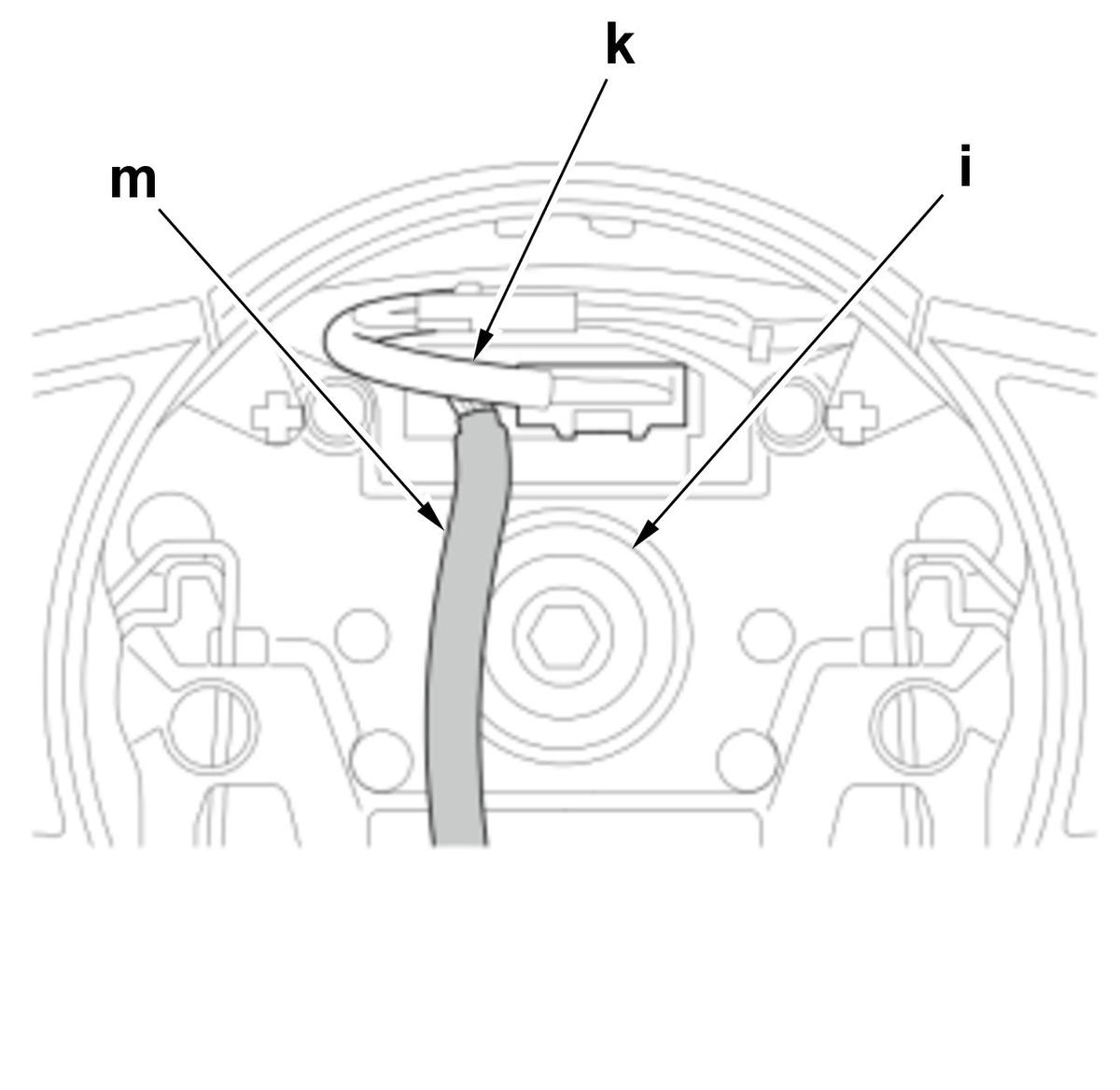

    Figure 5

    6. Install a new bolt (i), and tighten it to the specified torque. (Figure 5)

    NOTE:

    Make sure that the cable reel subharness (k) is routed above the SRS harness (m). (Figure 5)

    GHH562828Courtesy of HONDA, U.S.A., INC.

    NOTE:  Install the bolt and tighten it within 5 minutes to the specified tightening torque.

    After Installation

    1. Steering Wheel Spoke Angle Check.

    • Check the steering wheel spoke angle.
    • With the front wheels straight ahead, make sure the steering wheel is centered and the turning revolutions from center to full lock (left and right) are equal. If not, check the installation of the steering wheel and the engagement of the joint/pinion shaft splines.

    2. VSA Sensor Neutral Position Memorization - Refer to: VSA Sensor Neutral Position Memorization

  3. C.-

    Preconditions

    • Adjust the steering column to the full tilt down position, and to the full telescopic out position.

    Sub-Procedure

    Removal

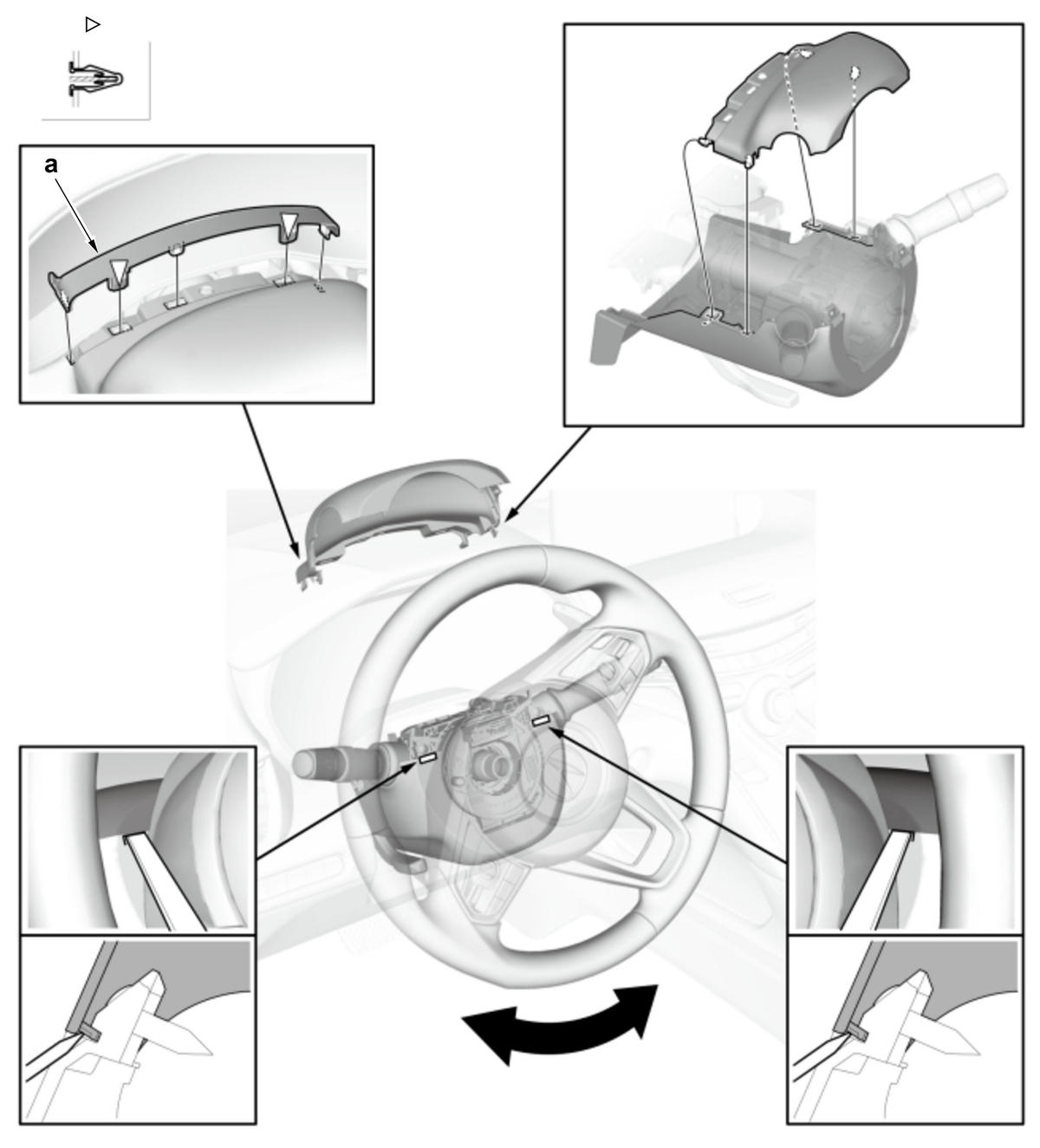

    • Release the clips, then lift up the dashboard meter visor blind cover (a).
    GHH562829Courtesy of HONDA, U.S.A., INC.

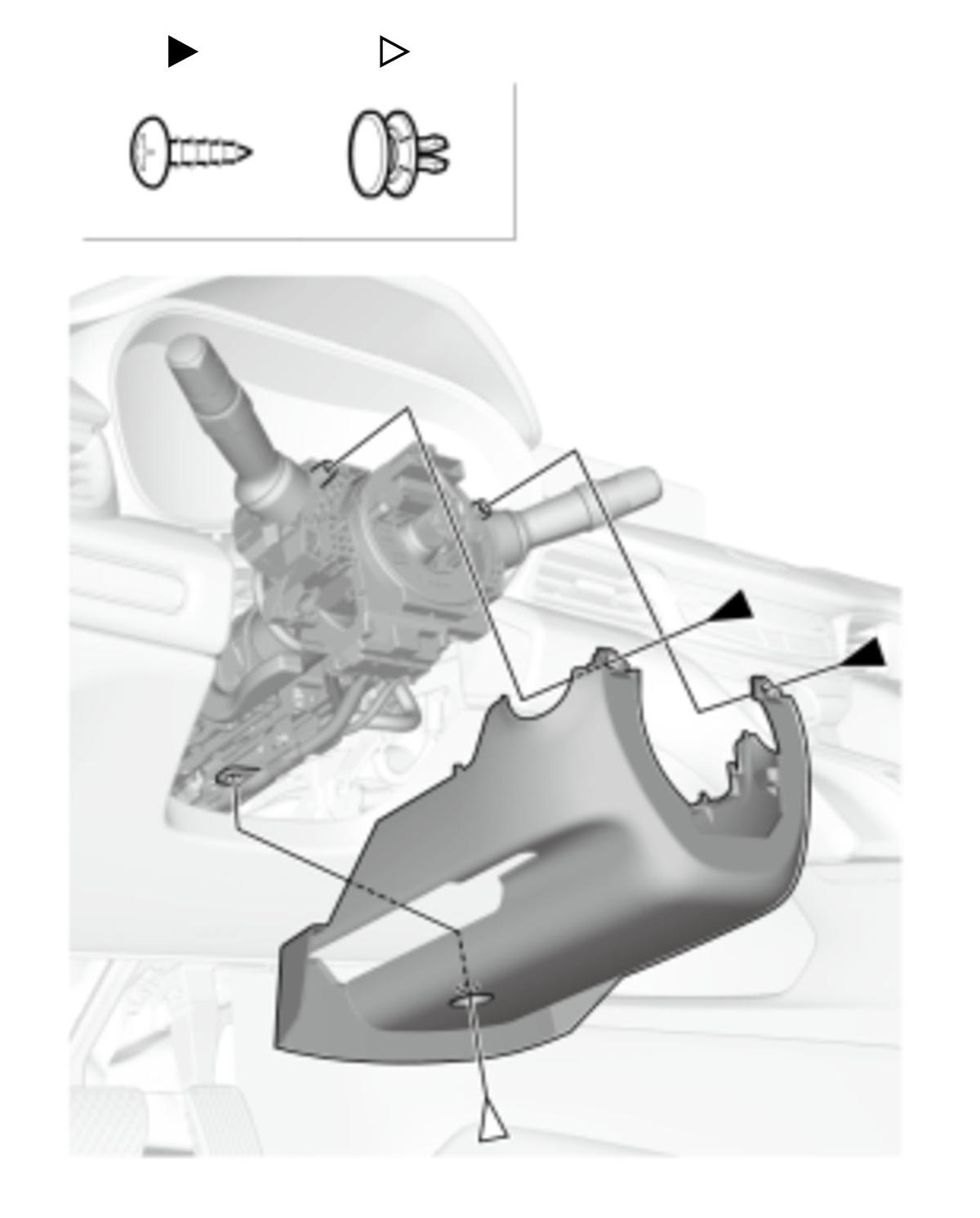

  4. D.-
    GHH562830Courtesy of HONDA, U.S.A., INC.

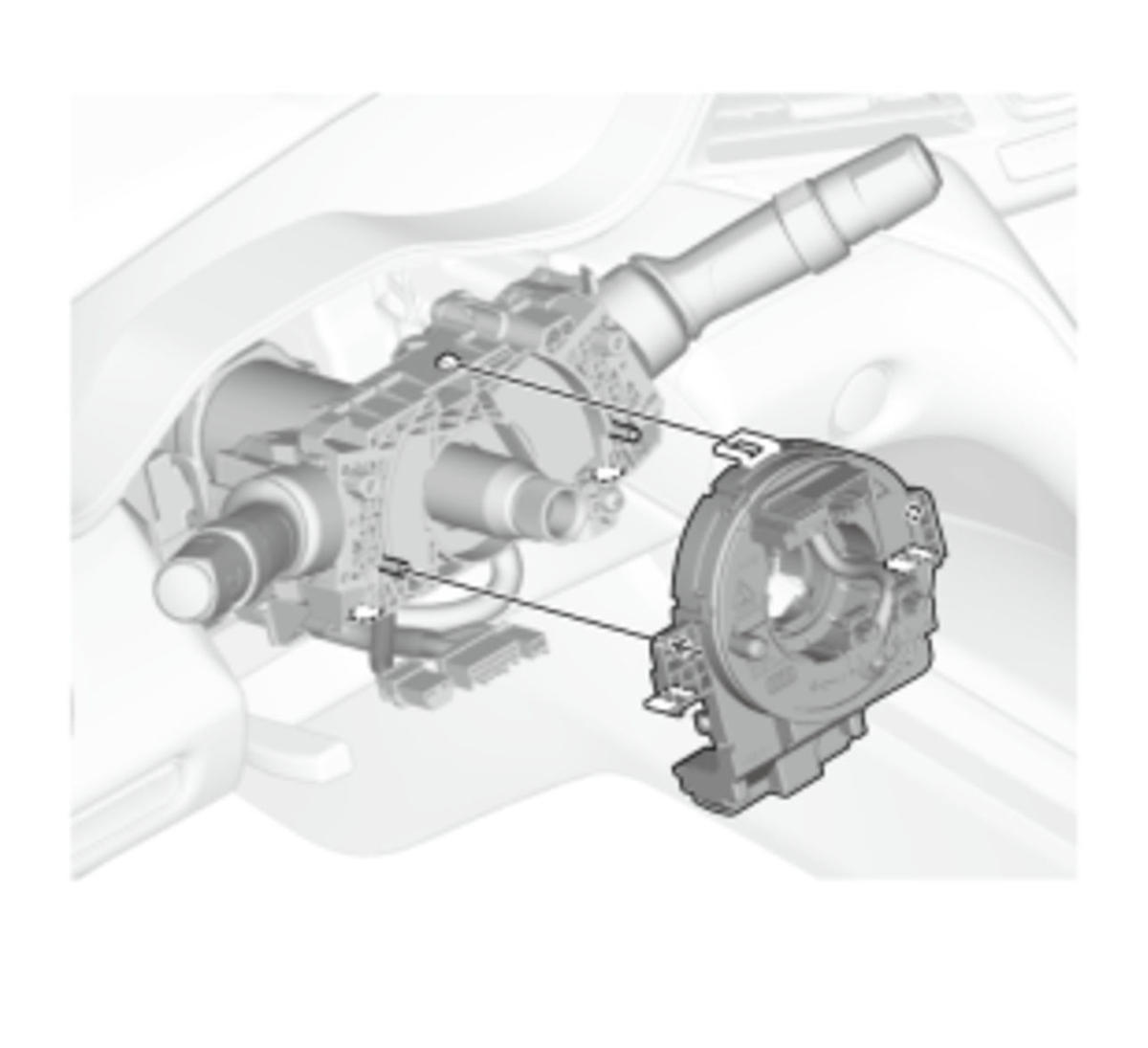

  5. E.-
    WARNING:
    NOTE:

    Preconditions

    Sub-Procedure

    GHH562831Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.

    Installation

    NOTE:  Set the front wheels in the straight ahead position.

    After Installation

    1. 12 Volt Battery Negative Terminal Reconnect

    2. Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.

  6. F.-

    Sub-Procedure

    GHH562832Courtesy of HONDA, U.S.A., INC.

    Removal

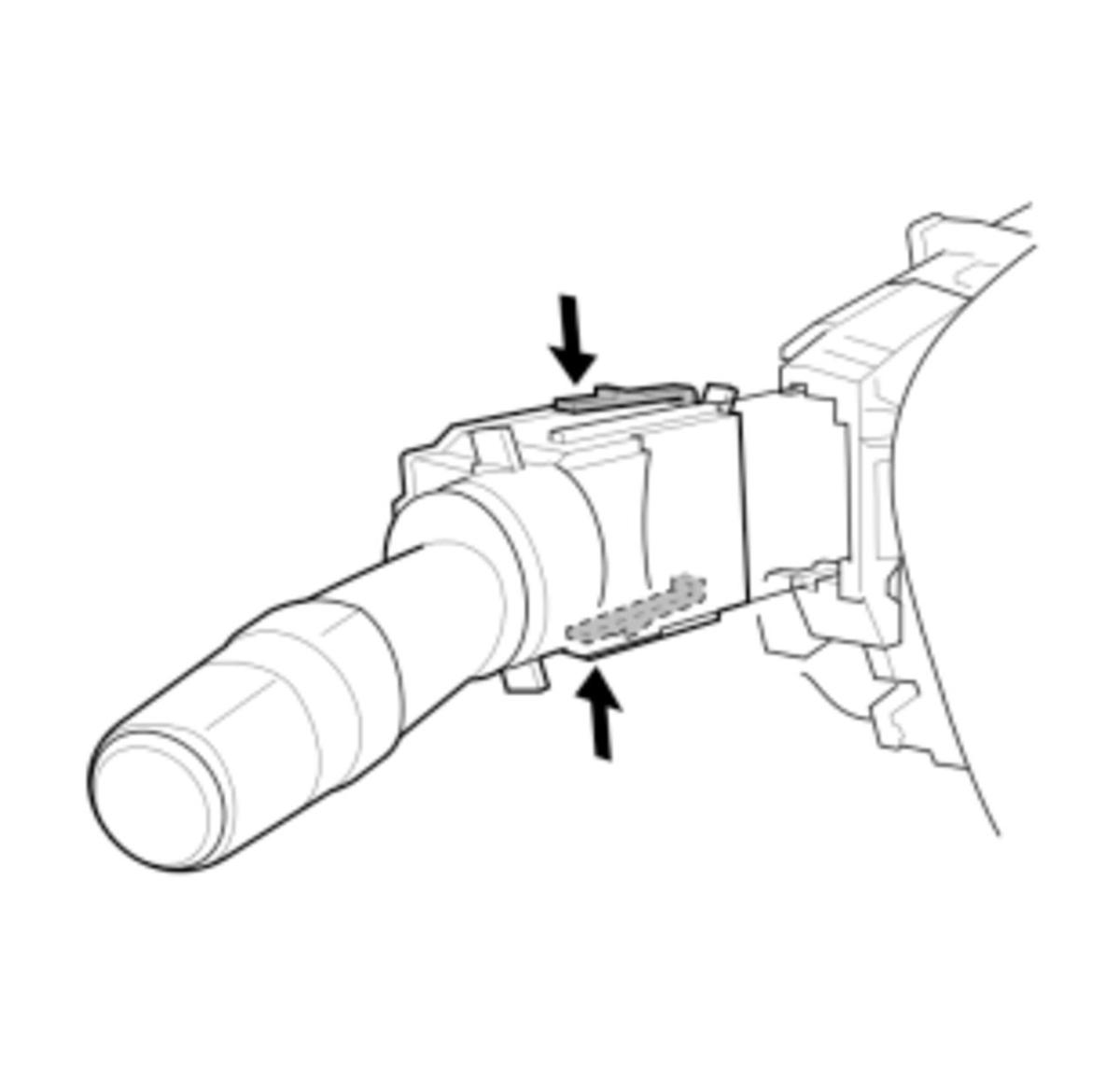

    • Refer to the figure.
  7. G.-

    Sub-Procedure

    GHH562833Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.
  8. H.-

    Sub-Procedure

    GHH562834Courtesy of HONDA, U.S.A., INC.

    Installation

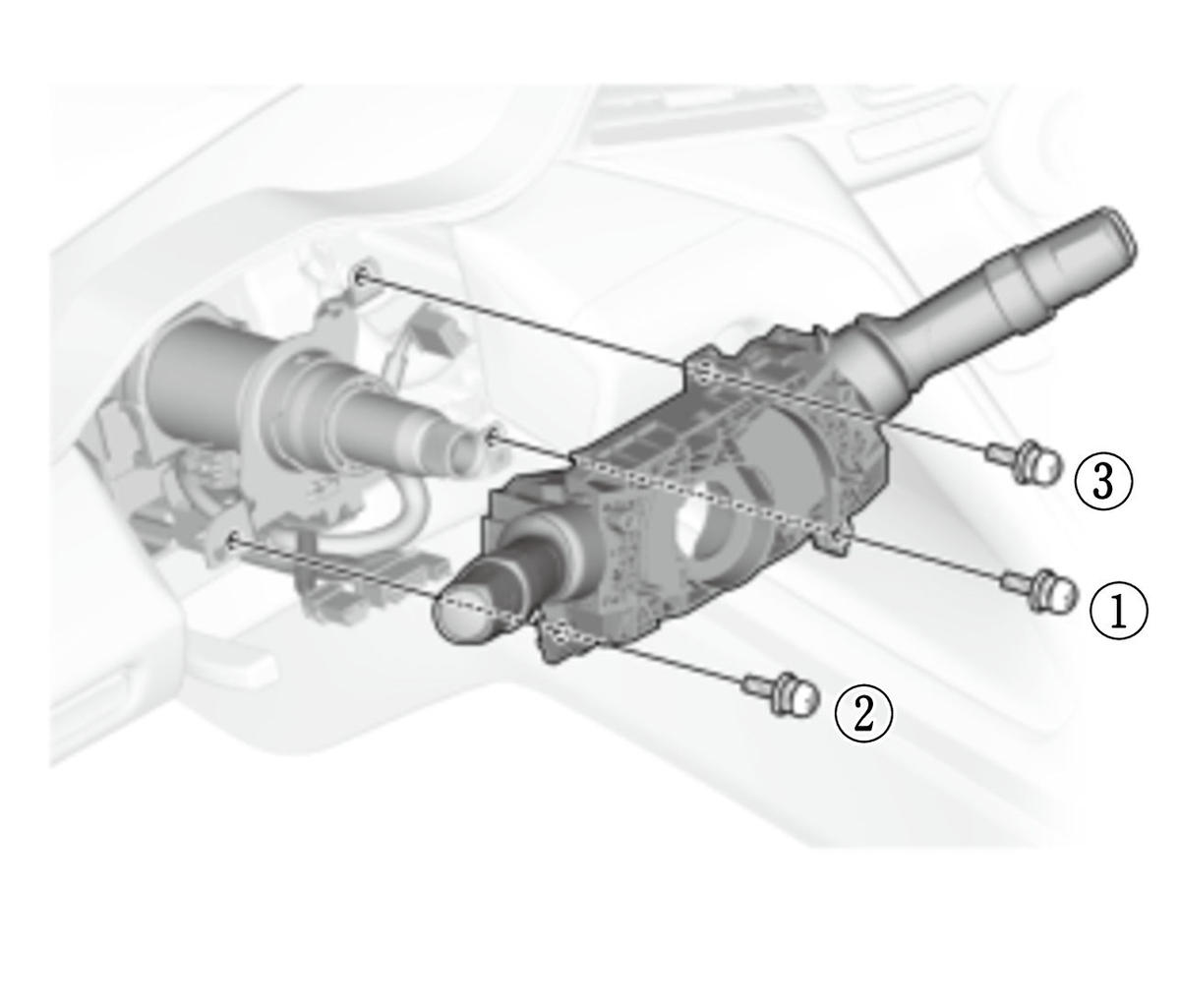

    • Tighten the attaching bolts to the specified torque in the numbered sequence shown.
  9. I.-
    NOTE:

    Do not release the lock lever until the steering column/EPS control unit is installed. If the lock lever is released before installation, adjust the steering column after installation.

    Preconditions

    Key Information

    Do the following before starting your work.

    Remove:

    Sub-Procedure

    Figure 1

    Removal

    NOTE:

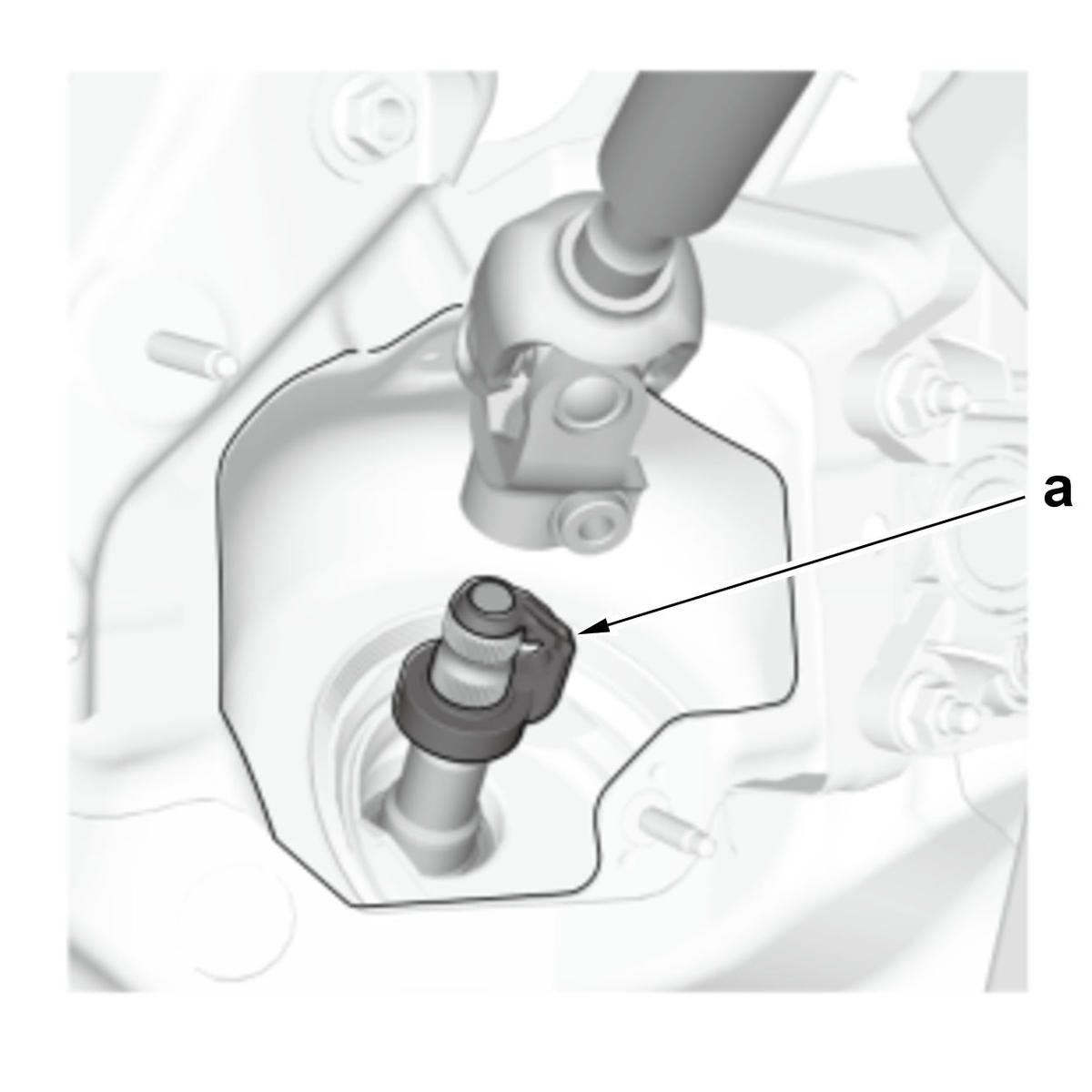

    • If the center guide (a) is in place and has not moved, leave it in place. (Figure 1)
    • If the center guide has come off, discard it.
    GHH562835Courtesy of HONDA, U.S.A., INC.

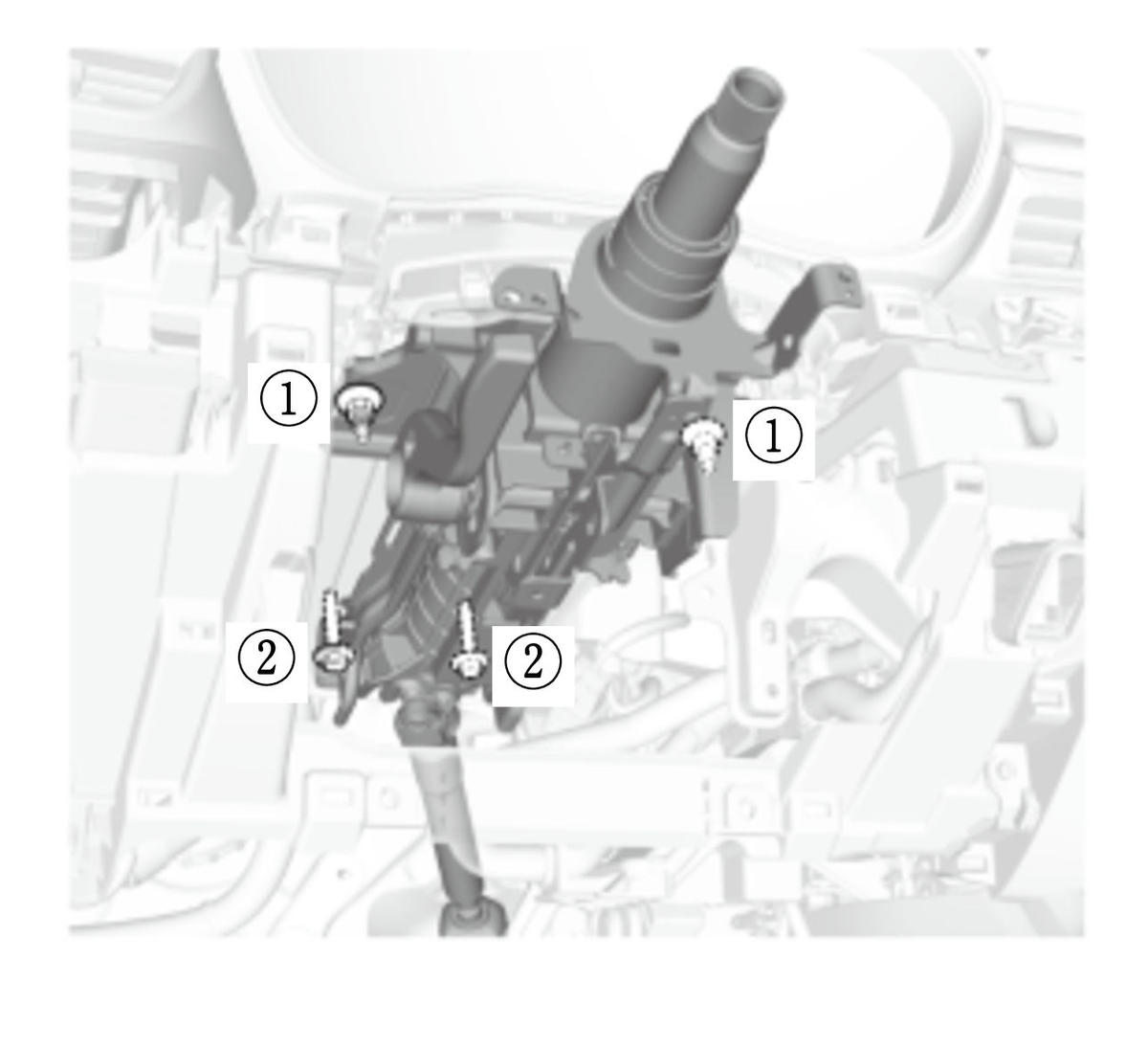

    Figure 2

    Installation

    NOTE:  Be careful not to damage the brake pedal position switch.

    1. Tighten the attaching nuts and bolts to the specified torque in the numbered sequence shown. (Figure 2)

    GHH562836Courtesy of HONDA, U.S.A., INC.

    Figure 3

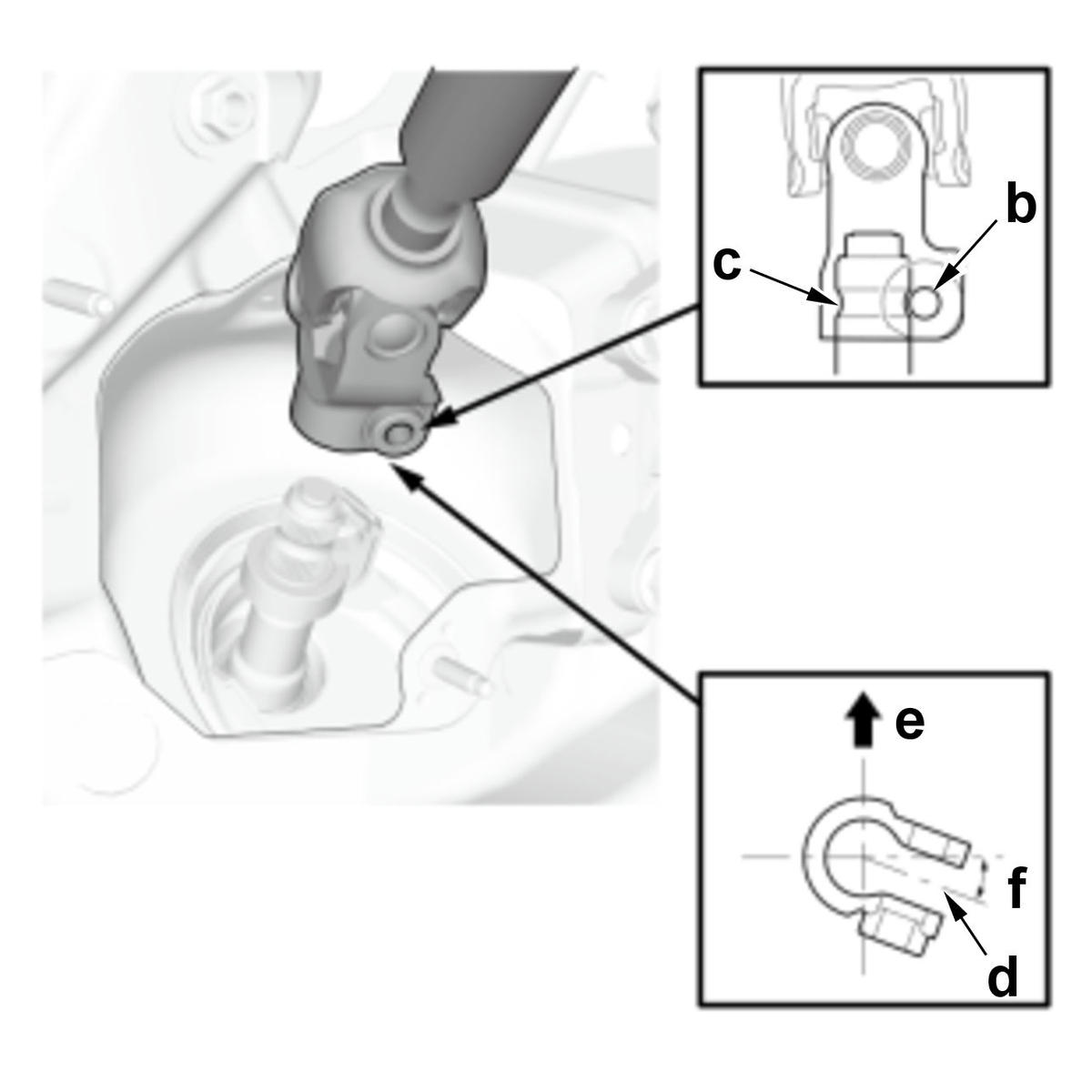

    2. Align the bolt hole (b) on the steering joint with the groove (c) around the pinion shaft. (Figure 3)

    NOTE:
    • Pinion shaft with center guide: Install the steering joint by aligning the center guide.
    • Pinion shaft without center guide: Position the steering column by aligning the gap (d) within the angle. (Figure 3)
    GHH562837Courtesy of HONDA, U.S.A., INC.

    Vehicle Directions (Figure 3)

    Position Direction
    e Front

    Specifications (Figure 3)

    Standard Value
    f 21 10 deg.

    After Installation

    1. 12 Volt Battery Negative Terminal Reconnect

    2. Steering Check.

    • Check the tilt mechanism and the telescopic mechanism for movement and damage.
    • With the front wheels straight ahead, make sure the steering wheel is centered and the turning revolutions from center to full lock (left and right) are equal. If not, check the installation of the steering wheel and the engagement of the joint/pinion shaft splines.

    3. Wheel Alignment Check

    4. VSA Sensor Neutral Position Memorization - Refer to: VSA Sensor Neutral Position Memorization
