Steering Heater Test: Test

How to use this manual .

WARNING:

SRS components are located in this area. Before doing repairs or service:
- Review the SRS component locations .
- Review the precautions and procedures .

NOTE: The steering wheel heater is built into the steering wheel.

Steering Heater - Test
Preconditions
- Driver's Airbag Removed

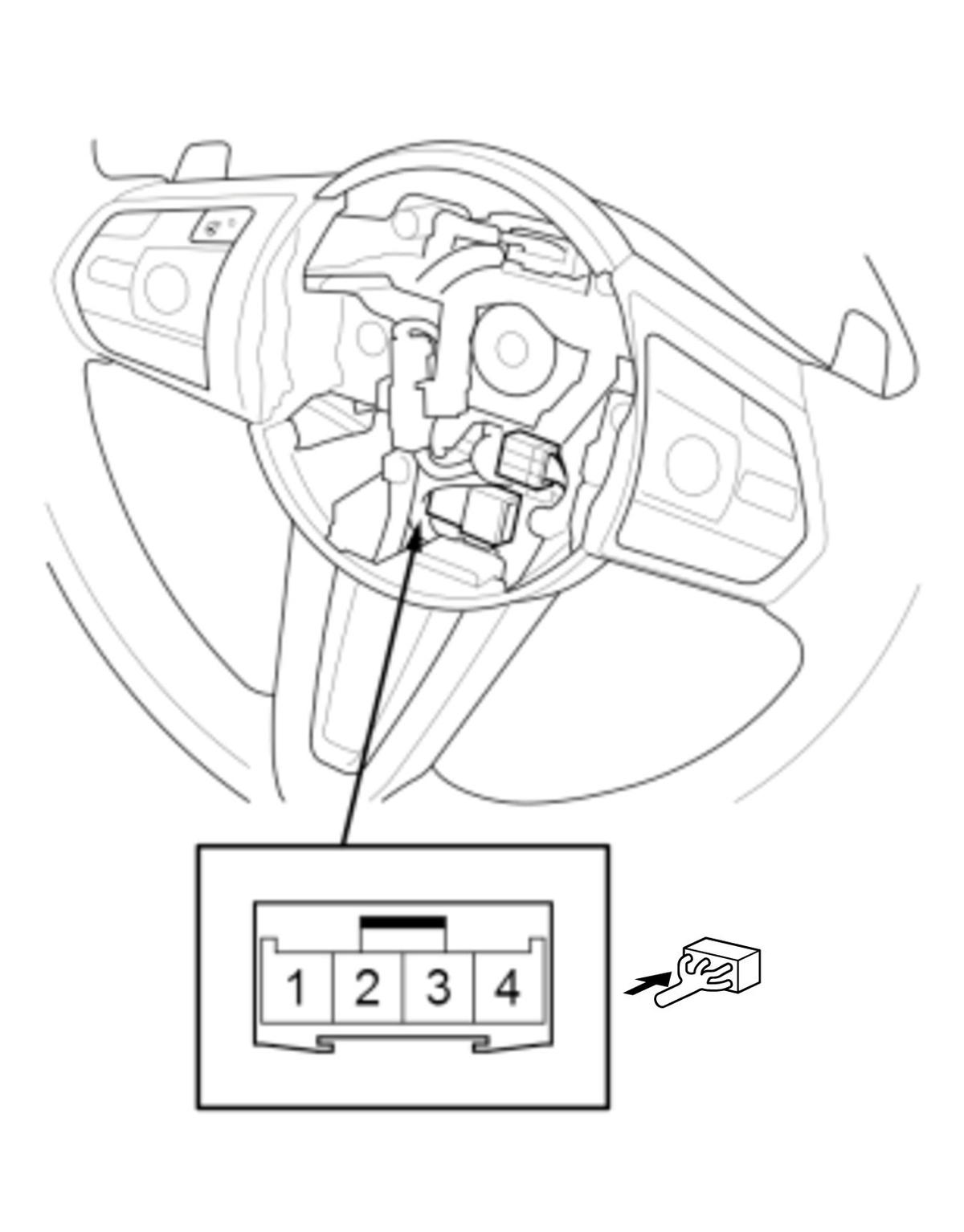

Figure 1

Courtesy of HONDA, U.S.A., INC.

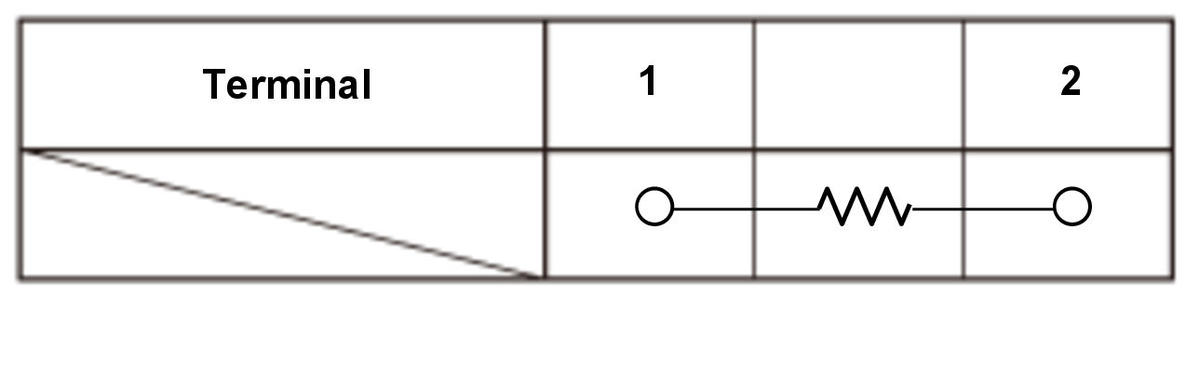

Figure 2

Courtesy of HONDA, U.S.A., INC.

Procedure/Specifications
- Measure the resistance between the terminals according to the table. (Figure 1 and 2)
  NOTE: When the steering heater temperature is 73 deg.F (23 deg.C), resistance value is 2.0 0.2 Ohm.
Result
- If the result is not as specified, replace the steering wheel .
