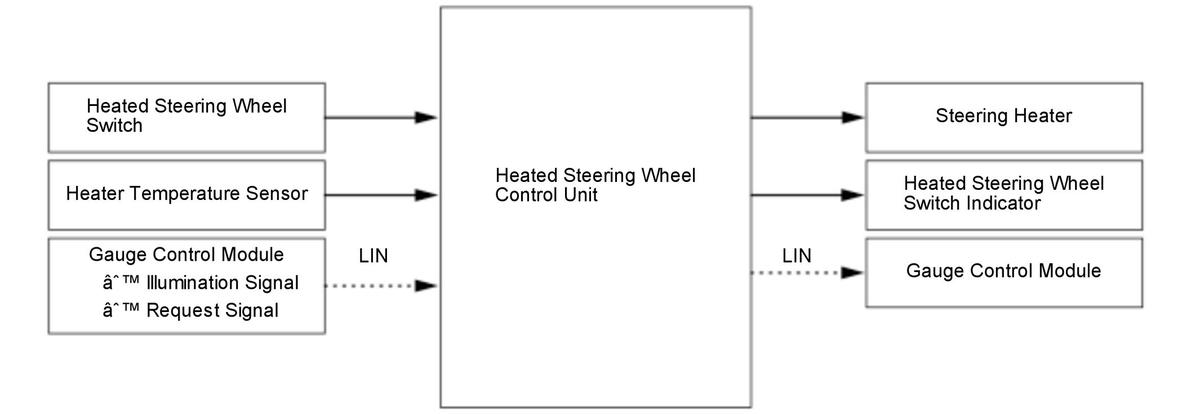

Heated Steering Wheel System Description - System Diagram

For locations of each component on the vehicle, refer to the Component Location Index

GHH562798Courtesy of HONDA, U.S.A., INC.
