Repair Procedure

How to use this manual .

2.0 L Engine

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

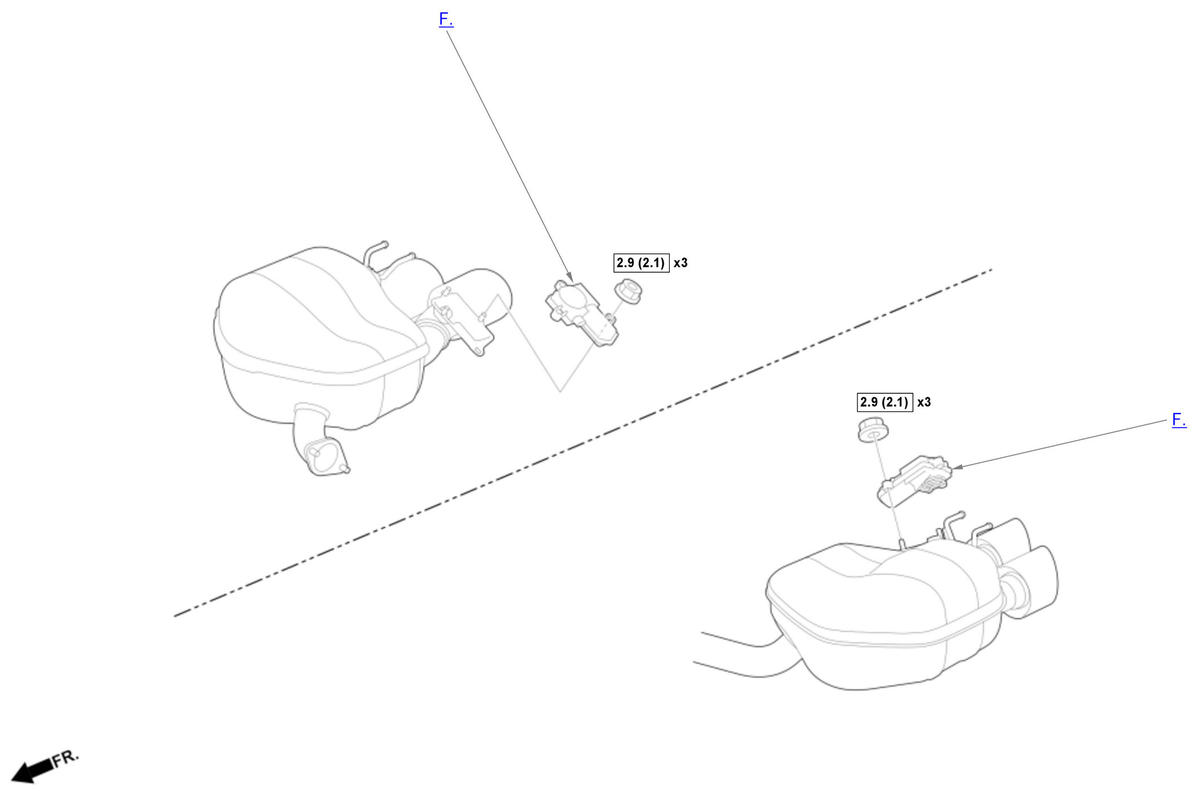

3.0 L Engine

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

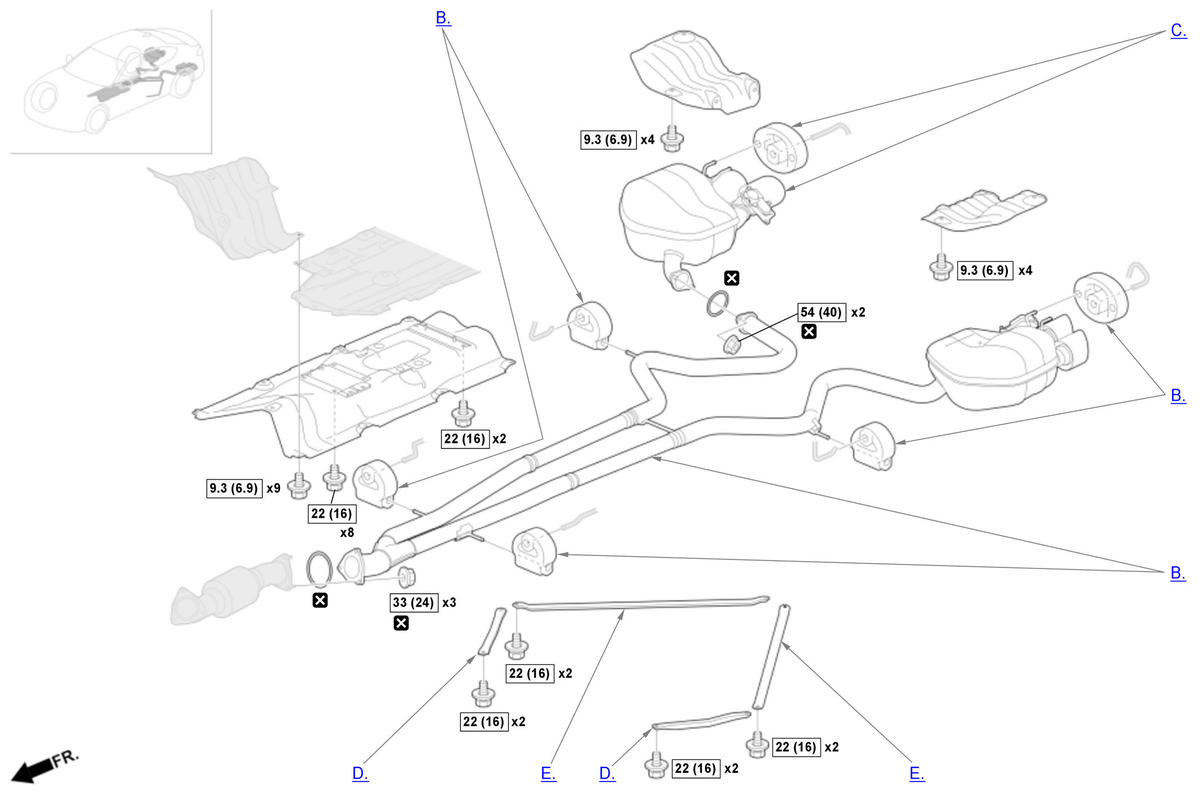

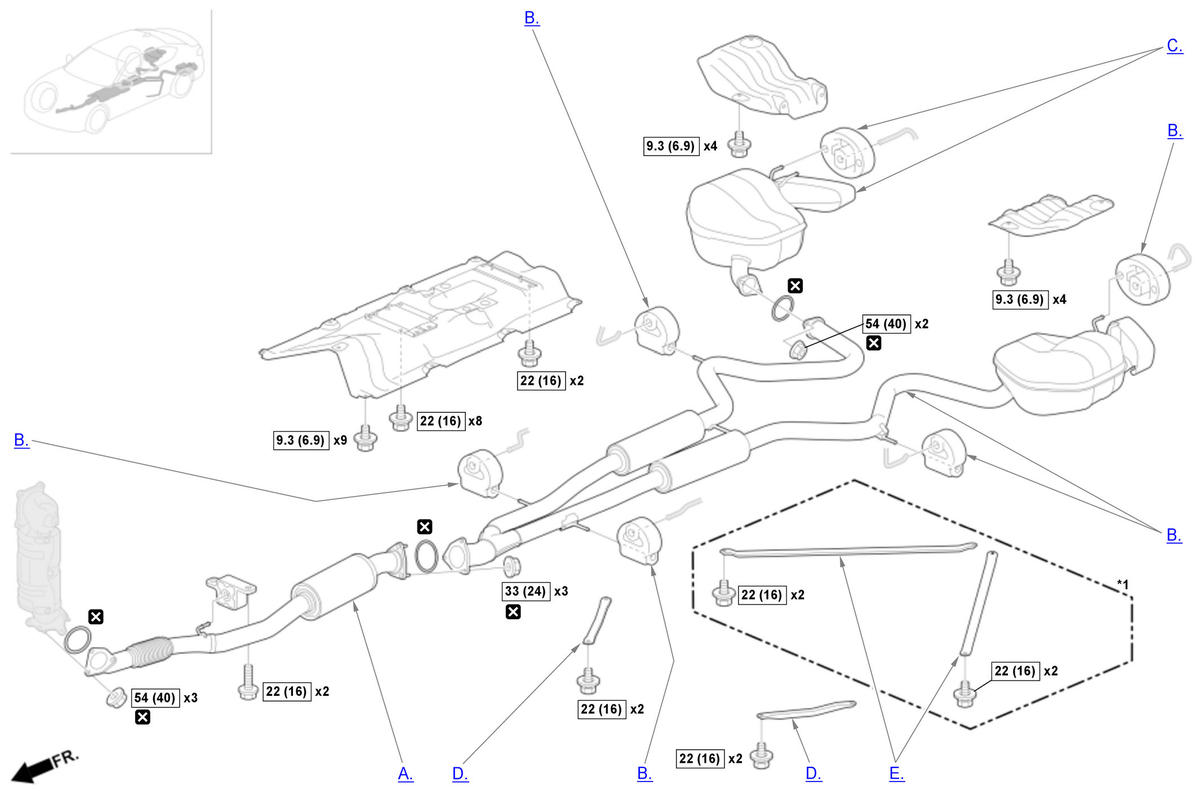

3.0 L Engine

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

1. A.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Engine Undercover Plate

   Sub-Procedure

   Removal/Installation

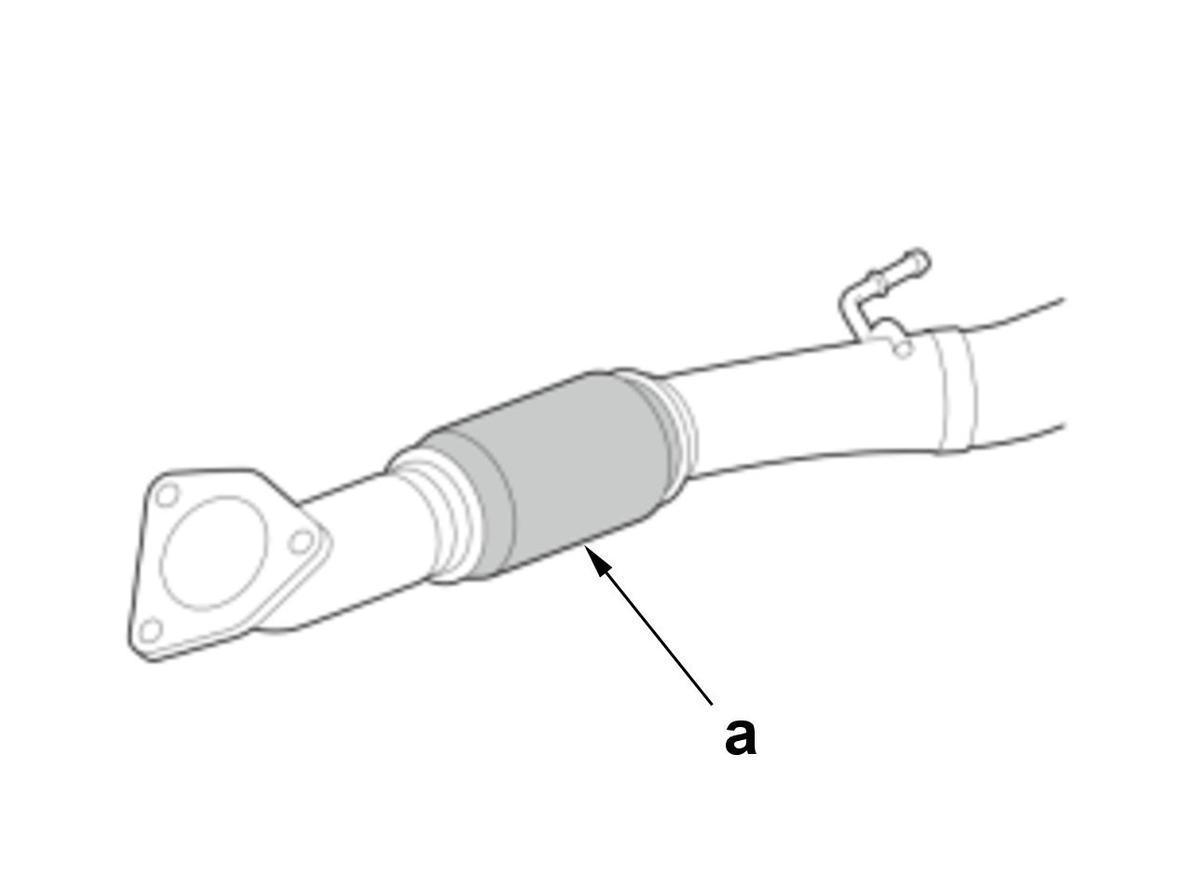

   NOTE:  Do not bend the flex tube (a) of exhaust pipe A excessively. (Figure 1)

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Installation

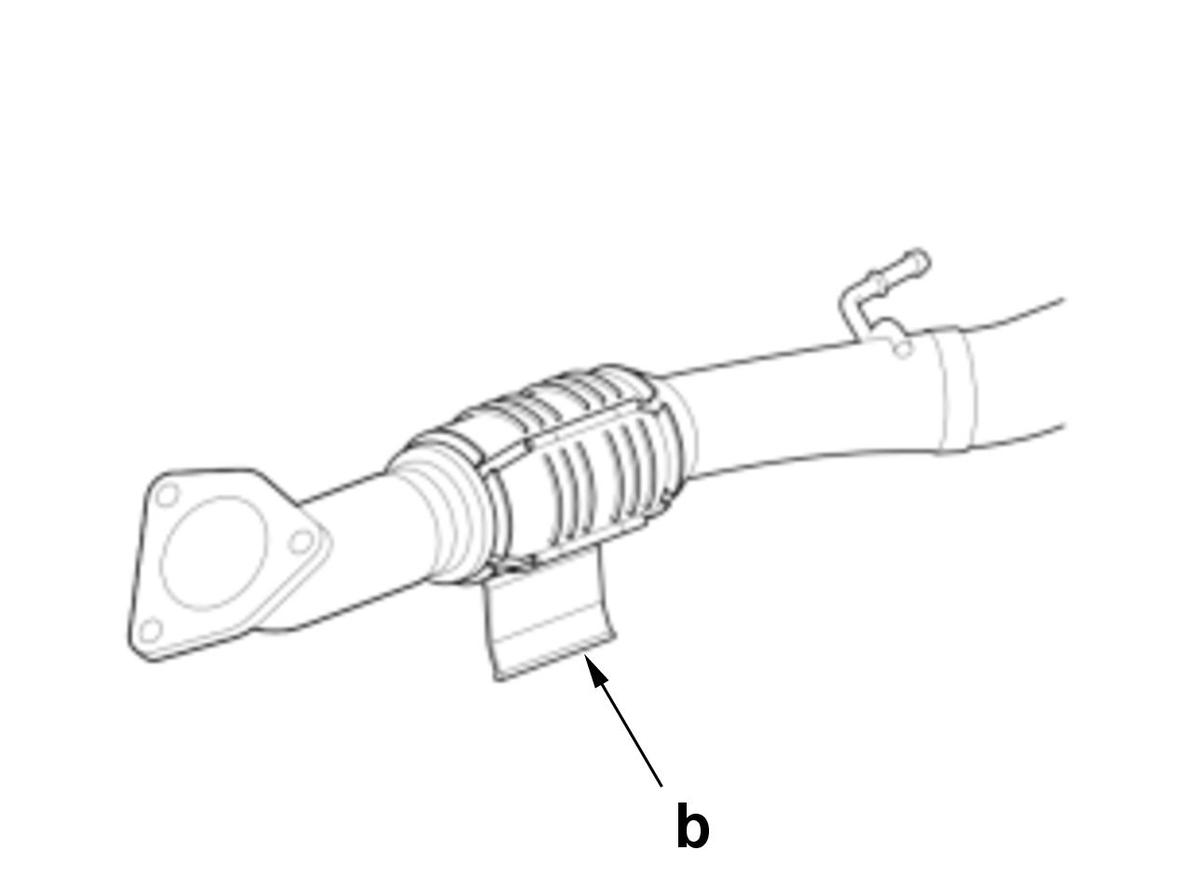

   • When replacing exhaust pipe A, remove the protector (b) from the new exhaust pipe A after Installation. (Figure 2)

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

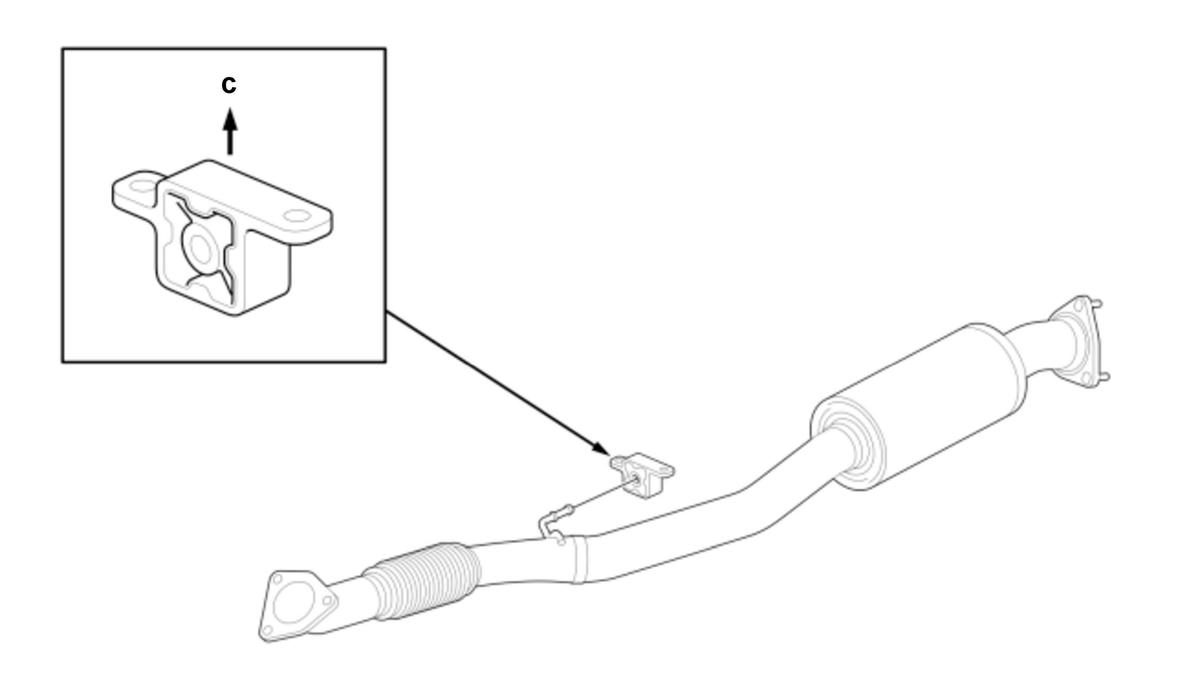

   • Install the rubber mount as shown. (Figure 3)

   Installation Directions (Figure 3)

   Position	Direction
   c	Up

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

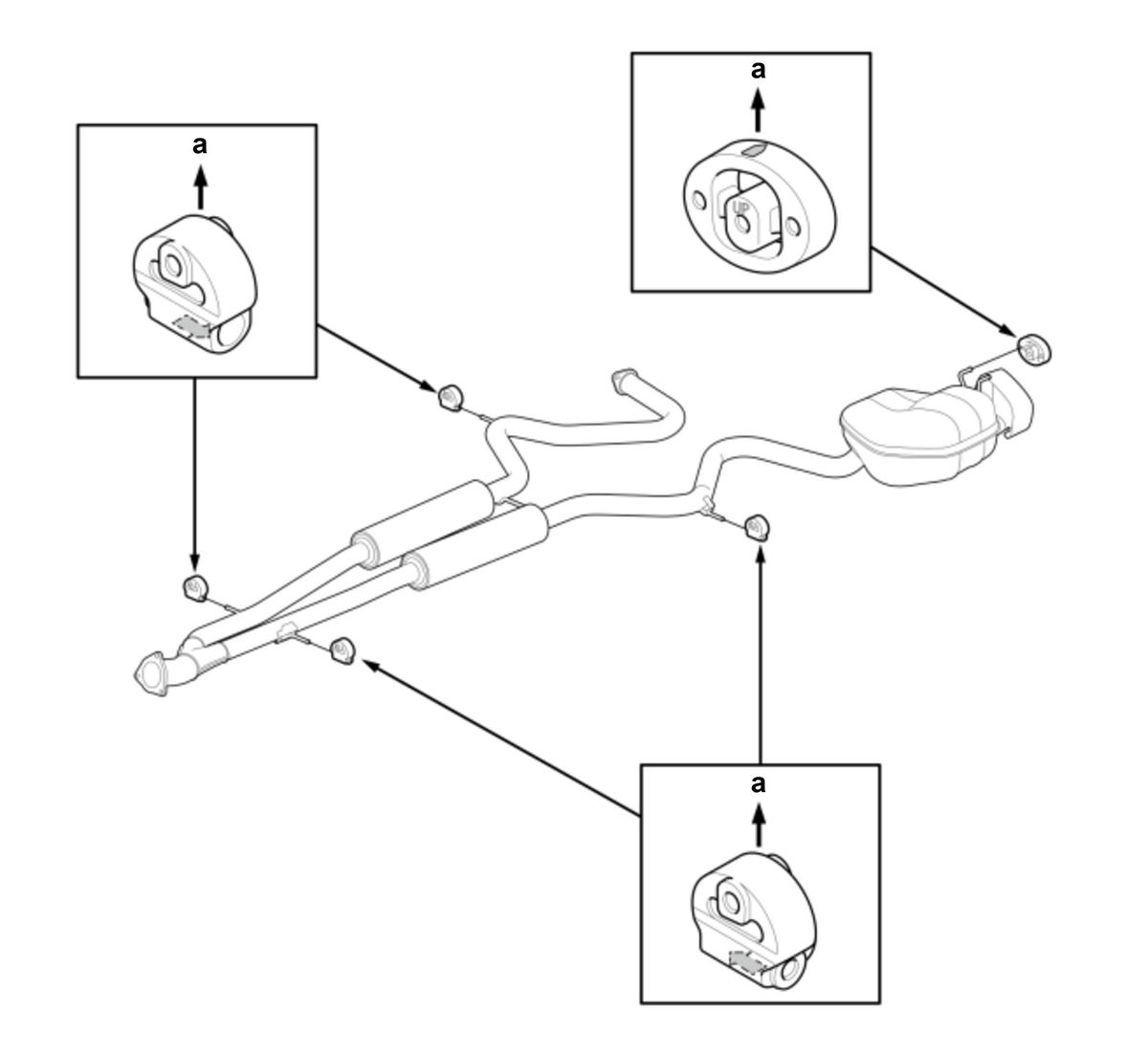

2. B.-

   Sub-Procedure

   Installation

   Installation Directions

   Position	Direction
   a	Up

   Courtesy of HONDA, U.S.A., INC.

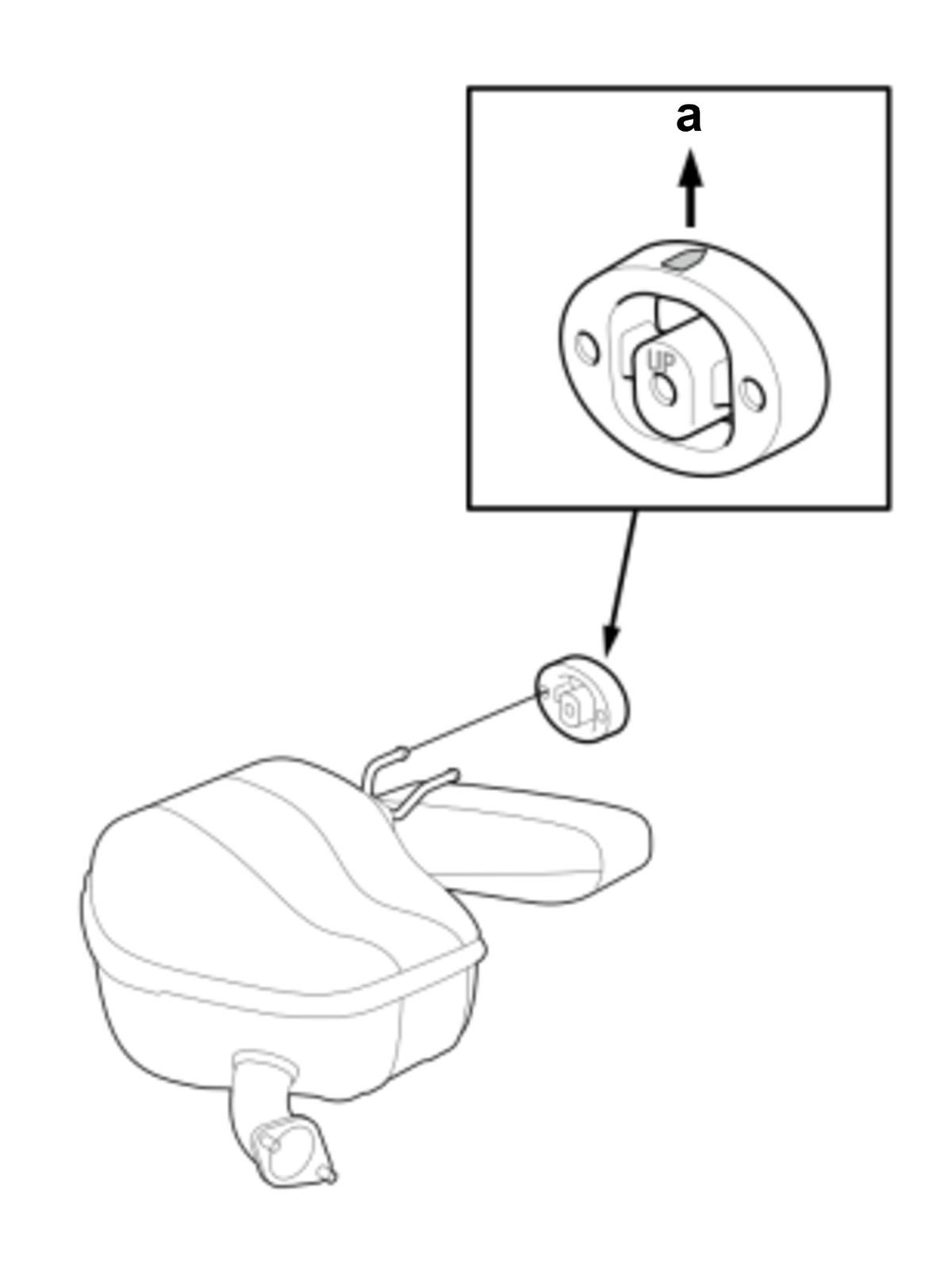

3. C.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Installation

   Installation Directions

   Position	Direction
   a	Up

4. D.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Front Floor Undercover Assembly (as needed)

   Sub-Procedure

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

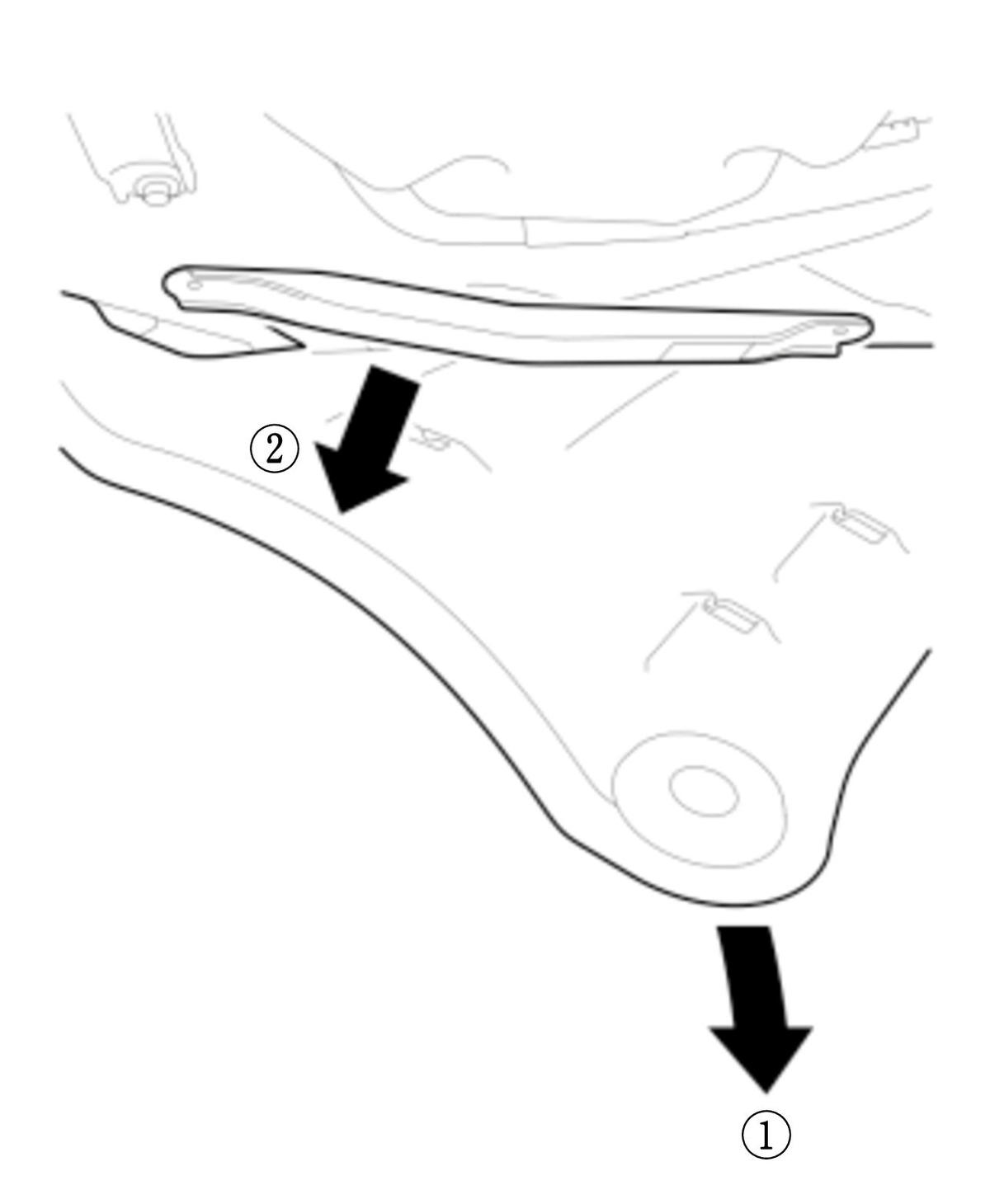

   Removal

   • Refer to figure 1.

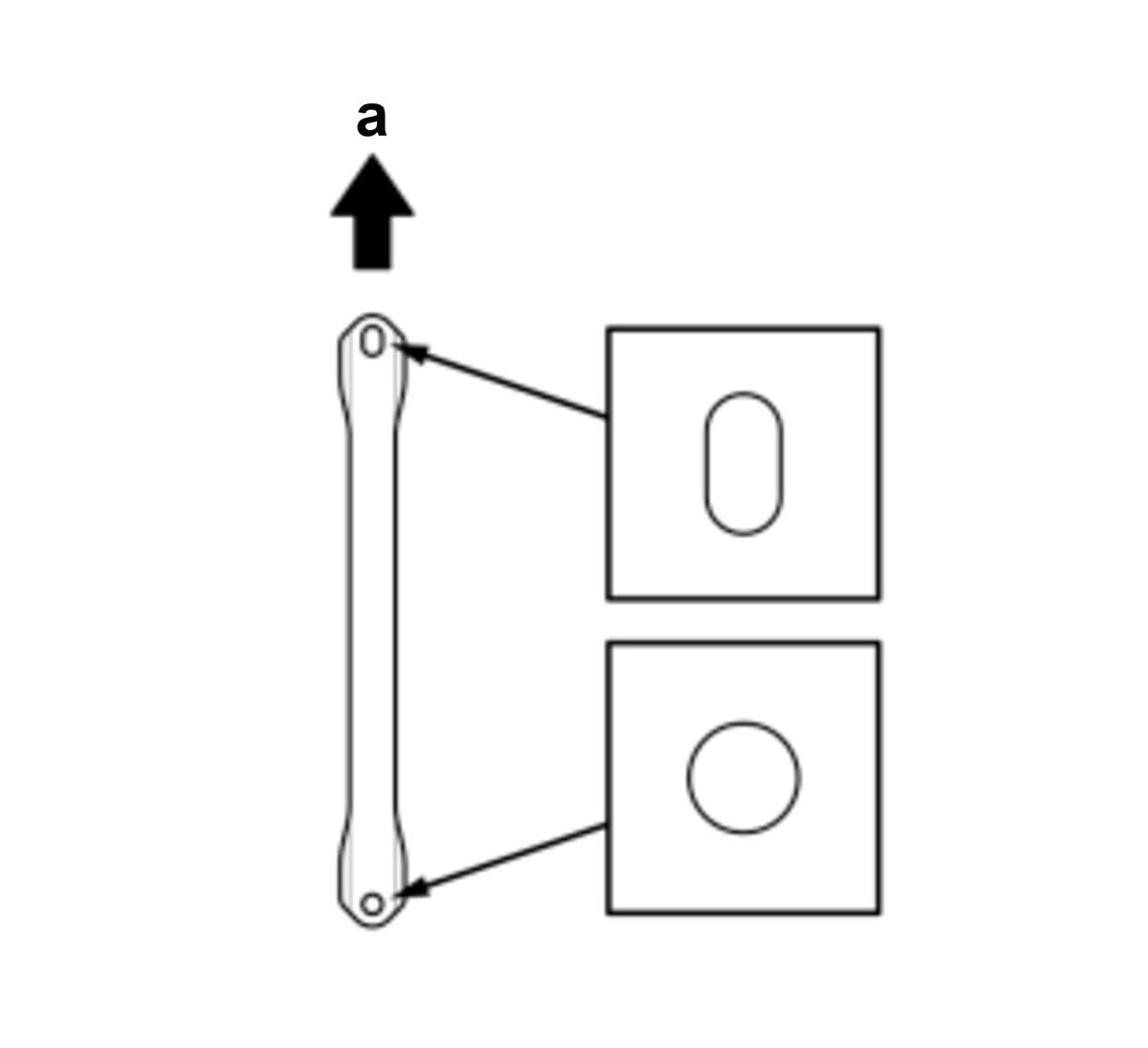

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Installation

   Installation Directions (Figure 2)

   Position	Direction
   a	Front

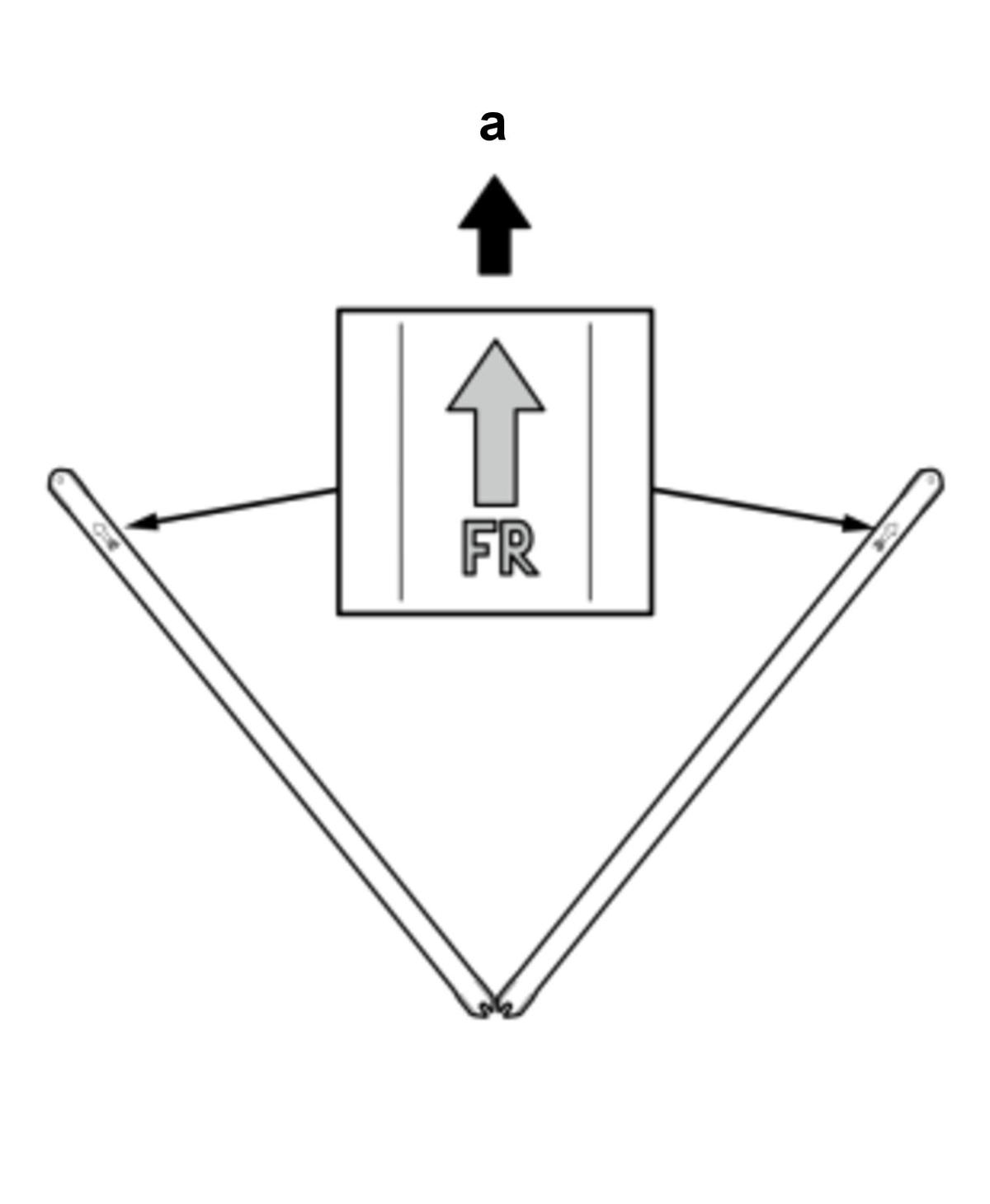

5. E.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Installation

   Installation Directions

   Position	Direction
   a	Front

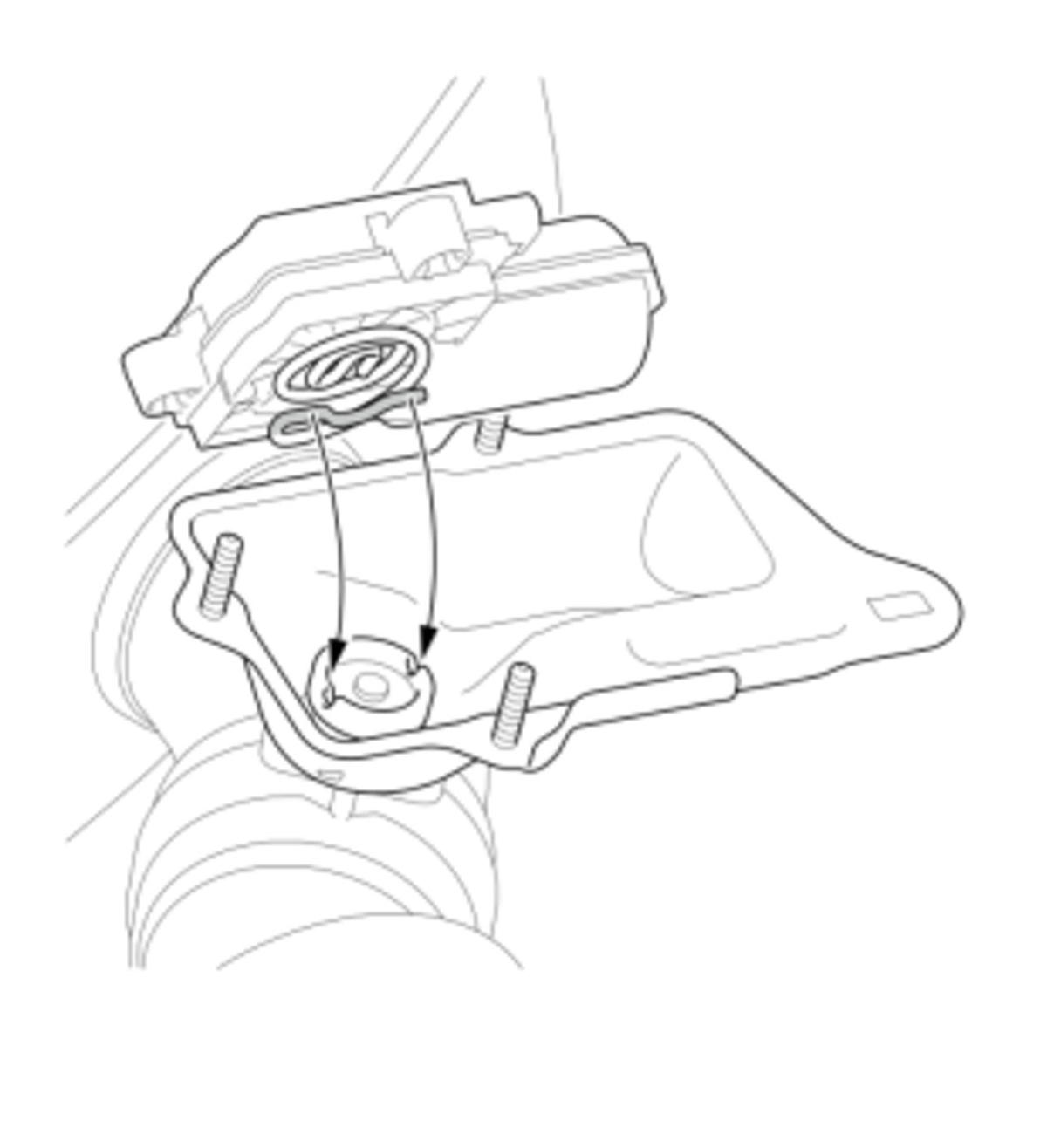

6. F.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Installation

   • Refer to the figure.
