Repair Procedure

How to use this manual .

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

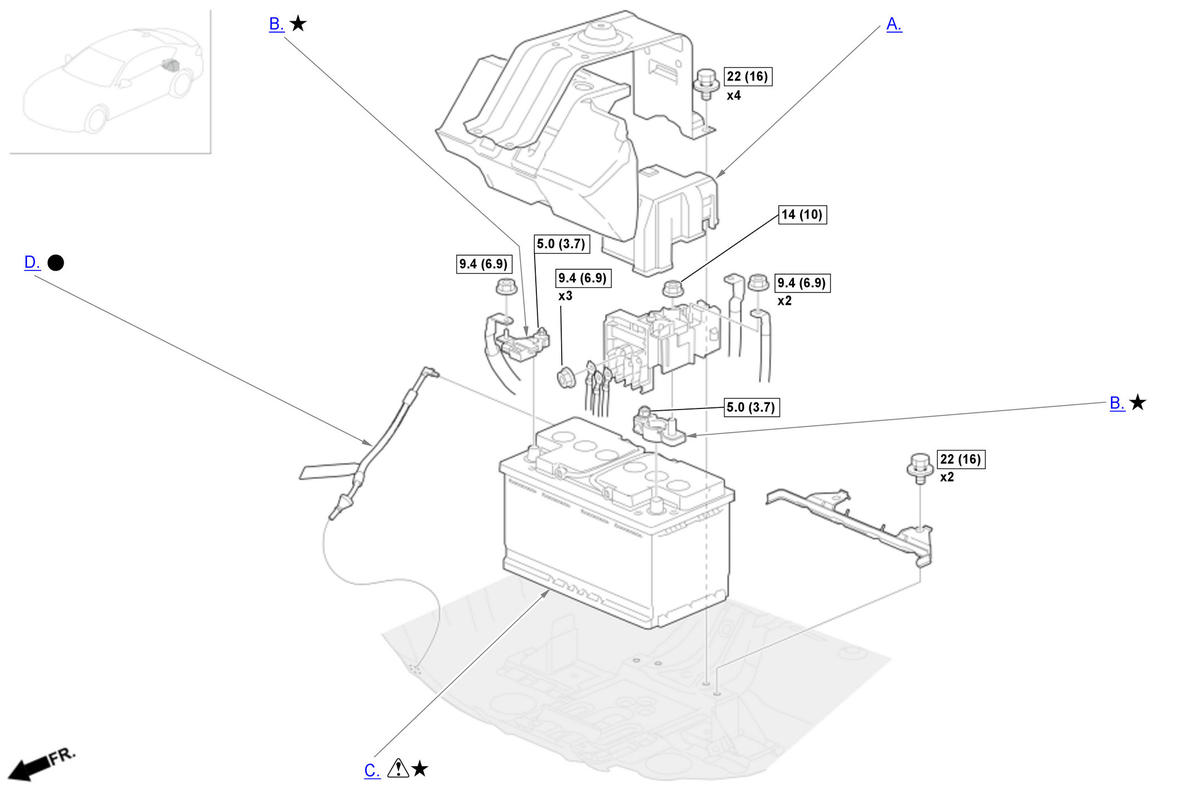

1. A.-

   Key Information

   Do the following before starting your work.

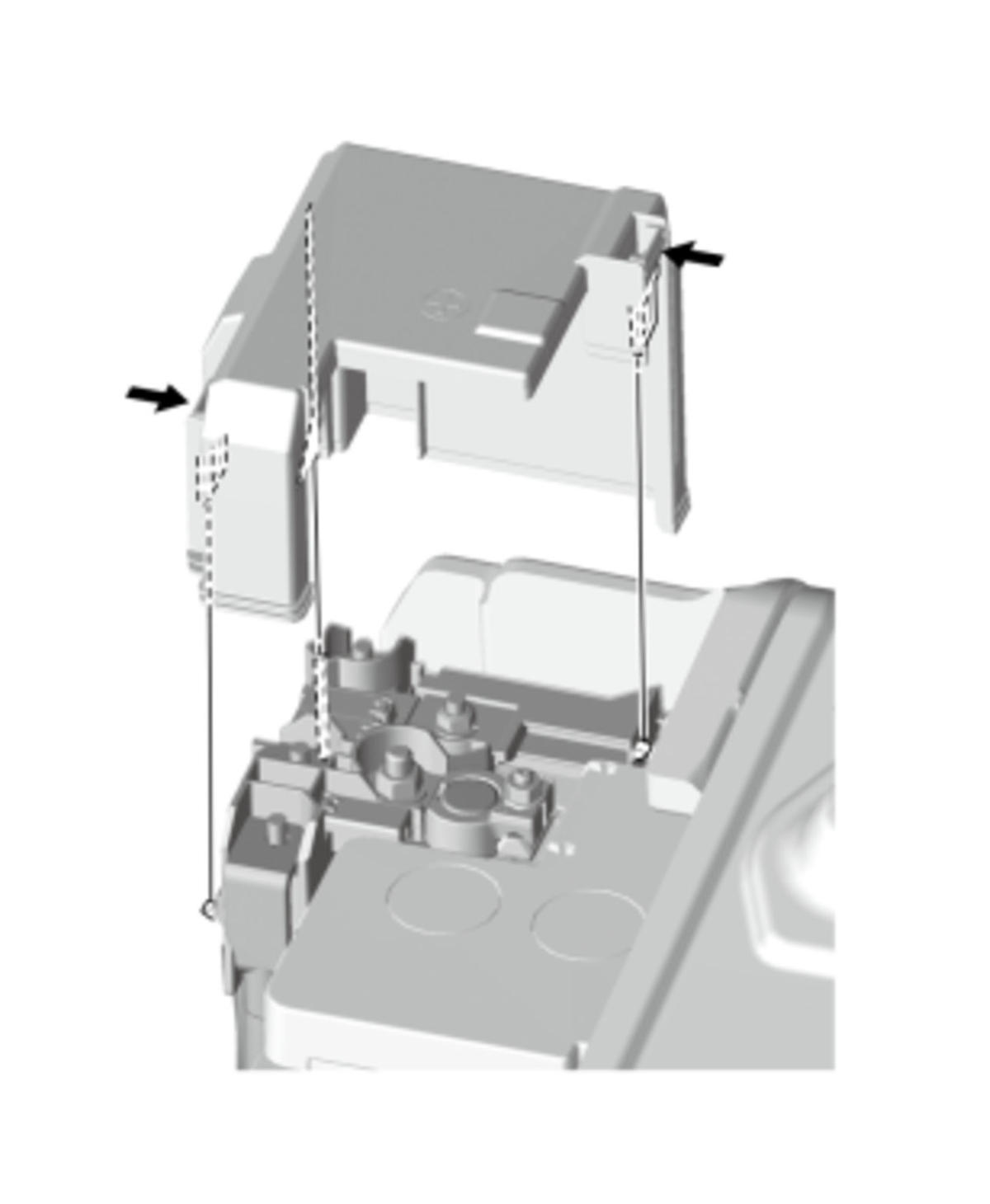

   Remove:

   • Trunk Tool Box

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.
2. B.-

   Preconditions

   • The vehicle is in the OFF (LOCK) mode.

   Key Information

   Do the following before starting your work.

   Remove:

   • Trunk Tool Box

   Sub-Procedure

   NOTE:

   • With the driver's door open, turn the vehicle to the OFF (LOCK) mode, then wait at least 3 minutes before disconnecting the 12 volt negative battery cable.
   • When disconnecting the 12 volt battery terminal, always disconnect the negative side first.
   • When connecting the 12 volt battery terminal, always connect the positive side first.
   • If the 12 volt battery performs abnormally, test the 12 volt battery - Refer to: 12 Volt Battery Test .

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Removal

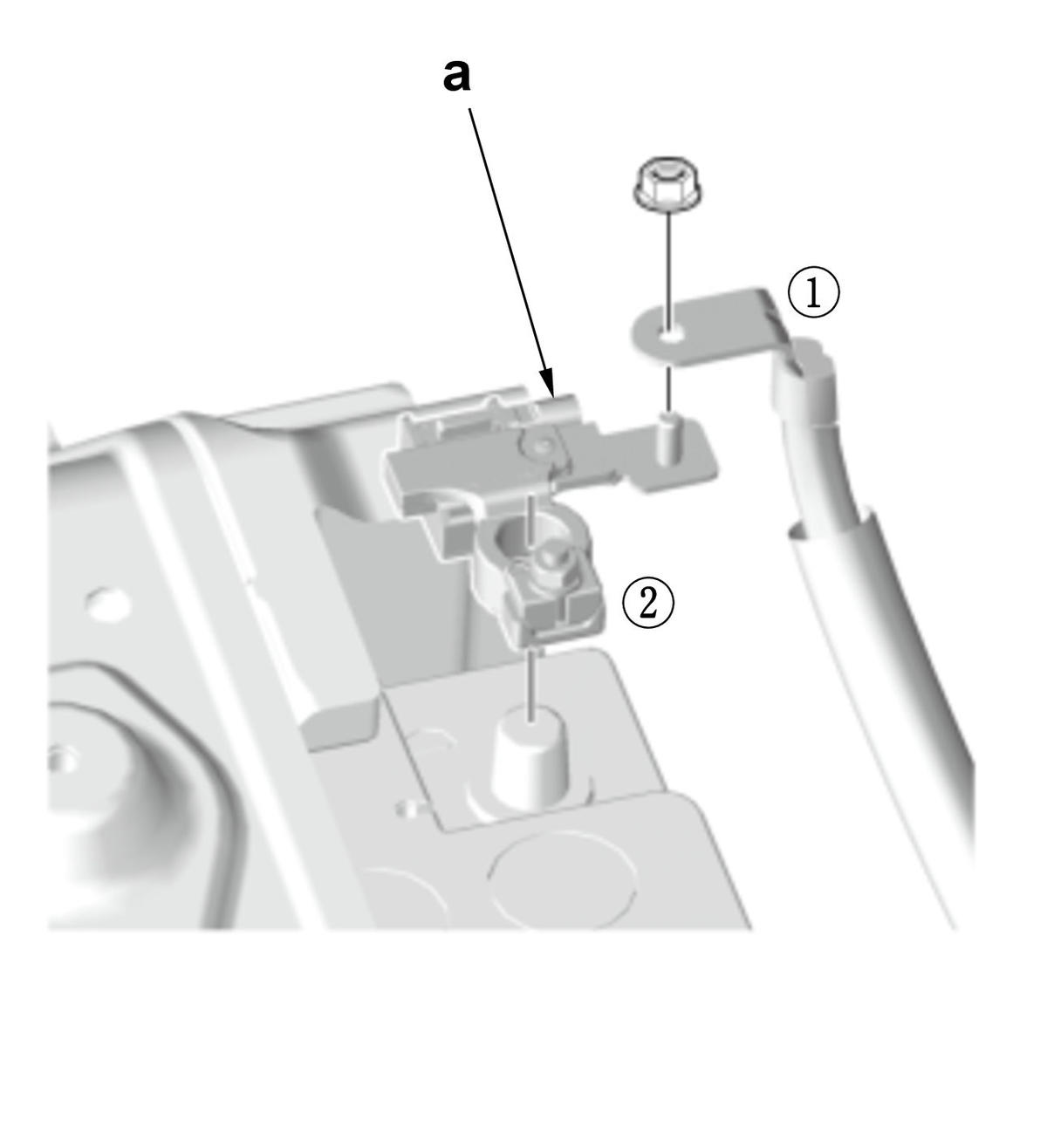

   NOTE:  Do not hold the 12 volt battery sensor connector (a) when disconnecting/connecting the negative terminal. (Figure 1)

   • Refer to the figure 1.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Installation

   • Refer to the 12 Volt Battery Disconnection and Reconnection Procedure .
   • Refer to the figure 2.

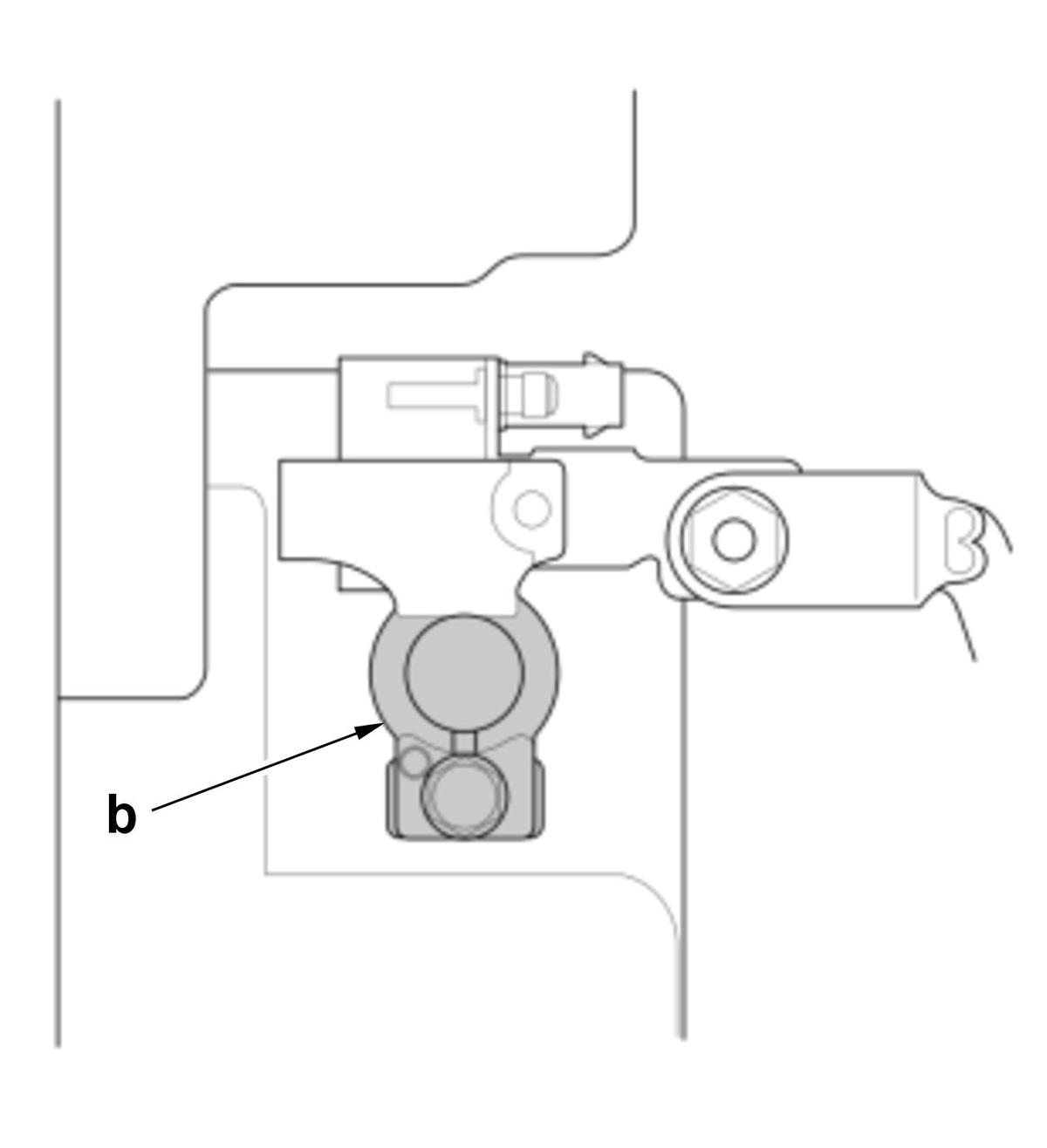

   Lubricant Specifications (Figure 2)

   Position	Type
   b	Multipurpose Grease

   After Installation

   • Procedure After Installation 12 Volt Battery
3. C.-
   WARNING:

   • Use of a battery not designed for this vehicle could cause a hydrogen gas leak inside the vehicle, resulting in a fire or explosion that may cause injury or death.
   • Only install a 12 volt AGM battery designed for use in this vehicle.
   NOTE:

   • Strong impacts (i.e., dropping the 12 volt battery, collision damage) may cause electrolyte leaks, internal short circuit and heat increase resulting in fire. Avoid impacts to the 12 volt battery.
   • Organic electrolyte is poisonous. If ingested, get medical attention immediately.
   • 12 volt battery damage may cause flammable gas or electrolyte leaks and may result in fire. Do not damage the 12 volt battery and keep sparks, flame, and cigarettes away.
   • When replacing the 12 volt battery, replace it with an AGM (absorbed glass mat) battery type, and must be of the same specifications.

   After Installation

   • 12 Volt Battery Negative Terminal Reconnect
   • If you are replacing the 12 volt battery, do the following.
     1. -

        12 Volt Battery Internal Resistance Reset

4. D.-
   NOTE:

   Make sure the 12 volt battery vent tube is securely installed.
