Evaporator Temperature Sensor Test: Test

How to use this manual .

1. Evaporator Temperature Sensor - Test

   Preconditions

   • Evaporator Temperature Sensor Removed

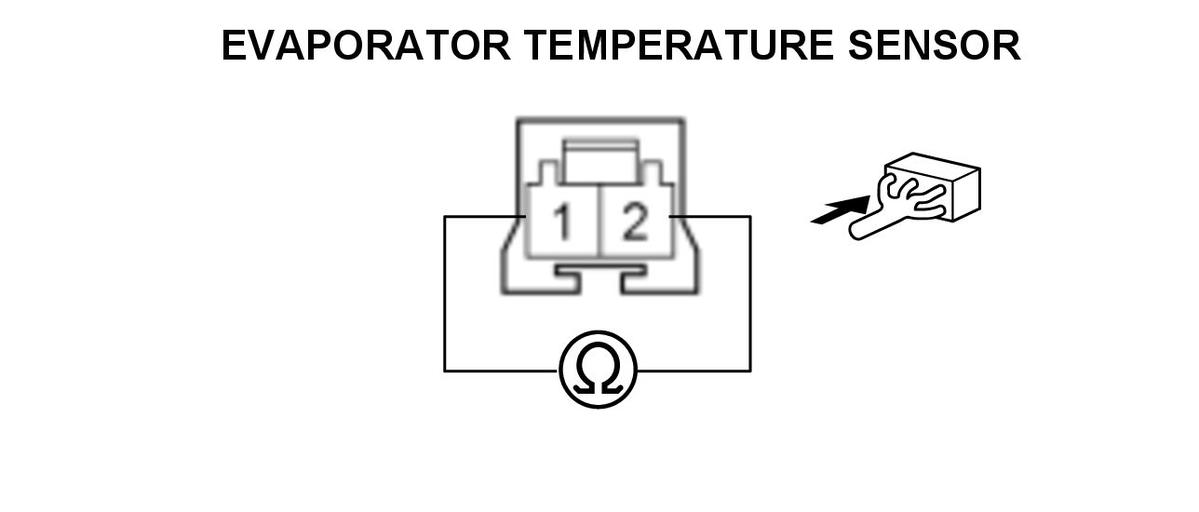

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

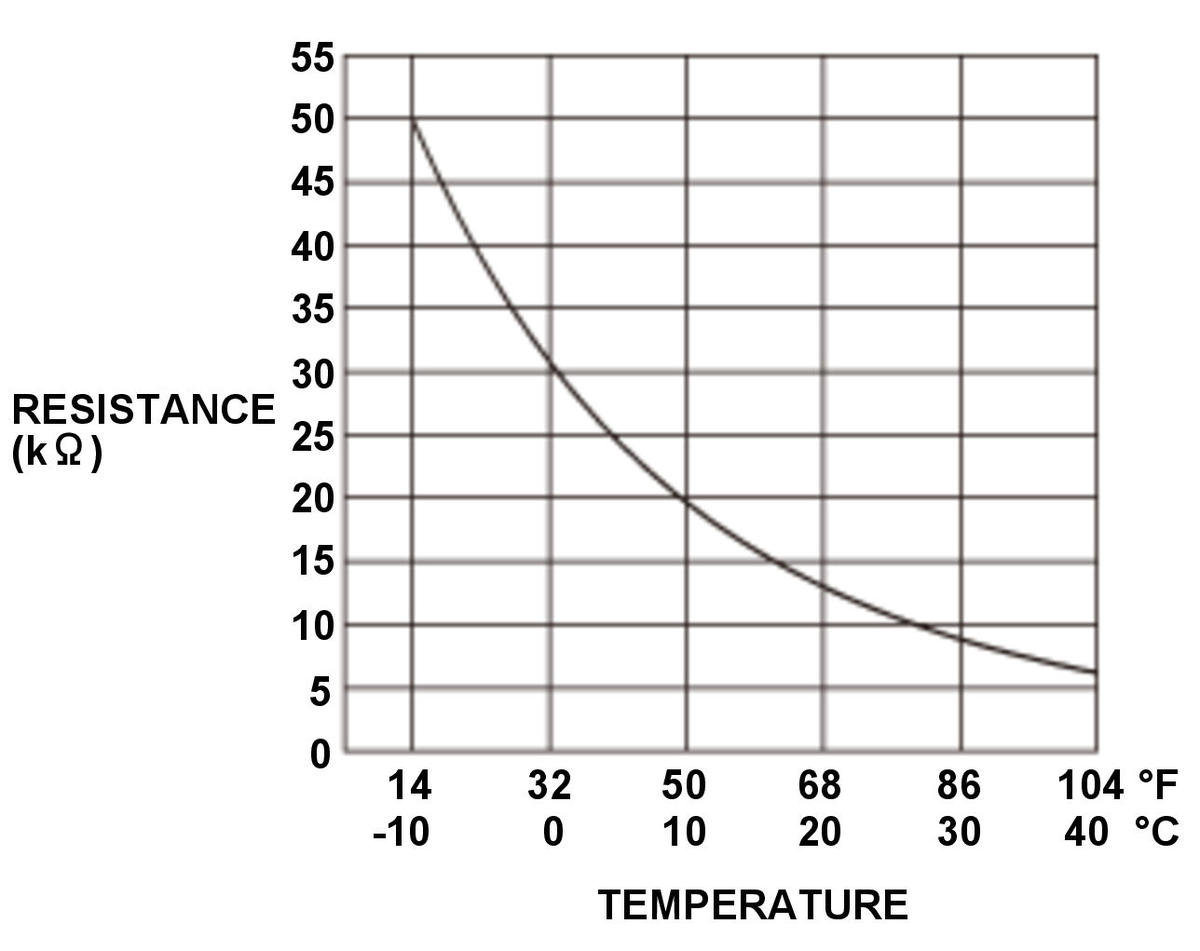

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   1. Dip the sensor in ice water, and measure the resistance between terminals No. 1 and No. 2. (Figure 1)2. Then pour warm water on the sensor, and check for a change in resistance.

   3. Compare the resistance readings with the specifications shown in the graph; the resistance should be within the specifications. (Figure 2)

   Result

   • If the result is not as specified, replace the evaporator temperature sensor.
