A/C System Contamination Inspection: Replacement

How to use this manual .

NOTE: The parts illustrations are samples. External appearance may vary from model to model.

A/C Components - Replace
Procedure/Specifications

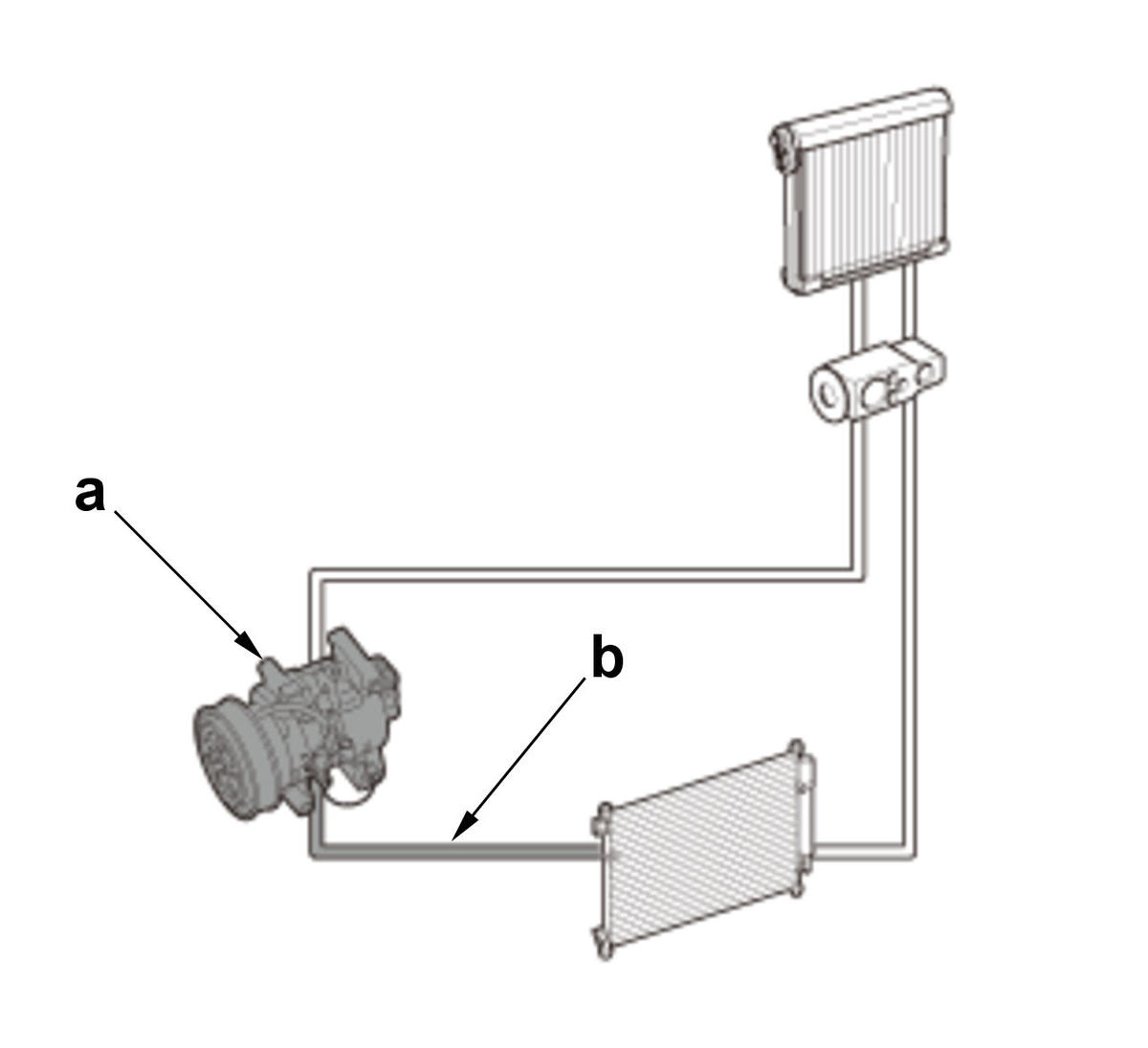

Figure 1

Courtesy of HONDA, U.S.A., INC.

Repair Procedure A
- Replace the following parts (Figure 1):
- - A/C compressor (a) - Refer to: A/C Compressor/Engine Oil Pan Area(3.0L Engine) or A/C Compressor/Engine Oil Pan Area(2.0L Engine)
  - Discharge hose (b)

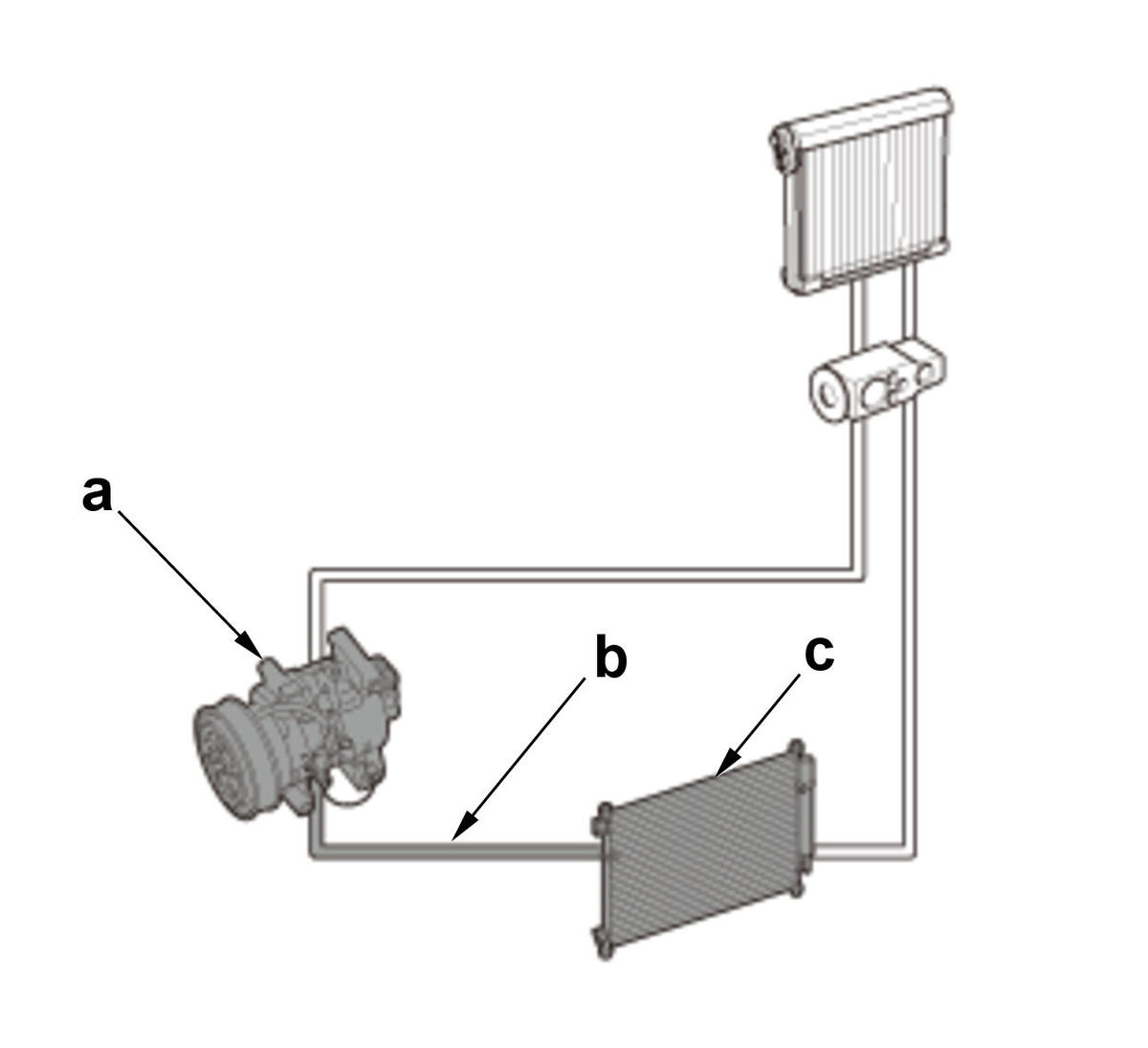

Figure 2

Courtesy of HONDA, U.S.A., INC.

Repair Procedure B
- Replace the following parts (Figure 2):
- - A/C compressor (a) - Refer to: A/C Compressor/Engine Oil Pan Area(3.0L Engine) or A/C Compressor/Engine Oil Pan Area(2.0L Engine)
  - Discharge hose (b)
  - A/C condenser (c)

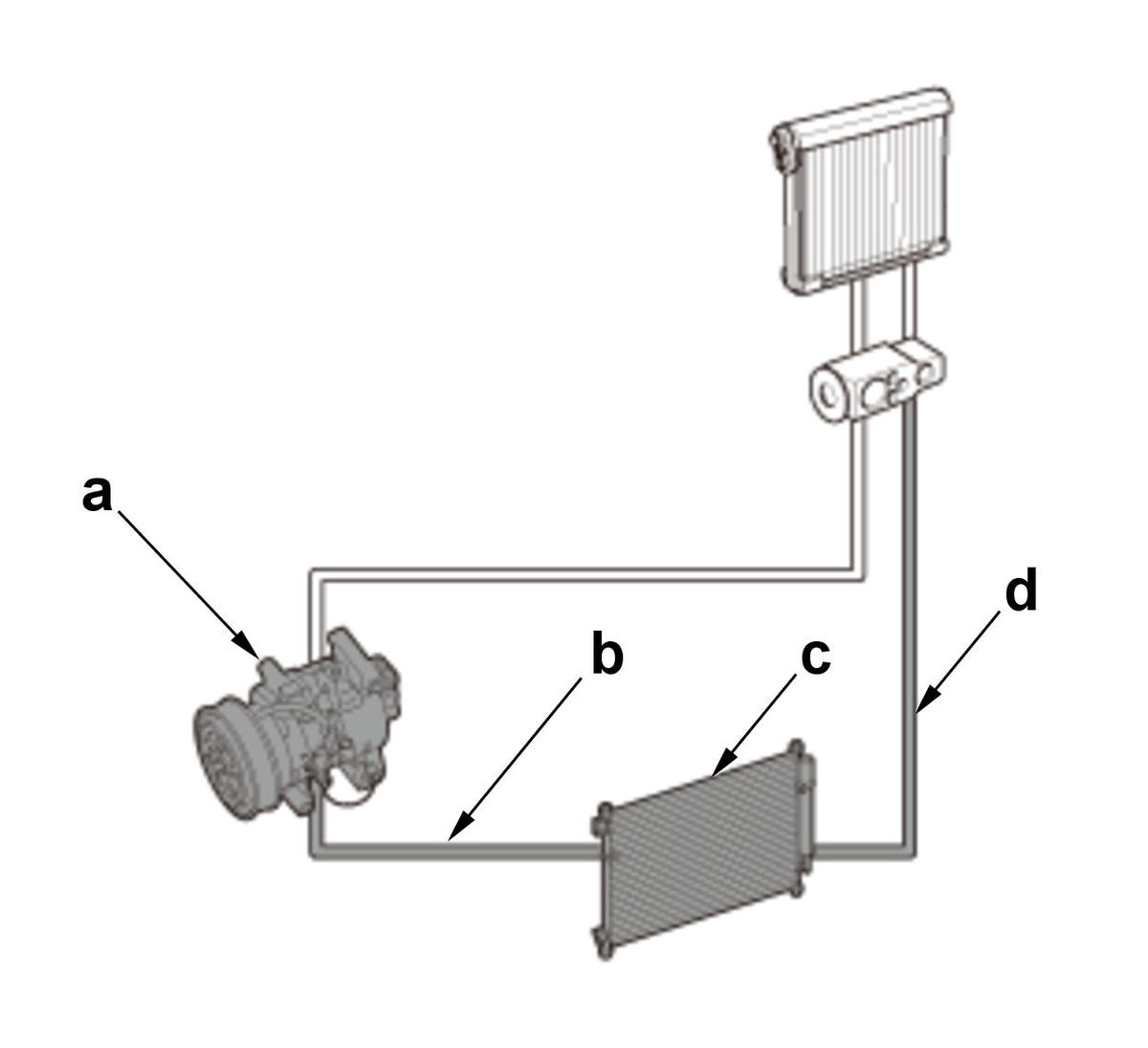

Figure 3

Courtesy of HONDA, U.S.A., INC.

Repair Procedure C
- Replace the following parts (Figure 3):
- - A/C compressor (a) - Refer to: A/C Compressor/Engine Oil Pan Area(3.0L Engine) or A/C Compressor/Engine Oil Pan Area(2.0L Engine)
  - Discharge hose (b)
  - A/C condenser (c)
  - Receiver line (d)

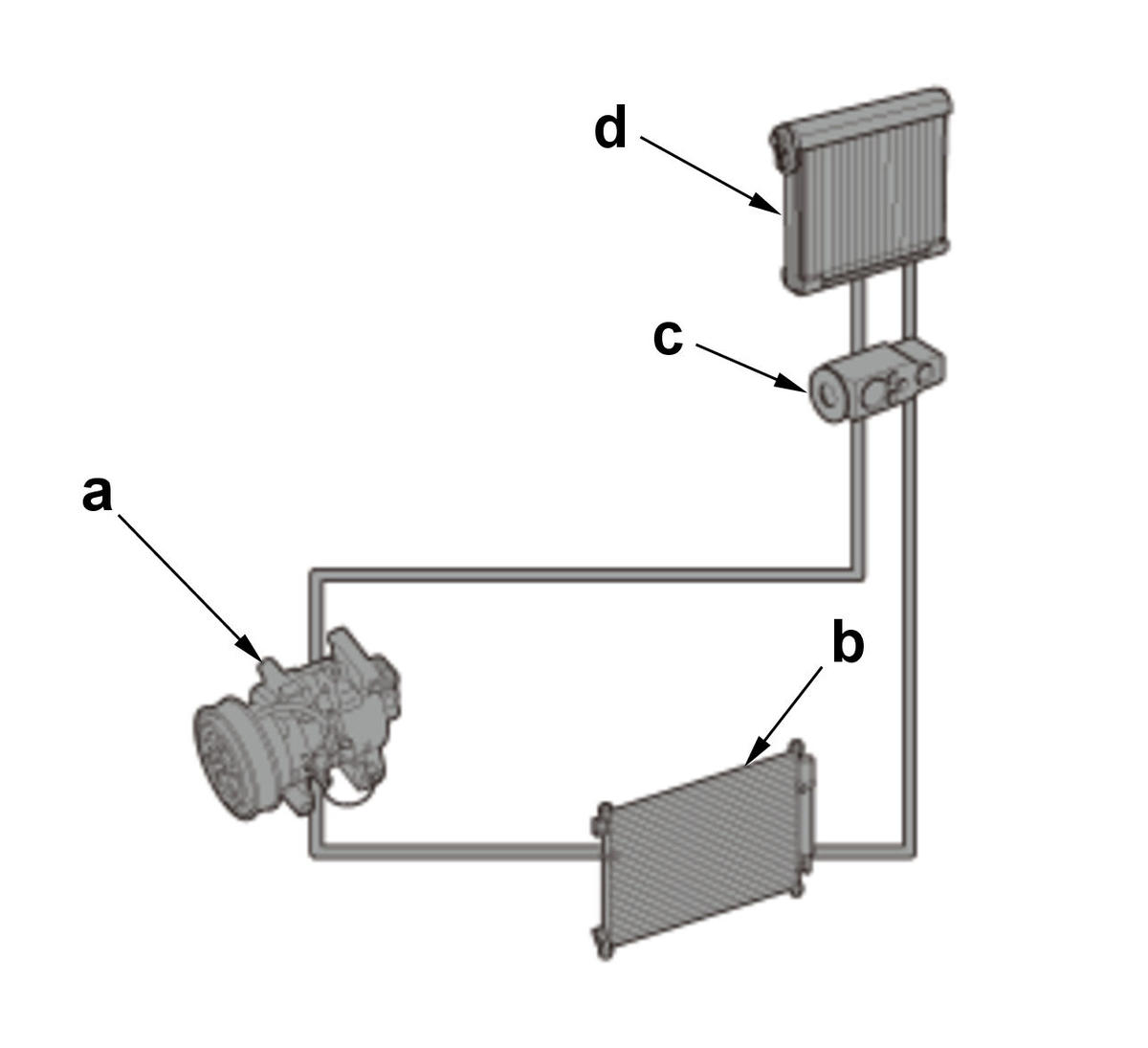

Figure 4

Courtesy of HONDA, U.S.A., INC.

Repair Procedure D
- Replace the following parts (Figure 4):
- - A/C compressor (a) - Refer to: A/C Compressor/Engine Oil Pan Area(3.0L Engine) or A/C Compressor/Engine Oil Pan Area(2.0L Engine)
  - A/C condenser (b)
  - Expansion valve (c)
  - Evaporator core (d)
  - All A/C hoses and lines
