A/C Compressor Variable Capacity Control Solenoid Test: Test

How to use this manual .

1. A/C Compressor Variable Capacity Control Solenoid - Test

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

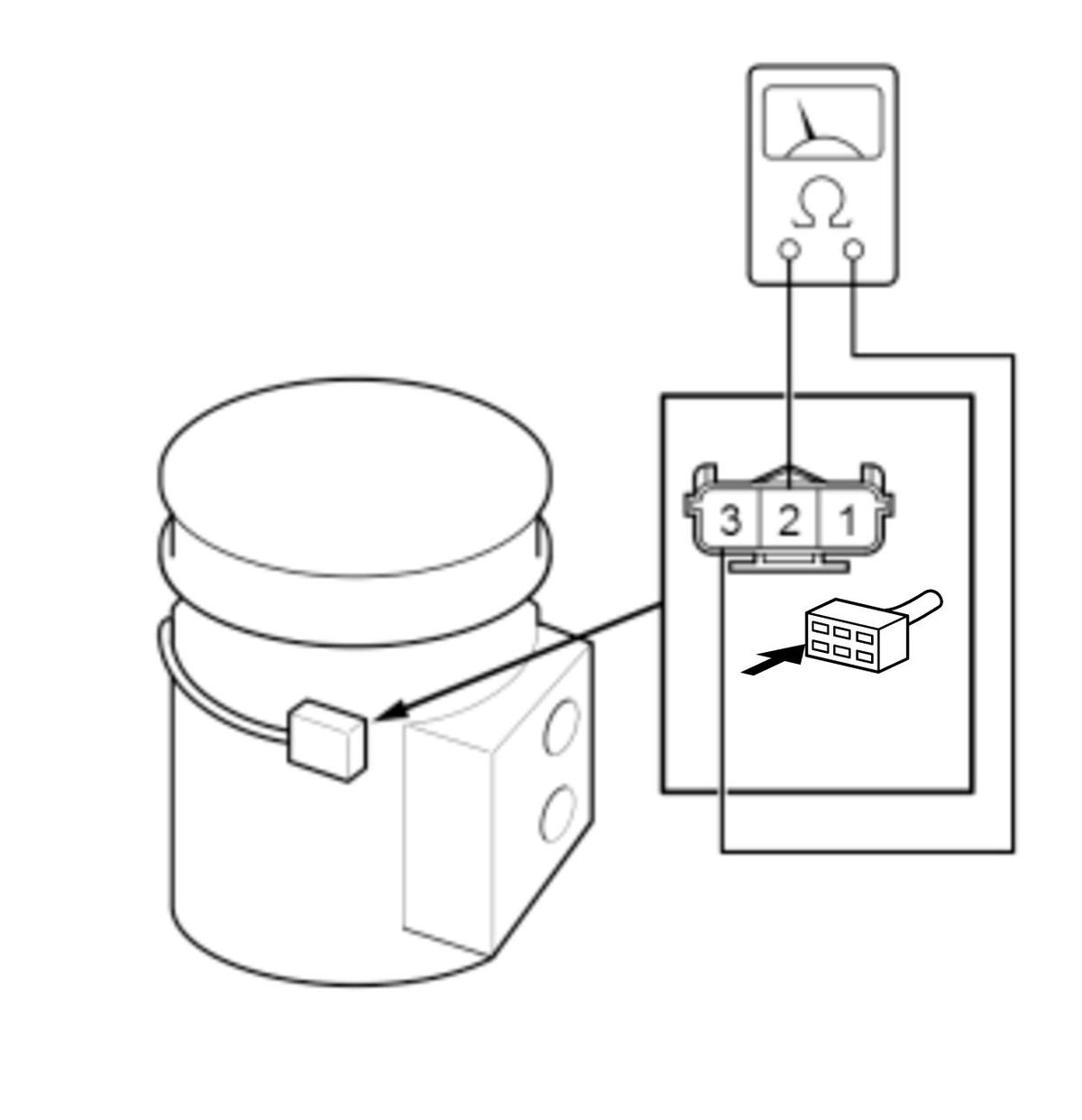

   • Measure the resistance of the variable capacity control solenoid.

   Specifications

   Object	Standard Value
   Variable Capacity Control Solenoid	10.1-11.1 Ohm  at 68 deg.F (20 deg.C)

   Result

   • If the measurement is not within specifications, replace the A/C compressor - Refer to: A/C Compressor/Engine Oil Pan Area(3.0L Engine) or A/C Compressor/Engine Oil Pan Area(2.0L Engine) .
