A/C Compressor Clutch Components: Notes

Special Tools Required

Image Description/Tool Number

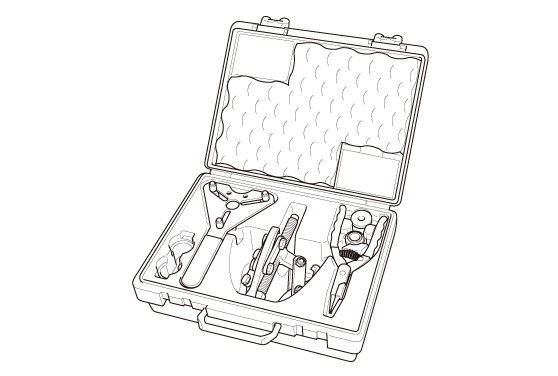

GHH162318Courtesy of HONDA, U.S.A., INC.
 A/C Compressor Kit 07AAF-000A150

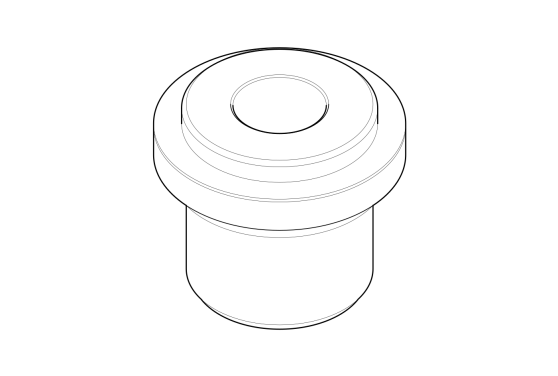

GHH476284Courtesy of HONDA, U.S.A., INC.
 ADAPTOR, AC PULLEY 07AAC-6B2A100*

*: 07AAC-6B2A100 is used only for 3.0 L engine.
