DTC Troubleshooting: P0390(3.0L Engine)
>>
Inspection Outline
Inspection Outline

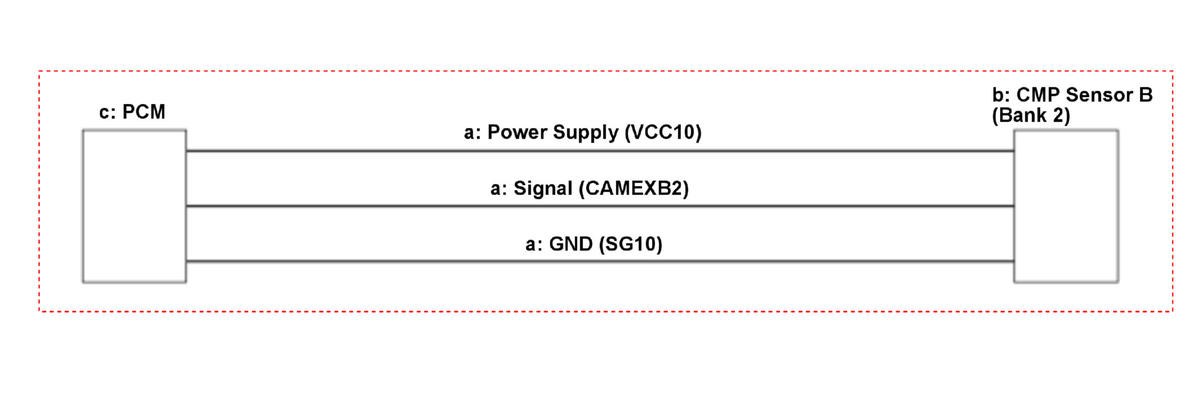

The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
External Circuit
VCC10, CAMEXB2, SG10 Circuit Inspection
b
CMP Sensor B (Bank 2)
CMP Sensor B (Bank 2) Inspection
c
PCM
PCM Inspection
