DTC Advanced Diagnostics: P2599 (3.0L Engine)

DTC P2599: Turbocharger Wastegate Control Actuator Stuck High

General Description

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

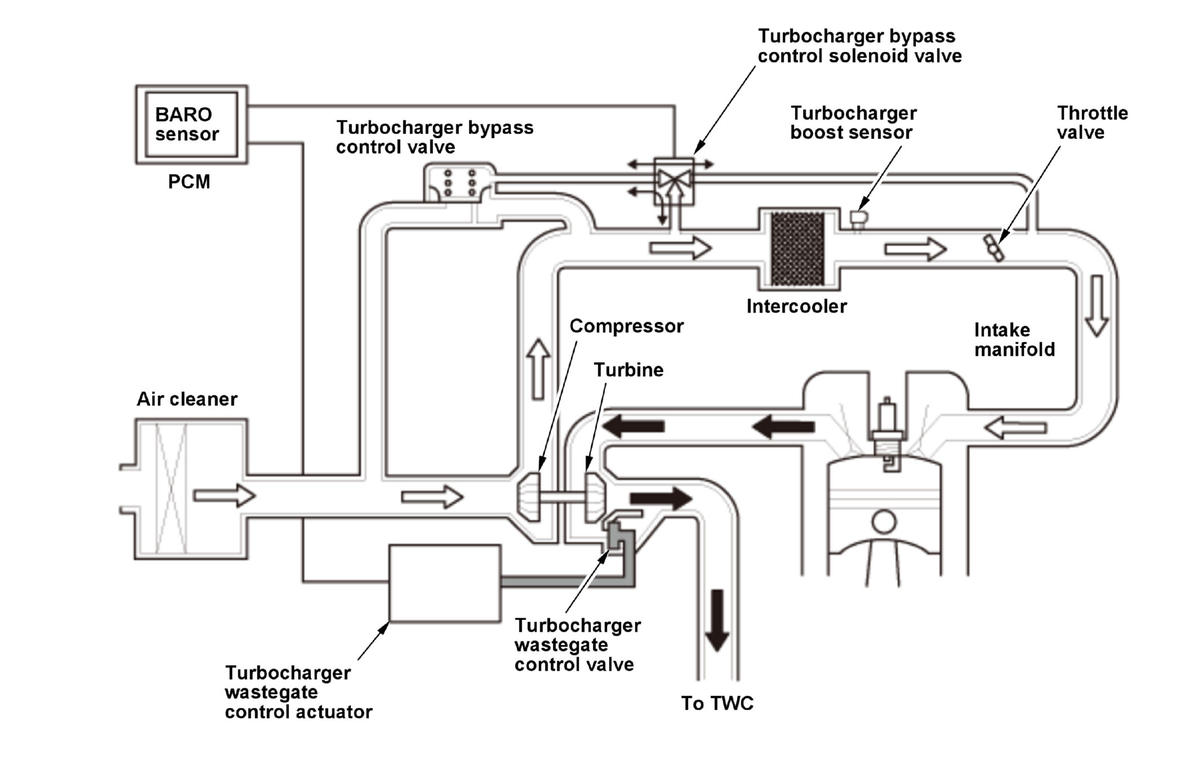

The powertrain control module (PCM) adjusts the boost pressure by controlling the turbocharger wastegate control actuator of the turbocharger. The malfunction detection of the turbocharger wastegate control actuator is done during the turbocharger wastegate control actuator fully closed learning. If the learned closed position is a specified value, the PCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution	Continuous
Sequence	None
Duration	10 seconds or more
DTC Type	One drive cycle, MIL on

Enable Conditions

Condition	Minimum	Maximum
Engine coolant temperature [ECT Sensor 1]	155.9 deg.F (68.8 deg.C)	-
Other	Turbocharger wastegate control actuator closed position learning is in progress or completed

[ ]: HDS Parameter

Malfunction Threshold

The learned closed position of the turbocharger wastegate control actuator during the turbocharger wastegate control actuator fully closed learning is more than 2 mm (0.08 in) for at least 10 seconds.

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

Turbocharger wastegate control actuator failure
Turbocharger wastegate control actuator position sensor failure

Confirmation Procedure

Operating Condition

Start the engine. Hold the engine speed [Engine Speed] at 3, 000 rpm without load (in P or N) until the radiator fan comes on.

Test the vehicle in the condition of outside temperature of 32 deg.F (0 deg.C) or more.

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, the freeze data, and the on-board snapshot are stored in the PCM memory.

Conditions for clearing the DTC

The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
