DTC Advanced Diagnostics: P16E3 (2.0L Engine)
DTC P16E3: PGM-FI-Battery Sensor LIN Communication Error
General Description

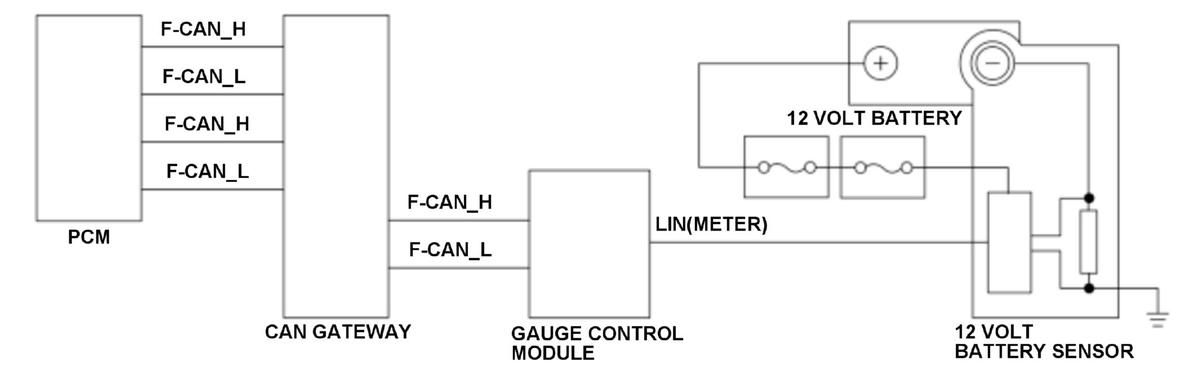

The 12 volt battery sensor measures the 12 volt battery's current, voltage, and temperature. It is connected to the gauge control module by the local interconnect network (LIN) line, and transmits/receives 12 volt battery sensor information to/from the powertrain control module (PCM) via the CAN line. The LIN communication abnormality between the 12 volt battery sensor and the gauge control module is detected by the gauge control module and sent to the PCM via the CAN line. If the PCM receives abnormal communication, a malfunction is detected and a DTC is stored.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 20 seconds or more |
| DTC Type | Two drive cycles, MIL off |
Enable Conditions
| Condition | |
|---|---|
| Vehicle | ON mode |
Malfunction Threshold
The LIN communication between the gauge control module and the 12 volt battery sensor is abnormal for at least 20 seconds.
Possible Cause
- 12 volt battery sensor LIN(METER) line open
- 12 volt battery sensor LIN(METER) line short
- 12 volt battery sensor failure (include fuse fall-outs)
- Gauge control module internal circuit failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, a Confirmed DTC, the freeze data, and the on-board snapshot are stored. The MIL does not come on.
Conditions for clearing the DTC
The Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
