DTC Advanced Diagnostics: P0630 (3.0L Engine)

DTC P0630: VIN Not Programmed or Mismatch

General Description

Courtesy of HONDA, U.S.A., INC.

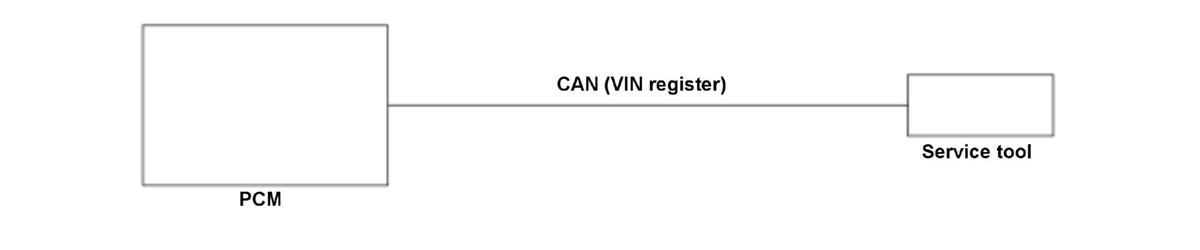

The powertrain control module (PCM) stores a vehicle identification number (VIN). The PCM determines the correctness of the VIN that is stored in the PCM by monitoring the VIN length. If the VIN length is "0", the PCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution	Continuous
Sequence	None
Duration	-
DTC Type	One drive cycle, MIL on

Enable Conditions

Condition
Vehicle	ON mode

Malfunction Threshold

The VIN length is "0".

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

VIN not registered in the PCM
PCM internal circuit failure (EEPROM)

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, the freeze data, and the on-board snapshot are stored in the PCM memory.

Conditions for clearing the DTC

The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
