DTC Advanced Diagnostics: P0602(PGM-FI System (3.0L Engine))

DTC P0602: Powertrain Control Module (PCM) Programming Error

General Description

Courtesy of HONDA, U.S.A., INC.

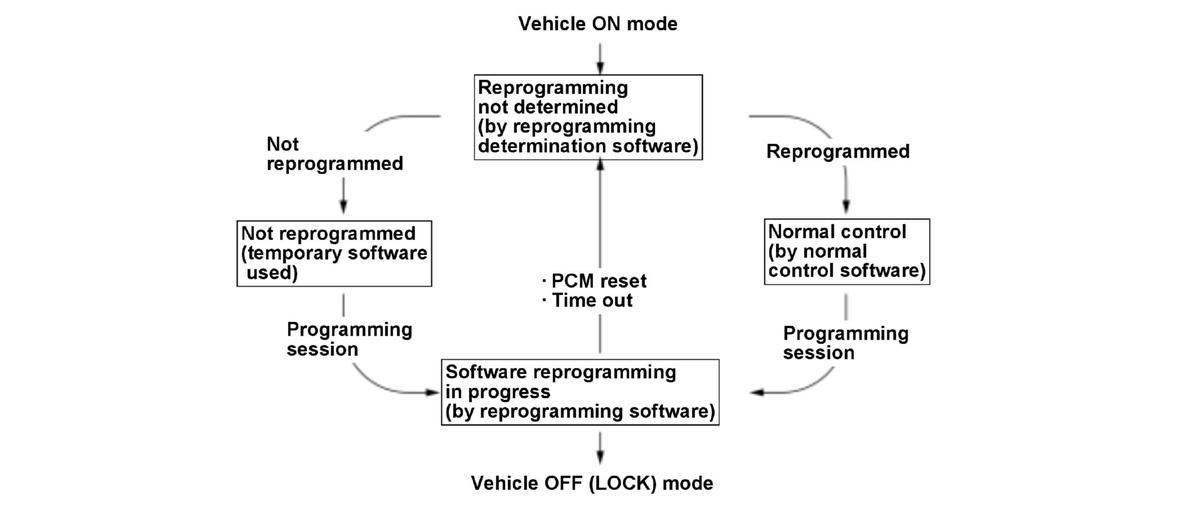

The system notices the customer that the powertrain control module (PCM) software reprogramming is failed due to power shut-off during reprogramming. The reprogramming determination software which is located on the non-reprogrammable area determines the status of the reprogramming. If the software determines as "reprogramming not completed", the PCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution	Continuous
Sequence	None
Duration	-
DTC Type	One drive cycle, MIL on

Enable Conditions

Condition
Vehicle	ON mode

Malfunction Threshold

The reprogramming determination software determines as "reprogramming not completed".

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

PCM software reprogramming failed

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, the freeze data, and the on-board snapshot are stored in the PCM memory.

Conditions for clearing the DTC

The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
