DTC Advanced Diagnostics: P0498 (2.0L Engine)

DTC P0498: Evaporative Emission (EVAP) Canister Vent Shut Valve Circuit Low Voltage

General Description

Courtesy of HONDA, U.S.A., INC.

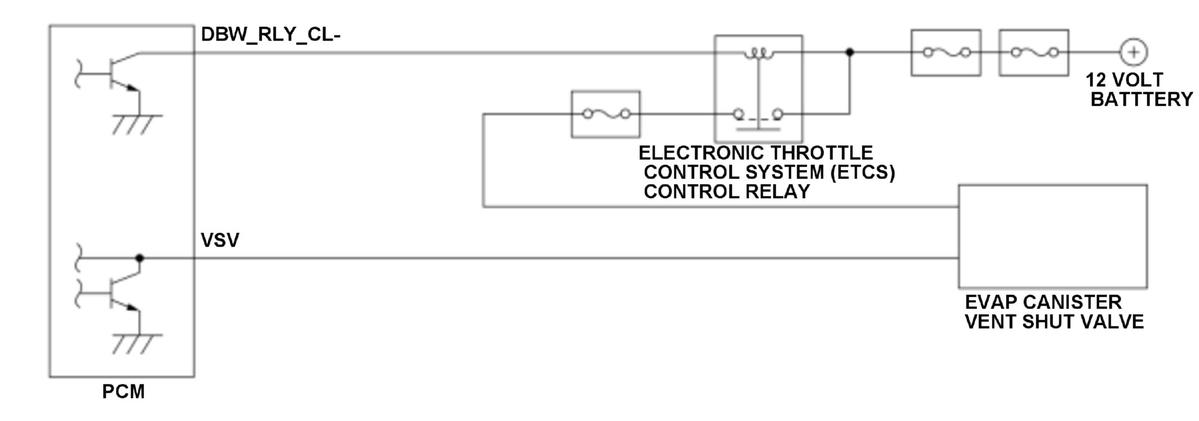

The evaporative emission (EVAP) canister vent shut valve is attached to the EVAP canister to control the venting of the EVAP canister to atmosphere. The EVAP canister vent shut valve is open (open to atmosphere) when the VSV signal is OFF. If the return signal is "OFF" when the powertrain control module (PCM) outputs the "ON" signal to the EVAP canister vent shut valve, the PCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution	Continuous
Sequence	None
Duration	5 seconds or more
DTC Type	Two drive cycles, MIL on

Enable Conditions

Condition	Minimum	Maximum
12 volt battery voltage [Battery]	10.0 V	-
State of the engine	Running

[ ]: HDS Parameter

Malfunction Threshold

The return signal is "OFF" for at least 5 seconds when the PCM outputs the "ON" signal to the EVAP canister vent shut valve.

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

EVAP canister vent shut valve VSV line open
EVAP canister vent shut valve power supply line open
EVAP canister vent shut valve VSV line short to ground
EVAP canister vent shut valve failure
PCM internal circuit failure

Confirmation Procedure

Operating Condition

Start the engine.

With the HDS

Select the EVAP TEST in the Function Test, then select CVS ON in the SINGLE SOLENOID with the HDS.

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC, the freeze data, and the on-board snapshot are stored.

Conditions for clearing the DTC

The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
