DTC Advanced Diagnostics: P0339 (3.0L Engine)
DTC P0339: Crankshaft Position (CKP) Sensor Circuit Intermittent Interruption
General Description

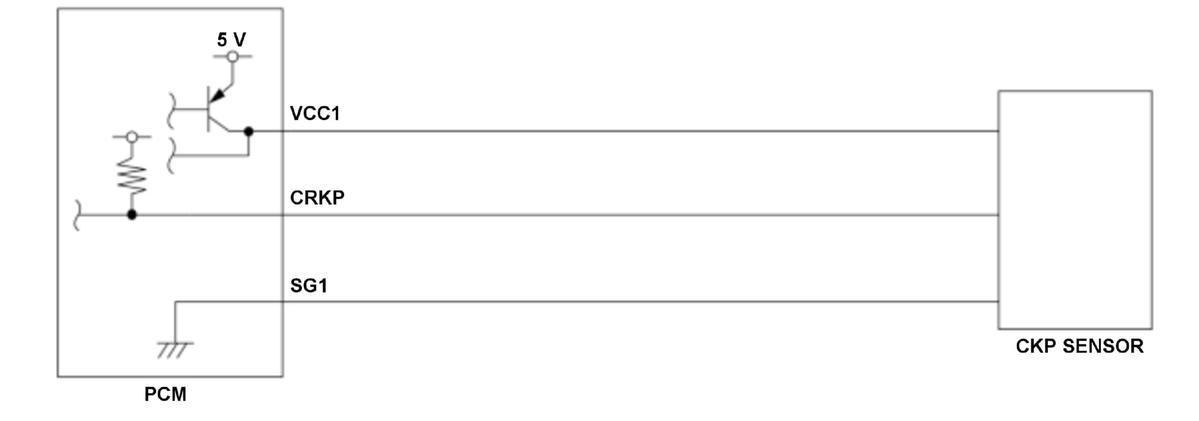

The crankshaft position (CKP) sensor consists of a rotor and a semiconductor that detects rotor position. When the engine starts, the rotor turns and the magnetic flux in the semiconductor device changes. The changes of magnetic flux are converted into pulsing signals to the powertrain control module (PCM). The CKP sensor detects injection/ignition timing for each cylinder and engine speed. If an abnormal amount of pulsing signals from the CKP sensor are detected, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | Depending on the driving condition |
| DTC Type | One drive cycle, MIL on |
Enable Conditions
| Condition | |
|---|---|
| State of the engine | Running |
Malfunction Threshold
Other than 58 crankshaft pulses are detected during intervals between reference pulses for each crank revolution for at least 30 crankshaft revolutions.
Possible Cause
- CKP sensor CRKP line electrical noise overlapped
- CKP pulse plate chipped
- CKP sensor failure
- PCM internal circuit failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, the freeze data, and the on-board snapshot are stored in the PCM memory.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
