DTC Advanced Diagnostics: P0107, P0108 (3.0L Engine)

DTC P0107: Manifold Absolute Pressure (MAP) Sensor Circuit Low Voltage DTC P0108: Manifold Absolute Pressure (MAP) Sensor Circuit High Voltage

General Description

Courtesy of HONDA, U.S.A., INC.

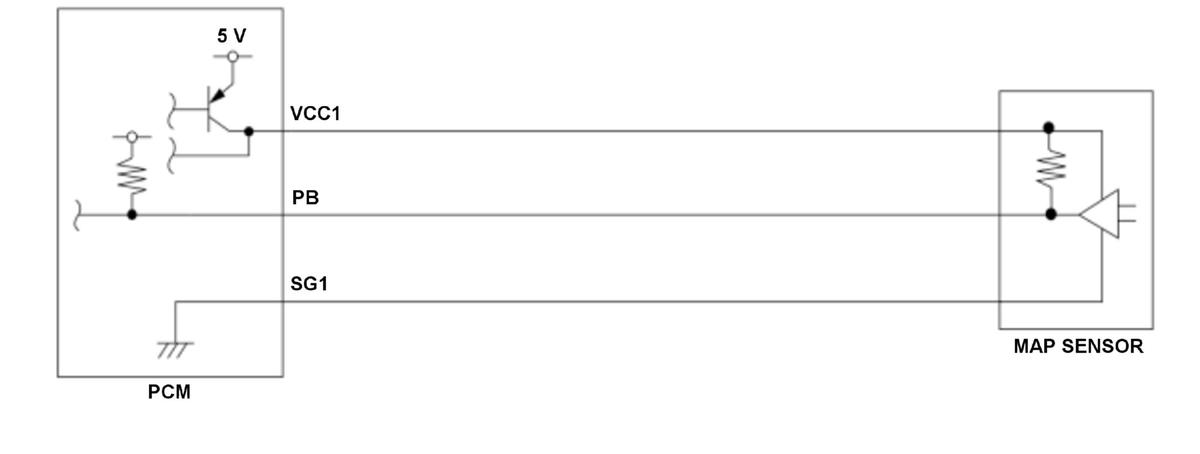

Courtesy of HONDA, U.S.A., INC.

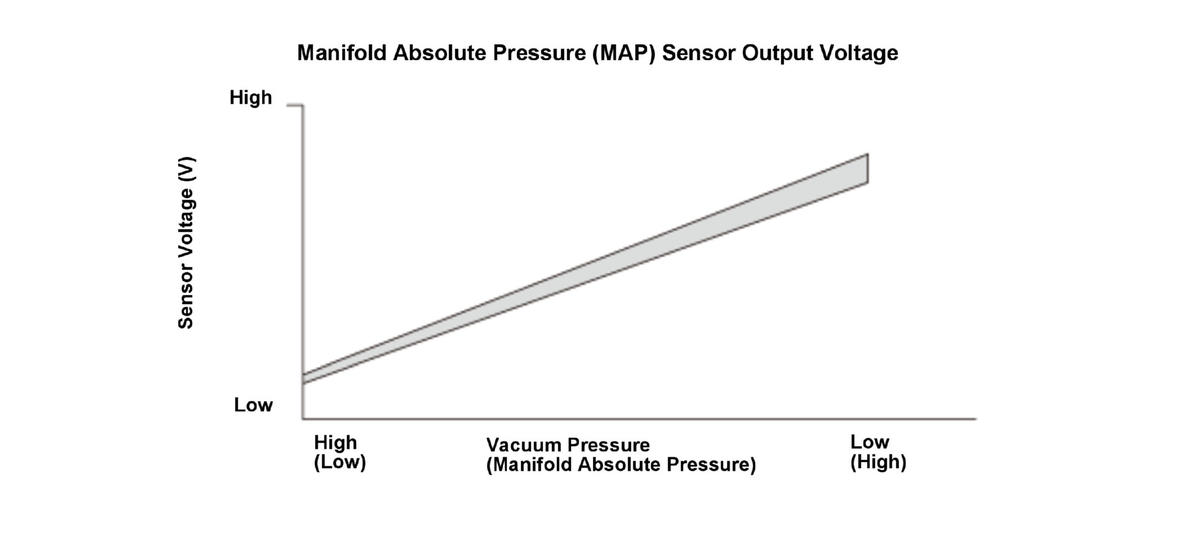

The manifold absolute pressure (MAP) sensor measures the pressure or vacuum in the manifold. This measurement is converted into an electrical signal which the powertrain control module (PCM) uses to monitor the engine. The MAP sensor outputs low signal voltage at high vacuum (throttle valve closed) and high signal voltage at low vacuum (throttle valve wide open). If the MAP sensor output voltage is excessively high or low, the PCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution	Continuous
Sequence	None
Duration	0.5 second or more2.0 seconds or more*
DTC Type	One drive cycle, MIL on

*: DTC P0107**: DTC P0108

Enable Conditions

Condition
Vehicle	ON mode

Malfunction Threshold

DTC: P0107

The MAP sensor output voltage [MAP Sensor Voltage] is 0.351 V* 1 (0.215 V)* 2 or less for at least 0.5 second.

DTC: P0108

The MAP sensor output voltage [MAP Sensor Voltage] is 4.596 V* 1 (4.766 V)* 2 or more for at least 2.0 seconds.

*1: USA and Canada models*2: Mexico models[ ]: HDS Parameter

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

DTC: P0107

MAP sensor PB line short to ground
MAP sensor VCC1 line open
MAP sensor VCC1 line short to ground

DTC: P0108

MAP sensor PB line open
MAP sensor PB line short to power
MAP sensor SG1 line open

Common

MAP sensor failure
PCM internal circuit failure

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, the freeze data, and the on-board snapshot are stored in the PCM memory.

Conditions for clearing the DTC

The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
