DTC Advanced Diagnostics: P0101 (3.0L Engine)
DTC P0101: Mass Airflow (MAF) Sensor Circuit Range/Performance Problem (Out of Range)
General Description

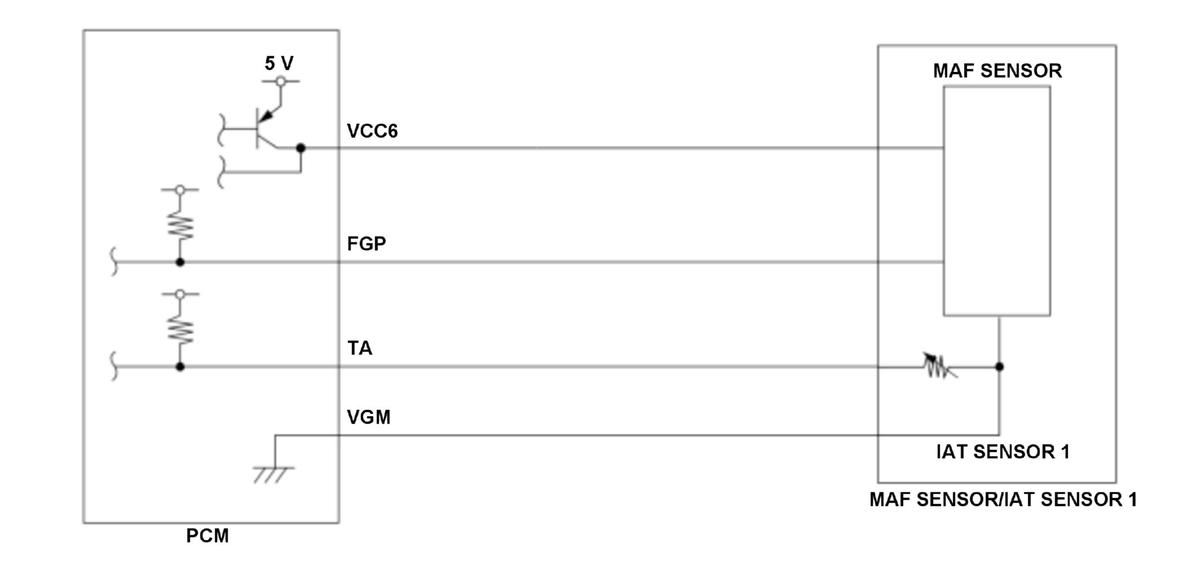

The mass airflow (MAF) sensor is attached to the intake air passage, and it measures the amount of intake airflow. The MAF sensor is a chip type airflow meter. The airflow cools the electrically heated chip that is mounted in the air passage. The powertrain control module (PCM) determines the amount of intake airflow by measuring the frequency of the pulse. If the frequency is out of specified range, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 6.0 seconds or more |
| DTC Type | Two drive cycles, MIL on |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| Elapsed time after the vehicle is turned to the ON mode | 2.0 seconds | - |
Malfunction Threshold
The pulse frequency of the FGP input signal [MAF Sensor] is out of normal range of 1.84 kHz to 10.24 kHz for at least 6.0 seconds.
[ ]: HDS Parameter
Possible Cause
- MAF sensor failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC, the freeze data, and the on-board snapshot are stored.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, the freeze data, and the on-board snapshot can be cleared with the scan tool clear command.
