Variable Cylinder Management (VCM) Test (3.0L Engine): Notes

*: Refer to the Acura Tool and Equipment Program for recommended borescopes.

Variable Cylinder Management (VCM) Test

Special Tools Required

Image Description/Tool Number

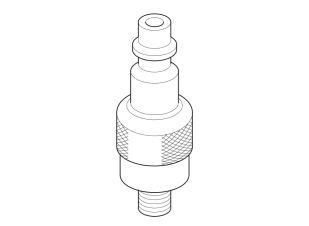

GHH483078Courtesy of HONDA, U.S.A., INC.
 Adaptor, Air 07AAJ-6S9A100
GHH160639Courtesy of HONDA, U.S.A., INC.
 Air Pressure Regulator 07AAJ-PNAA101

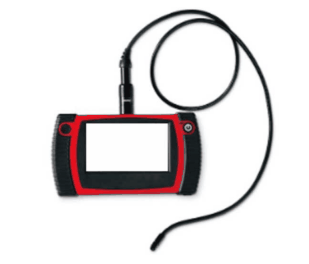

GHH483079Courtesy of HONDA, U.S.A., INC.
 Borescope with side lens* (commercially available)

*: Refer to the Acura Tool and Equipment Program for recommended borescopes.
