VTEC Rocker Arm Test (2.0L Engine): Test

How to use this manual .

1. VTEC Rocker Arm - Test (VTEC Inoperative State)

   Preconditions

   • Cylinder Head Cover Removed - Refer to: Cylinder Head Cover Area(3.0L Engine) or Cylinder Head Cover Area(2.0L Engine)

   Procedure/Specifications

   1. Rotate the crankshaft pulley clockwise.

   Courtesy of HONDA, U.S.A., INC.

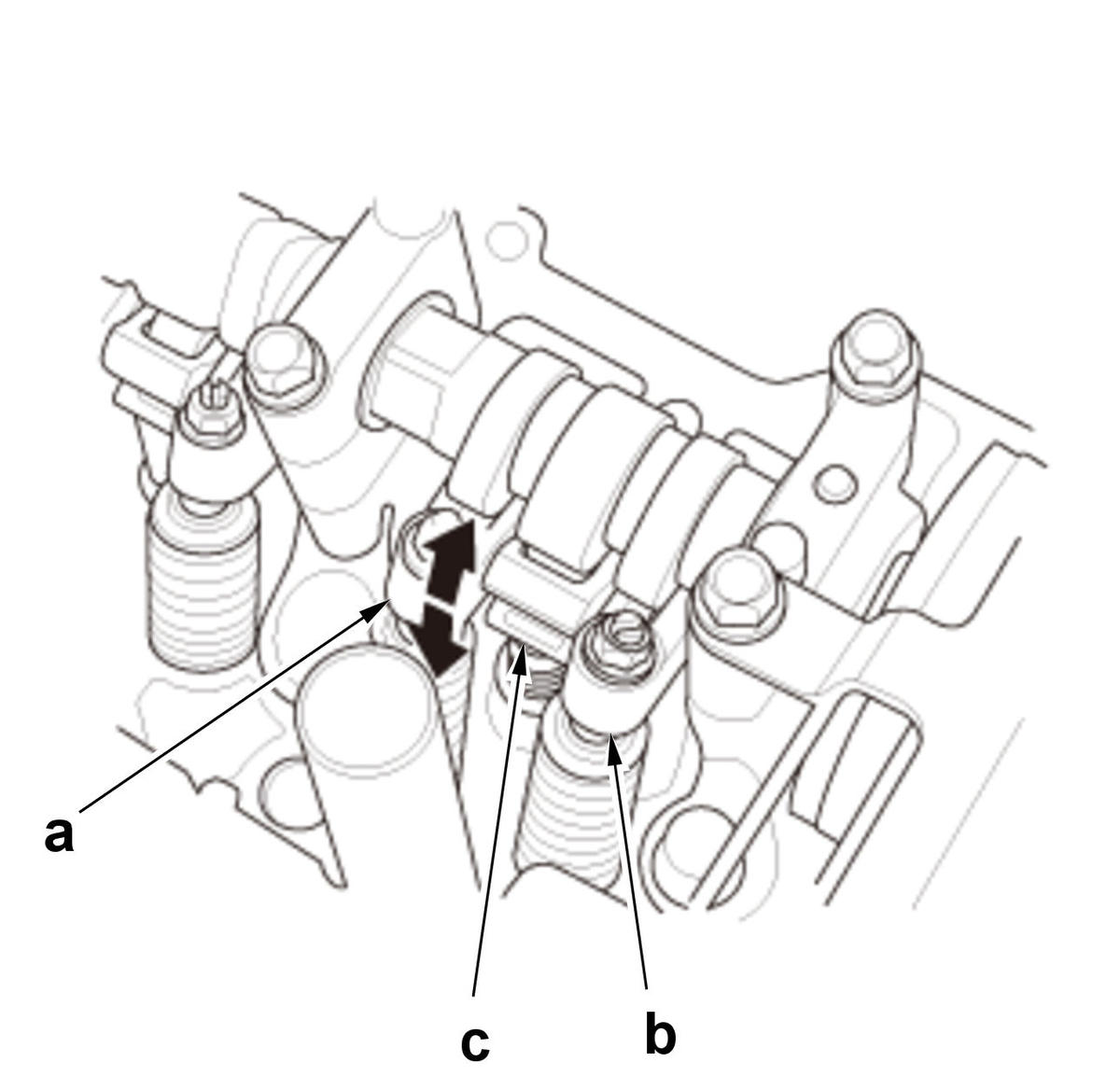

   2. Make sure that the secondary rocker arm (a), the primary rocker arm (b), and the mid rocker arm (c) are separated and that the secondary rocker arm and the mid rocker arm moves independently.

   Specifications

   Position	Specification
   a	Rocker arms separated and should move independently
   b
   c

   Result

   • If it is abnormal, check that the pistons in the rocker arms move smoothly. If any rocker arm needs replacing, replace the rocker arm assembly - Refer to: Cylinder Head/Camshaft Area(2.0L Engine) or Cylinder Head/Camshaft Area(3.0L Engine) .
2. VTEC Rocker Arm - Test (VTEC Operation State)

   Preconditions

   • Cylinder Head Cover Removed - Refer to: Cylinder Head Cover Area(3.0L Engine) or Cylinder Head Cover Area(2.0L Engine)

   Procedure/Specifications

   1. Check that the air pressure on the shop air compressor gauge indicates over 400 kPa (4.08 kgf/cm 2, 58.0 psi).

   2. Inspect the valve clearance - Refer to: Valve Inspection(3.0L Engine)  or Valve Inspection(2.0L Engine)  or Valve Clearance Adjustment(2.0L Engine)

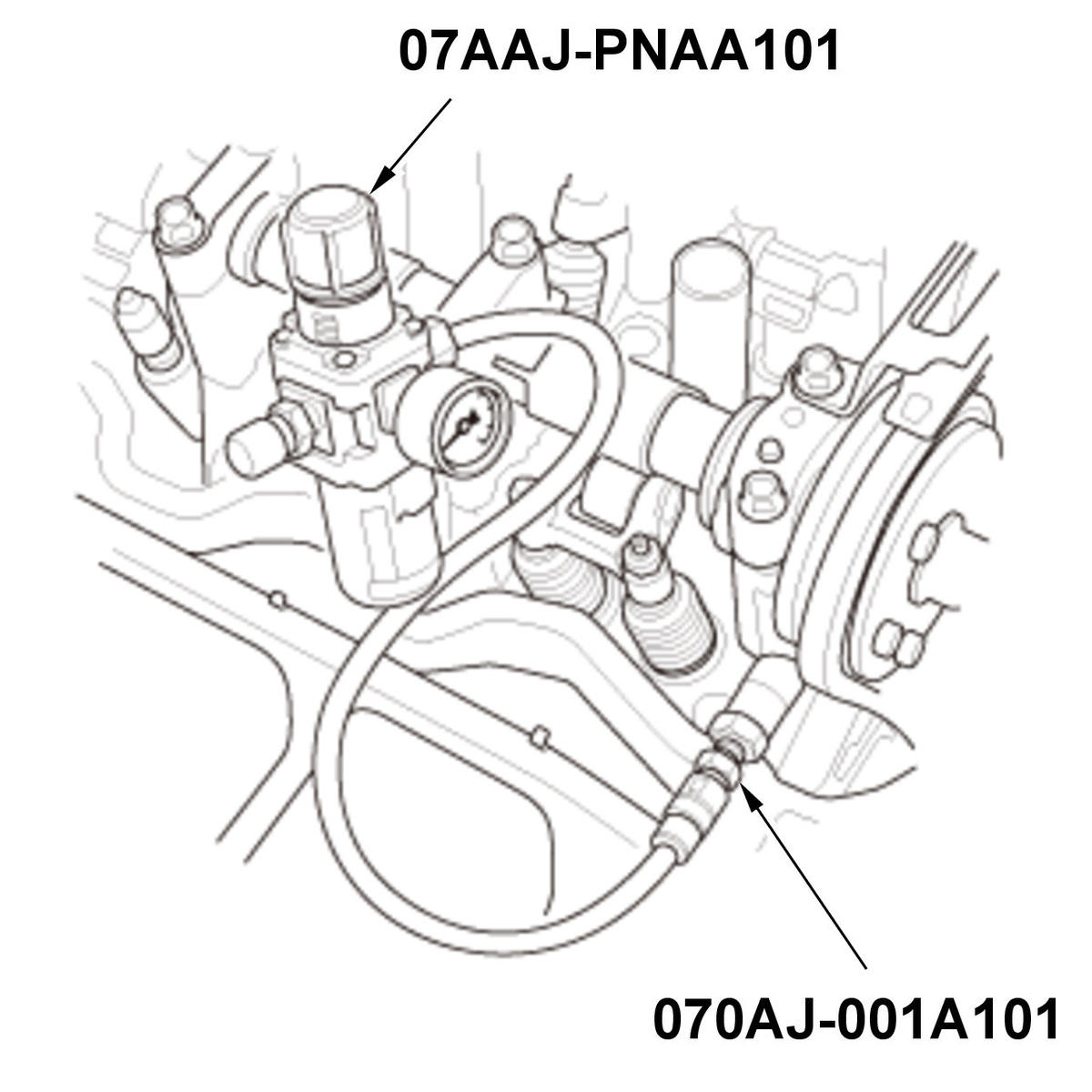

   3. Install the VCM air adapter to the inspection hole, then connect the air pressure regulator. (Figure 1)

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

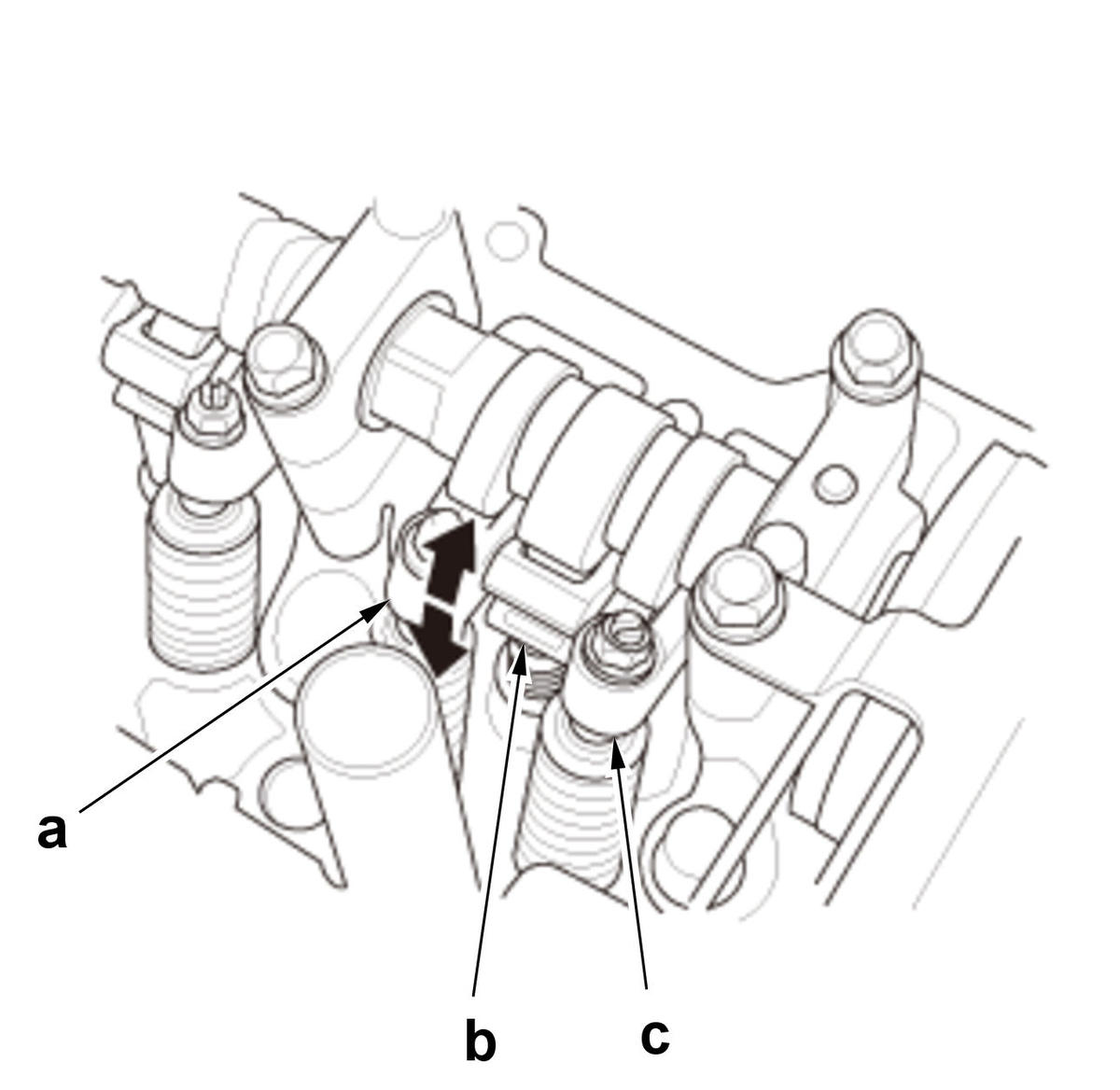

   4. With the specified air pressure applied, rotate the crankshaft pulley clockwise. Make sure that the secondary rocker arm (a) moves together with the mid rocker arm (b) and the primary rocker arm (c). (Figure 2)

   Specifications (Figure 2)

   Position	Condition	Specification
   a	Apply the 290 kPa (2.96 kgf/cm 2, 42.1 psi)	Rocker arms should move together
   b
   c

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Result

   • If it is abnormal, check that the pistons in the rocker arms move smoothly. If any rocker arm needs replacing, replace the rocker arm assembly - Refer to: Cylinder Head/Camshaft Area(2.0L Engine) or Cylinder Head/Camshaft Area(3.0L Engine) .
