Idle Stop Off Switch Test: Test

How to use this manual .

1. Idle Stop Off Switch - Test

   Preconditions

   • Center Console Panel Removed

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

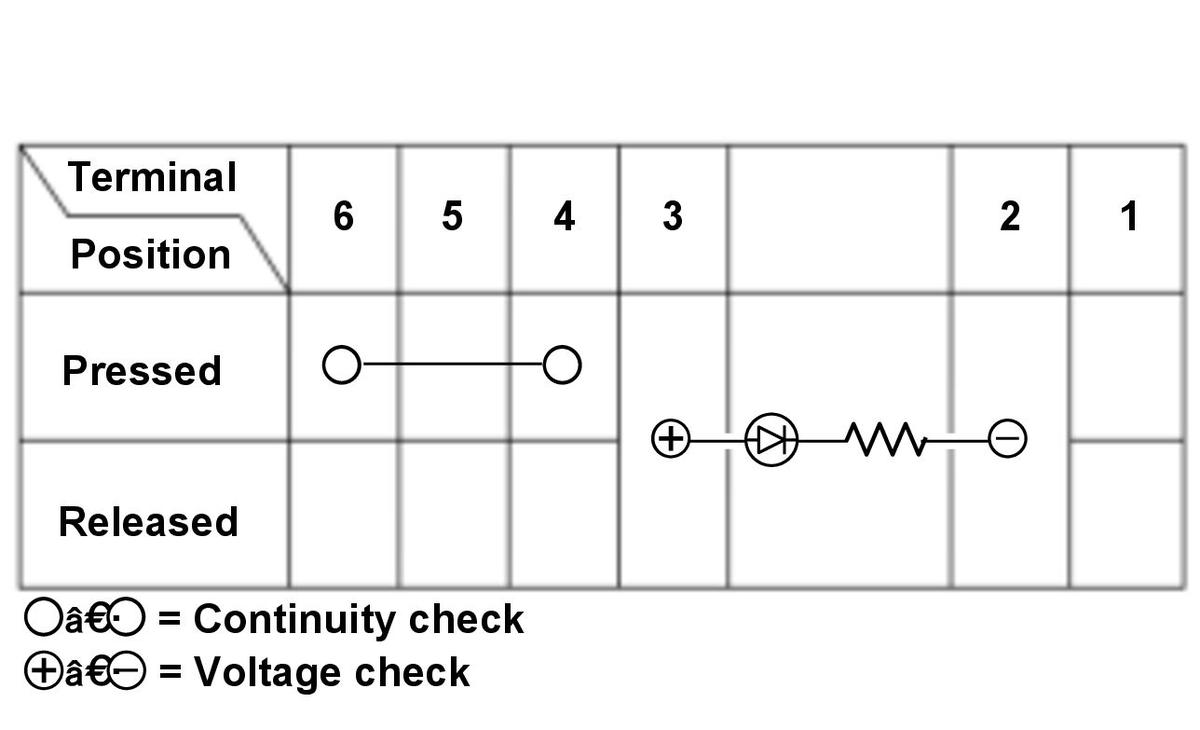

   • Check the switch according to the table. (Figure 1 and 2)

   NOTICE:

   • When an LED is located between terminals, check if the LED lights by connecting power and ground to the LED.
   • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

   Result

   • If the result is not as specified, replace the idle stop off switch .
