Engine Support Hanger Installation (3.0L Engine): Notes

*: Available through the Acura Tool and Equipment Program 888-424-6857.

Engine Support Hanger Installation

Special Tools Required

Image Description/Tool Number

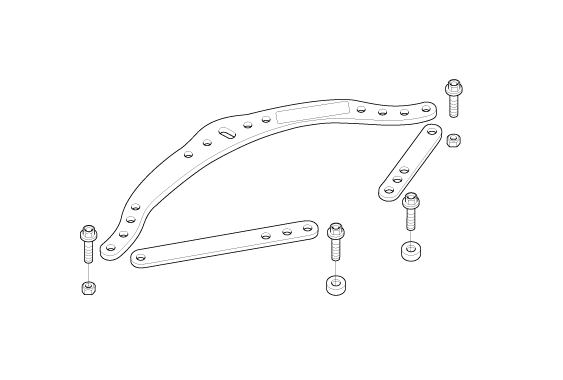

GHH157303Courtesy of HONDA, U.S.A., INC.
 Engine Hanger Balance Bar VSB02C000019*

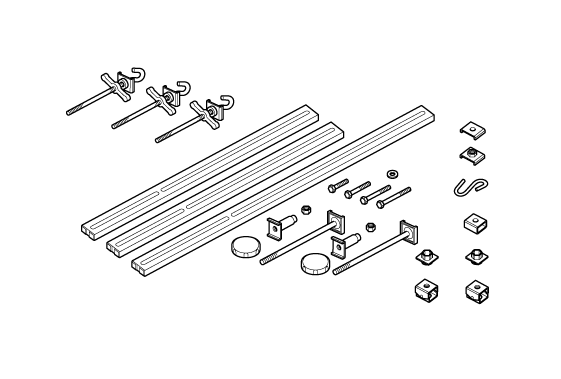

GHH157300Courtesy of HONDA, U.S.A., INC.
 Engine Support Hanger, A and Reds AAR-T1256*

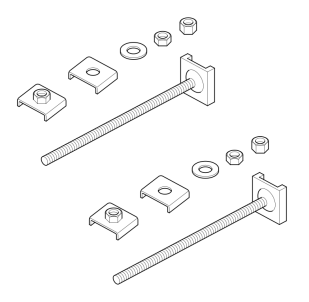

GHH482975Courtesy of HONDA, U.S.A., INC.
 Extra Arm Kit AART1256EAK*

*: Available through the Acura Tool and Equipment Program 888-424-6857.
