Engine Configuration (3.0L Engine)

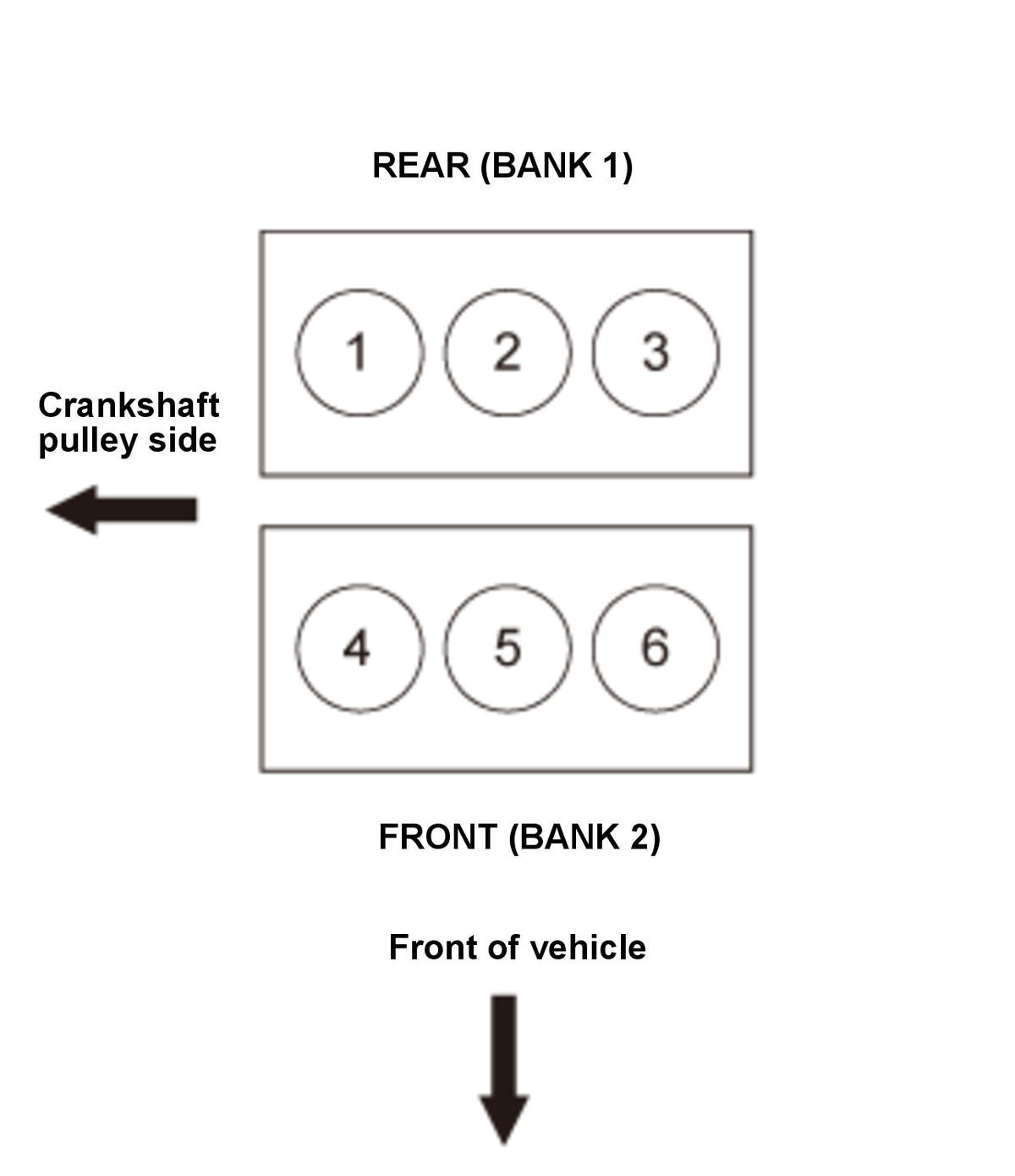

Cylinder Arrangement/Firing Order: 1-4-2-5-3-6

GHH482798Courtesy of HONDA, U.S.A., INC.

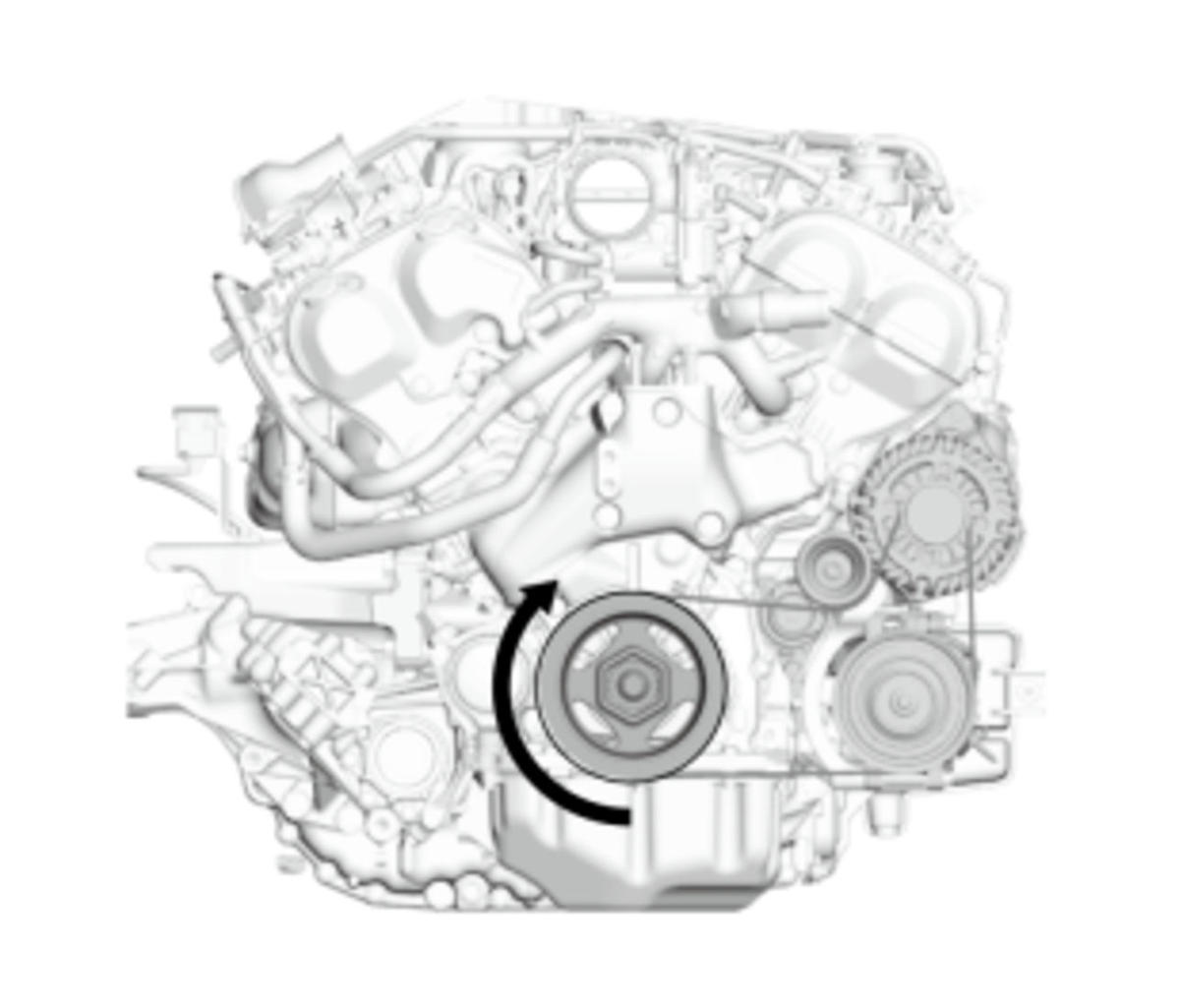

Engine Rotation: Clockwise

GHH482799Courtesy of HONDA, U.S.A., INC.
