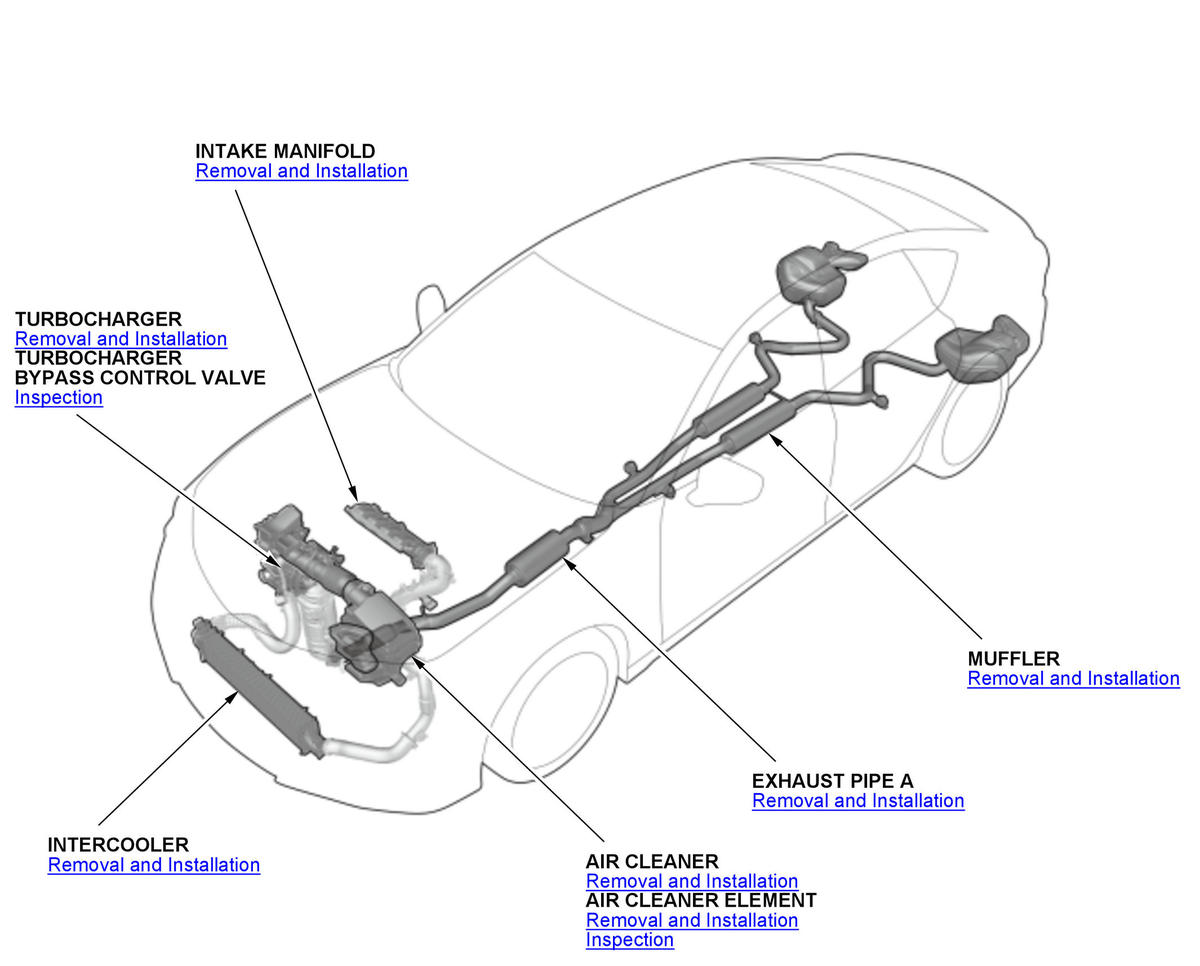

Intake Air System and Exhaust System Component Location Index (2.0L Engine)

GHH560927

Courtesy of HONDA, U.S.A., INC.
