Engine Block Assembly Component Location Index (3.0L Engine)

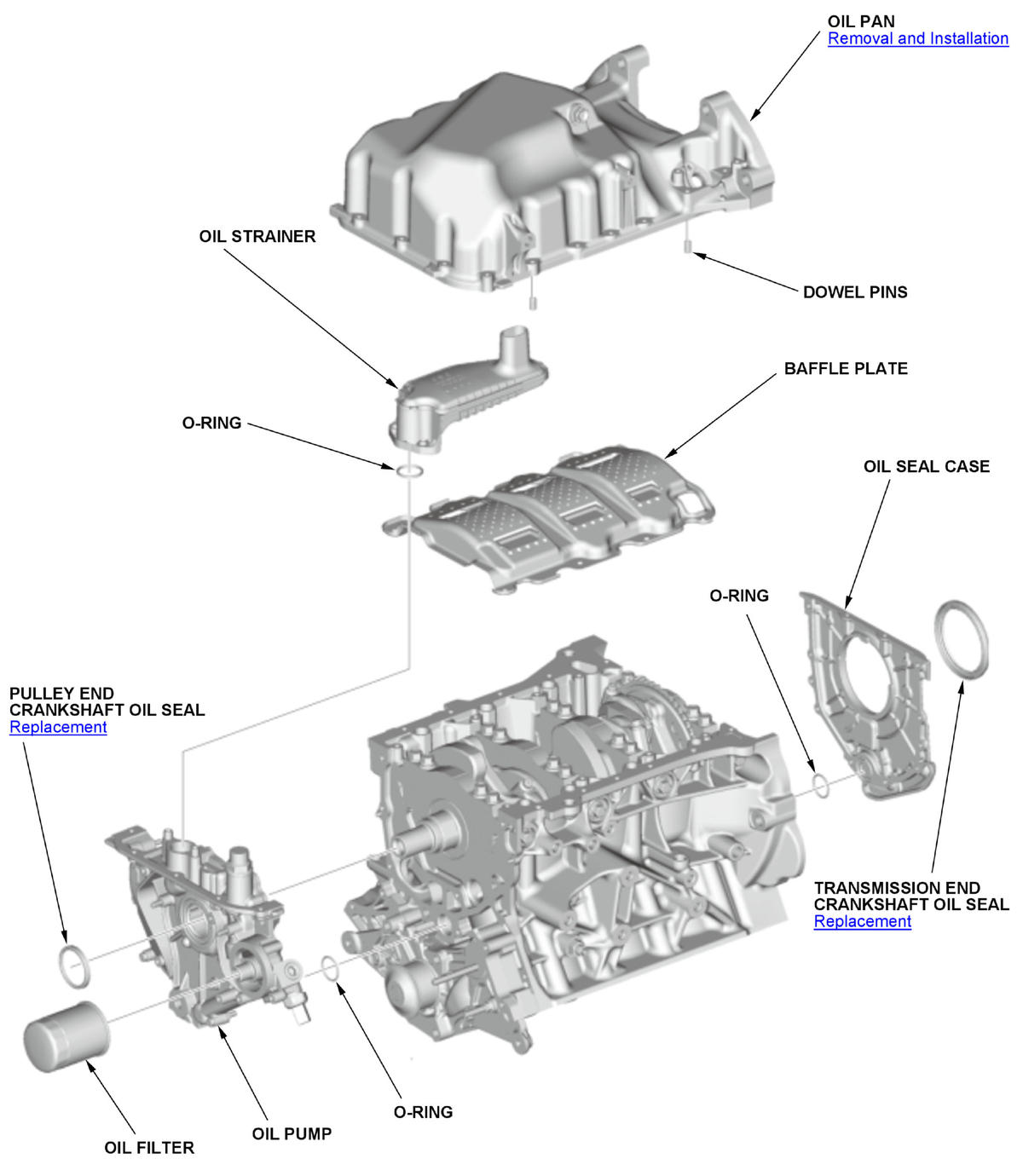

GHH482812

Courtesy of HONDA, U.S.A., INC.

GHH482813

Courtesy of HONDA, U.S.A., INC.

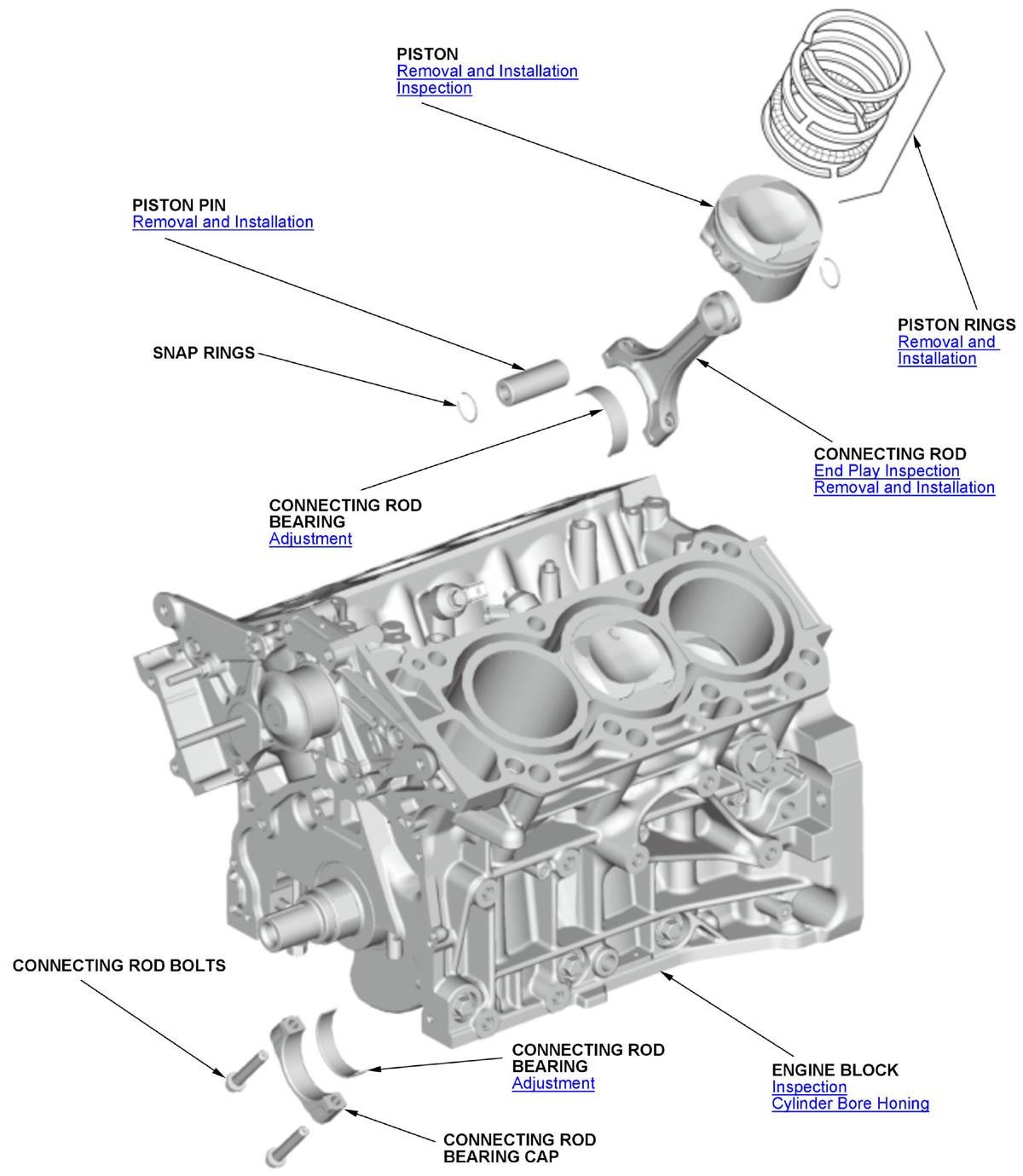

GHH482814

Courtesy of HONDA, U.S.A., INC.
