Active Vibration Control System Description (3.0L Engine)
Overview
NOTE:
For details of the system configuration, refer to the Active Vibration Control System - Refer to: Active Vibration Control System Description or Active Vibration Control System Description(3.0L Engine) .

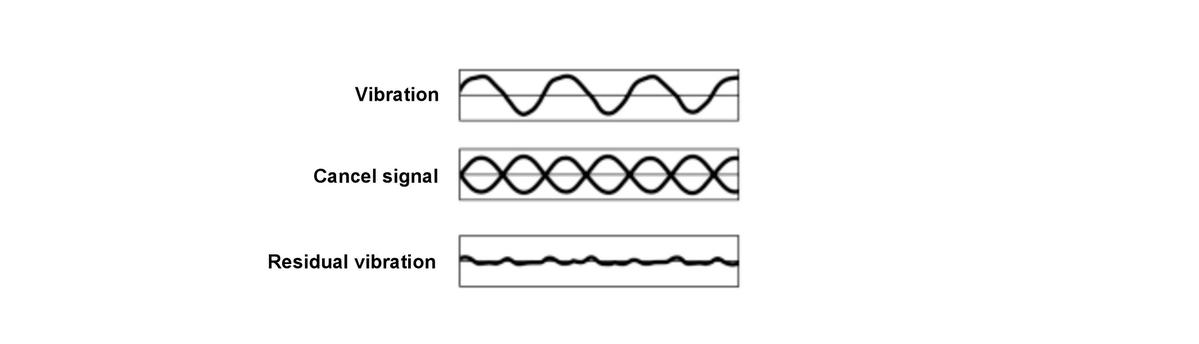

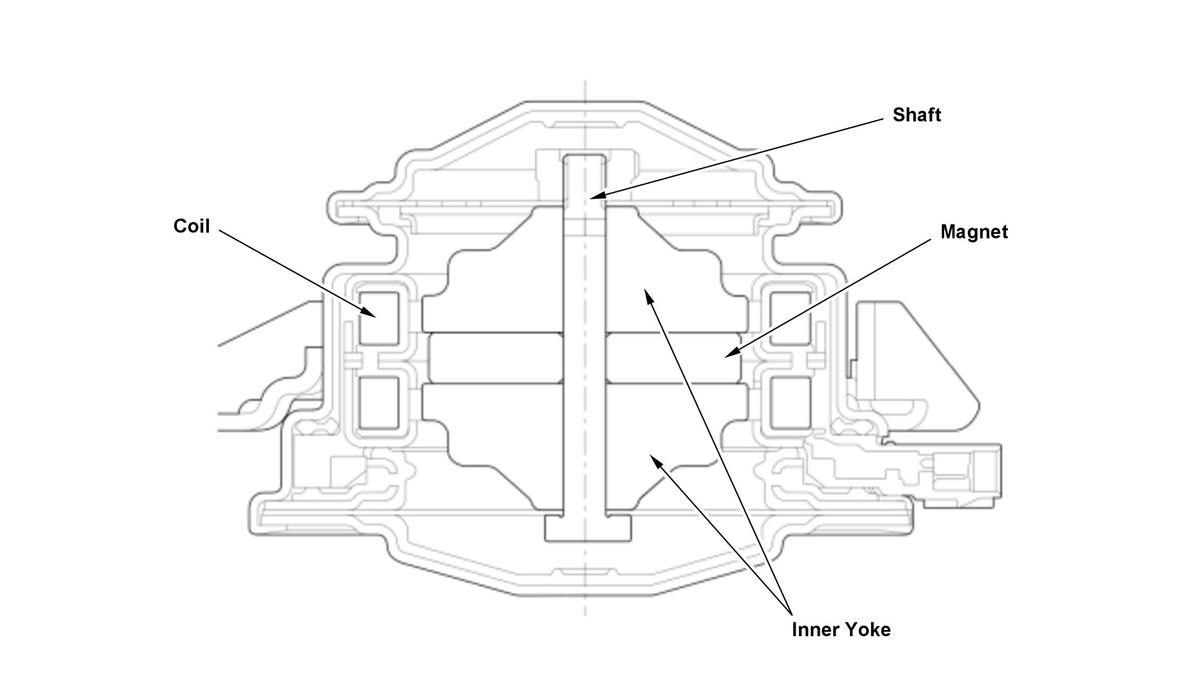

The active vibration control (AVC) system reduces the amount of engine vibration which is transmitted to the passenger's compartment. The AVC system drives the actuator, vibrates the front subframe and reduces the amount of engine vibration.
