Starter Inspection (2.0L Engine): Inspection

How to use this manual .

1. Armature (Commutator Diameter) - Inspect

   Preconditions

   • Armature Removed

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

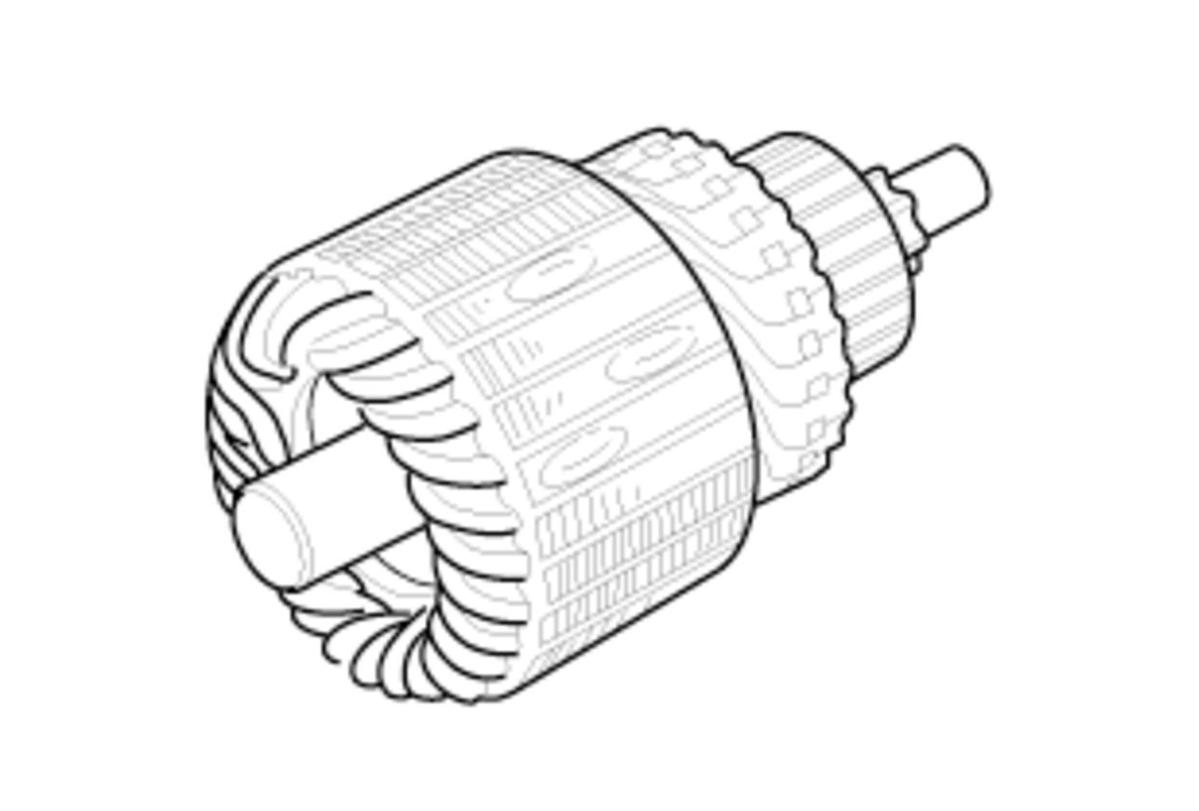

   1. Inspect the armature for wear or damage from contact with the permanent magnet. (Figure 1)

   Specifications

   Object	Specification
   Armature	Not worn or damaged

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

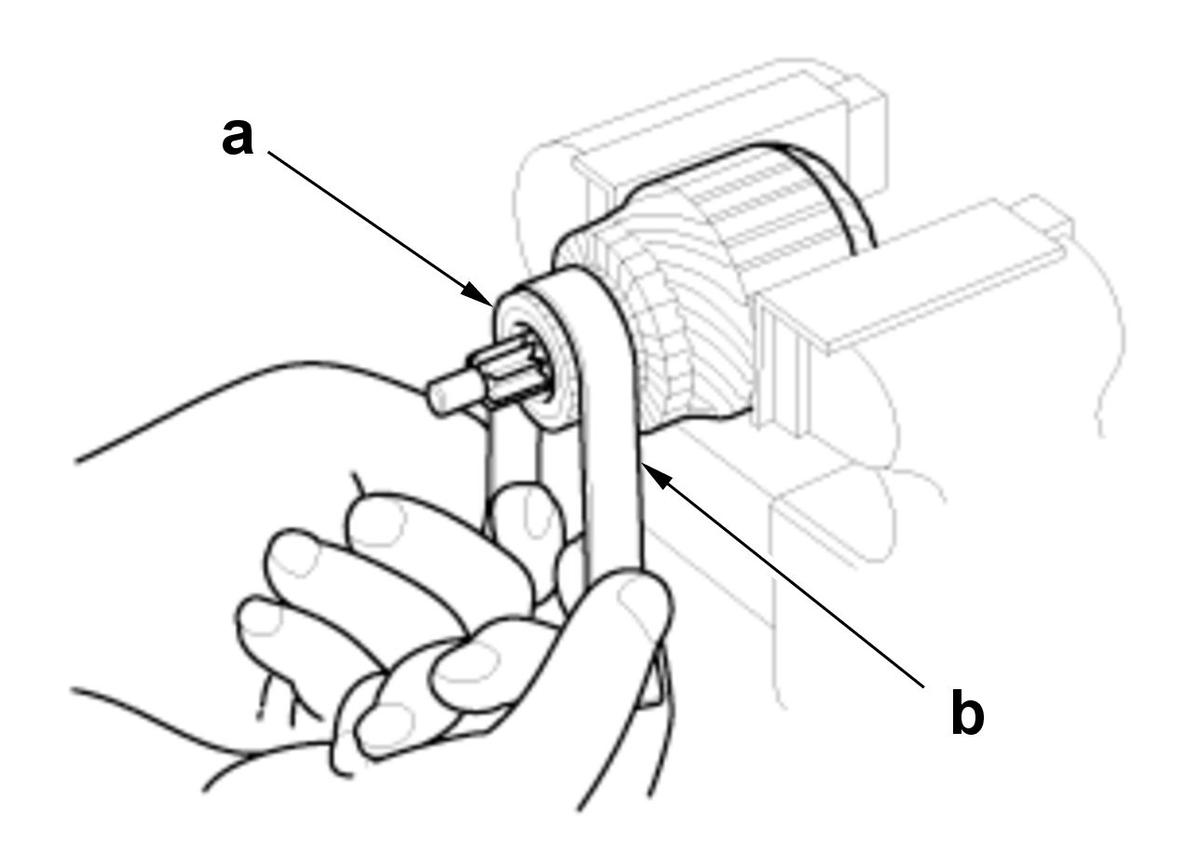

   2. Check the commutator (a) surface. If the surface is dirty or burnt, resurface it with an emery cloth or a lathe to the specifications in step 3, or recondition with '500 or '600 sandpaper (b). (Figure 2)

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

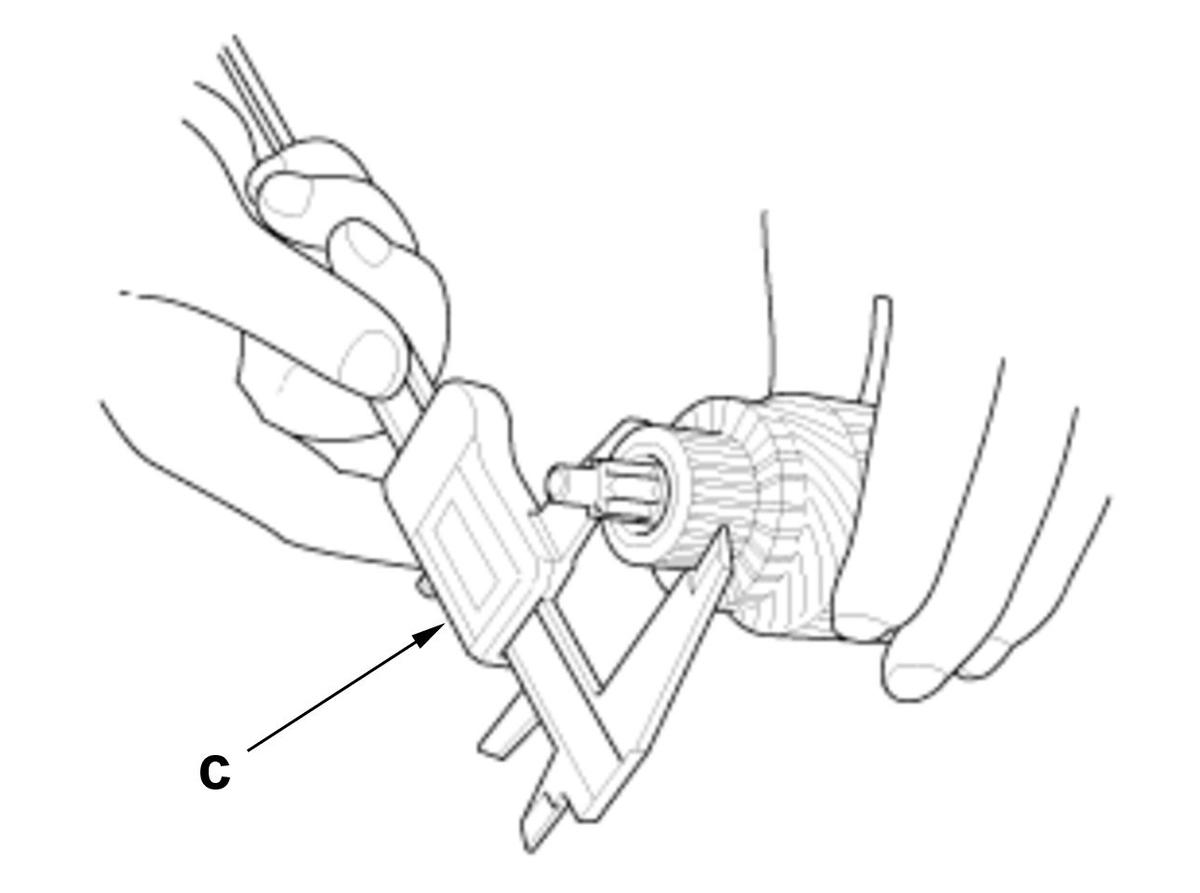

   3. Check the commutator.

   Tool Details (Figure 3)

   Name
   c	Digital Caliper or Dial Type Caliper

   Specifications

   Standard Value (New)	Service Limit
   28.0-28.1 mm (1.102-1.106 in)	27.5 mm (1.083 in)

   Result

   • If the measurement is not within specifications, replace the armature.
2. Armature (Commutator Runout) - Inspect

   Preconditions

   • Armature Removed

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

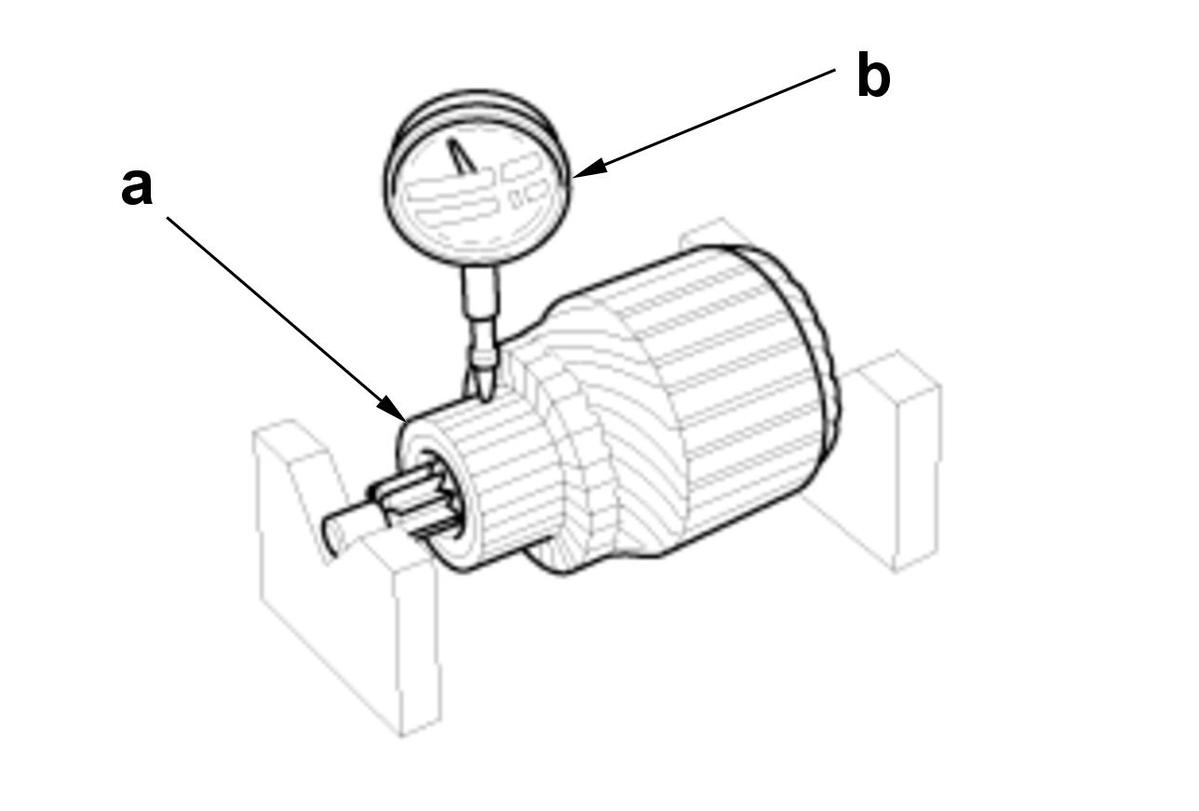

   • Measure the commutator (a) runout.

   Tool Details

   Name
   b	Dial Indicator

   Specifications

   Standard Value (New)	Service Limit
   0.02 mm (0.0008 in) max.	0.05 mm (0.0020 in)

   Result

   • If the measurement is not within specifications, replace the armature.
   • If the measurement is within specifications, check the commutator for carbon dust or brass chips between the segments.
3. Armature (Commutator Mica Depth) - Inspect

   Preconditions

   • Armature Removed

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

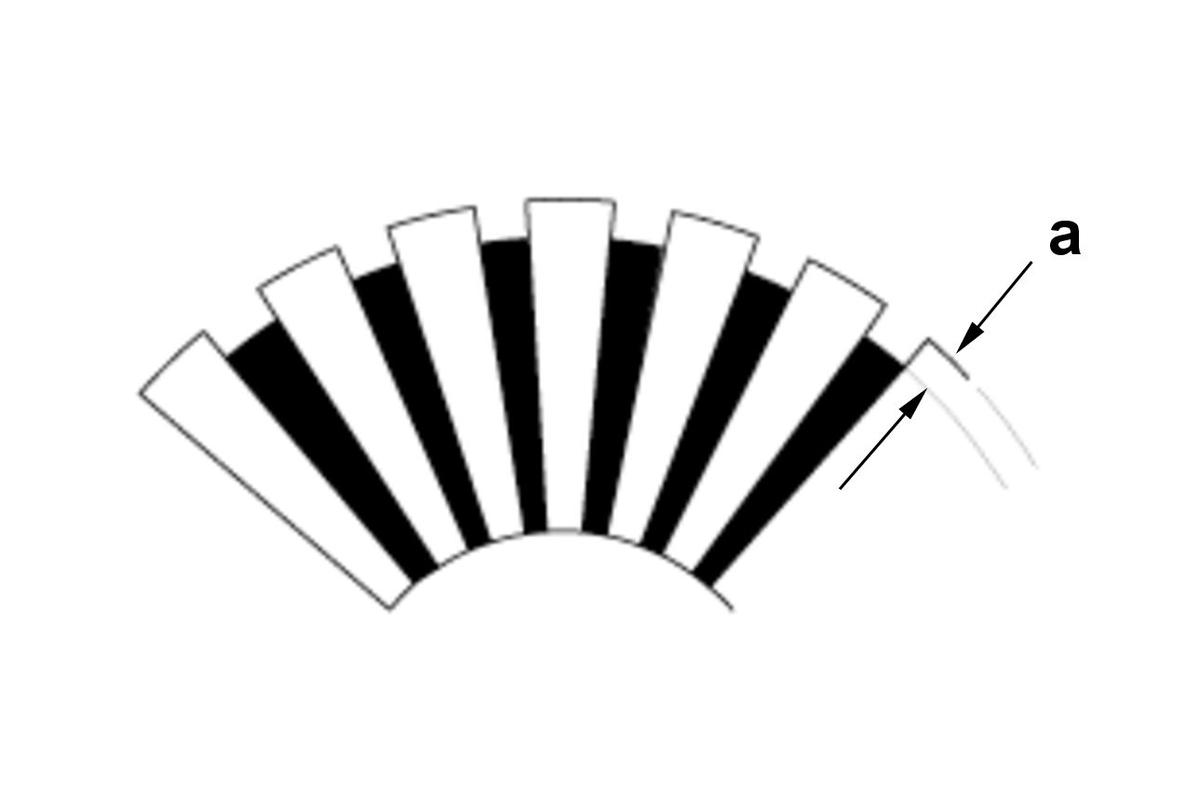

   • Use a digital caliper or dial type caliper to check the mica depth (a).

   Specification

   Standard Value (New)	Service Limit
   0.40-0.50 mm (0.0157-0.0197 in)	0.15 mm (0.0059 in)

   Result

   • If the measurement is not within specifications, replace the armature.
4. Armature (Open/Short) - Inspect

   Preconditions

   • Armature Removed

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

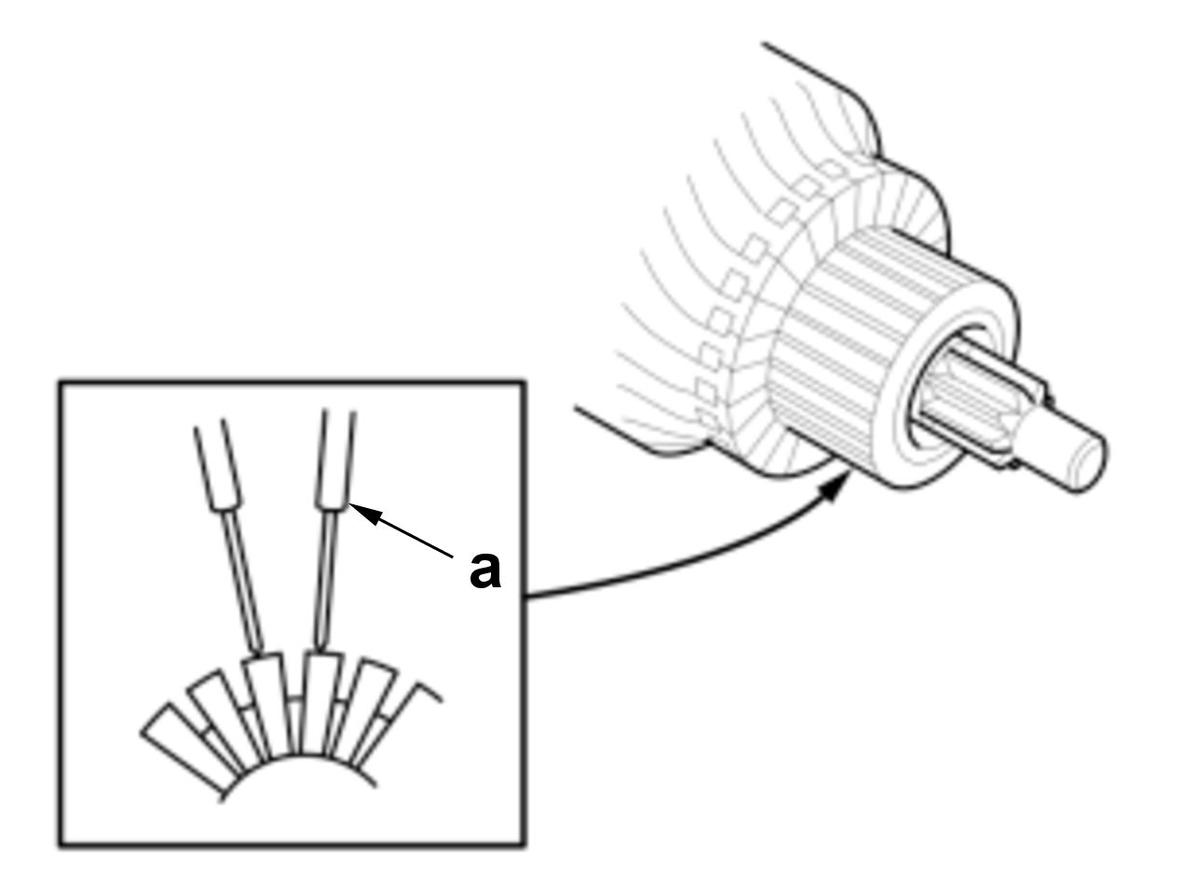

   1. Check for continuity between the segments of the commutator.

   Tool Details (Figure 1)

   Name
   a	Ohmmeter

   Specifications

   Object	Specification
   Between each segments	Continuity

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

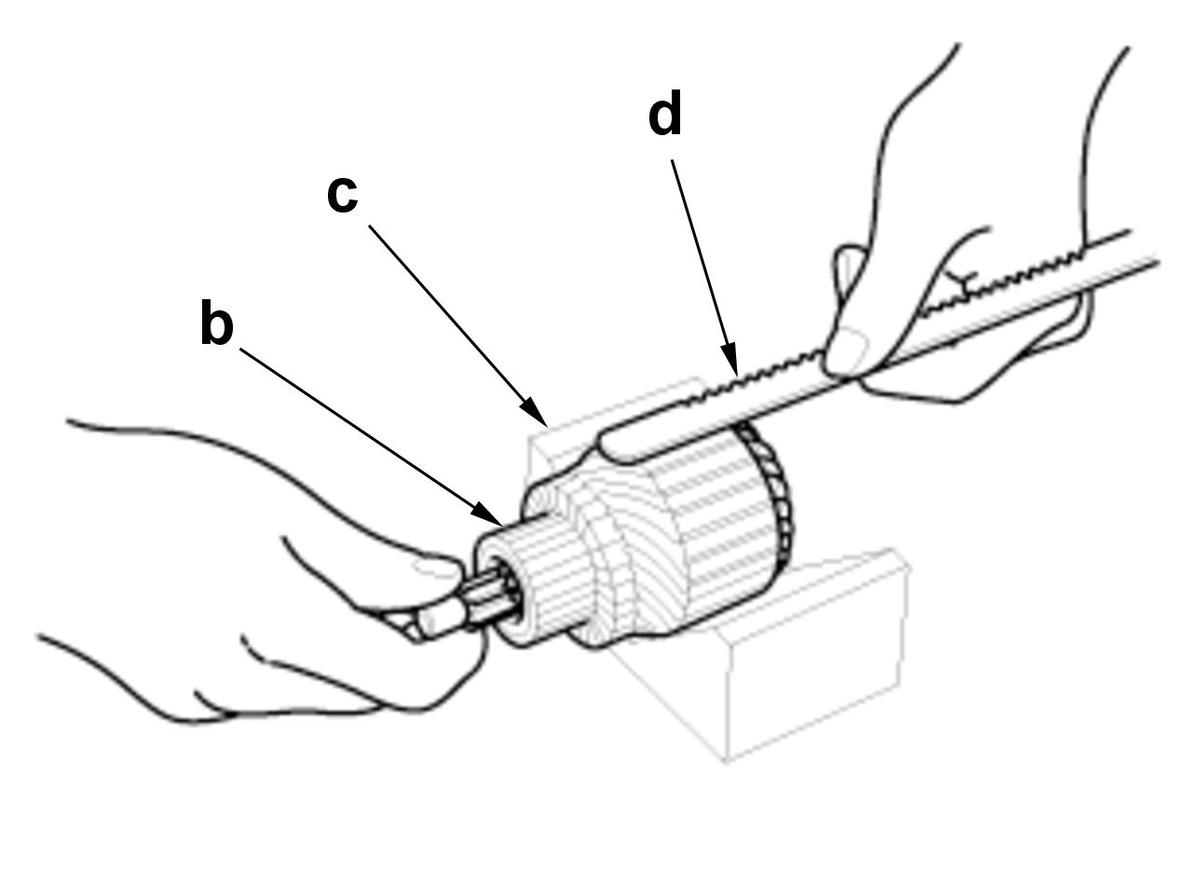

   2. Place the armature (b) on an armature tester (c). Hold a hacksaw blade (d) on the armature core. If the blade is attracted to the core while the core is turned, the armature is shorted. (Figure 2)

   Specifications

   Object	Specification
   Armature	Not shorted

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

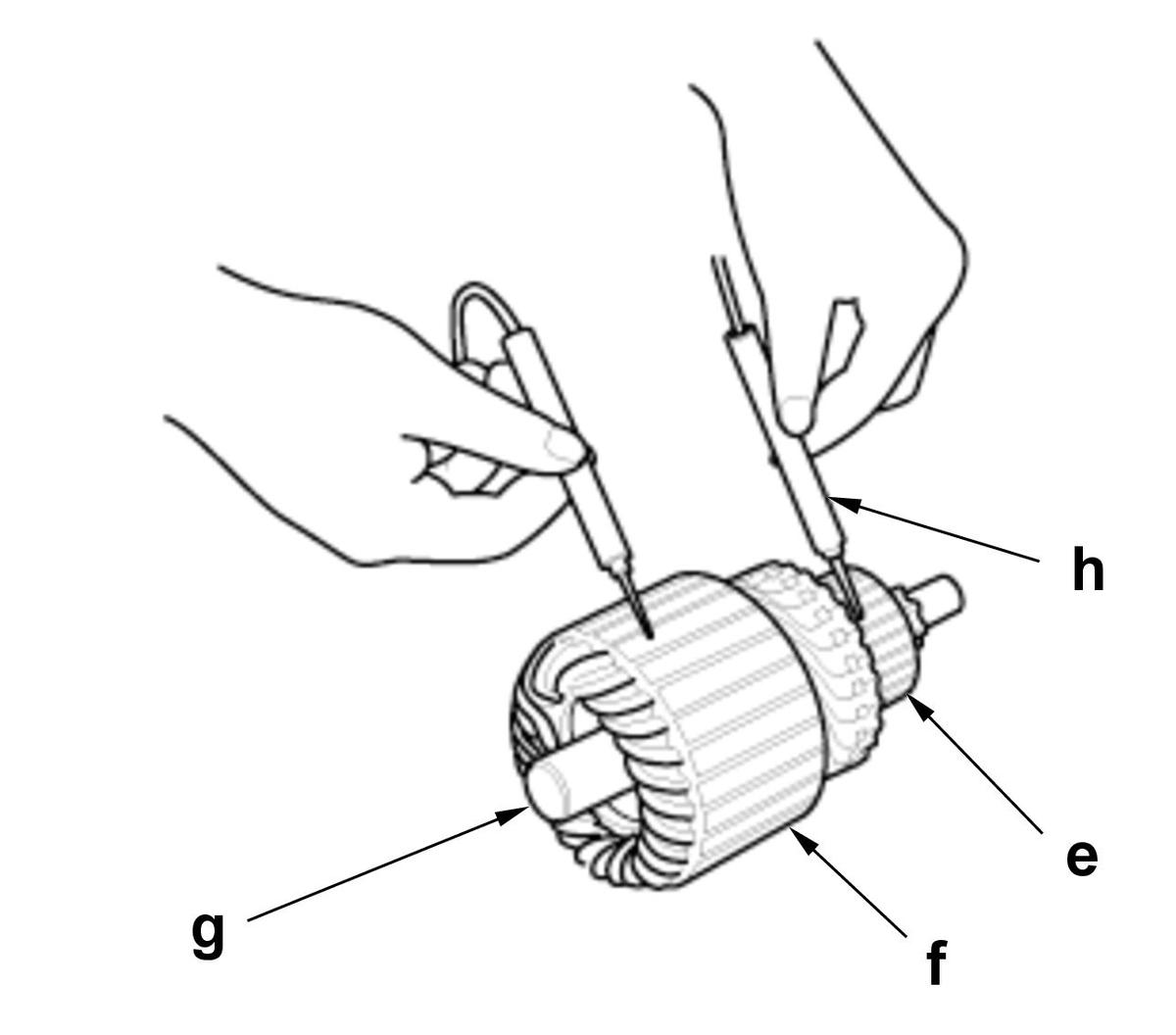

   3. Check for continuity between the commutator (e) and the armature coil core (f), and between the commutator and the armature shaft (g). (Figure 3)

   Tool Details (Figure 3)

   Name
   h	Ohmmeter

   Specifications

   Object	Specification
   Armature	No continuity

   Result

   • If it is abnormal, replace the armature.
5. Brush Holder Assembly - Inspect

   Preconditions

   • Brush Holder Assembly Removed

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

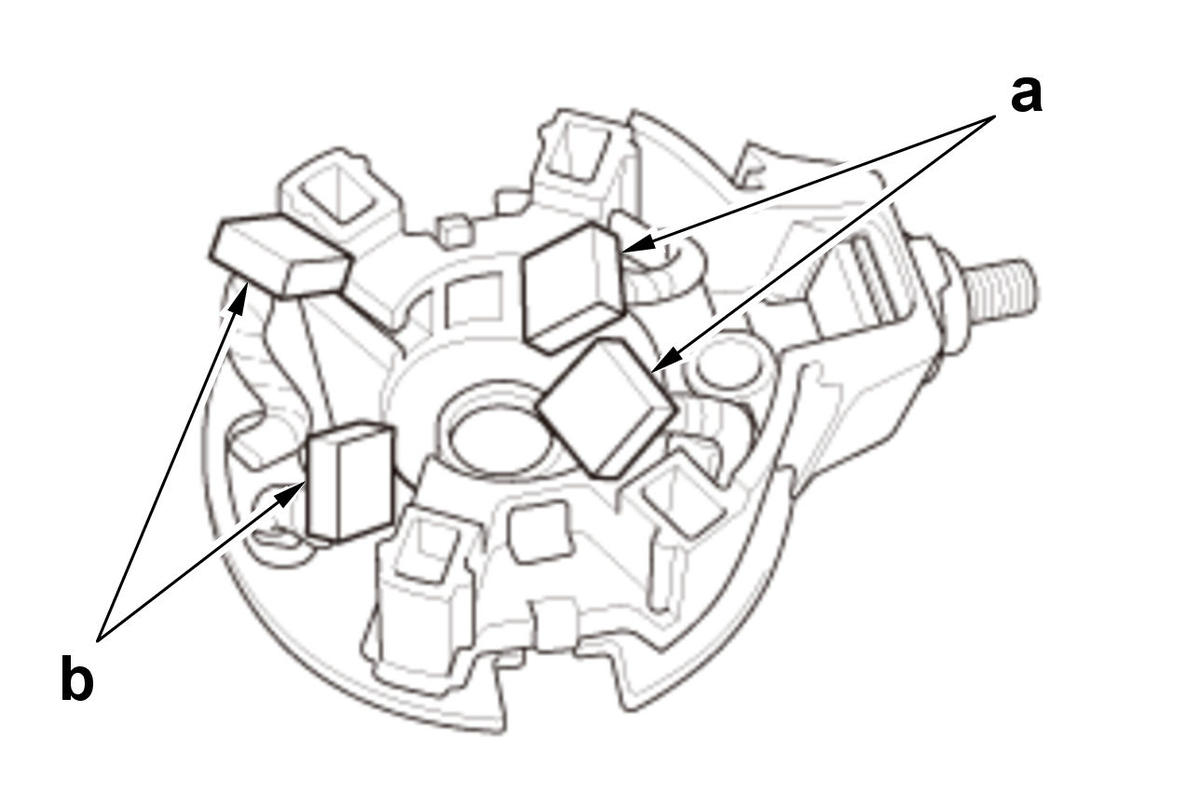

   • Check for continuity between the (+) brushes (a) and the (-) brushes (b).

   Specifications

   Object	Specification
   Brushes	No continuity

   Result

   • If it is abnormal, replace the brush holder assembly.
6. Brush - Inspect

   Preconditions

   • Armature Removed

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   • Measure the brush length.

   Tool Details

   Name
   a	Vernier Caliper

   Specifications

   Standard Value (New)	Service Limit
   11.1-11.5 mm (0.437-0.453 in)	4.3 mm (0.169 in)

   Result

   • If the measurement is not within specifications, replace the brush holder assembly.
7. Planetary Gear - Inspect

   Preconditions

   • Brush Holder Assembly Removed

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

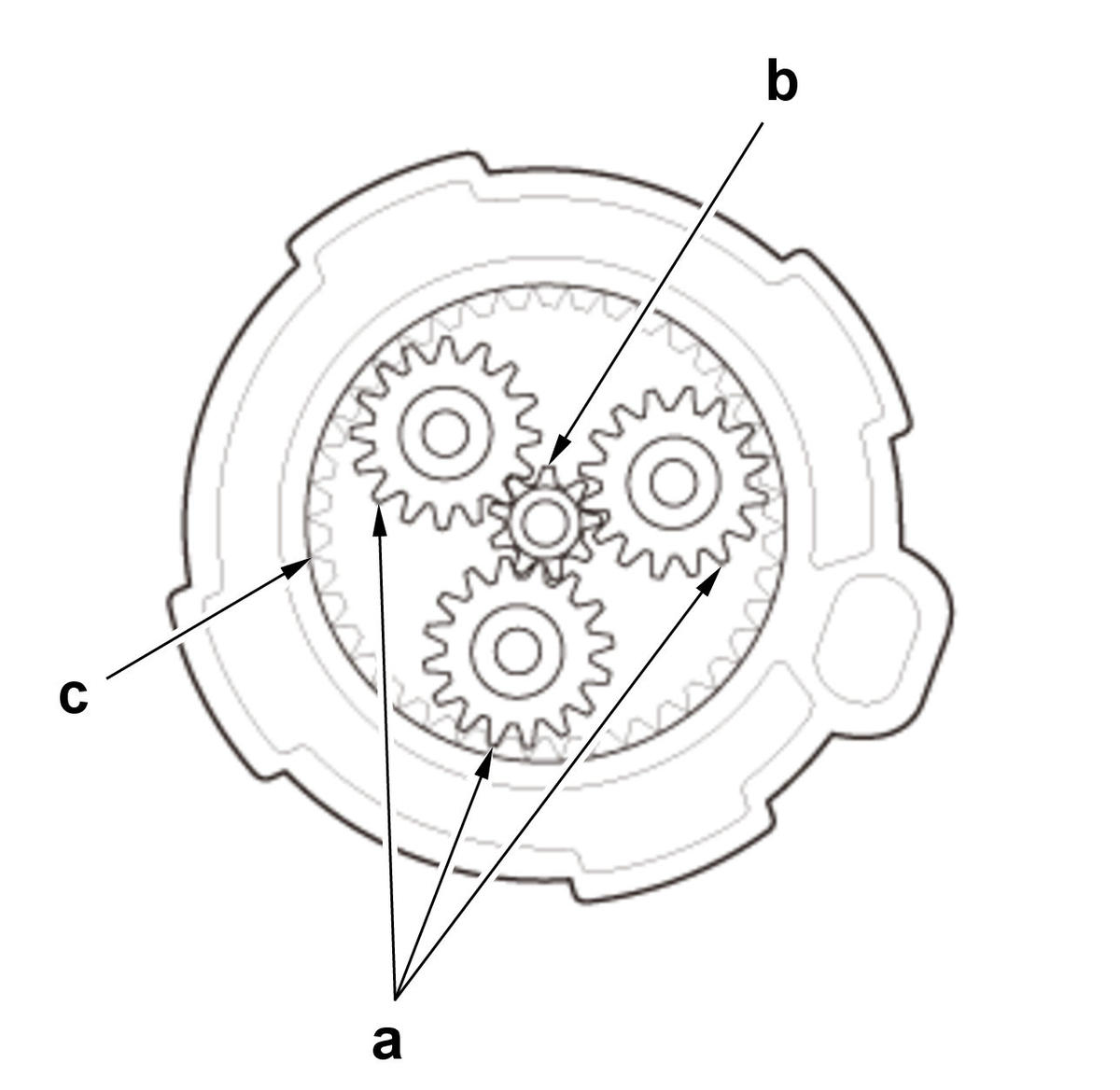

   • Check the planetary gears (a), the gear shaft (b), and the internal ring gear (c).

   Specifications

   Object	Specification
   Planetary gears	Not worn or damaged
   Gear shaft
   Internal ring gear

   Result

   • If it is abnormal, replace the planetary gear assembly .
8. Overrunning Clutch - Inspect

   Preconditions

   • Gear Cover Set Removed

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

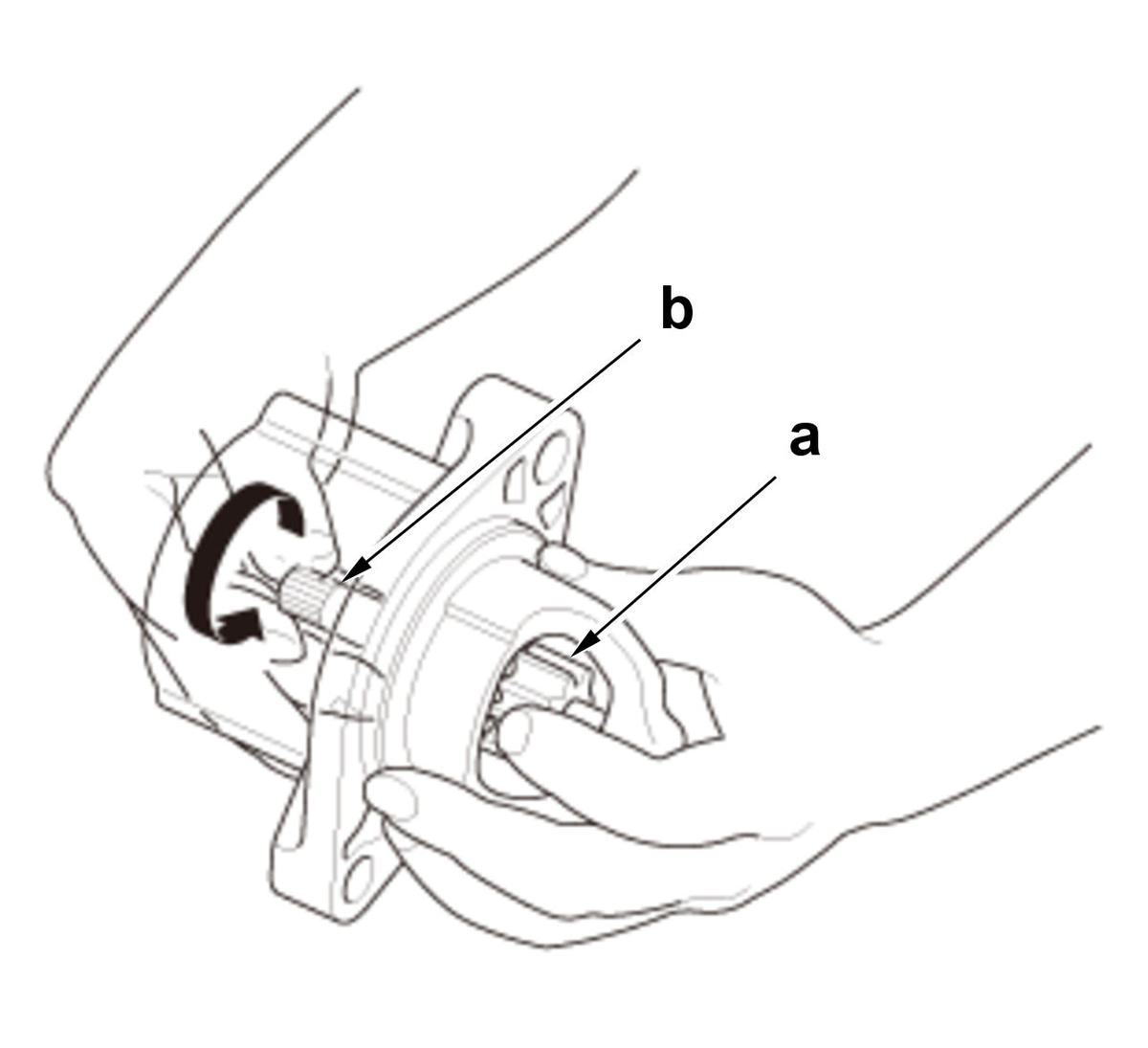

   1. Hold the drive gear (a), turn the gear shaft (b) counterclockwise. Check that the drive gear comes out to the other end.

   Specifications

   Object	Specification
   Overrunning clutch	Moves smoothly

   2. Hold the drive gear, turn the gear shaft clockwise. The gear shaft should turn freely.

   Specifications

   Object	Specification
   Overrunning clutch	Turns freely

   3. Check if the drive gear is worn or damaged.

   Specifications

   Object	Specification
   Drive gear	Not worn or damaged

   Result

   • If it is abnormal, replace the gear cover set.
