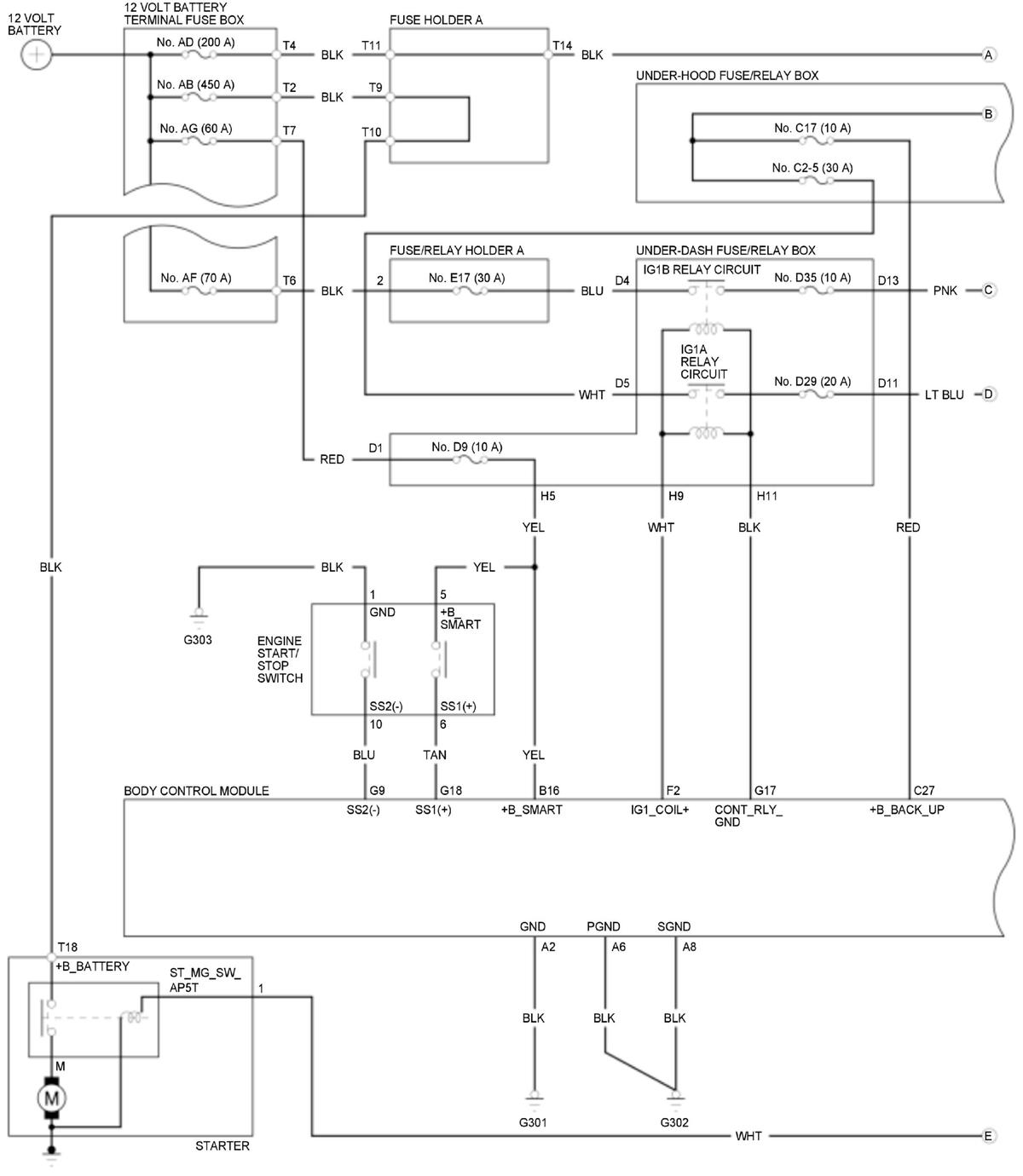

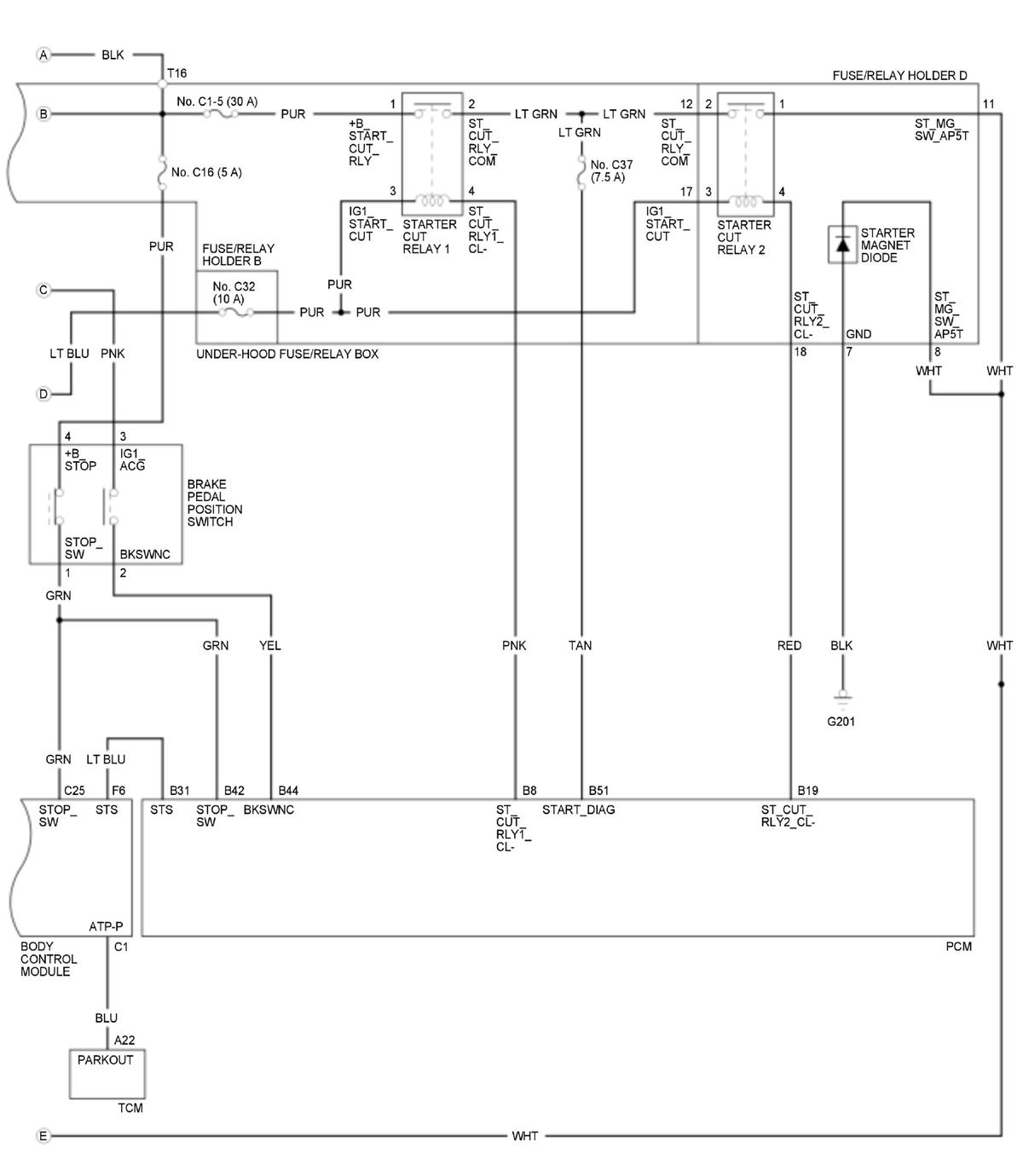

Starting System Circuit Diagram (3.0L Engine)

GHH487661

Courtesy of HONDA, U.S.A., INC.

GHH487662

Courtesy of HONDA, U.S.A., INC.
