Repair Procedure

How to use this manual .

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

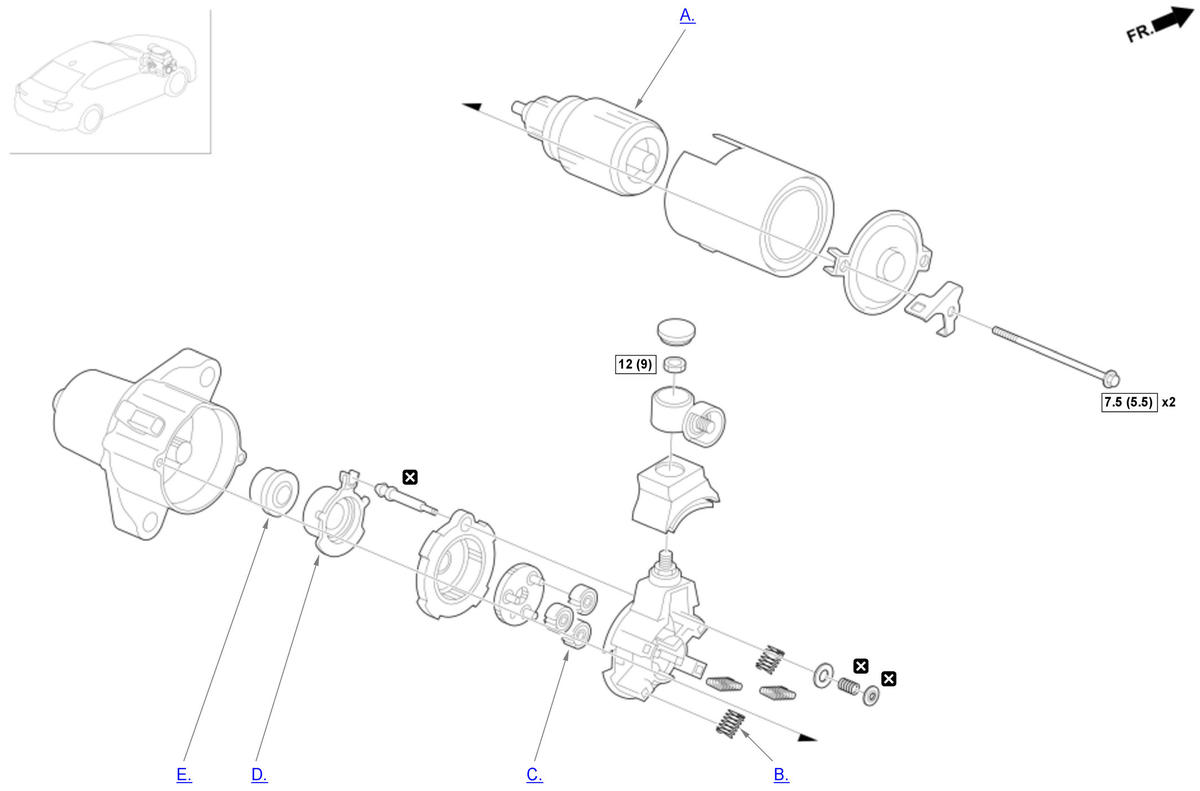

1. A.-

   Sub-Procedure

   Installation

   NOTE:

   • Do not wipe off the special grease applied.
   • To seat the new brushes, slip a strip of '500 or '600 sandpaper, with the grit side up, between the commutator and each brush, and smoothly turn the armature. The contact surface of the brushes will be sanded to the same contour as the commutator.
2. B.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Installation

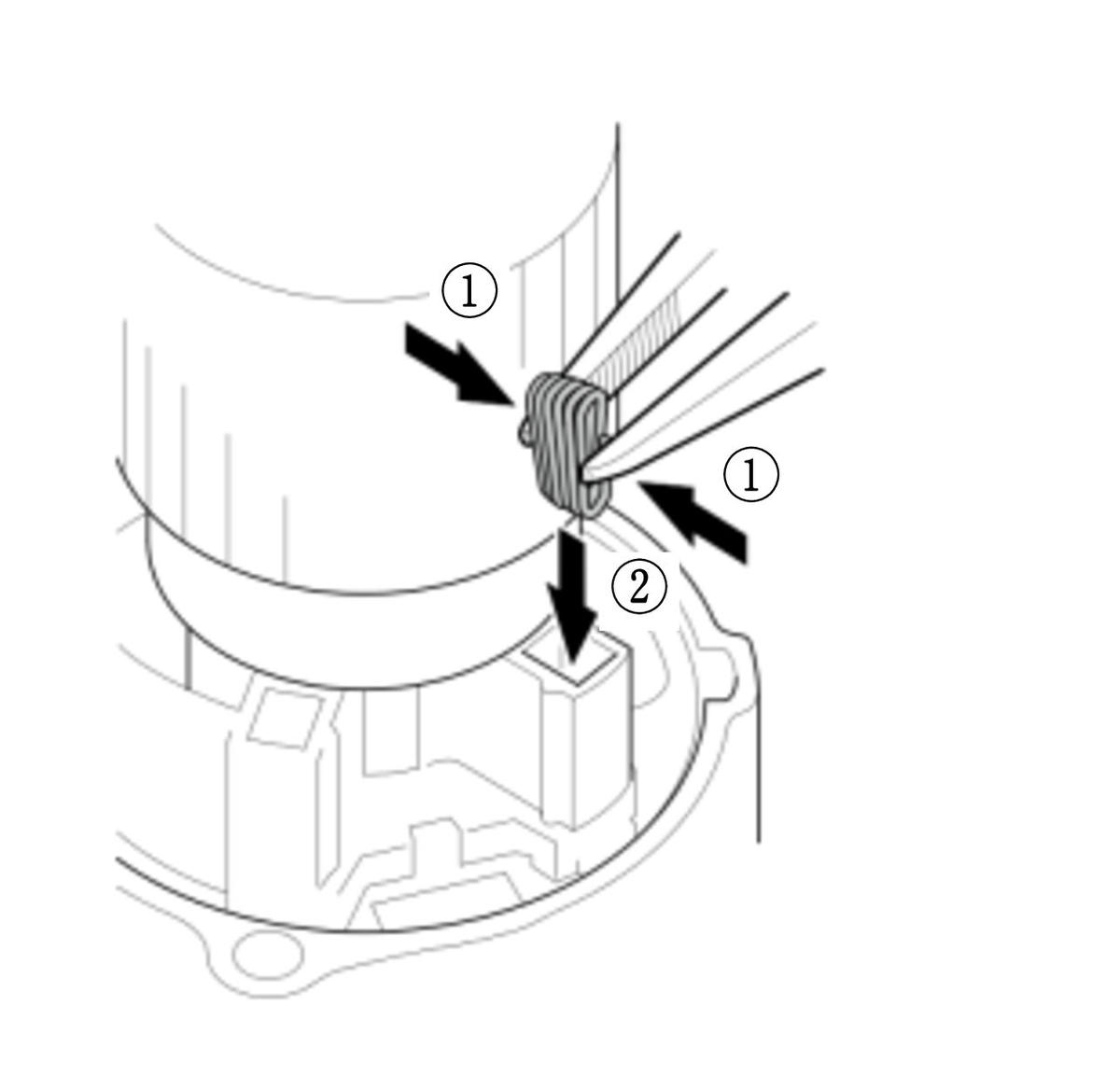

   • Insert the brush spring until it bottoms.
3. C.-

   Sub-Procedure

   NOTE:

   Do not wipe off the special grease applied.

4. D.-

   Sub-Procedure

   NOTE:

   Do not wipe off the special grease applied.

5. E.-

   Sub-Procedure

   NOTE:

   Do not wipe off the special grease applied.
